ASA44L-ANTXKX (2015)

Toyota Rav4

Production Oct 2015 - Jul 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )2AR#

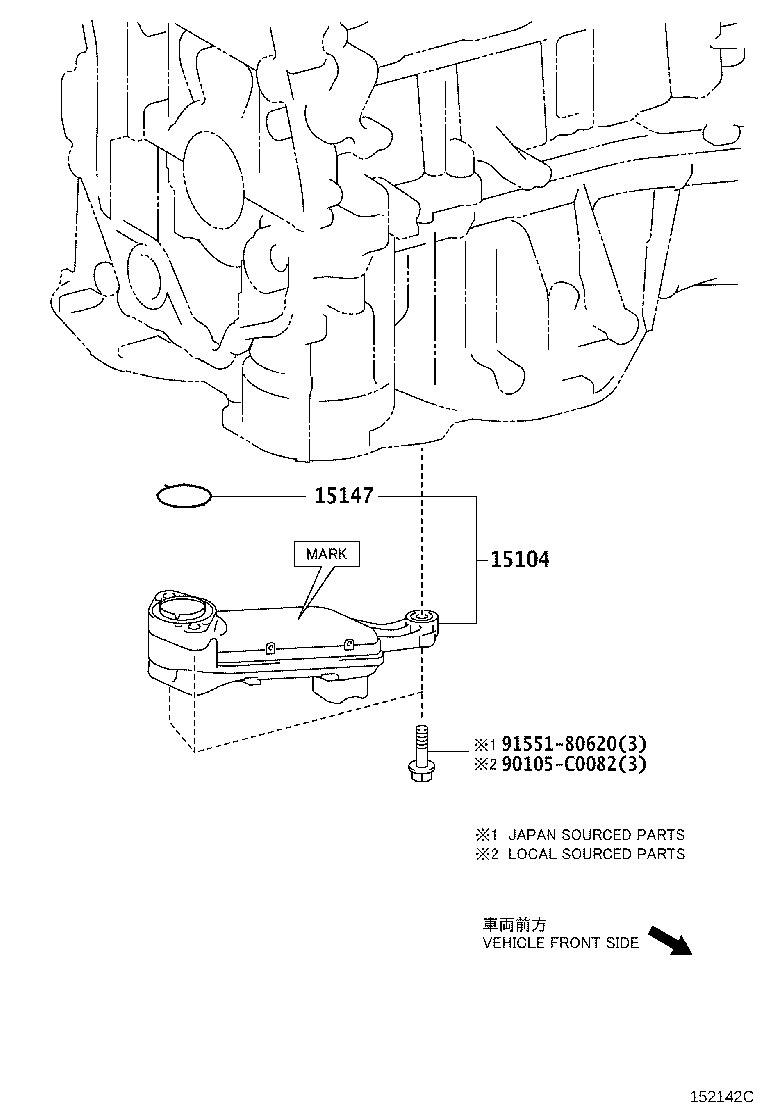

Click highlighted areas on diagram

diagram 15104 15147 90105C0082 9155180620
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-36030

2ARFE..ASA44..RUP;2ARFXE..AVA42..RUS;2ARFE..ASA44..JPP..X..RUS

*265 OR *524

 1
15147 - GASKET, OIL STRAINER
15147-36010

2ARFE..ASA44..RUP;2ARFXE..AVA42..RUS;2ARFE..ASA44..JPP..X..RUS

*265 OR *524

 1
Common parts
90105-C0082
91551-80620
