ASA44L-ANTMKX (2015)
Toyota Rav4
(1510- )ASA44..RUS ; (1708- )ASA44..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-42120C0 |
ALA49,ASA44,AVA4#,ZSA4#..(ATM,CVT)..M BLACK & SILVER,TRIM2# |
1 | ||
| 33504-42080C0 |
ALA49,ASA44,ZSA4#..(ATM,CVT)..X BLACK,TRIM2# |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-42230 |
ASA44..X..EUR;AVA42..LHD..EUR;ASA44..JPP..(G,M);ALA49,AVA44,ZSA4#..JPP..LHD..(ATM,CVT) |
1 | ||
| 33550-42230 |
AVA42..RUS;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP..(6FC,B) |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-42050 |
AVA42..EUR;ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..LHD..CVT;ALA49,AVA44,ZSA42..JPP..(ATM,CVT) |
1 | ||
| 33554-42050 |
AVA42..RUS;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP..(6FC,B) |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-42100 |
AVA42..RUS;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP..(6FC,B) |
1 | ||
| 33563-42100 |
ASA44..X..EUR;AVA42..LHD..EUR;ASA44..JPP..(G,M);ALA49,AVA44,ZSA4#..JPP..LHD..(ATM,CVT) |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-42370 |
ASA44..X..EUR;ASA44..JPP..(G,M) |
1 | ||
| 33820-42370 |
ASA44..RUP;ASA44..JPP..X..RUS |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08061 |
ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP..(6FC,B) |
1 | ||
| 90179-08061 |
ASA44..X..EUR;ASA44..JPP..(G,M);ALA49,ZSA4#..JPP..(6FC,B) |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-42040 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
1 | ||
| 33823-42040 |
ASA44..JPP..X..RUS;ALA49,ASA44..RUP..6FC |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-33010 |
AVA42..RUS;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP..(6FC,B) |
1 | ||
| 33866-33010 |
AVA42..EUR;ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..LHD..CVT;ALA49,AVA44,ZSA42..JPP..(ATM,CVT) |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-42060 |
AVA42..RUS;ASA44..RUP;ASA44..JPP..X..RUS |
1 | ||
| 35921-42060 |
ASA44..X..EUR;AVA42..LHD..EUR;ASA44,AVA44..JPP..LHD..(G,M) |
1 | ||
| 35952 - LENS, POSITION INDICATOR | ||||
| 35952-42020 |
AVA42..RUS;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP..(6FC,B) |
1 | ||
| 35952-42020 |
ASA44..X..EUR;AVA42..LHD..EUR;ASA44..JPP..(G,M);ALA49,AVA44,ZSA4#..JPP..LHD..(ATM,CVT) |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 35970-42130 |
ASA44..X..EUR;AVA42..LHD..EUR;ASA44,AVA44..JPP..LHD..(G,M) |
1 | ||
| 35970-42130 |
AVA42..RUS;ASA44..RUP;ASA44..JPP..X..RUS |
1 | ||
| 35971E - HOUSING, POSITION INDICATOR | ||||
| 35971-42050 |
AVA42..RUS;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP..(6FC,B) |
1 | ||
| 35971-42050 |
ASA44..X..EUR;AVA42..LHD..EUR;ASA44..JPP..(G,M);ALA49,AVA44,ZSA4#..JPP..LHD..(ATM,CVT) |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-42040 |
AVA42..RUS;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP..(6FC,B) |
1 | ||
| 35975-42040 |
AVA42..EUR;ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..LHD..CVT;ALA49,AVA44,ZSA42..JPP..(ATM,CVT) |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-42020 |
AVA42..RUS;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP..(6FC,B) |
1 | ||
| 35976-42020 |
AVA42..EUR;ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..LHD..CVT;ALA49,AVA44,ZSA42..JPP..(ATM,CVT) |
1 | ||
| Common parts | ||||
| 90119-08C56 | ||||
| 90468-14016 | ||||
| 91551-80614 | ||||
| 91611-B0816 | ||||

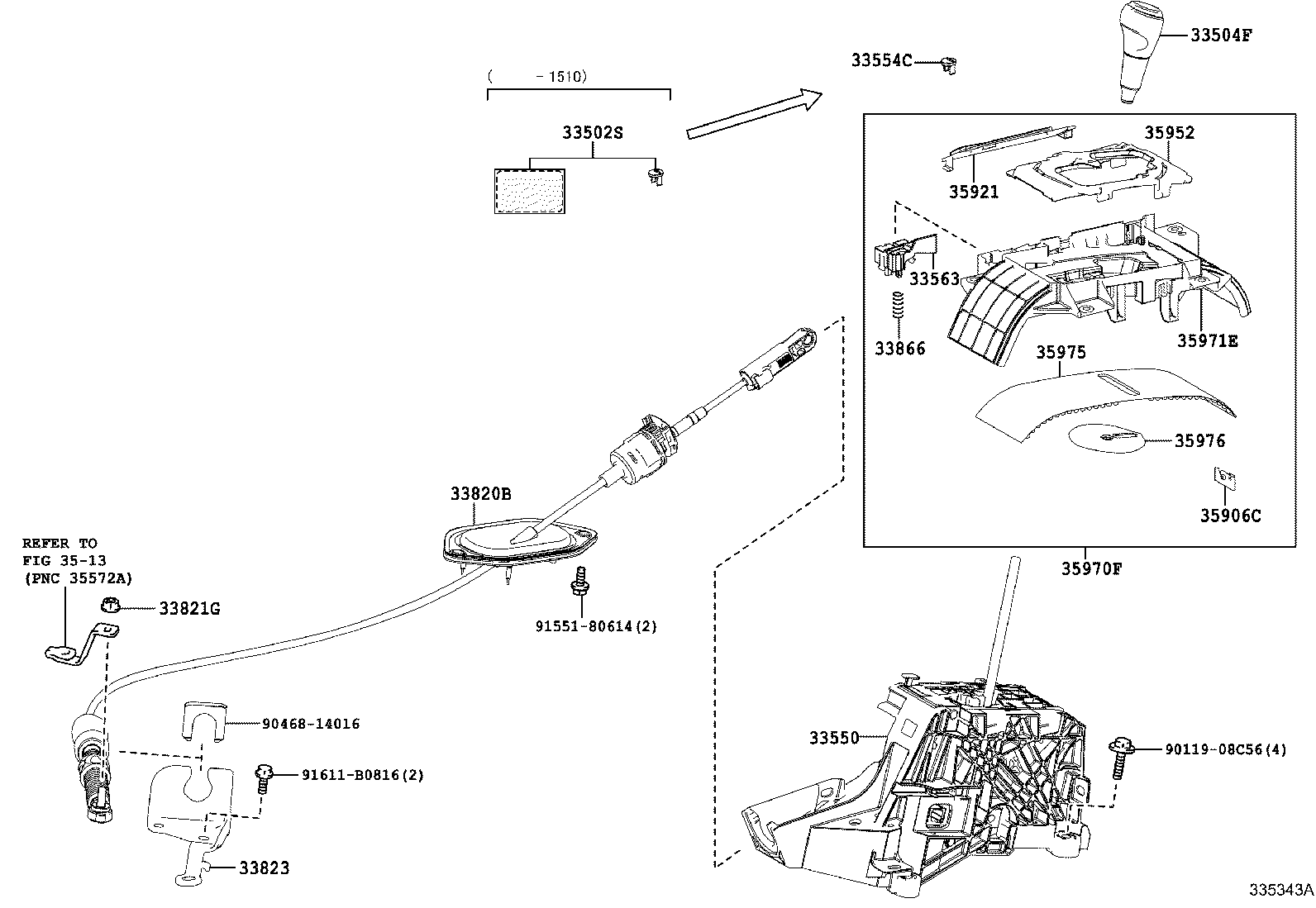

| Linked diagrams | ||||
| 3513 | ||||
