ASA44L-ANTGKX (2015)
Toyota Rav4
(1510- )ASA44
U760F

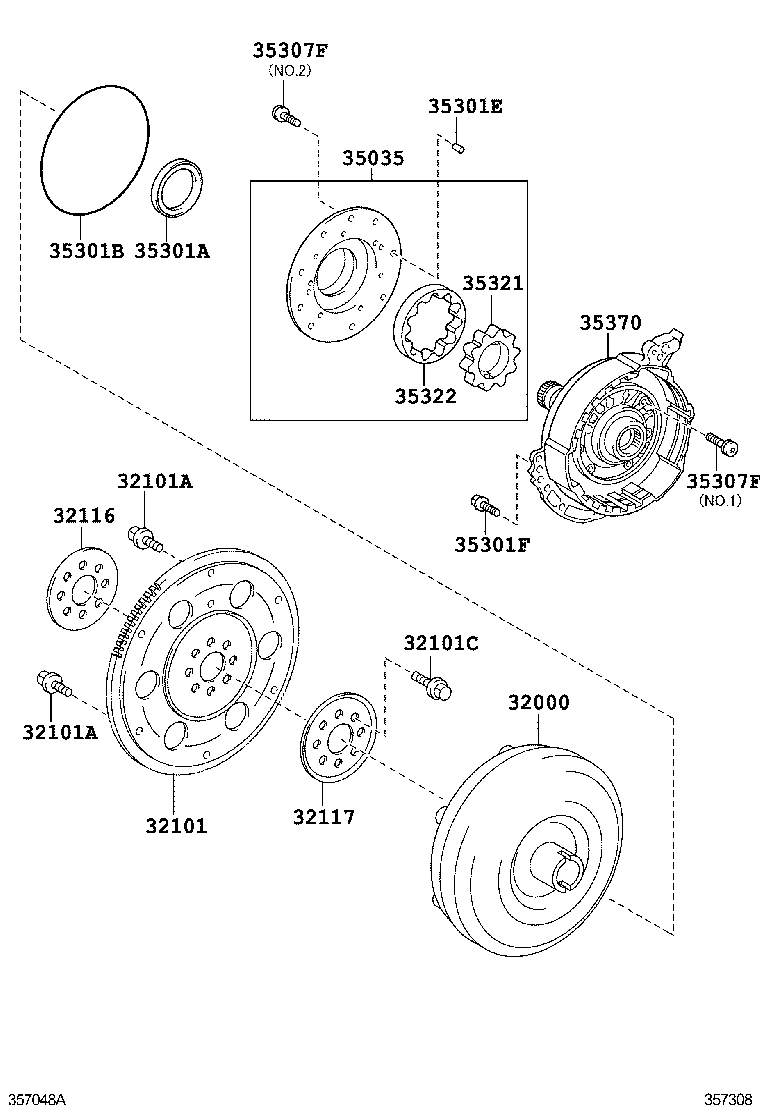

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-73013 |
ASA44..X..EUR;ASA44..JPP..(G,M) *284 |
1 | ||
| 32000-33143 |
ASA44..JPP..(G,M)..RUS *285 |
1 | ||
| 32000-33143 |
ASA44..JPP..X..RUS *285 |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-06060 |
ASA44..X..EUR;ASA44..JPP..(G,M) (L) |
1 | ||
| 32101-73010 |
ASA44..RUP;ASA44..JPP..X..RUS (J) |
1 | ||
| 32101-06060 |
ASA44..RUP;ASA44..JPP..X..RUS (L) |
1 | ||
| 32101-73010 |
ASA44..X..EUR;ASA44..JPP..(G,M) (J) |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-09001 |
ASA44..RUP;ASA44..JPP..X..RUS *9-1.25PX12.4-7.3,BLACK |
1 | ||
| 90119-09025 |
ASA44..X..EUR;ASA44..JPP..(G,M) *9-1.25PX12.4-8.4,SILVER WHITE |
5 | ||
| 90119-09025 |
ASA44..RUP;ASA44..JPP..X..RUS *9-1.25PX12.4-8.4,SILVER WHITE |
5 | ||
| 90109-09001 |
ASA44..X..EUR;ASA44..JPP..(G,M) *9-1.25PX12.4-7.3,BLACK |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-09001 |
ASA44..RUP;ASA44..JPP..X..RUS *9-1.25PX12.4-7.3,BLACK |
1 | ||
| 90119-09025 |
ASA44..X..EUR;ASA44..JPP..(G,M) *9-1.25PX12.4-8.4,SILVER WHITE |
5 | ||
| 90119-09025 |
ASA44..RUP;ASA44..JPP..X..RUS *9-1.25PX12.4-8.4,SILVER WHITE |
5 | ||
| 90109-09001 |
ASA44..X..EUR;ASA44..JPP..(G,M) *9-1.25PX12.4-7.3,BLACK |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-12384 |
ASA44..RUP;ASA44..JPP..X..RUS *12-1.25PX21-15 |
8 | ||
| 90105-12384 |
ASA44..X..EUR;ASA44..JPP..(G,M) *12-1.25PX21-15 |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-20050 |
ASA44..X..EUR;ASA44..JPP..(G,M) |
1 | ||
| 32116-20050 |
ASA44..RUP;ASA44..JPP..X..RUS |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-06010 |
ASA44..X..EUR;ASA44..JPP..(G,M) (L) |
1 | ||
| 32117-06010 |
ASA44..RUP;ASA44..JPP..X..RUS (L) |
1 | ||
| 32117-20060 |
ASA44..RUP;ASA44..JPP..X..RUS (J) |
1 | ||
| 32117-20060 |
ASA44..X..EUR;ASA44..JPP..(G,M) (J) |
1 | ||
| 35035 - BODY SUB-ASSY, FR OIL PUMP & GEAR | ||||
| 35035-33043 |
ASA44..JPP *285 |
1 | ||
| 35035-73013 |
ASA44..X..EUR;ASA44..JPP..(G,M) *284 |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-43010 |
ASA44..JPP..X..RUS;ALA49,ASA44..RUP..6FC |
1 | ||
| 90311-43010 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 35697-33010 |
ASA44..JPP..X..RUS;ALA49,ASA44..RUP..6FC |
1 | ||
| 35697-33010 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
1 | ||
| 35301E - PIN, STRAIGHT (FOR FRONT OIL PUMP) | ||||
| 90250-08052 |
ASA44..X..EUR;ASA44..JPP..(G,M) |
2 | ||
| 90250-08052 |
ASA44..RUP;ASA44..JPP..X..RUS |
2 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 91551-80835 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) *8-1.25PX35-22 |
7 | ||
| 91551-80835 |
ASA44..JPP..X..RUS;ALA49,ASA44..RUP..6FC *8-1.25PX35-22 |
7 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90148-60067 |
ASA44..X..EUR;ASA44..JPP..(G,M) NO.1 |
7 | ||
| 90148-60068 |
ASA44..X..EUR;ASA44..JPP..(G,M) NO.2 |
9 | ||
| 90148-60068 |
ASA44..RUP;ASA44..JPP..X..RUS NO.2 |
9 | ||
| 90148-60067 |
ASA44..RUP;ASA44..JPP..X..RUS NO.1 |
7 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90148-60067 |
ASA44..X..EUR;ASA44..JPP..(G,M) NO.1 |
7 | ||
| 90148-60068 |
ASA44..X..EUR;ASA44..JPP..(G,M) NO.2 |
9 | ||
| 90148-60068 |
ASA44..RUP;ASA44..JPP..X..RUS NO.2 |
9 | ||
| 90148-60067 |
ASA44..RUP;ASA44..JPP..X..RUS NO.1 |
7 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-73050 |
ASA44..RUP;ASA44..JPP..X..RUS T=11.567,MARK 5 |
1 | ||
| 35321-73020 |
ASA44..X..EUR;ASA44..JPP..(G,M) T=11.567,MARK 2 |
1 | ||
| 35321-73040 |
ASA44..X..EUR;ASA44..JPP..(G,M) T=11.567,MARK 4 |
1 | ||
| 35321-73010 |
ASA44..X..EUR;ASA44..JPP..(G,M) T=11.567,MARK 1 |
1 | ||
| 35321-73030 |
ASA44..X..EUR;ASA44..JPP..(G,M) T=11.567,MARK 3 |
1 | ||
| 35321-73050 |
ASA44..X..EUR;ASA44..JPP..(G,M) T=11.567,MARK 5 |
1 | ||
| 35321-73030 |
ASA44..RUP;ASA44..JPP..X..RUS T=11.567,MARK 3 |
1 | ||
| 35321-73040 |
ASA44..RUP;ASA44..JPP..X..RUS T=11.567,MARK 4 |
1 | ||
| 35321-73020 |
ASA44..RUP;ASA44..JPP..X..RUS T=11.567,MARK 2 |
1 | ||
| 35321-73010 |
ASA44..RUP;ASA44..JPP..X..RUS T=11.567,MARK 1 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-73010 |
ASA44..X..EUR;ASA44..JPP..(G,M) T=11.567,MARK 1 |
1 | ||
| 35322-73020 |
ASA44..X..EUR;ASA44..JPP..(G,M) T=11.567,MARK 2 |
1 | ||
| 35322-73050 |
ASA44..X..EUR;ASA44..JPP..(G,M) T=11.567,MARK 5 |
1 | ||
| 35322-73030 |
ASA44..X..EUR;ASA44..JPP..(G,M) T=11.567,MARK 3 |
1 | ||
| 35322-73040 |
ASA44..X..EUR;ASA44..JPP..(G,M) T=11.567,MARK 4 |
1 | ||
| 35322-73030 |
ASA44..RUP;ASA44..JPP..X..RUS T=11.567,MARK 3 |
1 | ||
| 35322-73050 |
ASA44..RUP;ASA44..JPP..X..RUS T=11.567,MARK 5 |
1 | ||
| 35322-73020 |
ASA44..RUP;ASA44..JPP..X..RUS T=11.567,MARK 2 |
1 | ||
| 35322-73040 |
ASA44..RUP;ASA44..JPP..X..RUS T=11.567,MARK 4 |
1 | ||
| 35322-73010 |
ASA44..RUP;ASA44..JPP..X..RUS T=11.567,MARK 1 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-73013 |
ASA44..X..EUR;ASA44..JPP..(G,M) *284 |
1 | ||
| 35370-33043 |
ASA44..JPP *285 |
1 | ||
