ALA49R-ANTXXW (2012)
Toyota Rav4

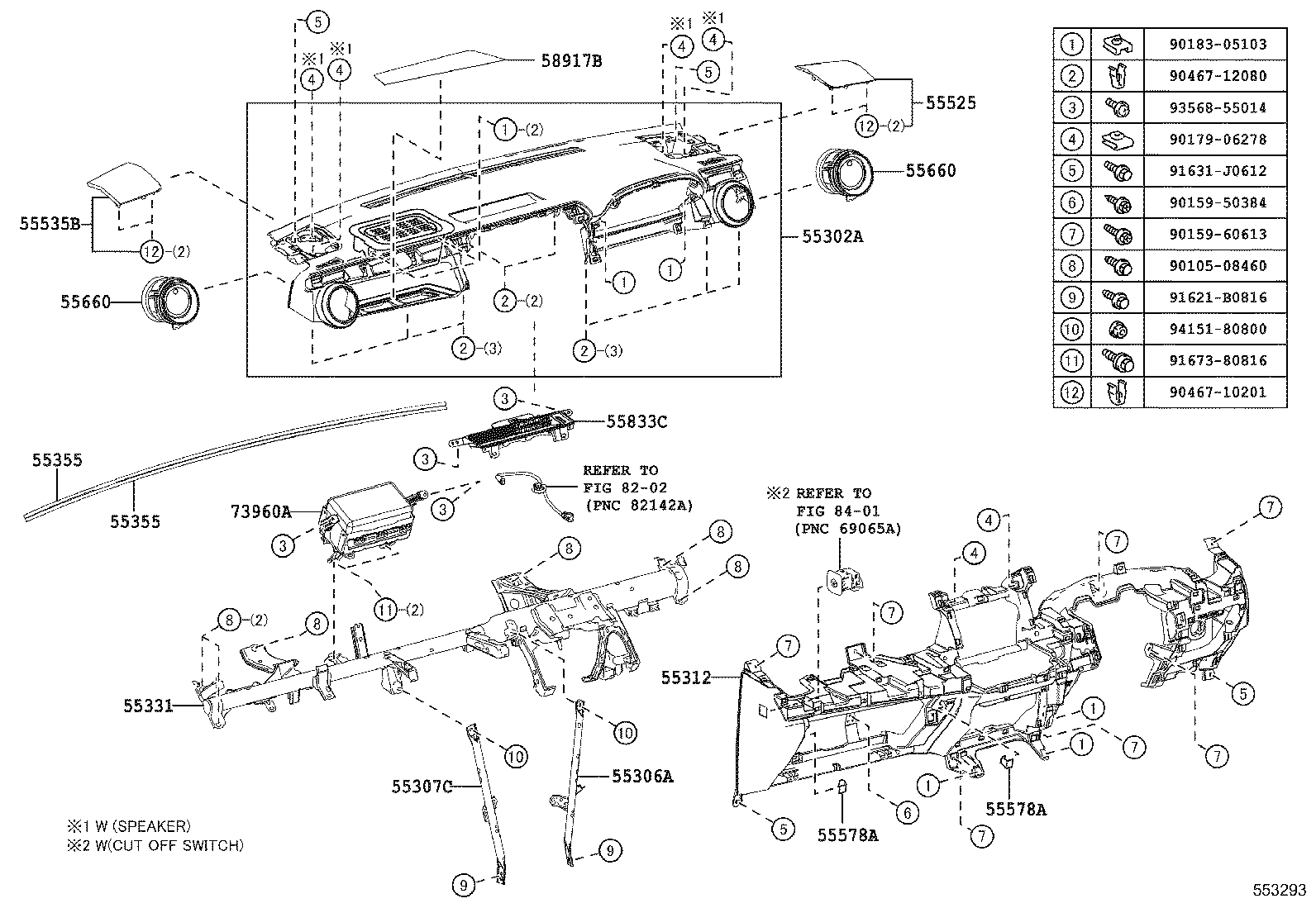

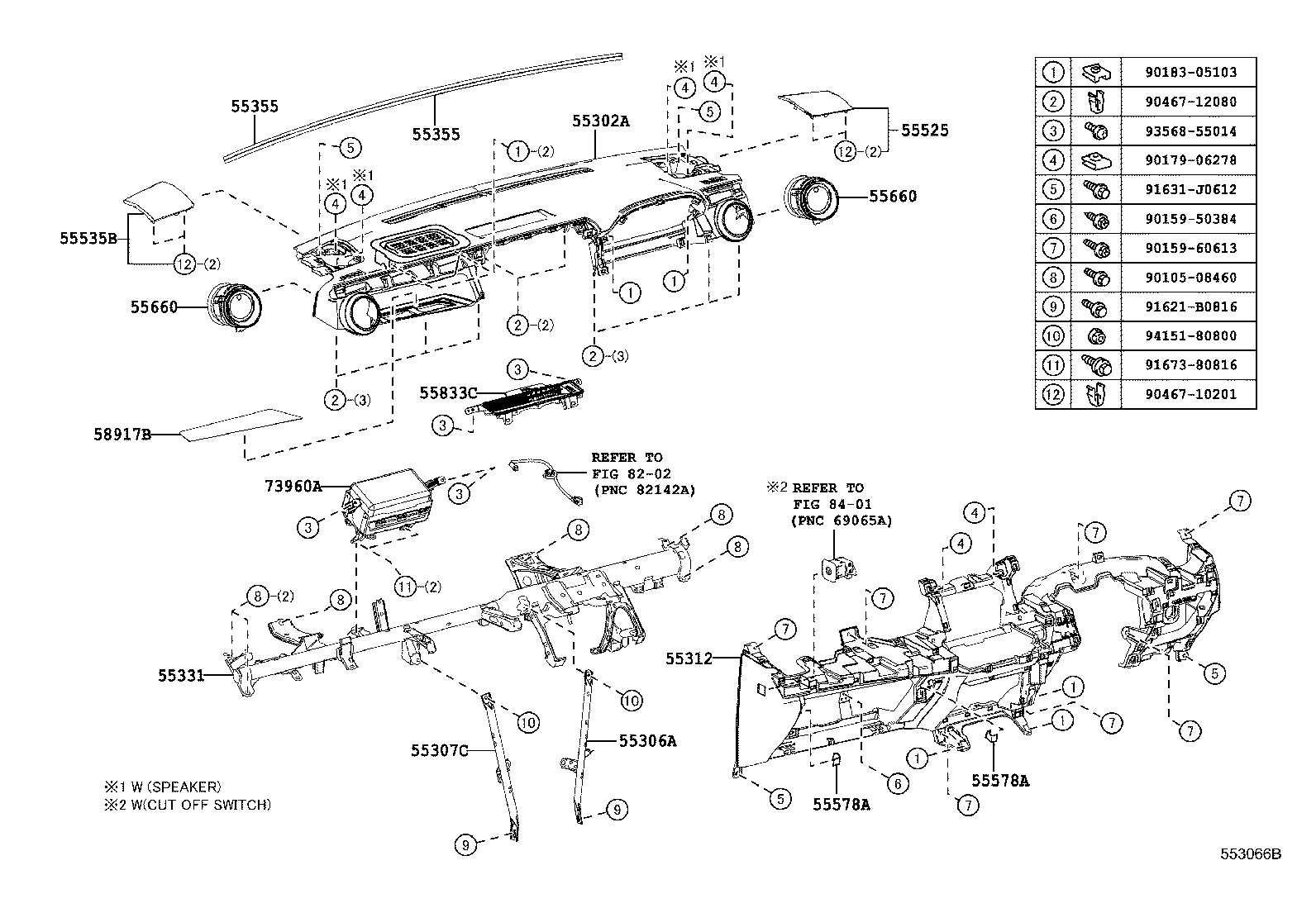

ILLUST NO. 1 OF 2(1212-1404)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-42907C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55302-42907C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55302-42905C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55302-42905C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-42140 |
ALA4#,ZSA44..RHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-42080 |
ALA4#,ZSA44..RHD |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-42070C0 |
ALA49,ZSA44..RHD..6F..X..(DCR,HTWVM) NEW ZEALAND SPEC,BLACK,TRIM2# |
1 | ||
| 55312-42080C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55312-42070C0 |
ALA49..RHD..6FC..X..DCR NEW ZEALAND SPEC,BLACK,TRIM2# |
1 | ||
| 55312-42080C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55312-42070C0 |
ALA49..RHD..X..DCR AUSTRALIA SPEC,BLACK,TRIM2# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-42270 |
ALA4#,ZSA44..RHD |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-42030 |
ALA4#,ZSA44..RHD |
2 | ||
| 55355-42030 |
ALA4#,ZSA44..RHD |
4 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-42030 |
ALA4#,ZSA44..RHD |
2 | ||
| 55355-42030 |
ALA4#,ZSA44..RHD |
4 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55525-42010C0 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55510-42010C0 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) AUDIO-W/O(AUDIO&SPEAKER),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55525-42010C0 |
ALA49..RHD..6F..X..DCR AUDIO-*DX*DA&USB&*BT&6SPEAKER,BLACK,TRIM2# |
1 | ||
| 55510-42010C0 |
ALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
1 | ||
| 55525-42010C0 |
ALA49,ZSA44..RHD..(6F,6FC)..X AUDIO-6SPEAKER(AUDIO LESS),BLACK,TRIM2# |
1 | ||
| 55525-42010C0 |
ALA49..RHD..X..DCR AUDIO-13MM *DA W(CD & USB & *BT),BLACK,TRIM2# |
1 | ||
| 55525-42010C0 |
ALA49..RHD..X..DCR AUDIO-13MM *DA(*DLX) W(CD & USB & *BT),BLACK,TRIM2# |
1 | ||
| 55535B - COVER, SPEAKER HOLE, NO.2 | ||||
| 55535-42010C0 |
ALA49..RHD..6F..X..DCR AUDIO-*DX*DA&USB&*BT&6SPEAKER,BLACK,TRIM2# |
1 | ||
| 55535-42010C0 |
ALA49,ZSA44..RHD..(6F,6FC)..X AUDIO-6SPEAKER(AUDIO LESS),BLACK,TRIM2# |
1 | ||
| 55530-42010C0 |
ALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
1 | ||
| 55535-42010C0 |
ALA49..RHD..X..DCR AUDIO-13MM *DA W(CD & USB & *BT),BLACK,TRIM2# |
1 | ||
| 55530-42010C0 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) AUDIO-W/O(AUDIO&SPEAKER),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55535-42010C0 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55535-42010C0 |
ALA49..RHD..X..DCR AUDIO-13MM *DA(*DLX) W(CD & USB & *BT),BLACK,TRIM2# |
1 | ||
| 55578A - SILENCER, GLOVE COMPARTMENT DOOR | ||||
| 55578-52040 |
ALA4#,ZSA44 |
2 | ||
| 55578A - SILENCER, GLOVE COMPARTMENT DOOR | ||||
| 55578-52040 |
ALA4#,ZSA44 |
2 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-42030C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 55660-42030C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
4 | ||
| 55660-42060 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..M..EUR SPECIAL EDITION |
2 | ||
| 55660-42030C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
2 | ||
| 55660-42030C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
4 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-42030C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 55660-42030C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
4 | ||
| 55660-42060 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..M..EUR SPECIAL EDITION |
2 | ||
| 55660-42030C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
2 | ||
| 55660-42030C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
4 | ||
| 55833C - CONNECTOR, INSTRUMENT PANEL REGISTER, CENTER | ||||
| 55833-42020C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55833-42020C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 58917B - MAT, BOX BOTTOM | ||||
| 58917-42020 |
ALA4#,ZSA44..RHD |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-42060 |
ALA4#,ZSA44..RHD |
1 | ||
| 73960-42061 |
ALA4#,ZSA44..RHD |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90159-50384 | ||||
| 90159-60613 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-10201 | ||||
| 90467-12080 | ||||
| 91621-B0816 | ||||
| 91631-J0612 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

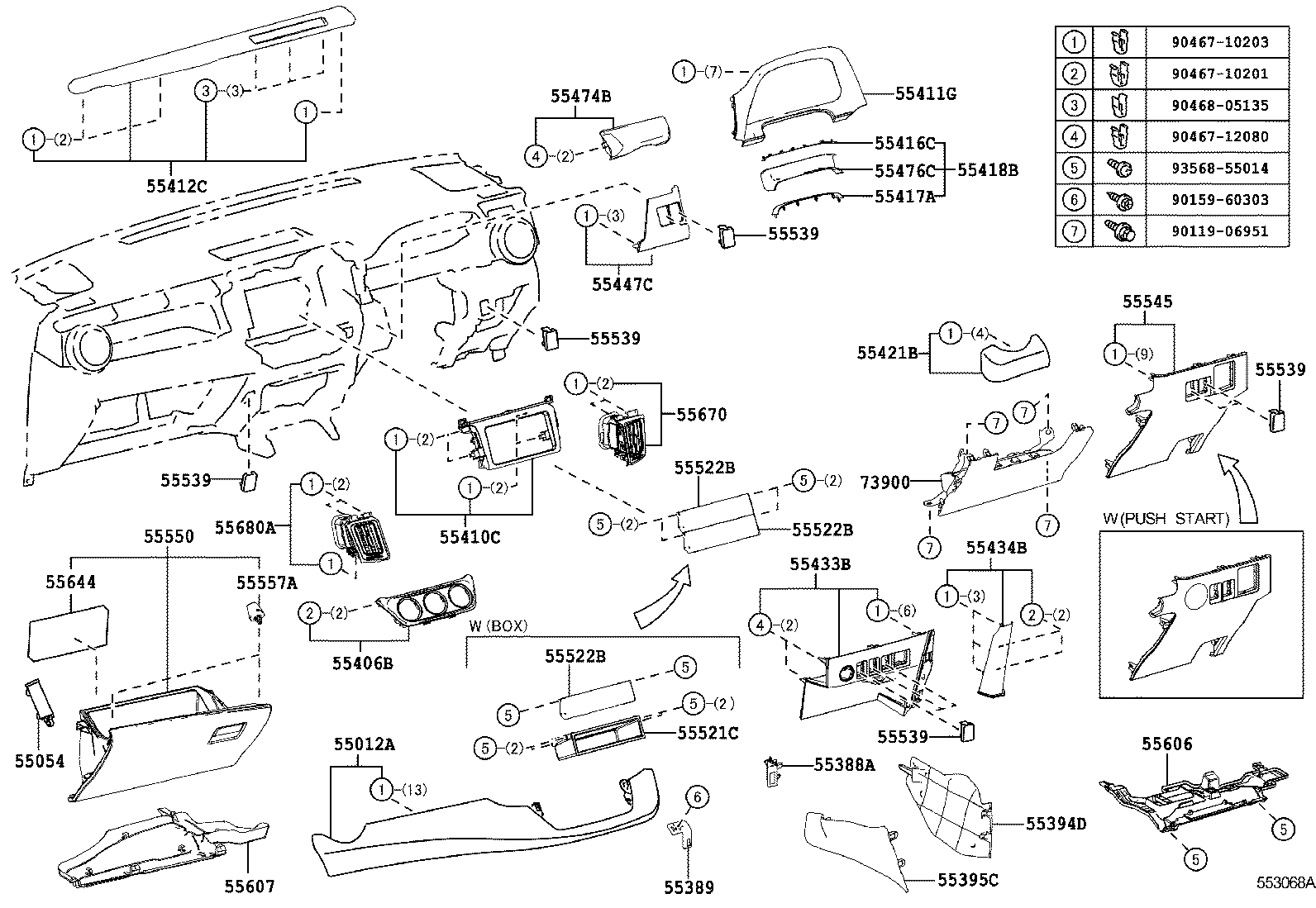

ILLUST NO. 2 OF 2(1212- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-42050A1 |
ALA4#,ZSA44..RHD..(G,M) BEIGE,TRIM4# |
1 | ||
| 55012-42040C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55012-42050C1 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM2# |
1 | ||
| 55012-42050D1 |
ALA4#,ZSA44..RHD..(G,M) TERRACOTTA,TRIM3# |
1 | ||
| 55012-42050B1 |
ALA4#,ZSA44..RHD..(G,M) GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-33060 |
ALA4#,ZSA44 |
1 | ||
| 55388A - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-42020 |
ALA4#,ZSA44..RHD |
1 | ||
| 55389 - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-42020 |
ALA4#,ZSA44..RHD |
1 | ||
| 55394D - COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 RH | ||||
| 55394-42040C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55394-42040C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55395C - COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 LH | ||||
| 55395-42021C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55395-42021C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-42050 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 55406-42050 |
ALA4#,ZSA44..RHD..X |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-42140 |
ALA40,41..RHD..(G,M);ZSA44..RHD..A..(G,M);ALA49,ZSA44..RHD..(6F,6FC) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 55410-42140 |
ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM) AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| 55410-42140 |
ALA4#,ZSA44..RHD..X AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-42180 |
ALA4#,ZSA44..RHD..M SPECIAL EDITION |
1 | ||
| 55411-42080 |
ALA4#,ZSA44..RHD |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-42080 |
ALA4#,ZSA44..RHD |
1 | ||
| 55412-42140 |
ALA4#,ZSA44..RHD..M SPECIAL EDITION |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-42030 |
ALA4#,ZSA44..RHD |
1 | ||
| 55417A - RETAINER, METER HOOD, NO.2 | ||||
| 55417-42030 |
ALA4#,ZSA44 |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-42020 |
ALA4#,ZSA44..RHD |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-42140C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55421-42150B1 |
ALA4#,ZSA44..RHD..(G,M) GRAY,TRIM1# |
1 | ||
| 55421-42150A1 |
ALA4#,ZSA44..RHD..(G,M) BEIGE,TRIM4# |
1 | ||
| 55421-42150C1 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM2# |
1 | ||
| 55421-42150D1 |
ALA4#,ZSA44..RHD..(G,M) TERRACOTTA,TRIM3# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-42040C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55433-42040C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55433-42050C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55433-42051C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55433-42051C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55433-42050C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-42080 |
ALA4#,ZSA44..RHD..M SPECIAL EDITION |
1 | ||
| 55434-42020 |
ALA4#,ZSA44..RHD |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-42020C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55447-42020C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-42040 |
ALA4#,ZSA44..RHD |
1 | ||
| 55474-42100 |
ALA4#,ZSA44..RHD..M SPECIAL EDITION |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-42040 |
ALA4#,ZSA44..RHD |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55521-20150 |
ALA49..RHD..X..DCR AUSTRALIA SPEC&AUDIO-6SPEAKER(AUDIO LESS) |
2 | ||
| 55521-20150 |
ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM) ENGLAND SPEC&AUDIO-W/O(AUDIO&SPEAKER) |
2 | ||
| 55521-20150 |
ZSA44..RHD..A..X;ALA49..RHD..X..DCR AUDIO-6SPEAKER(AUDIO LESS) |
2 | ||
| 55521-20150 |
ALA4#..G,M;ZSA44..RHD..6F;ZSA44..A..(G,M);ZSA44..LHD..6F..(G,M);ALA49..RHD..X..(DCRE,DCRL) AUDIO-6SPEAKER(AUDIO LESS) |
2 | ||
| 55521-20150 |
ALA49..RHD..X..DCR NEW ZEALAND SPEC&AUDIO-6SPEAKER(AUDIO LESS) |
2 | ||
| 55521-20150 |
ALA4#,ZSA44..X AUDIO-4SPEAKER(AUDIO LESS) |
2 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55521-20150 |
ALA49..RHD..X..DCR AUSTRALIA SPEC&AUDIO-6SPEAKER(AUDIO LESS) |
2 | ||
| 55521-20150 |
ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM) ENGLAND SPEC&AUDIO-W/O(AUDIO&SPEAKER) |
2 | ||
| 55521-20150 |
ZSA44..RHD..A..X;ALA49..RHD..X..DCR AUDIO-6SPEAKER(AUDIO LESS) |
2 | ||
| 55521-20150 |
ALA4#..G,M;ZSA44..RHD..6F;ZSA44..A..(G,M);ZSA44..LHD..6F..(G,M);ALA49..RHD..X..(DCRE,DCRL) AUDIO-6SPEAKER(AUDIO LESS) |
2 | ||
| 55521-20150 |
ALA49..RHD..X..DCR NEW ZEALAND SPEC&AUDIO-6SPEAKER(AUDIO LESS) |
2 | ||
| 55521-20150 |
ALA4#,ZSA44..X AUDIO-4SPEAKER(AUDIO LESS) |
2 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55521-20150 |
ALA49..RHD..X..DCR AUSTRALIA SPEC&AUDIO-6SPEAKER(AUDIO LESS) |
2 | ||
| 55521-20150 |
ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM) ENGLAND SPEC&AUDIO-W/O(AUDIO&SPEAKER) |
2 | ||
| 55521-20150 |
ZSA44..RHD..A..X;ALA49..RHD..X..DCR AUDIO-6SPEAKER(AUDIO LESS) |
2 | ||
| 55521-20150 |
ALA4#..G,M;ZSA44..RHD..6F;ZSA44..A..(G,M);ZSA44..LHD..6F..(G,M);ALA49..RHD..X..(DCRE,DCRL) AUDIO-6SPEAKER(AUDIO LESS) |
2 | ||
| 55521-20150 |
ALA49..RHD..X..DCR NEW ZEALAND SPEC&AUDIO-6SPEAKER(AUDIO LESS) |
2 | ||
| 55521-20150 |
ALA4#,ZSA44..X AUDIO-4SPEAKER(AUDIO LESS) |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
ALA4#,ZSA44..X BLACK,TRIM2# |
1 | ||
| 55539-52070C0 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55539-52070C0 |
ALA40,49,ZSA44..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55539-52070C0 |
ALA49..RHD..M;ZSA44..LHD..A;ZSA44..RHD..A..M;ALA49..6F..G..DCR;ALA49..RHD..G..DCRE;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL);ALA49..LHD..6FC..G..DCR;ALA40,ZSA44..LHD..6F..X;ALA40,41,ZSA44..6F..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
ALA4#,ZSA44..X BLACK,TRIM2# |
1 | ||
| 55539-52070C0 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55539-52070C0 |
ALA40,49,ZSA44..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55539-52070C0 |
ALA49..RHD..M;ZSA44..LHD..A;ZSA44..RHD..A..M;ALA49..6F..G..DCR;ALA49..RHD..G..DCRE;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL);ALA49..LHD..6FC..G..DCR;ALA40,ZSA44..LHD..6F..X;ALA40,41,ZSA44..6F..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
ALA4#,ZSA44..X BLACK,TRIM2# |
1 | ||
| 55539-52070C0 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55539-52070C0 |
ALA40,49,ZSA44..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55539-52070C0 |
ALA49..RHD..M;ZSA44..LHD..A;ZSA44..RHD..A..M;ALA49..6F..G..DCR;ALA49..RHD..G..DCRE;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL);ALA49..LHD..6FC..G..DCR;ALA40,ZSA44..LHD..6F..X;ALA40,41,ZSA44..6F..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
ALA4#,ZSA44..X BLACK,TRIM2# |
1 | ||
| 55539-52070C0 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55539-52070C0 |
ALA40,49,ZSA44..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55539-52070C0 |
ALA49..RHD..M;ZSA44..LHD..A;ZSA44..RHD..A..M;ALA49..6F..G..DCR;ALA49..RHD..G..DCRE;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL);ALA49..LHD..6FC..G..DCR;ALA40,ZSA44..LHD..6F..X;ALA40,41,ZSA44..6F..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
ALA4#,ZSA44..X BLACK,TRIM2# |
1 | ||
| 55539-52070C0 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55539-52070C0 |
ALA40,49,ZSA44..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55539-52070C0 |
ALA49..RHD..M;ZSA44..LHD..A;ZSA44..RHD..A..M;ALA49..6F..G..DCR;ALA49..RHD..G..DCRE;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL);ALA49..LHD..6FC..G..DCR;ALA40,ZSA44..LHD..6F..X;ALA40,41,ZSA44..6F..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-42050C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55545-42060C0 |
ALA4#,ZSA44..RHD..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55545-42050C0 |
ALA4#,ZSA44..RHD..M BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-42140C0 |
ALA49,ZSA44..RHD..6F..X..(DCR,HTWVM) NEW ZEALAND SPEC,BLACK,TRIM2# |
1 | ||
| 55550-42140C0 |
ALA49..RHD..X..DCR AUSTRALIA SPEC,BLACK,TRIM2# |
1 | ||
| 55550-42170C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55550-42170C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55550-42140C0 |
ALA49..RHD..6FC..X..DCR NEW ZEALAND SPEC,BLACK,TRIM2# |
1 | ||
| 55550-42140C0 |
ALA49..RHD..6F..X..DCR SOUTH AFRICA SPEC,BLACK,TRIM2# |
1 | ||
| 55550-42140C0 |
ALA49..RHD..6FC..X..DCR SOUTH AFRICA SPEC,BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ALA4#,ZSA44 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-42060 |
ALA4#,ZSA44..RHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-42040 |
ALA4#,ZSA44..RHD |
1 | ||
| 55644 - PAD, INSTRUMENT PANEL UNDER SILENCER, NO.2 | ||||
| 55644-42050 |
ALA4#,ZSA44 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-42110 |
ALA4#,ZSA44..RHD..X |
1 | ||
| 55670-42120 |
ALA4#,ZSA44..RHD..(G,M) |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-42060 |
ALA4#,ZSA44..RHD..(G,M) |
1 | ||
| 55680-42050 |
ALA4#,ZSA44..RHD..X |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-42040C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 73900-42041C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 73900-42040C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 73900-42041C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60303 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||
ILLUST NO. 1 OF 2(1404-1510)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-42907C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55302-42907C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55302-42905C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55302-42905C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-42140 |
ALA4#,ZSA44..RHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-42080 |
ALA4#,ZSA44..RHD |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-42070C0 |
ALA49,ZSA44..RHD..6F..X..(DCR,HTWVM) NEW ZEALAND SPEC,BLACK,TRIM2# |
1 | ||
| 55312-42080C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55312-42070C0 |
ALA49..RHD..6FC..X..DCR NEW ZEALAND SPEC,BLACK,TRIM2# |
1 | ||
| 55312-42080C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55312-42070C0 |
ALA49..RHD..X..DCR AUSTRALIA SPEC,BLACK,TRIM2# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-42270 |
ALA4#,ZSA44..RHD |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-42030 |
ALA4#,ZSA44..RHD |
2 | ||
| 55355-42030 |
ALA4#,ZSA44..RHD |
4 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-42030 |
ALA4#,ZSA44..RHD |
2 | ||
| 55355-42030 |
ALA4#,ZSA44..RHD |
4 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55525-42010C0 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55510-42010C0 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) AUDIO-W/O(AUDIO&SPEAKER),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55525-42010C0 |
ALA49..RHD..6F..X..DCR AUDIO-*DX*DA&USB&*BT&6SPEAKER,BLACK,TRIM2# |
1 | ||
| 55510-42010C0 |
ALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
1 | ||
| 55525-42010C0 |
ALA49,ZSA44..RHD..(6F,6FC)..X AUDIO-6SPEAKER(AUDIO LESS),BLACK,TRIM2# |
1 | ||
| 55525-42010C0 |
ALA49..RHD..X..DCR AUDIO-13MM *DA W(CD & USB & *BT),BLACK,TRIM2# |
1 | ||
| 55525-42010C0 |
ALA49..RHD..X..DCR AUDIO-13MM *DA(*DLX) W(CD & USB & *BT),BLACK,TRIM2# |
1 | ||
| 55535B - COVER, SPEAKER HOLE, NO.2 | ||||
| 55535-42010C0 |
ALA49..RHD..6F..X..DCR AUDIO-*DX*DA&USB&*BT&6SPEAKER,BLACK,TRIM2# |
1 | ||
| 55535-42010C0 |
ALA49,ZSA44..RHD..(6F,6FC)..X AUDIO-6SPEAKER(AUDIO LESS),BLACK,TRIM2# |
1 | ||
| 55530-42010C0 |
ALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
1 | ||
| 55535-42010C0 |
ALA49..RHD..X..DCR AUDIO-13MM *DA W(CD & USB & *BT),BLACK,TRIM2# |
1 | ||
| 55530-42010C0 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) AUDIO-W/O(AUDIO&SPEAKER),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55535-42010C0 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55535-42010C0 |
ALA49..RHD..X..DCR AUDIO-13MM *DA(*DLX) W(CD & USB & *BT),BLACK,TRIM2# |
1 | ||
| 55578A - SILENCER, GLOVE COMPARTMENT DOOR | ||||
| 55578-52040 |
ALA4#,ZSA44 |
2 | ||
| 55578A - SILENCER, GLOVE COMPARTMENT DOOR | ||||
| 55578-52040 |
ALA4#,ZSA44 |
2 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-42030C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 55660-42030C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
4 | ||
| 55660-42060 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..M..EUR SPECIAL EDITION |
2 | ||
| 55660-42030C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
2 | ||
| 55660-42030C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
4 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-42030C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 55660-42030C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
4 | ||
| 55660-42060 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..M..EUR SPECIAL EDITION |
2 | ||
| 55660-42030C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
2 | ||
| 55660-42030C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
4 | ||
| 55833C - CONNECTOR, INSTRUMENT PANEL REGISTER, CENTER | ||||
| 55833-42020C0 |
ALA4#,ZSA44..RHD..X BLACK,TRIM2# |
1 | ||
| 55833-42020C0 |
ALA4#,ZSA44..RHD..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58917B - MAT, BOX BOTTOM | ||||
| 58917-42020 |
ALA4#,ZSA44..RHD |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-42060 |
ALA4#,ZSA44..RHD |
1 | ||
| 73960-42061 |
ALA4#,ZSA44..RHD |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90159-50384 | ||||
| 90159-60613 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-10201 | ||||
| 90467-12080 | ||||
| 91621-B0816 | ||||
| 91631-J0612 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
