ALA49R-ANTMXW (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 2ADFHV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )RHD

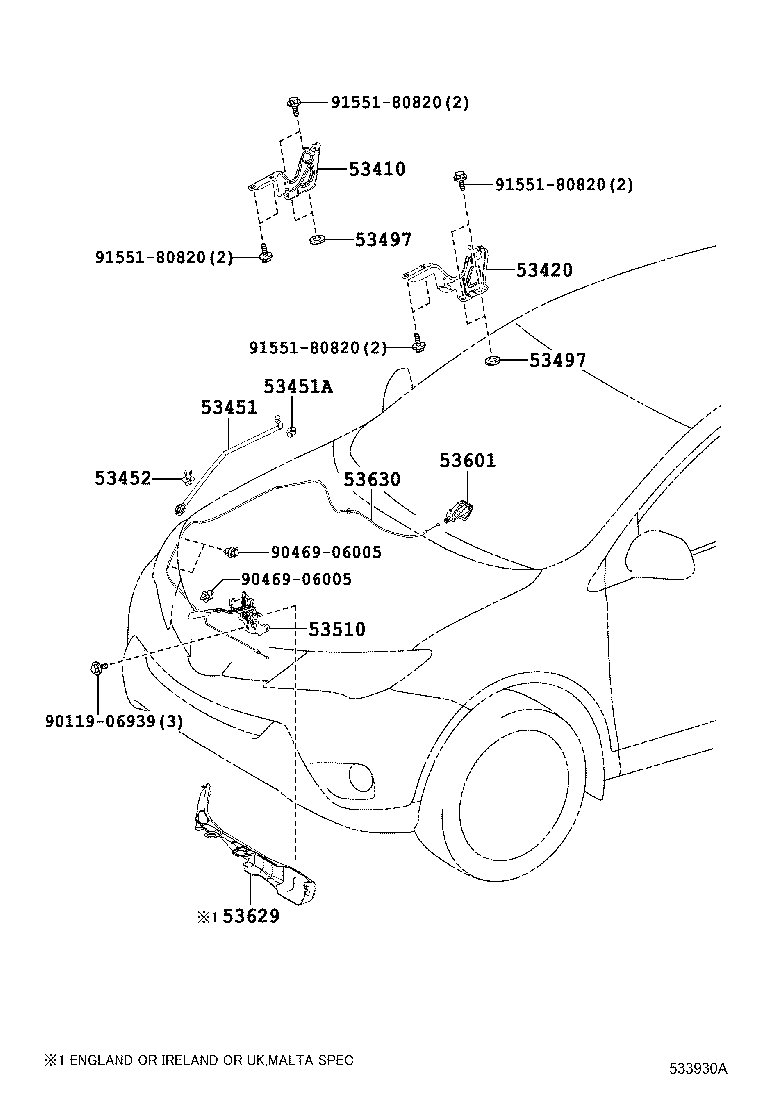

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53452 53497 53497 53510 53601 53629 53630 9011906939 9046906005 9046906005 9155180820 9155180820 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-42120

ALA4#,ZSA44

 1
53420 - HINGE ASSY, HOOD, LH
53420-42120

ALA4#,ZSA44

 1
53451 - ROD, HOOD SUPPORT
53440-42060

ALA4#,ZSA44

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
53454-42010

ALA4#,ZSA44

 1
53452 - HOLDER, HOOD STAY
53452-42020

ALA4#,ZSA44

 1
53497 - PAD, HOOD HINGE, NO.1
53497-20070

ALA4#,ZSA44

T=2.0

 4
53497-42010

ALA4#,ZSA44

T=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-20070

ALA4#,ZSA44

T=2.0

 4
53497-42010

ALA4#,ZSA44

T=0.5

 4
53510 - LOCK ASSY, HOOD
53510-42110

ALA41,49,ZSA44..RHD..(6F,6FC)..(DCRE,DCRL,HTWVM)

ENGLAND SPEC

 1
53510-42100

ALA41,49,ZSA44..6F,6FC

 1
53510-42110

ALA49..RHD..6F..X..DCR

ANTI-THEFT SYSTEM-WITH(*IM,DOUBLE ROCK & ALARM)

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010C0

ALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR

BLACK,TRIM2#

 1
53601-52010C0

ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL)

BLACK,TRIM1#,2#,3#,4#

 1
53629 - COVER, HOOD LOCK CONTROL CABLE
53629-42010

ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM)

IRELAND SPEC

 1
53629-42010

ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM)

ENGLAND SPEC

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-42120

ALA4#,ZSA44..RHD

 1
Common parts
90119-06939
90469-06005
91551-80820
