ALA49R-ANTGYW (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 2ADFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212-1510)

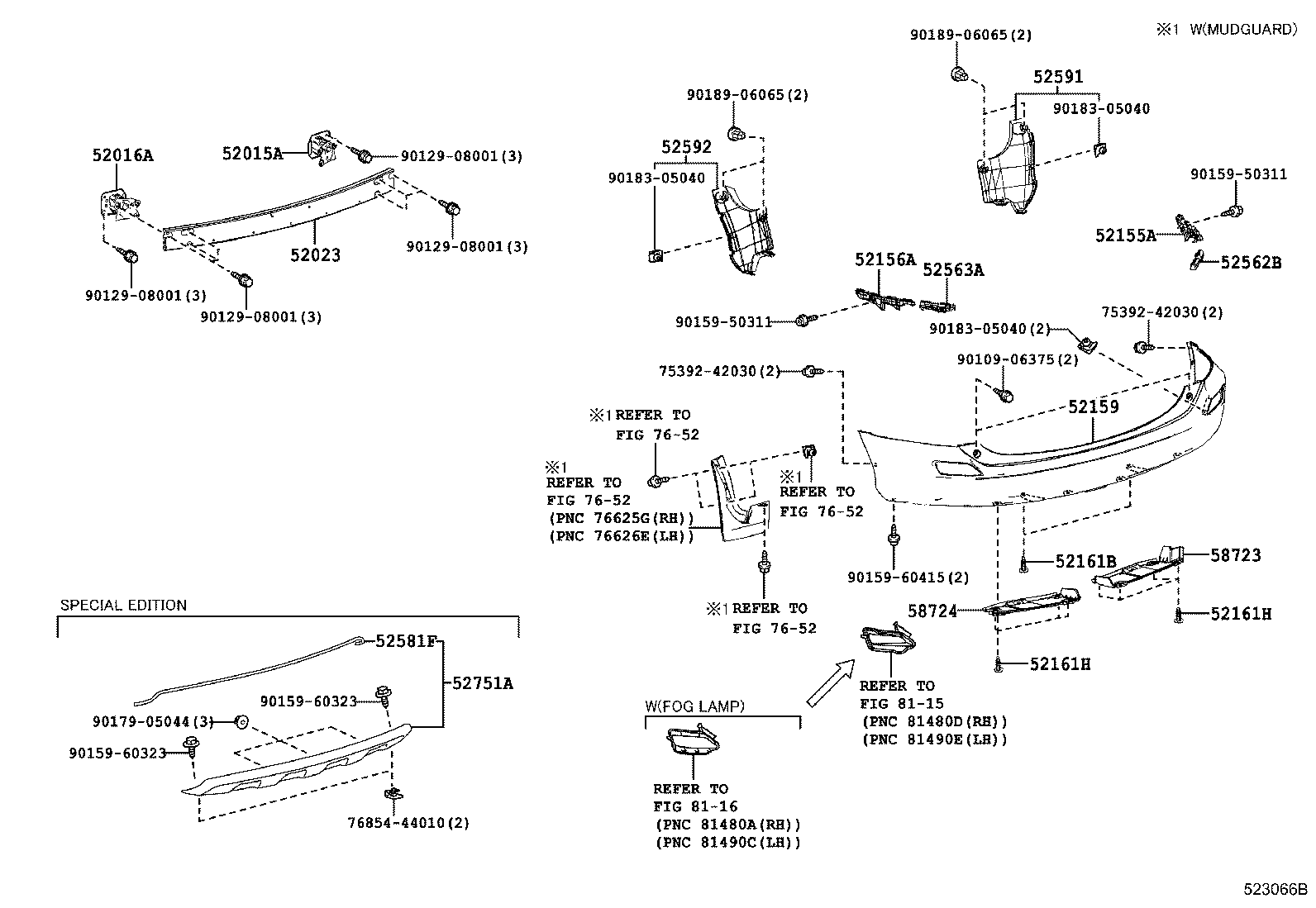

Click highlighted areas on diagram

diagram 52015A 52016A 52023 52155A 52156A 52159 52161B 52161H 52161H 52562B 52563A 52581F 52591 52592 52751A 58723 58724 7539242030 7539242030 7652 7652 7652 7652 7685444010 8115 8116 9010906375 9012908001 9012908001 9012908001 9012908001 9015950311 9015950311 9015960323 9015960323 9015960415 9017905044 9018305040 9018305040 9018305040 9018906065 9018906065
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-42011

ALA4#,ZSA44

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-42011

ALA4#,ZSA44

 1
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52171-42030

ALA4#,ZSA44..M,X

 1
52023-42040

ALA4#,ZSA44..M,X

CLEARANCE & BACK SONAR-WITH(REAR)

 1
52023-42040

ALA4#,ZSA44..G

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-42030

ALA4#,ZSA44

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-42010

ALA4#,ZSA44

 1
52159 - COVER, REAR BUMPER
52159-42200

ALA4#,ZSA44..G

NO PAINT REQ.

 1
52159-42190

ALA4#,ZSA44..M,X

NO PAINT REQ.

 1
52159-42240

ALA4#,ZSA44..(G,M)..EUR

CLEARANCE & BACK SONAR-WITH(REAR)&SPECIAL EDITION

 1
52159-42200

ALA4#,ZSA44..M,X

NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(REAR)

 1
52161B - PIECE, REAR BUMPER
52161-16010

ALA4#,ZSA44

 2
52161H - PIECE, REAR BUMPER
52161-16010

ALA4#,ZSA44

 8
52161H - PIECE, REAR BUMPER
52161-16010

ALA4#,ZSA44

 8
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-42020

ALA4#,ZSA44

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-42030

ALA4#,ZSA44

 1
52581F - PROTECTOR, REAR BUMPER
52581-42070

ALA4#,ZSA44..(G,M)..EUR

SPECIAL EDITION

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-42080

ALA4#,ZSA44

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-42080

ALA4#,ZSA44

 1
52751A - MOULDING, REAR BUMPER, CENTER
52751-42030

ALA4#,ZSA44..(G,M)..EUR

SPECIAL EDITION,COLOR 070 ONLY

 1
52751-42020

ALA4#,ZSA44..(G,M)..EUR

SPECIAL EDITION,EXCEPT COLOR 070

 1
58723 - PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1
58723-42010

ALA4#,ZSA44

 1
58724 - PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.2
58724-42010

ALA4#,ZSA44

 1
Common parts
75392-42030
76854-44010
90109-06375
90129-08001
90159-50311
90159-60323
90159-60415
90179-05044
90183-05040
90189-06065
Linked diagrams
7652
8115
8116
