ALA49R-ANTGXW (2012)
Toyota Rav4

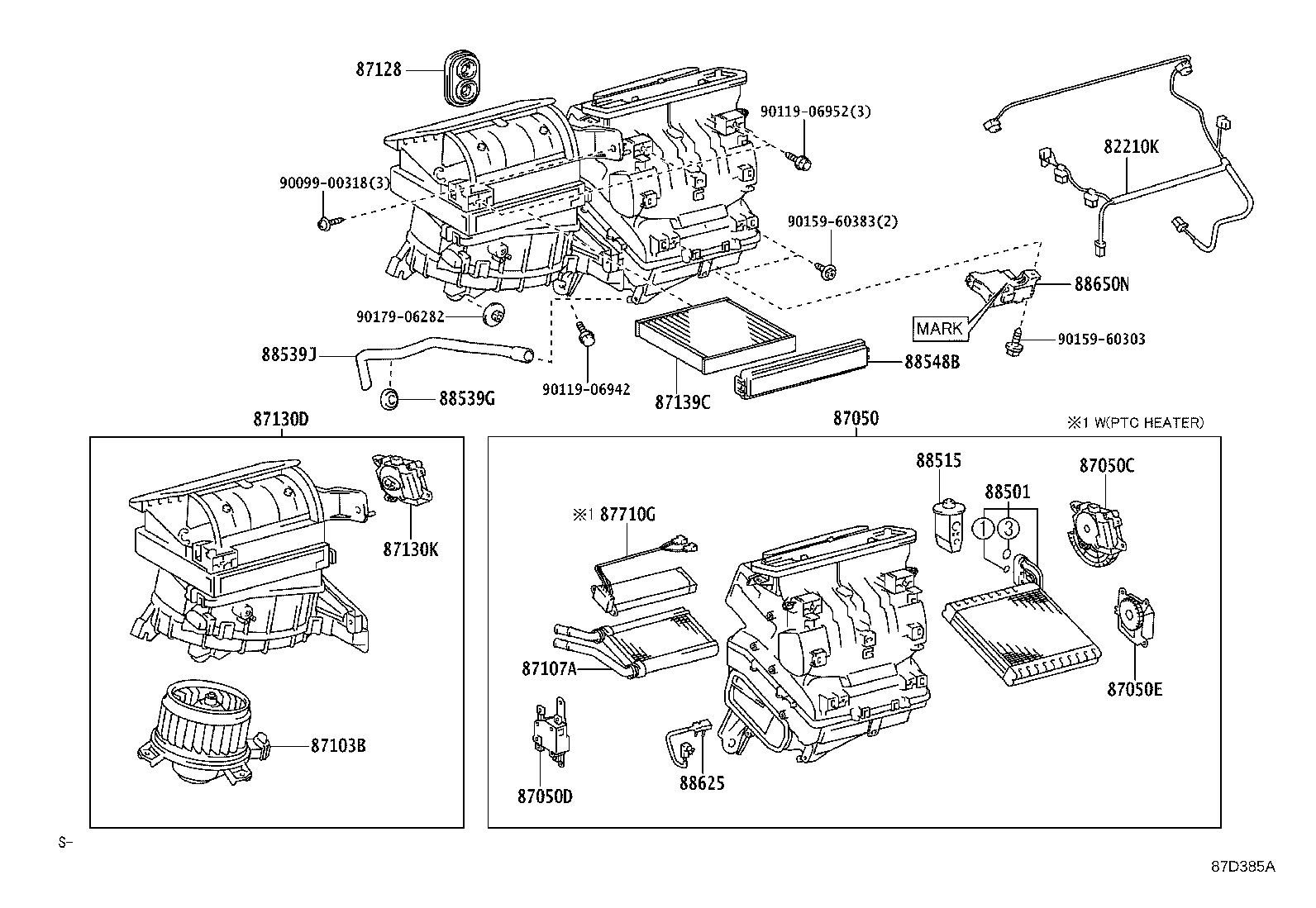

ILLUST NO. 2 OF 2(1212- )ASA44..RUS ; (1212- )ALA4#,AVA4#,WWA42,ZSA4#
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
ILLUST NO. 1 OF 2(1212- )LHD..X..DCR ; (1212- )ALA4#,ZSA44..LHD..DCRE,DCRL,HTWVM..EUR ; (1510-
MANUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-42420 |
ALA49..RHD..G..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42420 |
ALA49..RHD..G..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42290 |
ALA49..RHD..X..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42290 |
ALA49..RHD..X..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42420 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) NON-WVTA,REFER TO PNC 88650N |
1 | ||
| 87050-42420 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) NON-WVTA,REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE,REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE,REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..X..(DCRE,DCRL) REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..X..(DCRE,DCRL) REFER TO PNC 88650N |
1 | ||
| 87050-42290 |
ALA4#..RHD..X..(DCRE,DCRL) NON-WVTA,REFER TO PNC 88650N |
1 | ||
| 87050-42290 |
ALA4#..RHD..X..(DCRE,DCRL) NON-WVTA,REFER TO PNC 88650N |
1 | ||
| 87050-42501 |
ALA49..RHD..G..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42501 |
ALA49..RHD..G..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42501 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) REFER TO PNC 88650N |
1 | ||
| 87050-42501 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) BASIC PACKAGE,REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) BASIC PACKAGE,REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA49..RHD..X..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA49..RHD..X..DCR REFER TO PNC 88650N |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-42070 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87103-42070 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87103-42081 |
ALA4#,ZSA44..RHD..(G,M) |
1 | ||
| 87103-42081 |
ALA4#,ZSA44..RHD..(G,M) |
1 | ||
| 87103-42070 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 87103-42070 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 87103-42070 |
ALA4#,ZSA44..RHD..X |
1 | ||
| 87103-42070 |
ALA4#,ZSA44..RHD..X |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
ALA4#,ZSA44 |
1 | ||
| 87107-42170 |
ALA4#,ZSA44 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-42010 |
ALA4#,ZSA44 |
1 | ||
| 87128-42010 |
ALA4#,ZSA44 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-42271 |
ALA49..RHD..G..DCR |
1 | ||
| 87130-42271 |
ALA49..RHD..G..DCR |
1 | ||
| 87130-42271 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) NON-WVTA |
1 | ||
| 87130-42271 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) NON-WVTA |
1 | ||
| 87130-42261 |
ALA4#..RHD..X..(DCRE,DCRL) NON-WVTA |
1 | ||
| 87130-42261 |
ALA4#..RHD..X..(DCRE,DCRL) NON-WVTA |
1 | ||
| 87130-42261 |
ALA49..RHD..X..DCR |
1 | ||
| 87130-42261 |
ALA49..RHD..X..DCR |
1 | ||
| 87130-42320 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87130-42320 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87130-42330 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) |
1 | ||
| 87130-42330 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) |
1 | ||
| 87130-42320 |
ALA4#..RHD..X..(DCRE,DCRL) |
1 | ||
| 87130-42320 |
ALA4#..RHD..X..(DCRE,DCRL) |
1 | ||
| 87130-42320 |
ALA49..RHD..X..DCR |
1 | ||
| 87130-42320 |
ALA49..RHD..X..DCR |
1 | ||
| 87130-42330 |
ALA49..RHD..G..DCR |
1 | ||
| 87130-42330 |
ALA49..RHD..G..DCR |
1 | ||
| 87130-42320 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) BASIC PACKAGE |
1 | ||
| 87130-42320 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) BASIC PACKAGE |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-42110 |
ALA4#,ZSA44..RHD..X..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42110 |
ALA4#,ZSA44..RHD..X..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42120 |
ALA49..RHD..G..DCR |
1 | ||
| 87106-42120 |
ALA49..RHD..G..DCR |
1 | ||
| 87106-42120 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42120 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87106-42150 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42150 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42150 |
ALA49..RHD..G..DCR |
1 | ||
| 87106-42150 |
ALA49..RHD..G..DCR |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..X..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..X..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42110 |
ALA49..RHD..X..DCR |
1 | ||
| 87106-42110 |
ALA49..RHD..X..DCR |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 87106-42160 |
ALA49..RHD..X..DCR |
1 | ||
| 87106-42160 |
ALA49..RHD..X..DCR |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-26150 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 87138-26150 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 87138-26150 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87138-26150 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87138-26150 |
ALA4#,ZSA44..RHD..X |
1 | ||
| 87138-26150 |
ALA4#,ZSA44..RHD..X |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-60020 |
ALA4#,ZSA44 MICRO DUST FILTER |
1 | ||
| 87139-60020 |
ALA4#,ZSA44 MICRO DUST FILTER |
1 | ||
| 87139-50100 |
ALA4#,ZSA44 *DPF |
1 | ||
| 87139-50100 |
ALA4#,ZSA44 *DPF |
1 | ||
| 87139-52040 |
ALA4#,ZSA44 POLLEN FILTER |
1 | ||
| 87139-52040 |
ALA4#,ZSA44 POLLEN FILTER |
1 | ||
| 87139-50100 |
ALA4#,ZSA44 DEODORANT FILTER |
1 | ||
| 87139-50100 |
ALA4#,ZSA44 DEODORANT FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-42010 |
ALA4#..RHD |
1 | ||
| 87710-42010 |
ALA4#..RHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-72020 |
ALA4#,ZSA44 |
1 | ||
| 88501-72020 |
ALA4#,ZSA44 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-12100 |
ALA49..DCR |
1 | ||
| 88515-12100 |
ALA49..DCR |
1 | ||
| 88515-68010 |
ALA49..DCR |
1 | ||
| 88515-68010 |
ALA49..DCR |
1 | ||
| 88515-68010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM |
1 | ||
| 88515-68010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM |
1 | ||
| 88515-12100 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM NON-WVTA |
1 | ||
| 88515-12100 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM NON-WVTA |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26030 |
ALA4#,ZSA44 |
1 | ||
| 90480-26030 |
ALA4#,ZSA44 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-42051 |
ALA4#,ZSA44..RHD |
1 | ||
| 88539-42051 |
ALA4#,ZSA44..RHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42010 |
ALA4#,ZSA44..RHD |
1 | ||
| 88548-42010 |
ALA4#,ZSA44..RHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-42010 |
ALA49..DCR |
1 | ||
| 88620-42010 |
ALA49..DCR |
1 | ||
| 88625-26090 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM NON-WVTA |
1 | ||
| 88625-26090 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM NON-WVTA |
1 | ||
| 88625-26090 |
ALA49..DCR |
1 | ||
| 88625-26090 |
ALA49..DCR |
1 | ||
| 88620-42010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM |
1 | ||
| 88620-42010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-42420 |
ALA49..X..DCR P/N LABEL=8865042420 |
1 | ||
| 88650-42420 |
ALA49..X..DCR P/N LABEL=8865042420 |
1 | ||
| 88650-42420 |
ALA4#..X..(DCRE,DCRL) NON-WVTA,P/N LABEL=8865042420 |
1 | ||
| 88650-42420 |
ALA4#..X..(DCRE,DCRL) NON-WVTA,P/N LABEL=8865042420 |
1 | ||
| 88650-42460 |
ALA49..G..DCR P/N LABEL=8865042460 |
1 | ||
| 88650-42460 |
ALA49..G..DCR P/N LABEL=8865042460 |
1 | ||
| 88650-42540 |
ALA4#..X..(DCRE,DCRL) P/N LABEL=8865042540 |
1 | ||
| 88650-42540 |
ALA4#..X..(DCRE,DCRL) P/N LABEL=8865042540 |
1 | ||
| 88650-42460 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA,P/N LABEL=8865042460 |
1 | ||
| 88650-42460 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA,P/N LABEL=8865042460 |
1 | ||
| 88650-42550 |
ALA40..RHD..M;ALA49,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865042550 |
1 | ||
| 88650-42550 |
ALA40..RHD..M;ALA49,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865042550 |
1 | ||
| 88650-42550 |
ALA49..G..DCR P/N LABEL=8865042550 |
1 | ||
| 88650-42550 |
ALA49..G..DCR P/N LABEL=8865042550 |
1 | ||
| 88650-52720 |
ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865052720 |
1 | ||
| 88650-52720 |
ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865052720 |
1 | ||
| 88650-42550 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) P/N LABEL=8865042550 |
1 | ||
| 88650-42550 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) P/N LABEL=8865042550 |
1 | ||
| 88650-42540 |
ALA49..X..DCR P/N LABEL=8865042540 |
1 | ||
| 88650-42540 |
ALA49..X..DCR P/N LABEL=8865042540 |
1 | ||
| 88650-42540 |
ALA40,49..RHD..X..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865042540 |
1 | ||
| 88650-42540 |
ALA40,49..RHD..X..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865042540 |
1 | ||
| 88650-42541 |
ALA4#..X |
1 | ||
| 88650-42541 |
ALA4#..X |
1 | ||
| 88650-42551 |
ALA40..RHD..M;ALA49,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 88650-42551 |
ALA40..RHD..M;ALA49,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 88650-42541 |
ALA40,49..RHD..X..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 88650-42541 |
ALA40,49..RHD..X..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 88650-42551 |
ALA4#,ZSA44..G,M |
1 | ||
| 88650-42551 |
ALA4#,ZSA44..G,M |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(1212- )RHD..X..DCR ; (1212- )ALA4#,ZSA44..RHD..DCRE,DCRL,HTWVM ; (1510- )
MANUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-42420 |
ALA49..RHD..G..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42290 |
ALA49..RHD..X..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42420 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) NON-WVTA,REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE,REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..X..(DCRE,DCRL) REFER TO PNC 88650N |
1 | ||
| 87050-42290 |
ALA4#..RHD..X..(DCRE,DCRL) NON-WVTA,REFER TO PNC 88650N |
1 | ||
| 87050-42501 |
ALA49..RHD..G..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42501 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) BASIC PACKAGE,REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA49..RHD..X..DCR REFER TO PNC 88650N |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-42070 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87103-42081 |
ALA4#,ZSA44..RHD..(G,M) |
1 | ||
| 87103-42070 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 87103-42070 |
ALA4#,ZSA44..RHD..X |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
ALA4#,ZSA44 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-42010 |
ALA4#,ZSA44 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-42271 |
ALA49..RHD..G..DCR |
1 | ||
| 87130-42271 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) NON-WVTA |
1 | ||
| 87130-42261 |
ALA4#..RHD..X..(DCRE,DCRL) NON-WVTA |
1 | ||
| 87130-42261 |
ALA49..RHD..X..DCR |
1 | ||
| 87130-42320 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87130-42330 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) |
1 | ||
| 87130-42320 |
ALA4#..RHD..X..(DCRE,DCRL) |
1 | ||
| 87130-42320 |
ALA49..RHD..X..DCR |
1 | ||
| 87130-42330 |
ALA49..RHD..G..DCR |
1 | ||
| 87130-42320 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) BASIC PACKAGE |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-42110 |
ALA4#,ZSA44..RHD..X..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42120 |
ALA49..RHD..G..DCR |
1 | ||
| 87106-42120 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87106-42150 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42150 |
ALA49..RHD..G..DCR |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..X..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42110 |
ALA49..RHD..X..DCR |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 87106-42160 |
ALA49..RHD..X..DCR |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-26150 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 87138-26150 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87138-26150 |
ALA4#,ZSA44..RHD..X |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-60020 |
ALA4#,ZSA44 MICRO DUST FILTER |
1 | ||
| 87139-50100 |
ALA4#,ZSA44 *DPF |
1 | ||
| 87139-52040 |
ALA4#,ZSA44 POLLEN FILTER |
1 | ||
| 87139-50100 |
ALA4#,ZSA44 DEODORANT FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-42010 |
ALA4#..RHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-72020 |
ALA4#,ZSA44 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-12100 |
ALA49..DCR |
1 | ||
| 88515-68010 |
ALA49..DCR |
1 | ||
| 88515-68010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM |
1 | ||
| 88515-12100 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM NON-WVTA |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26030 |
ALA4#,ZSA44 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-42051 |
ALA4#,ZSA44..RHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42010 |
ALA4#,ZSA44..RHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-42010 |
ALA49..DCR |
1 | ||
| 88625-26090 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM NON-WVTA |
1 | ||
| 88625-26090 |
ALA49..DCR |
1 | ||
| 88620-42010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-42420 |
ALA49..X..DCR P/N LABEL=8865042420 |
1 | ||
| 88650-42420 |
ALA4#..X..(DCRE,DCRL) NON-WVTA,P/N LABEL=8865042420 |
1 | ||
| 88650-42460 |
ALA49..G..DCR P/N LABEL=8865042460 |
1 | ||
| 88650-42540 |
ALA4#..X..(DCRE,DCRL) P/N LABEL=8865042540 |
1 | ||
| 88650-42460 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA,P/N LABEL=8865042460 |
1 | ||
| 88650-42550 |
ALA40..RHD..M;ALA49,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865042550 |
1 | ||
| 88650-42550 |
ALA49..G..DCR P/N LABEL=8865042550 |
1 | ||
| 88650-52720 |
ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865052720 |
1 | ||
| 88650-42550 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) P/N LABEL=8865042550 |
1 | ||
| 88650-42540 |
ALA49..X..DCR P/N LABEL=8865042540 |
1 | ||
| 88650-42540 |
ALA40,49..RHD..X..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865042540 |
1 | ||
| 88650-42541 |
ALA4#..X |
1 | ||
| 88650-42551 |
ALA40..RHD..M;ALA49,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 88650-42541 |
ALA40,49..RHD..X..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 88650-42551 |
ALA4#,ZSA44..G,M |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(1212- )ALA4#,ZSA44..LHD..G,M..EUR ; (1510-)ASA44..JPP..G,M..RUS ; (1510-
AUTO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-12040 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 82212-12040 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 82212-12040 |
ALA4#,ZSA44..RHD..(G,M) |
1 | ||
| 82212-12040 |
ALA4#,ZSA44..RHD..(G,M) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-42420 |
ALA49..RHD..G..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42420 |
ALA49..RHD..G..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42290 |
ALA49..RHD..X..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42290 |
ALA49..RHD..X..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42420 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) NON-WVTA,REFER TO PNC 88650N |
1 | ||
| 87050-42420 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) NON-WVTA,REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE,REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE,REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..X..(DCRE,DCRL) REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..X..(DCRE,DCRL) REFER TO PNC 88650N |
1 | ||
| 87050-42290 |
ALA4#..RHD..X..(DCRE,DCRL) NON-WVTA,REFER TO PNC 88650N |
1 | ||
| 87050-42290 |
ALA4#..RHD..X..(DCRE,DCRL) NON-WVTA,REFER TO PNC 88650N |
1 | ||
| 87050-42501 |
ALA49..RHD..G..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42501 |
ALA49..RHD..G..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42501 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) REFER TO PNC 88650N |
1 | ||
| 87050-42501 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) BASIC PACKAGE,REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) BASIC PACKAGE,REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA49..RHD..X..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA49..RHD..X..DCR REFER TO PNC 88650N |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-42190 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42190 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42100 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42100 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42190 |
ALA49..G..DCR |
1 | ||
| 87106-42190 |
ALA49..G..DCR |
1 | ||
| 87106-42100 |
ALA49..G..DCR |
1 | ||
| 87106-42100 |
ALA49..G..DCR |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-42090 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42090 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42090 |
ALA49..G..DCR |
1 | ||
| 87106-42090 |
ALA49..G..DCR |
1 | ||
| 87106-75010 |
ALA4#,ZSA44..G,M |
1 | ||
| 87106-75010 |
ALA4#,ZSA44..G,M |
1 | ||
| 87106-42200 |
ALA49..G..DCR |
1 | ||
| 87106-42200 |
ALA49..G..DCR |
1 | ||
| 87106-42200 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42200 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-12170 |
ALA49..G..DCR |
1 | ||
| 87106-12170 |
ALA49..G..DCR |
1 | ||
| 87106-12170 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-12170 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-47170 |
ALA4#,ZSA44..G,M |
1 | ||
| 87106-47170 |
ALA4#,ZSA44..G,M |
1 | ||
| 87106-42210 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42210 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42210 |
ALA49..G..DCR |
1 | ||
| 87106-42210 |
ALA49..G..DCR |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-42070 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87103-42070 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87103-42081 |
ALA4#,ZSA44..RHD..(G,M) |
1 | ||
| 87103-42081 |
ALA4#,ZSA44..RHD..(G,M) |
1 | ||
| 87103-42070 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 87103-42070 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 87103-42070 |
ALA4#,ZSA44..RHD..X |
1 | ||
| 87103-42070 |
ALA4#,ZSA44..RHD..X |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
ALA4#,ZSA44 |
1 | ||
| 87107-42170 |
ALA4#,ZSA44 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-42010 |
ALA4#,ZSA44 |
1 | ||
| 87128-42010 |
ALA4#,ZSA44 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-42271 |
ALA49..RHD..G..DCR |
1 | ||
| 87130-42271 |
ALA49..RHD..G..DCR |
1 | ||
| 87130-42271 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) NON-WVTA |
1 | ||
| 87130-42271 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) NON-WVTA |
1 | ||
| 87130-42261 |
ALA4#..RHD..X..(DCRE,DCRL) NON-WVTA |
1 | ||
| 87130-42261 |
ALA4#..RHD..X..(DCRE,DCRL) NON-WVTA |
1 | ||
| 87130-42261 |
ALA49..RHD..X..DCR |
1 | ||
| 87130-42261 |
ALA49..RHD..X..DCR |
1 | ||
| 87130-42320 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87130-42320 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87130-42330 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) |
1 | ||
| 87130-42330 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) |
1 | ||
| 87130-42320 |
ALA4#..RHD..X..(DCRE,DCRL) |
1 | ||
| 87130-42320 |
ALA4#..RHD..X..(DCRE,DCRL) |
1 | ||
| 87130-42320 |
ALA49..RHD..X..DCR |
1 | ||
| 87130-42320 |
ALA49..RHD..X..DCR |
1 | ||
| 87130-42330 |
ALA49..RHD..G..DCR |
1 | ||
| 87130-42330 |
ALA49..RHD..G..DCR |
1 | ||
| 87130-42320 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) BASIC PACKAGE |
1 | ||
| 87130-42320 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) BASIC PACKAGE |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-42110 |
ALA4#,ZSA44..RHD..X..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42110 |
ALA4#,ZSA44..RHD..X..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42120 |
ALA49..RHD..G..DCR |
1 | ||
| 87106-42120 |
ALA49..RHD..G..DCR |
1 | ||
| 87106-42120 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42120 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87106-42150 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42150 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42150 |
ALA49..RHD..G..DCR |
1 | ||
| 87106-42150 |
ALA49..RHD..G..DCR |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..X..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..X..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42110 |
ALA49..RHD..X..DCR |
1 | ||
| 87106-42110 |
ALA49..RHD..X..DCR |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 87106-42160 |
ALA49..RHD..X..DCR |
1 | ||
| 87106-42160 |
ALA49..RHD..X..DCR |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-60020 |
ALA4#,ZSA44 MICRO DUST FILTER |
1 | ||
| 87139-60020 |
ALA4#,ZSA44 MICRO DUST FILTER |
1 | ||
| 87139-50100 |
ALA4#,ZSA44 *DPF |
1 | ||
| 87139-50100 |
ALA4#,ZSA44 *DPF |
1 | ||
| 87139-52040 |
ALA4#,ZSA44 POLLEN FILTER |
1 | ||
| 87139-52040 |
ALA4#,ZSA44 POLLEN FILTER |
1 | ||
| 87139-50100 |
ALA4#,ZSA44 DEODORANT FILTER |
1 | ||
| 87139-50100 |
ALA4#,ZSA44 DEODORANT FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-42010 |
ALA4#..RHD |
1 | ||
| 87710-42010 |
ALA4#..RHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-72020 |
ALA4#,ZSA44 |
1 | ||
| 88501-72020 |
ALA4#,ZSA44 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-12100 |
ALA49..DCR |
1 | ||
| 88515-12100 |
ALA49..DCR |
1 | ||
| 88515-68010 |
ALA49..DCR |
1 | ||
| 88515-68010 |
ALA49..DCR |
1 | ||
| 88515-68010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM |
1 | ||
| 88515-68010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM |
1 | ||
| 88515-12100 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM NON-WVTA |
1 | ||
| 88515-12100 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM NON-WVTA |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26030 |
ALA4#,ZSA44 |
1 | ||
| 90480-26030 |
ALA4#,ZSA44 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-42051 |
ALA4#,ZSA44..RHD |
1 | ||
| 88539-42051 |
ALA4#,ZSA44..RHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42010 |
ALA4#,ZSA44..RHD |
1 | ||
| 88548-42010 |
ALA4#,ZSA44..RHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-42010 |
ALA49..DCR |
1 | ||
| 88620-42010 |
ALA49..DCR |
1 | ||
| 88625-26090 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM NON-WVTA |
1 | ||
| 88625-26090 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM NON-WVTA |
1 | ||
| 88625-26090 |
ALA49..DCR |
1 | ||
| 88625-26090 |
ALA49..DCR |
1 | ||
| 88620-42010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM |
1 | ||
| 88620-42010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-42420 |
ALA49..X..DCR P/N LABEL=8865042420 |
1 | ||
| 88650-42420 |
ALA49..X..DCR P/N LABEL=8865042420 |
1 | ||
| 88650-42420 |
ALA4#..X..(DCRE,DCRL) NON-WVTA,P/N LABEL=8865042420 |
1 | ||
| 88650-42420 |
ALA4#..X..(DCRE,DCRL) NON-WVTA,P/N LABEL=8865042420 |
1 | ||
| 88650-42460 |
ALA49..G..DCR P/N LABEL=8865042460 |
1 | ||
| 88650-42460 |
ALA49..G..DCR P/N LABEL=8865042460 |
1 | ||
| 88650-42540 |
ALA4#..X..(DCRE,DCRL) P/N LABEL=8865042540 |
1 | ||
| 88650-42540 |
ALA4#..X..(DCRE,DCRL) P/N LABEL=8865042540 |
1 | ||
| 88650-42460 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA,P/N LABEL=8865042460 |
1 | ||
| 88650-42460 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA,P/N LABEL=8865042460 |
1 | ||
| 88650-42550 |
ALA40..RHD..M;ALA49,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865042550 |
1 | ||
| 88650-42550 |
ALA40..RHD..M;ALA49,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865042550 |
1 | ||
| 88650-42550 |
ALA49..G..DCR P/N LABEL=8865042550 |
1 | ||
| 88650-42550 |
ALA49..G..DCR P/N LABEL=8865042550 |
1 | ||
| 88650-52720 |
ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865052720 |
1 | ||
| 88650-52720 |
ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865052720 |
1 | ||
| 88650-42550 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) P/N LABEL=8865042550 |
1 | ||
| 88650-42550 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) P/N LABEL=8865042550 |
1 | ||
| 88650-42540 |
ALA49..X..DCR P/N LABEL=8865042540 |
1 | ||
| 88650-42540 |
ALA49..X..DCR P/N LABEL=8865042540 |
1 | ||
| 88650-42540 |
ALA40,49..RHD..X..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865042540 |
1 | ||
| 88650-42540 |
ALA40,49..RHD..X..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865042540 |
1 | ||
| 88650-42541 |
ALA4#..X |
1 | ||
| 88650-42541 |
ALA4#..X |
1 | ||
| 88650-42551 |
ALA40..RHD..M;ALA49,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 88650-42551 |
ALA40..RHD..M;ALA49,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 88650-42541 |
ALA40,49..RHD..X..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 88650-42541 |
ALA40,49..RHD..X..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 88650-42551 |
ALA4#,ZSA44..G,M |
1 | ||
| 88650-42551 |
ALA4#,ZSA44..G,M |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
ILLUST NO. 1 OF 2(1212- )ALA4#,ZSA44..RHD..G,M ; (1510- )AVA4#,WWA42..RHD..G,M
AUTO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-12040 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 82212-12040 |
ALA4#,ZSA44..RHD..(G,M) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-42420 |
ALA49..RHD..G..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42290 |
ALA49..RHD..X..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42420 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) NON-WVTA,REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE,REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..X..(DCRE,DCRL) REFER TO PNC 88650N |
1 | ||
| 87050-42290 |
ALA4#..RHD..X..(DCRE,DCRL) NON-WVTA,REFER TO PNC 88650N |
1 | ||
| 87050-42501 |
ALA49..RHD..G..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42501 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) BASIC PACKAGE,REFER TO PNC 88650N |
1 | ||
| 87050-42491 |
ALA49..RHD..X..DCR REFER TO PNC 88650N |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-42190 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42100 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42190 |
ALA49..G..DCR |
1 | ||
| 87106-42100 |
ALA49..G..DCR |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-42090 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42090 |
ALA49..G..DCR |
1 | ||
| 87106-75010 |
ALA4#,ZSA44..G,M |
1 | ||
| 87106-42200 |
ALA49..G..DCR |
1 | ||
| 87106-42200 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-12170 |
ALA49..G..DCR |
1 | ||
| 87106-12170 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-47170 |
ALA4#,ZSA44..G,M |
1 | ||
| 87106-42210 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42210 |
ALA49..G..DCR |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-42070 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87103-42081 |
ALA4#,ZSA44..RHD..(G,M) |
1 | ||
| 87103-42070 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 87103-42070 |
ALA4#,ZSA44..RHD..X |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
ALA4#,ZSA44 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-42010 |
ALA4#,ZSA44 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-42271 |
ALA49..RHD..G..DCR |
1 | ||
| 87130-42271 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) NON-WVTA |
1 | ||
| 87130-42261 |
ALA4#..RHD..X..(DCRE,DCRL) NON-WVTA |
1 | ||
| 87130-42261 |
ALA49..RHD..X..DCR |
1 | ||
| 87130-42320 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87130-42330 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) |
1 | ||
| 87130-42320 |
ALA4#..RHD..X..(DCRE,DCRL) |
1 | ||
| 87130-42320 |
ALA49..RHD..X..DCR |
1 | ||
| 87130-42330 |
ALA49..RHD..G..DCR |
1 | ||
| 87130-42320 |
ALA4#..RHD..(G,M)..(DCRE,DCRL) BASIC PACKAGE |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-42110 |
ALA4#,ZSA44..RHD..X..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42120 |
ALA49..RHD..G..DCR |
1 | ||
| 87106-42120 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 87106-42150 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42150 |
ALA49..RHD..G..DCR |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..X..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42110 |
ALA49..RHD..X..DCR |
1 | ||
| 87106-42160 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 87106-42160 |
ALA49..RHD..X..DCR |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-60020 |
ALA4#,ZSA44 MICRO DUST FILTER |
1 | ||
| 87139-50100 |
ALA4#,ZSA44 *DPF |
1 | ||
| 87139-52040 |
ALA4#,ZSA44 POLLEN FILTER |
1 | ||
| 87139-50100 |
ALA4#,ZSA44 DEODORANT FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-42010 |
ALA4#..RHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-72020 |
ALA4#,ZSA44 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-12100 |
ALA49..DCR |
1 | ||
| 88515-68010 |
ALA49..DCR |
1 | ||
| 88515-68010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM |
1 | ||
| 88515-12100 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM NON-WVTA |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26030 |
ALA4#,ZSA44 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-42051 |
ALA4#,ZSA44..RHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42010 |
ALA4#,ZSA44..RHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-42010 |
ALA49..DCR |
1 | ||
| 88625-26090 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM NON-WVTA |
1 | ||
| 88625-26090 |
ALA49..DCR |
1 | ||
| 88620-42010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-42420 |
ALA49..X..DCR P/N LABEL=8865042420 |
1 | ||
| 88650-42420 |
ALA4#..X..(DCRE,DCRL) NON-WVTA,P/N LABEL=8865042420 |
1 | ||
| 88650-42460 |
ALA49..G..DCR P/N LABEL=8865042460 |
1 | ||
| 88650-42540 |
ALA4#..X..(DCRE,DCRL) P/N LABEL=8865042540 |
1 | ||
| 88650-42460 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA,P/N LABEL=8865042460 |
1 | ||
| 88650-42550 |
ALA40..RHD..M;ALA49,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865042550 |
1 | ||
| 88650-42550 |
ALA49..G..DCR P/N LABEL=8865042550 |
1 | ||
| 88650-52720 |
ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865052720 |
1 | ||
| 88650-42550 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) P/N LABEL=8865042550 |
1 | ||
| 88650-42540 |
ALA49..X..DCR P/N LABEL=8865042540 |
1 | ||
| 88650-42540 |
ALA40,49..RHD..X..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE,P/N LABEL=8865042540 |
1 | ||
| 88650-42541 |
ALA4#..X |
1 | ||
| 88650-42551 |
ALA40..RHD..M;ALA49,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 88650-42541 |
ALA40,49..RHD..X..(DCRE,DCRL) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 88650-42551 |
ALA4#,ZSA44..G,M |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
