ALA49R-ANTGXW (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 2ADFHV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )ALA4#..RHD

Click highlighted areas on diagram

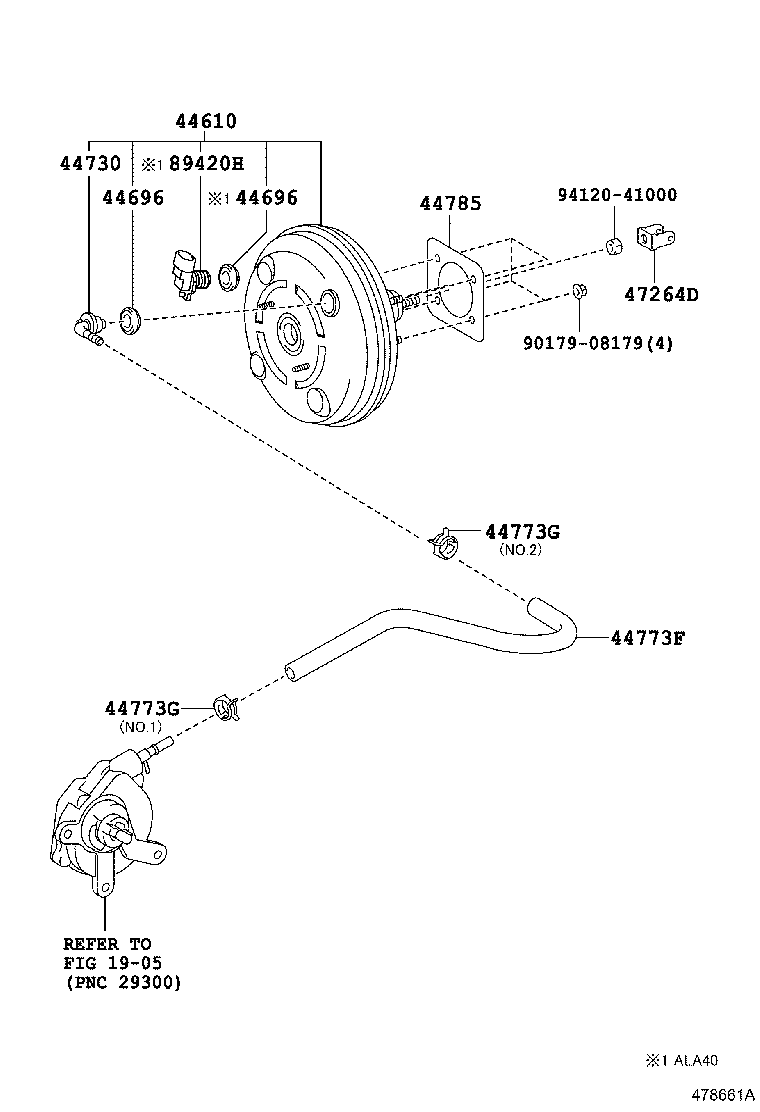

diagram 1905 44610 44696 44696 44730 44773F 44773G 44773G 44785 47264D 89420H 9017908179 9412041000
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-42390

ALA41,49,ZSA44..RHD

 1
44696 - GROMMET, CHECK VALVE
90480-24439

ALA41,49,ZSA44

 1
44696 - GROMMET, CHECK VALVE
90480-24439

ALA41,49,ZSA44

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170

ALA4#,ZSA44

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-42131

ALA4#..RHD

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014

ALA4#,ZSA44..RHD

NO.2

 1
96133-41500

ALA4#,ZSA44..RHD

NO.1

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014

ALA4#,ZSA44..RHD

NO.2

 1
96133-41500

ALA4#,ZSA44..RHD

NO.1

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

ALA4#,ZSA44

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-63010

ALA4#,ZSA44

 1
Common parts
90179-08179
94120-41000
Linked diagrams
1905
