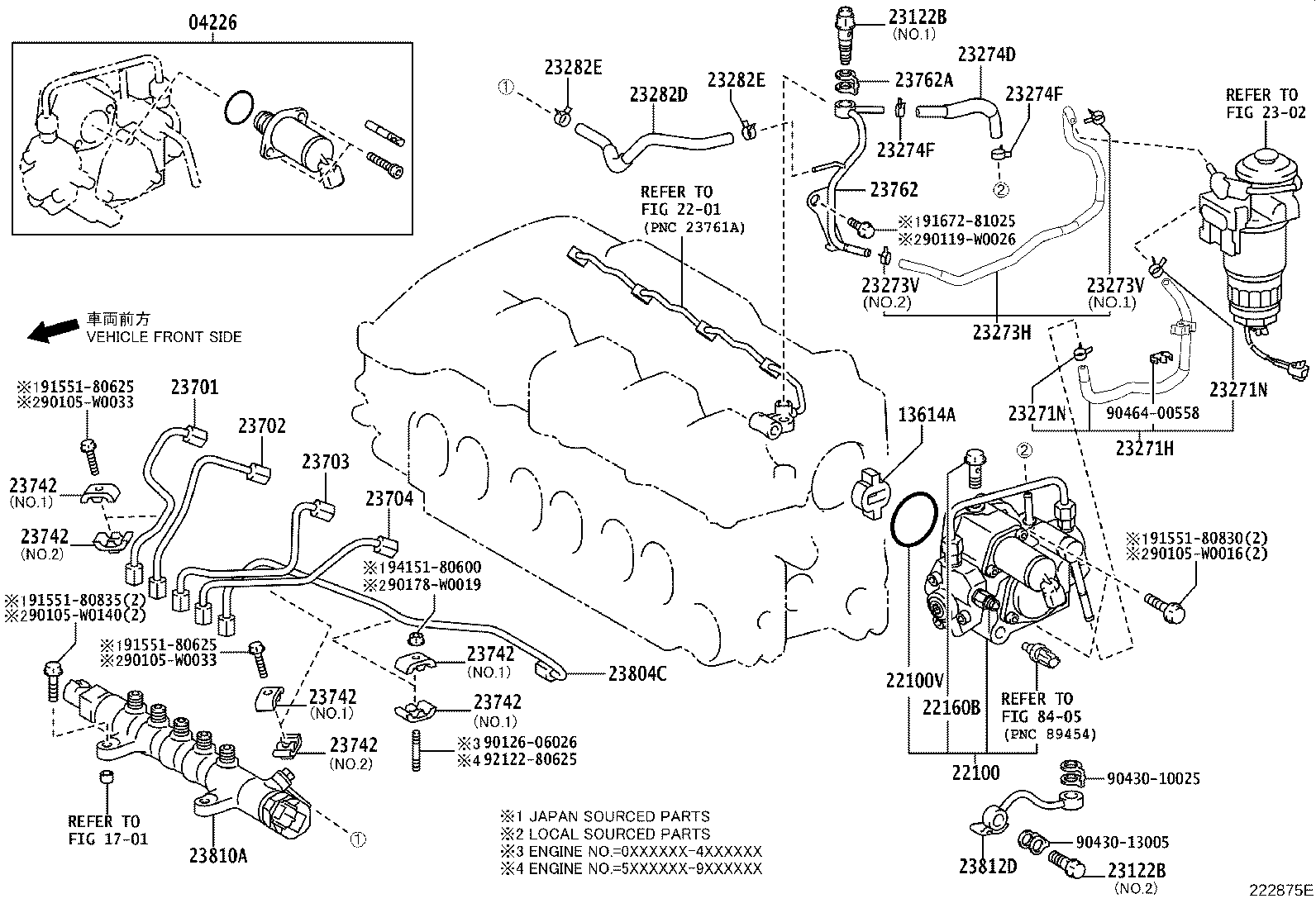

ALA49R-ANFXYW (2012)
Toyota Rav4
(1212- )2ADFTV..DCR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04226 - VALVE KIT, SUCTION CONTROL | ||||
| 04226-26010 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 04226-26010 |
2ADFTV..ALA49..DCR *145 |
1 | ||
| 13614A - COUPLING, SUPPLY PUMP DRIVE, NO.1 | ||||
| 13614-26010 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 13614-26010 |
2ADFTV..ALA49..DCR *145 |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-0R050 |
2ADFTV..ALA49..DCR *145 |
1 | ||
| 22100-0R050 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 22100V - RING, O(FOR INJECTION PUMP) | ||||
| 22193-0R020 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 22193-0R020 |
2ADFTV..ALA49..DCR *145 |
1 | ||
| 22160B - SCREW | ||||
| 22569-0R020 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 22569-0R020 |
2ADFTV..ALA49..DCR *145 |
1 | ||
| 23122B - VALVE, CHECK | ||||
| 2376A-26030 |
1ADFTV,2AD#..ALA4# *119,NO.2 |
1 | ||
| 23769-26030 |
1ADFTV,2AD#..ALA4# *119,NO.1 |
1 | ||
| 23122B - VALVE, CHECK | ||||
| 2376A-26030 |
1ADFTV,2AD#..ALA4# *119,NO.2 |
1 | ||
| 23769-26030 |
1ADFTV,2AD#..ALA4# *119,NO.1 |
1 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-26180 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 23271N - CLIP, HOSE | ||||
| 96132-51300 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 23271N - CLIP, HOSE | ||||
| 96132-51300 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-26060 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 23273V - CLIP(FOR FUEL HOSE NO.2) | ||||
| 96132-51100 |
1ADFTV,2AD#..ALA4# NO.1:REFER ILLUST. |
1 | ||
| 90467-12056 |
1ADFTV,2AD#..ALA4# NO.2:REFER ILLUST. |
1 | ||
| 23273V - CLIP(FOR FUEL HOSE NO.2) | ||||
| 96132-51100 |
1ADFTV,2AD#..ALA4# NO.1:REFER ILLUST. |
1 | ||
| 90467-12056 |
1ADFTV,2AD#..ALA4# NO.2:REFER ILLUST. |
1 | ||
| 23274D - HOSE, FUEL, NO.3 | ||||
| 23274-26080 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 23274-26080 |
2ADFTV..ALA49..DCR *145 |
1 | ||
| 23274F - CLIP(FOR FUEL HOSE NO.3) | ||||
| 96135-51100 |
2ADFTV..ALA49..DCR *145 |
2 | ||
| 96135-51100 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 23274F - CLIP(FOR FUEL HOSE NO.3) | ||||
| 96135-51100 |
2ADFTV..ALA49..DCR *145 |
2 | ||
| 96135-51100 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 23282D - HOSE, FUEL, NO.4 | ||||
| 23282-26070 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 23282-26070 |
2ADFTV..ALA49..DCR *145 |
1 | ||
| 23282E - CLIP(FOR FUEL HOSE NO.4) | ||||
| 90467-11076 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 90467-11076 |
2ADFTV..ALA49..DCR *145 |
2 | ||
| 23282E - CLIP(FOR FUEL HOSE NO.4) | ||||
| 90467-11076 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 90467-11076 |
2ADFTV..ALA49..DCR *145 |
2 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-26050 |
1ADFTV,2AD#..ALA4# (J),*119 |
1 | ||
| 23701-0R030 |
2ADFTV..ALA49..DCR *145 |
1 | ||
| 23701-0R030 |
1ADFTV,2AD#..ALA4# (L),*119 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-0R030 |
1ADFTV,2AD#..ALA4# (L),*119 |
1 | ||
| 23702-26050 |
1ADFTV,2AD#..ALA4# (J),*119 |
1 | ||
| 23702-0R030 |
2ADFTV..ALA49..DCR *145 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-0R030 |
1ADFTV,2AD#..ALA4# (L),*119 |
1 | ||
| 23703-0R030 |
2ADFTV..ALA49..DCR *145 |
1 | ||
| 23703-26050 |
1ADFTV,2AD#..ALA4# (J),*119 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-26060 |
1ADFTV,2AD#..ALA4# (J),*119 |
1 | ||
| 23704-0R030 |
1ADFTV,2AD#..ALA4# (L),*119 |
1 | ||
| 23704-0R030 |
2ADFTV..ALA49..DCR *145 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1ADFTV,2AD#..ALA4# *119,NO.1 |
4 | ||
| 23742-58020 |
1ADFTV,2AD#..ALA4# *119,NO.2 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1ADFTV,2AD#..ALA4# *119,NO.1 |
4 | ||
| 23742-58020 |
1ADFTV,2AD#..ALA4# *119,NO.2 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1ADFTV,2AD#..ALA4# *119,NO.1 |
4 | ||
| 23742-58020 |
1ADFTV,2AD#..ALA4# *119,NO.2 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1ADFTV,2AD#..ALA4# *119,NO.1 |
4 | ||
| 23742-58020 |
1ADFTV,2AD#..ALA4# *119,NO.2 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1ADFTV,2AD#..ALA4# *119,NO.1 |
4 | ||
| 23742-58020 |
1ADFTV,2AD#..ALA4# *119,NO.2 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1ADFTV,2AD#..ALA4# *119,NO.1 |
4 | ||
| 23742-58020 |
1ADFTV,2AD#..ALA4# *119,NO.2 |
2 | ||
| 23762 - PIPE, NOZZLE LEAKAGE, NO.2 | ||||
| 23762-26021 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 23762-26021 |
2ADFTV..ALA49..DCR *145 |
1 | ||
| 23762A - GASKET, NOZZLE LEAKAGE PIPE NO.2 | ||||
| 90904-30012 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 90904-30012 |
2ADFTV..ALA49..DCR *145 |
1 | ||
| 23804C - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-26050 |
1ADFTV,2AD#..ALA4# (J),*119 |
1 | ||
| 23804-0R020 |
1ADFTV,2AD#..ALA4# (L),*119 |
1 | ||
| 23804-0R020 |
2ADFTV..ALA49..DCR *145 |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-0R041 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 23810-0R041 |
2ADFTV..ALA49..DCR *145 |
1 | ||
| 23812D - PIPE, FUEL, NO.2 | ||||
| 23812-26020 |
2ADFTV..ALA49..DCR *119 |
1 | ||
| 23812-26020 |
2ADFTV..ALA49..DCR *145 |
1 | ||
| Common parts | ||||
| 90105-W0016 | ||||
| 90105-W0033 | ||||
| 90105-W0140 | ||||
| 90119-W0026 | ||||
| 90126-06026 | ||||
| 90178-W0019 | ||||
| 90430-10025 | ||||
| 90430-13005 | ||||
| 90464-00558 | ||||
| 91551-80625 | ||||
| 91551-80830 | ||||
| 91551-80835 | ||||
| 91672-81025 | ||||
| 92122-80625 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2201 | ||||
| 2302 | ||||
| 8405 | ||||
