ALA49R-ANFXRW (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

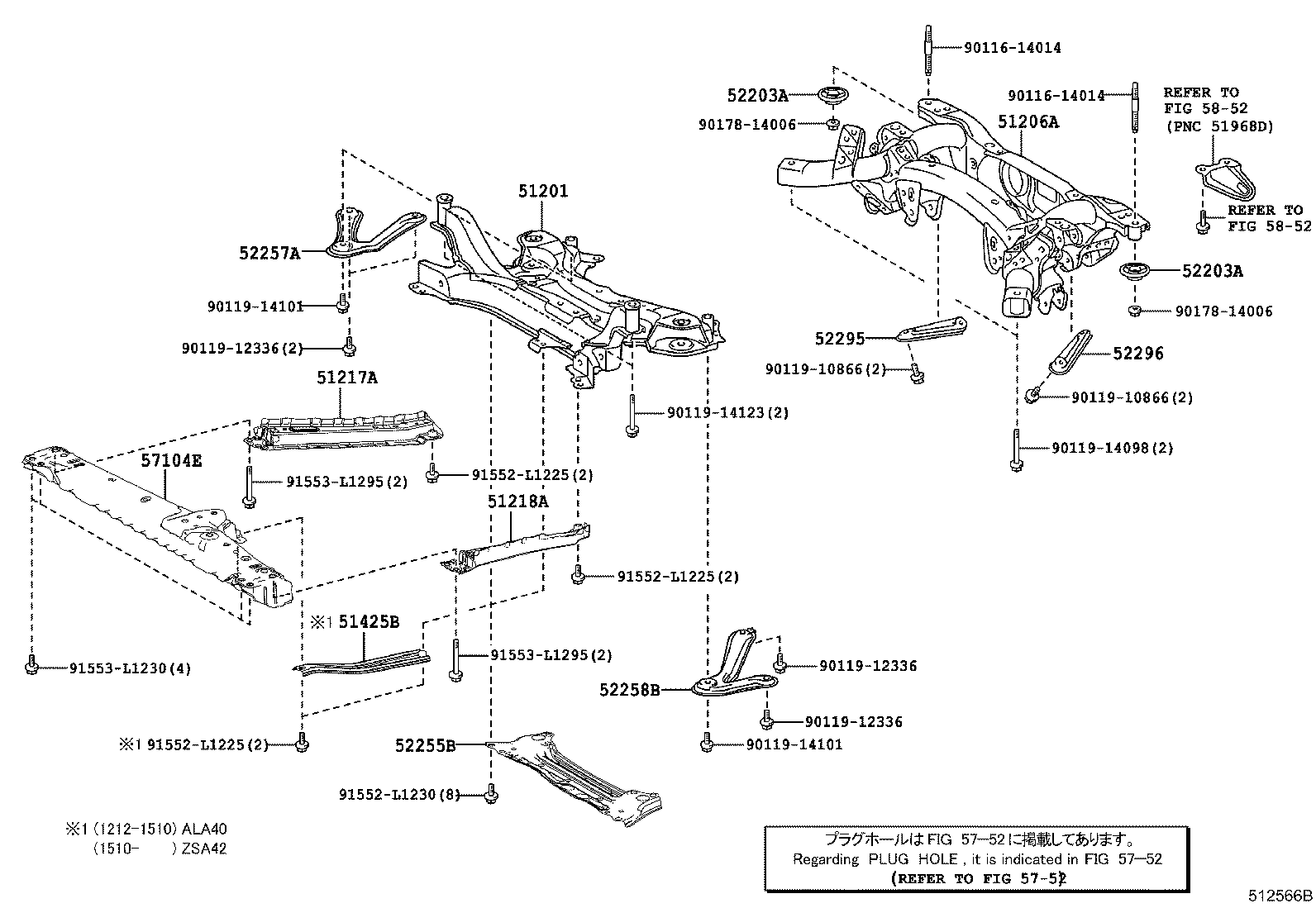

ILLUST NO. 1 OF 2(1212-1510) ; (1510- )ZSA44 ; (1510- )ALA49,ASA44,ZSA42..RUS ; (1708- )ASA

Click highlighted areas on diagram

SUSPENSION CROSSMEMBER

diagram 51201 51206A 51217A 51218A 51425B 52203A 52203A 52255B 52257A 52258B 52295 52296 57104E 5752 5852 5852 9011614014 9011614014 9011910866 9011910866 9011912336 9011912336 9011912336 9011914098 9011914101 9011914101 9011914123 9017814006 9017814006 91552L1225 91552L1225 91552L1225 91552L1230 91553L1230 91553L1295 91553L1295
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-12442

ALA4#,ZSA44

 1
51201-12441

ALA4#,ZSA44

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-42063

ALA4#,ZSA44

 1
51206-42062

ALA4#,ZSA44

 1
51206-78010

ALA4#,ZSA44

 1
51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51107-42020

ALA4#,ZSA44

 1
51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51108-42020

ALA4#,ZSA44

 1
52203A - CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER
52203-42020

ALA4#,ZSA44

 2
52203A - CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER
52203-42020

ALA4#,ZSA44

 2
52255B - BRACE, FRONT SUSPENSION MEMBER
52255-76010

ALA4#,ZSA44

 1
52257A - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-42010

ALA4#,ZSA44

 1
52258B - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-42010

ALA4#,ZSA44

 1
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-42010

ALA4#,ZSA44

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52296-42010

ALA4#,ZSA44

 1
57104E - MEMBER SUB-ASSY, FRONT CROSS
57104-42070

ALA4#,ZSA44

 1
Common parts
90116-14014
90119-10866
90119-12336
90119-14098
90119-14101
90119-14123
90178-14006
91552-L1225
91552-L1230
91553-L1230
91553-L1295
Linked diagrams
5752
5852

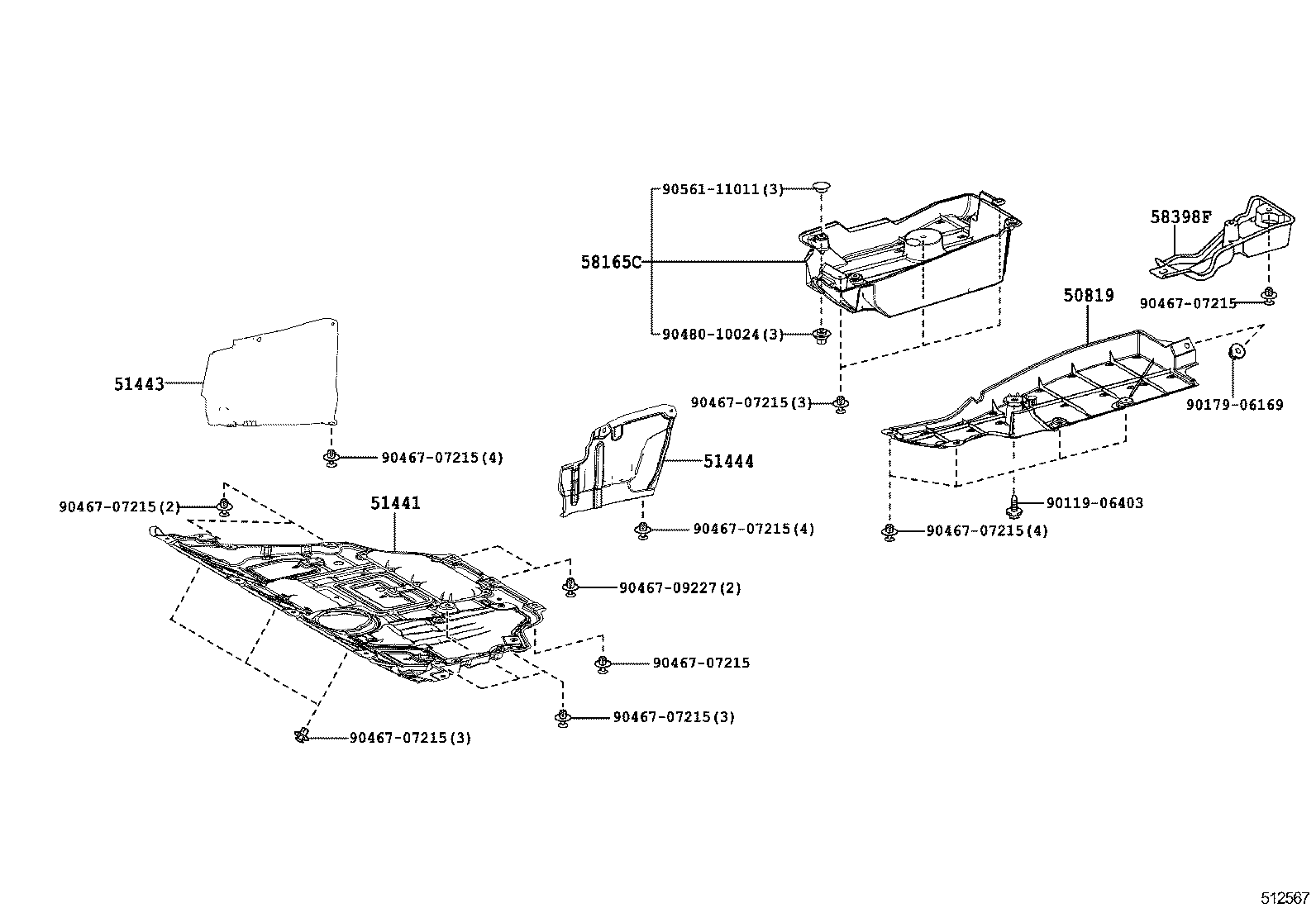

ILLUST NO. 2 OF 2(1212-1308)ALA4#

Click highlighted areas on diagram

UNDER COVER

diagram 50819 51441 51443 51444 58165C 58398F 9011906403 9017906169 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046709227 9048010024 9056111011
Part # Description Qty Price
50819 - COVER, FRONT FLOOR
50819-42031

ALA4#,ZSA44

 1
50819-42030

ALA4#,ZSA44

 1
51441 - COVER, ENGINE UNDER, NO.1
51410-42080

ALA4#

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-42010

ALA4#,ZSA44

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-42040

ALA4#,ZSA44

 1
58165C - COVER, FRONT FLOOR, RH
58165-42020

ALA4#,ZSA44

 1
58165-42021

ALA4#,ZSA44

 1
58398F - COVER, FLOOR UNDER, NO.1
58398-42022

ALA4#,ZSA44

 1
Common parts
90119-06403
90179-06169
90467-07215
90467-09227
90480-10024
90561-11011

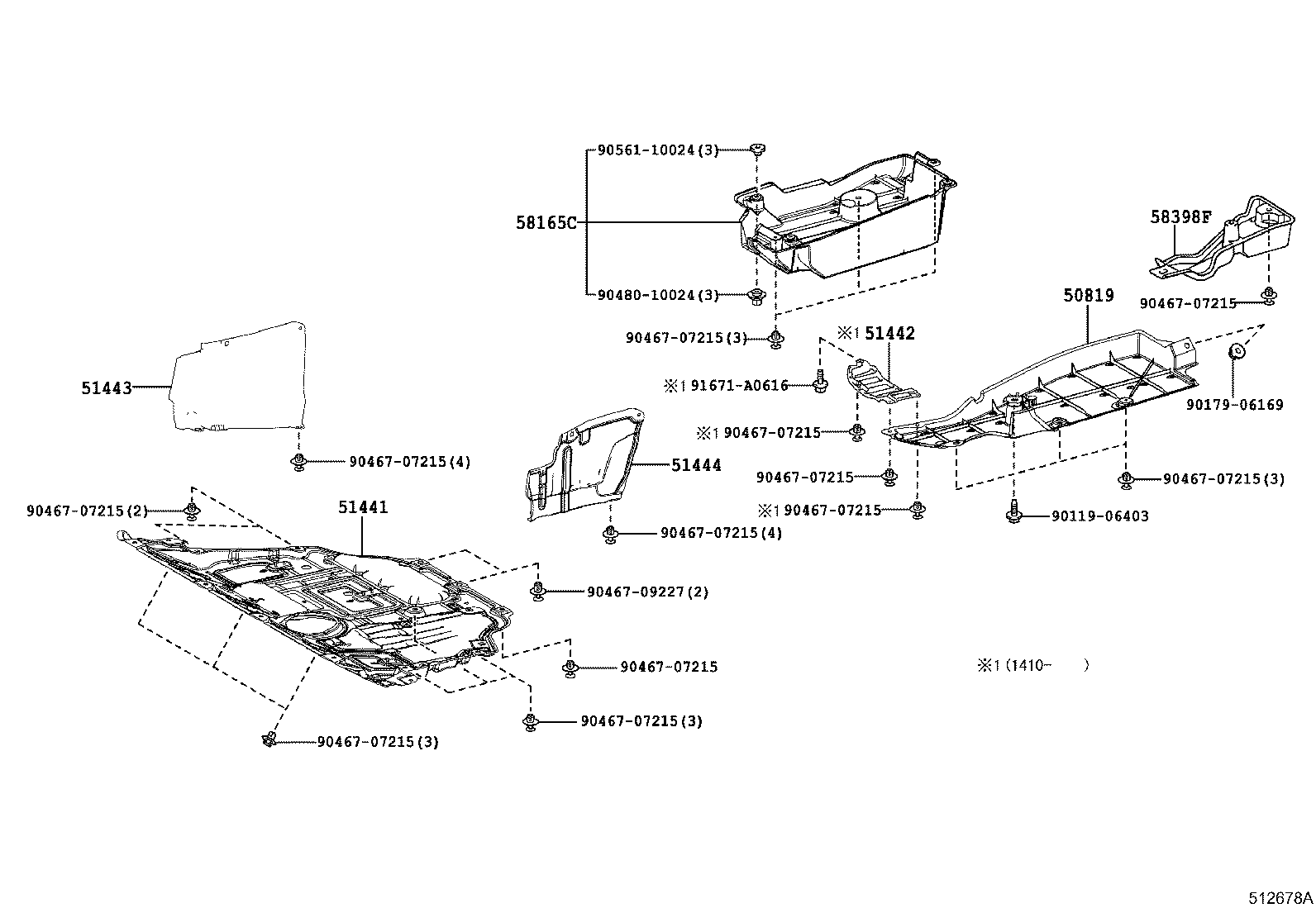

ILLUST NO. 2 OF 2(1308-1510)ALA4#

Click highlighted areas on diagram

UNDER COVER

diagram 50819 51441 51442 51443 51444 58165C 58398F 9011906403 9017906169 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046709227 9048010024 9056110024 91671A0616
Part # Description Qty Price
50819 - COVER, FRONT FLOOR
50819-42031

ALA4#,ZSA44

 1
50819-42030

ALA4#,ZSA44

 1
51441 - COVER, ENGINE UNDER, NO.1
51410-42080

ALA4#

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-42090

ALA4#,ZSA44

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-42010

ALA4#,ZSA44

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-42040

ALA4#,ZSA44

 1
58165C - COVER, FRONT FLOOR, RH
58165-42020

ALA4#,ZSA44

 1
58165-42021

ALA4#,ZSA44

 1
58398F - COVER, FLOOR UNDER, NO.1
58398-42022

ALA4#,ZSA44

 1
Common parts
90119-06403
90179-06169
90467-07215
90467-09227
90480-10024
90561-10024
91671-A0616
