ALA49R-ANFMRW (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

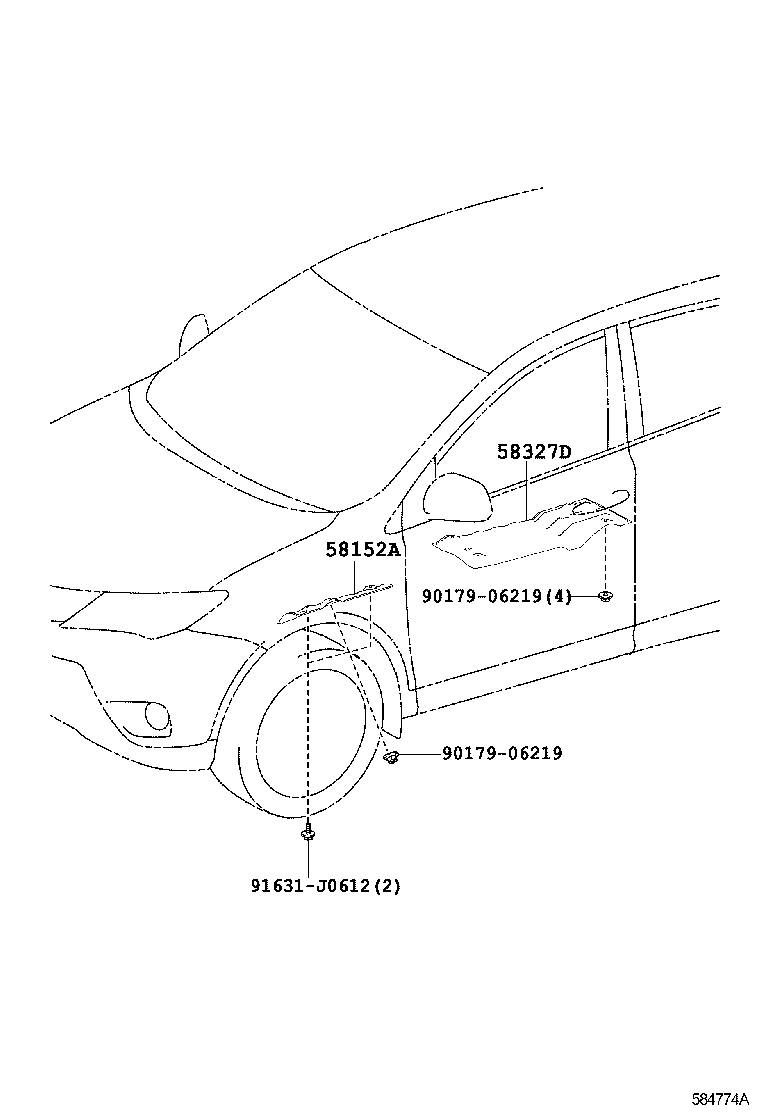

ILLUST NO. 1 OF 2(1212-1510)ALA4#

Click highlighted areas on diagram

TYPE A

diagram 58152A 58327D 9017906219 91631J0612
Part # Description Qty Price
58152A - INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER
58152-42010

ALA4#

 1
58327D - INSULATOR, MAIN MUFFLER HEAT, UPPER
58327-42010

ALA4#,ZSA44

TYPE A:REFER ILLUST.

 1
58327-42020

ALA4#,ZSA44

TYPE B:REFER ILLUST.

 1
Common parts
90179-06219
91631-J0612

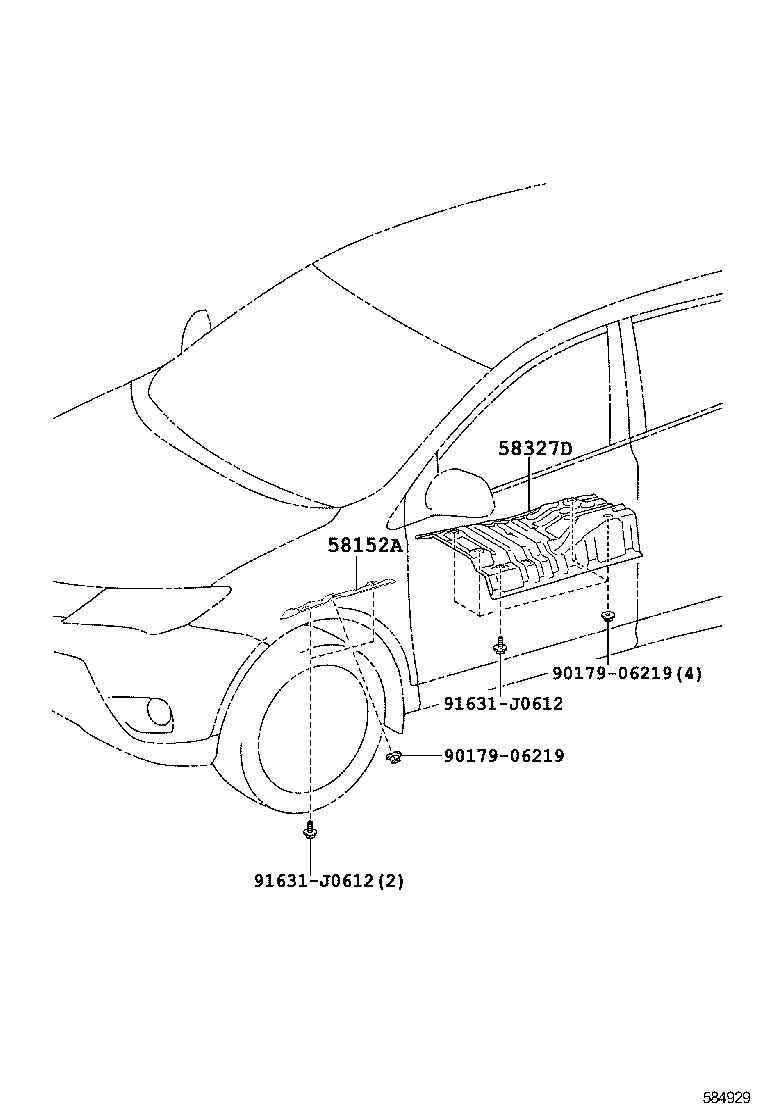

ILLUST NO. 2 OF 2(1309-1510)ALA4# ; (1510- )ALA49,WWA42

Click highlighted areas on diagram

TYPE B

diagram 58152A 58327D 9017906219 9017906219 91631J0612 91631J0612
Part # Description Qty Price
58152A - INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER
58152-42010

ALA4#

 1
58327D - INSULATOR, MAIN MUFFLER HEAT, UPPER
58327-42010

ALA4#,ZSA44

TYPE A:REFER ILLUST.

 1
58327-42020

ALA4#,ZSA44

TYPE B:REFER ILLUST.

 1
Common parts
90179-06219
91631-J0612
