ALA49R-ANFMRW (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )1ADFTV,2ADFTV..6F

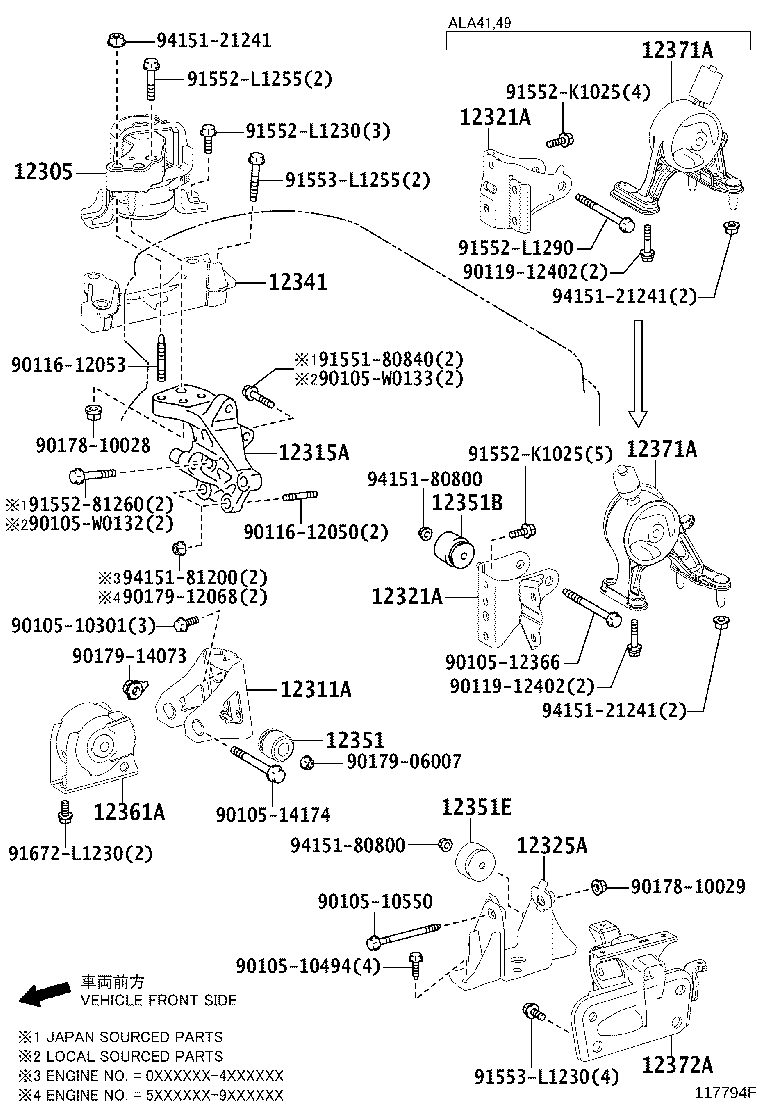

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12321A 12325A 12341 12351 12351B 12351E 12361A 12371A 12371A 12372A 9010510301 9010510494 9010510550 9010512366 9010514174 90105W0132 90105W0133 9011612050 9011612053 9011912402 9011912402 9017810028 9017810029 9017906007 9017912068 9017914073 9155180840 9155281260 91552K1025 91552K1025 91552L1230 91552L1255 91552L1290 91553L1230 91553L1255 91672L1230 9415121241 9415121241 9415121241 9415180800 9415180800 9415181200
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-26072

2ADFTV..ALA49..6F

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-26130

1ADFTV,2ADFTV..ALA4#..6F

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-26020

1ADFTV,2AD#..ALA4#

*119

 1
12315-0R020

2ADFTV..ALA49..DCR

*145

 1
12315-0R020

2ADFTV..ALA49..DCRE

2AD-FTV,*145

 1
12315-26020

2ADFTV..ALA49..DCRE

2AD-FTV,*119

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-26060

1ADFTV,2ADFTV..ALA41,49..6F

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-26060

1ADFTV,2ADFTV..ALA41,49..6F

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-26030

1ADFTV,2ADFTV..ALA4#..6F

 1
12341 - SPACER, ENGINE MOUNTING
12341-26011

1ADFTV,2AD#..ALA4#

 1
12351 - DAMPER, ENGINE MOUNTING
12351-63010

1ADFTV,2ADFTV..ALA4#..6F

 1
12351E - DAMPER, ENGINE MOUNTING
12351-22090

1ADFTV,2ADFTV..ALA4#..6F

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-26120

1ADFTV,2AD#..ALA41,49

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-26070

1ADFTV,2ADFTV..ALA41,49..6F

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-26070

1ADFTV,2ADFTV..ALA41,49..6F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-26050

1ADFTV,2ADFTV..ALA4#..6F

 1
Common parts
90105-10301
90105-10494
90105-10550
90105-12366
90105-14174
90105-W0132
90105-W0133
90116-12050
90116-12053
90119-12402
90178-10028
90178-10029
90179-06007
90179-12068
90179-14073
91551-80840
91552-81260
91552-K1025
91552-L1230
91552-L1255
91552-L1290
91553-L1230
91553-L1255
91672-L1230
94151-21241
94151-80800
94151-81200
