ALA49L-ANTMXX (2015)
Toyota Rav4
(1510- )ALA49
COLD AREA SPEC

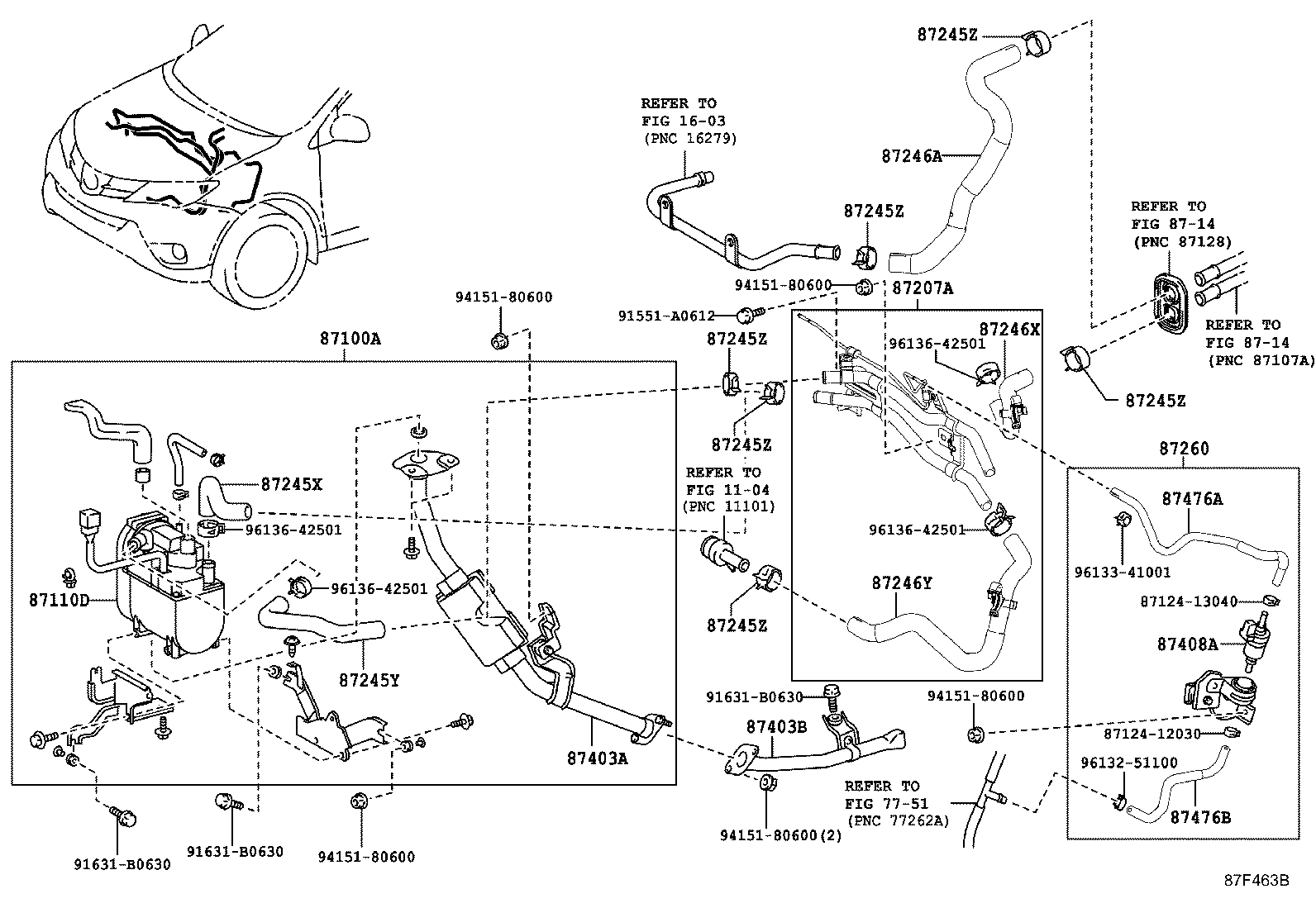

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87100A - HEATER & ACCESSORY ASSY | ||||
| 87100-42030 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 87100-42030 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 87110D - HEATER ASSY | ||||
| 87110-42010 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 87110-42010 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 87207A - PIPE & HOSE SUB-ASSY, WATER A | ||||
| 87207-42020 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 87207-42020 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-42550 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 87245-42550 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 87245Y - HOSE, HEATER WATER | ||||
| 87245-42560 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 87245-42560 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 96136-42501 |
ALA49,ASA44 |
4 | ||
| 96138-42501 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M);ALA49..JPP..X..DCRE |
4 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 96136-42501 |
ALA49,ASA44 |
4 | ||
| 96138-42501 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M);ALA49..JPP..X..DCRE |
4 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 96136-42501 |
ALA49,ASA44 |
4 | ||
| 96138-42501 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M);ALA49..JPP..X..DCRE |
4 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 96136-42501 |
ALA49,ASA44 |
4 | ||
| 96138-42501 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M);ALA49..JPP..X..DCRE |
4 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 96136-42501 |
ALA49,ASA44 |
4 | ||
| 96138-42501 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M);ALA49..JPP..X..DCRE |
4 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 96136-42501 |
ALA49,ASA44 |
4 | ||
| 96138-42501 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M);ALA49..JPP..X..DCRE |
4 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-42590 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 87245-42480 |
ALA4# |
1 | ||
| 87245-42590 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 87246X - HOSE, HEATER WATER | ||||
| 87245-42570 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 87245-42570 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 87246Y - HOSE, HEATER WATER | ||||
| 87245-42580 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 87245-42580 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 87260 - PUMP ASSY, HEATER | ||||
| 87260-42030 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 87260-42030 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 87403A - PIPE SUB-ASSY, EXHAUST | ||||
| 87403-42030 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 87403-42030 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 87403B - PIPE SUB-ASSY, EXHAUST | ||||
| 87403-42020 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 87403-42020 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 87408A - PUMP SUB-ASSY, FUEL | ||||
| 87408-0D011 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 87408-0D011 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 87476A - HOSE, HEATER FUEL, NO.1 | ||||
| 87476-42030 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 87476-42030 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 87476B - HOSE, HEATER FUEL, NO.2 | ||||
| 87476-42010 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 87476-42010 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| Common parts | ||||
| 87124-12030 | ||||
| 87124-13040 | ||||
| 91551-A0612 | ||||
| 91631-B0630 | ||||
| 94151-80600 | ||||
| 96132-51100 | ||||
| 96133-41001 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 7751 | ||||
| 8714 | ||||
