ALA49L-ANTMXX (2015)
Toyota Rav4

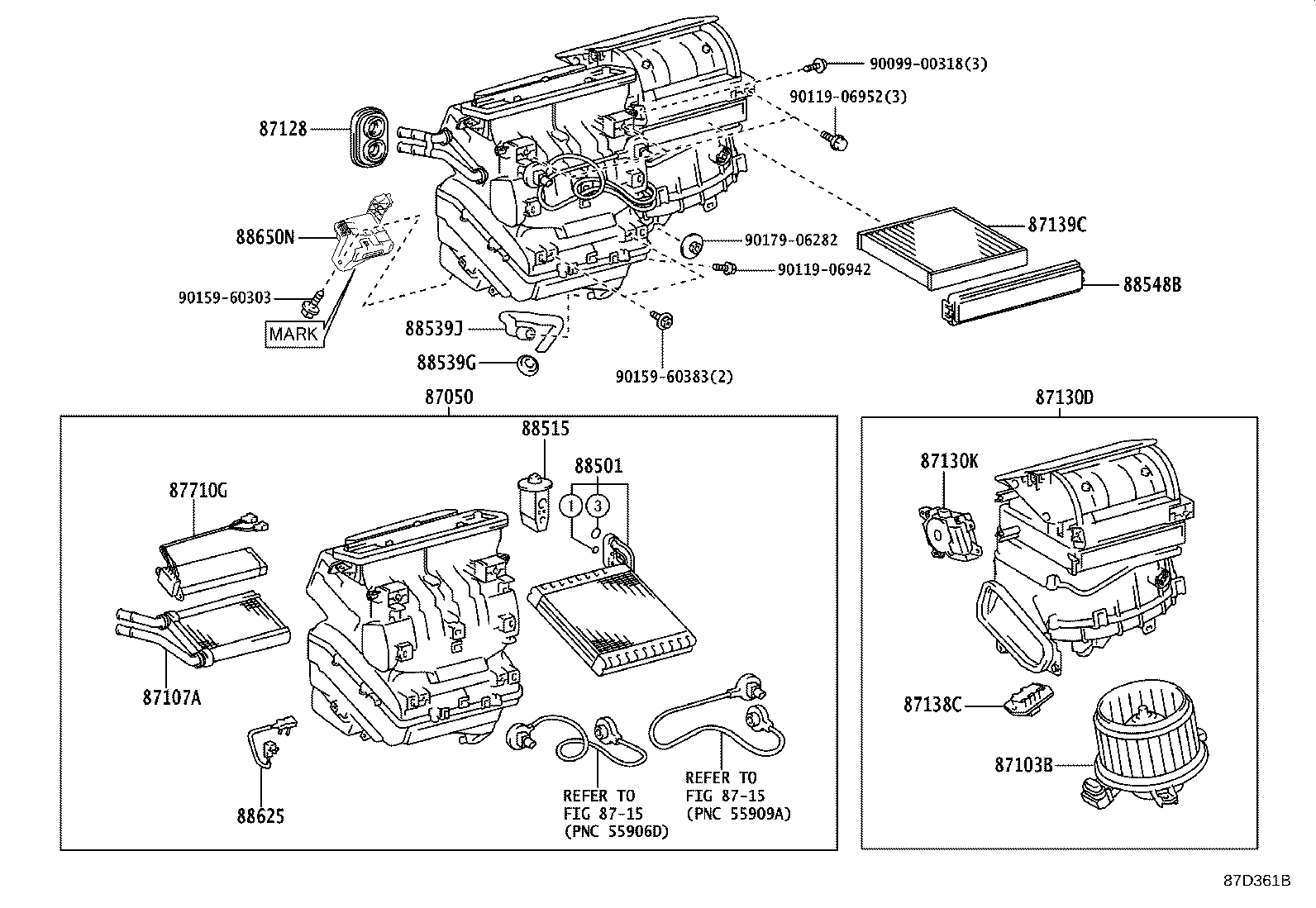

ILLUST NO. 1 OF 2(1212- )LHD..X..DCR ; (1212- )ALA4#,ZSA44..LHD..DCRE,DCRL,HTWVM..EUR ; (1510-
MANUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-12420 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC,REFER TO PNC 88650N |
1 | ||
| 87050-12420 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC,REFER TO PNC 88650N |
1 | ||
| 87050-12401 |
ALA49..LHD..X..DCR COLD AREA SPEC,REFER TO PNC 88650N |
1 | ||
| 87050-12401 |
ALA49..LHD..X..DCR COLD AREA SPEC,REFER TO PNC 88650N |
1 | ||
| 87050-12401 |
ALA4#..LHD..X..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC,REFER TO PNC 88650N |
1 | ||
| 87050-12401 |
ALA4#..LHD..X..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC,REFER TO PNC 88650N |
1 | ||
| 87050-42440 |
ALA49..LHD..X..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42440 |
ALA49..LHD..X..DCR REFER TO PNC 88650N |
1 | ||
| 87050-42440 |
ALA4#..LHD..X..(DCRE,DCRL) NON-WVTA,REFER TO PNC 88650N |
1 | ||
| 87050-42440 |
ALA4#..LHD..X..(DCRE,DCRL) NON-WVTA,REFER TO PNC 88650N |
1 | ||
| 87050-42450 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) NON-WVTA,REFER TO PNC 88650N |
1 | ||
| 87050-42450 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) NON-WVTA,REFER TO PNC 88650N |
1 | ||
| 87050-42531 |
ALA4#..LHD..X..(DCRE,DCRL) COLD AREA SPEC,REFER TO PNC 88650N |
1 | ||
| 87050-42531 |
ALA4#..LHD..X..(DCRE,DCRL) COLD AREA SPEC,REFER TO PNC 88650N |
1 | ||
| 87050-42561 |
ALA4#..LHD..X..(DCRE,DCRL) REFER TO PNC 88650N |
1 | ||
| 87050-42561 |
ALA4#..LHD..X..(DCRE,DCRL) REFER TO PNC 88650N |
1 | ||
| 87050-42571 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) REFER TO PNC 88650N |
1 | ||
| 87050-42571 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) REFER TO PNC 88650N |
1 | ||
| 87050-42541 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) COLD AREA SPEC,REFER TO PNC 88650N |
1 | ||
| 87050-42541 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) COLD AREA SPEC,REFER TO PNC 88650N |
1 | ||
| 87050-42561 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) FRENCH SPEC&BASIC PACKAGE,REFER TO PNC 88650N |
1 | ||
| 87050-42561 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) FRENCH SPEC&BASIC PACKAGE,REFER TO PNC 88650N |
1 | ||
| 87050-42630 |
ALA49..JPP..X |
1 | ||
| 87050-42630 |
ALA49..JPP..X |
1 | ||
| 87050-42640 |
ALA49..JPP..(G,M)..DCRL |
1 | ||
| 87050-42640 |
ALA49..JPP..(G,M)..DCRL |
1 | ||
| 87050-42640 |
ALA49..JPP..X AIR CONDITIONER-AUTO DUAL CONTROL |
1 | ||
| 87050-42640 |
ALA49..JPP..X AIR CONDITIONER-AUTO DUAL CONTROL |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-42090 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 87103-42090 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 87103-42090 |
ALA4#,ZSA44..LHD..X |
1 | ||
| 87103-42090 |
ALA4#,ZSA44..LHD..X |
1 | ||
| 87103-42101 |
ALA4#,ZSA44..LHD..(G,M) |
1 | ||
| 87103-42101 |
ALA4#,ZSA44..LHD..(G,M) |
1 | ||
| 87103-42101 |
ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;AVA42,ZSA44..LHD..(G,M)..EUR;ALA49,ASA44,AVA44,ZSA42..JPP..LHD..(ATM,CVT)..(G,M) |
1 | ||
| 87103-42101 |
ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;AVA42,ZSA44..LHD..(G,M)..EUR;ALA49,ASA44,AVA44,ZSA42..JPP..LHD..(ATM,CVT)..(G,M) |
1 | ||
| 87103-42090 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR |
1 | ||
| 87103-42090 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR |
1 | ||
| 87103-42101 |
ALA49,ZSA4#..JPP..X..RUS AIR CONDITIONER-AUTO DUAL CONTROL |
1 | ||
| 87103-42101 |
ALA49,ZSA4#..JPP..X..RUS AIR CONDITIONER-AUTO DUAL CONTROL |
1 | ||
| 87103-42101 |
WWA42..LHD..(G,M);ZSA44..6F..G..RUS;ALA49,ASA44,ZSA4#..RUP..(G,M);ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 87103-42101 |
WWA42..LHD..(G,M);ZSA44..6F..G..RUS;ALA49,ASA44,ZSA4#..RUP..(G,M);ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 87107-42170 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 87107-42170 |
ALA4#,ZSA44 |
1 | ||
| 87107-42170 |
ALA4#,ZSA44 |
1 | ||
| 87107-42170 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 87107-42170 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-42010 |
ALA4#,ZSA44 |
1 | ||
| 87128-42010 |
ALA4#,ZSA44 |
1 | ||
| 87128-42010 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 87128-42010 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 87128-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 87128-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-12561 |
ALA4#..LHD..X..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC |
1 | ||
| 87130-12561 |
ALA4#..LHD..X..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC |
1 | ||
| 87130-12561 |
ALA49..LHD..X..DCR COLD AREA SPEC |
1 | ||
| 87130-12561 |
ALA49..LHD..X..DCR COLD AREA SPEC |
1 | ||
| 87130-12581 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC |
1 | ||
| 87130-12581 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC |
1 | ||
| 87130-42281 |
ALA49..LHD..X..DCR |
1 | ||
| 87130-42281 |
ALA49..LHD..X..DCR |
1 | ||
| 87130-42281 |
ALA4#..LHD..X..(DCRE,DCRL) NON-WVTA |
1 | ||
| 87130-42281 |
ALA4#..LHD..X..(DCRE,DCRL) NON-WVTA |
1 | ||
| 87130-42291 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) NON-WVTA |
1 | ||
| 87130-42291 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) NON-WVTA |
1 | ||
| 87130-42340 |
ALA4#..LHD..X..(DCRE,DCRL) COLD AREA SPEC |
1 | ||
| 87130-42340 |
ALA4#..LHD..X..(DCRE,DCRL) COLD AREA SPEC |
1 | ||
| 87130-42360 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 87130-42360 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 87130-42350 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) COLD AREA SPEC |
1 | ||
| 87130-42350 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) COLD AREA SPEC |
1 | ||
| 87130-42370 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) |
1 | ||
| 87130-42370 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) |
1 | ||
| 87130-42360 |
ALA4#..LHD..X..(DCRE,DCRL) |
1 | ||
| 87130-42360 |
ALA4#..LHD..X..(DCRE,DCRL) |
1 | ||
| 87130-42340 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X |
1 | ||
| 87130-42340 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X |
1 | ||
| 87130-42350 |
ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M)..RUS |
1 | ||
| 87130-42350 |
ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M)..RUS |
1 | ||
| 87130-42350 |
ALA49,ZSA4#..JPP..X..RUS AIR CONDITIONER-AUTO DUAL CONTROL |
1 | ||
| 87130-42350 |
ALA49,ZSA4#..JPP..X..RUS AIR CONDITIONER-AUTO DUAL CONTROL |
1 | ||
| 87130-42350 |
ZSA44..6F..G..RUS;ALA49,ASA44,ZSA4#..RUP..(G,M);ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 87130-42350 |
ZSA44..6F..G..RUS;ALA49,ASA44,ZSA4#..RUP..(G,M);ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-42130 |
ALA49..LHD..X..DCR |
1 | ||
| 87106-42130 |
ALA49..LHD..X..DCR |
1 | ||
| 87106-42130 |
ALA4#,ZSA44..LHD..X..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42130 |
ALA4#,ZSA44..LHD..X..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42170 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 87106-42170 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 87106-42130 |
ALA4#..LHD..X..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC |
1 | ||
| 87106-42130 |
ALA4#..LHD..X..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC |
1 | ||
| 87106-47130 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC |
1 | ||
| 87106-47130 |
ALA4#..LHD..(G,M)..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC |
1 | ||
| 87106-47130 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-47130 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 87106-42180 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42180 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42170 |
ALA4#,ZSA44..LHD..X..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-42170 |
ALA4#,ZSA44..LHD..X..(DCRE,DCRL,HTWVM) |
1 | ||
| 87106-47160 |
ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;ASA44..JPP..(G,M)..RUS;AVA42,ZSA44..LHD..(G,M)..EUR;ALA49,AVA44,ZSA42..JPP..LHD..(ATM,CVT)..(G,M) |
1 | ||
| 87106-47160 |
ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;ASA44..JPP..(G,M)..RUS;AVA42,ZSA44..LHD..(G,M)..EUR;ALA49,AVA44,ZSA42..JPP..LHD..(ATM,CVT)..(G,M) |
1 | ||
| 87106-42170 |
ZSA44..JPP..B..X;ZSA44..LHD..X..EUR;ALA49,ZSA42..JPP..X |
1 | ||
| 87106-42170 |
ZSA44..JPP..B..X;ZSA44..LHD..X..EUR;ALA49,ZSA42..JPP..X |
1 | ||
| 87106-47160 |
WWA42..LHD..(G,M);ZSA44..6F..G..RUS;ALA49,ASA44,ZSA4#..RUP..(G,M);ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 87106-47160 |
WWA42..LHD..(G,M);ZSA44..6F..G..RUS;ALA49,ASA44,ZSA4#..RUP..(G,M);ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 87106-47160 |
ALA49,ZSA4#..JPP..X..RUS AIR CONDITIONER-AUTO DUAL CONTROL |
1 | ||
| 87106-47160 |
ALA49,ZSA4#..JPP..X..RUS AIR CONDITIONER-AUTO DUAL CONTROL |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-26160 |
ALA4#,ZSA44..LHD..X |
1 | ||
| 87138-26160 |
ALA4#,ZSA44..LHD..X |
1 | ||
| 87138-26160 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 87138-26160 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 87138-26160 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR |
1 | ||
| 87138-26160 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-60020 |
ALA4#,ZSA44 MICRO DUST FILTER |
1 | ||
| 87139-60020 |
ALA4#,ZSA44 MICRO DUST FILTER |
1 | ||
| 87139-50100 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) POLLEN DEODORANT,*DPF |
1 | ||
| 87139-50100 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) POLLEN DEODORANT,*DPF |
1 | ||
| 87139-52040 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) POLLEN FILTER,POLLEN FILTER |
1 | ||
| 87139-52040 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) POLLEN FILTER,POLLEN FILTER |
1 | ||
| 87139-52040 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS POLLEN FILTER,POLLEN FILTER |
1 | ||
| 87139-52040 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS POLLEN FILTER,POLLEN FILTER |
1 | ||
| 87139-52040 |
ALA4#,ZSA44 POLLEN FILTER |
1 | ||
| 87139-52040 |
ALA4#,ZSA44 POLLEN FILTER |
1 | ||
| 87139-50100 |
ALA4#,ZSA44 DEODORANT FILTER |
1 | ||
| 87139-50100 |
ALA4#,ZSA44 DEODORANT FILTER |
1 | ||
| 87139-50100 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS POLLEN DEODORANT,*DPF |
1 | ||
| 87139-50100 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS POLLEN DEODORANT,*DPF |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-42020 |
ALA4#..LHD |
1 | ||
| 87710-42020 |
ALA4#..LHD |
1 | ||
| 87710-12020 |
ALA4#..LHD..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC |
1 | ||
| 87710-12020 |
ALA4#..LHD..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC |
1 | ||
| 87710-12020 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE;ASA44..JPP..(G,M)..RUS |
1 | ||
| 87710-12020 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE;ASA44..JPP..(G,M)..RUS |
1 | ||
| 87710-12020 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 87710-12020 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-72020 |
ALA4#,ZSA44 |
1 | ||
| 88501-72020 |
ALA4#,ZSA44 |
1 | ||
| 88501-72020 |
ASA44..X..EUR;ALA49..JPP..DCRL;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 88501-72020 |
ASA44..X..EUR;ALA49..JPP..DCRL;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 88501-72020 |
ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M) |
1 | ||
| 88501-72020 |
ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-12100 |
ALA49..DCR |
1 | ||
| 88515-12100 |
ALA49..DCR |
1 | ||
| 88515-68010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM |
1 | ||
| 88515-68010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM |
1 | ||
| 88515-30780 |
ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,AVA44..JPP..(DCRL,HTWC)..RUS;ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS |
1 | ||
| 88515-30780 |
ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,AVA44..JPP..(DCRL,HTWC)..RUS;ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS |
1 | ||
| 88515-12100 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM NON-WVTA |
1 | ||
| 88515-12100 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM NON-WVTA |
1 | ||
| 88515-12100 |
ALA4#..LHD..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC |
1 | ||
| 88515-12100 |
ALA4#..LHD..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC |
1 | ||
| 88515-30780 |
ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 88515-30780 |
ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26030 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 90480-26030 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 90480-26030 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 90480-26030 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 90480-26030 |
ALA4#,ZSA44 |
1 | ||
| 90480-26030 |
ALA4#,ZSA44 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-42061 |
WWA42..LHD;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 88539-42061 |
WWA42..LHD;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 88539-42061 |
ALA4#,ZSA44..LHD |
1 | ||
| 88539-42061 |
ALA4#,ZSA44..LHD |
1 | ||
| 88539-42061 |
ASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..(DCRL,HTWC,HTWVM) |
1 | ||
| 88539-42061 |
ASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..(DCRL,HTWC,HTWVM) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42020 |
ASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..(DCRL,HTWC,HTWVM) |
1 | ||
| 88548-42020 |
ASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..(DCRL,HTWC,HTWVM) |
1 | ||
| 88548-42020 |
WWA42..LHD;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 88548-42020 |
WWA42..LHD;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 88548-42020 |
ALA4#,ZSA44..LHD |
1 | ||
| 88548-42020 |
ALA4#,ZSA44..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
ALA4#..LHD..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC |
1 | ||
| 88625-26090 |
ALA4#..LHD..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC |
1 | ||
| 88625-26090 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM NON-WVTA |
1 | ||
| 88625-26090 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM NON-WVTA |
1 | ||
| 88625-26090 |
ALA49..DCR |
1 | ||
| 88625-26090 |
ALA49..DCR |
1 | ||
| 88620-42010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM |
1 | ||
| 88620-42010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM |
1 | ||
| 88620-42010 |
ALA49,ZSA4#..JPP..X..RUS AIR CONDITIONER-AUTO DUAL CONTROL |
1 | ||
| 88620-42010 |
ALA49,ZSA4#..JPP..X..RUS AIR CONDITIONER-AUTO DUAL CONTROL |
1 | ||
| 88625-26090 |
ASA44..JPP..RUS;ALA49,AVA4#,ZSA4#..JPP |
1 | ||
| 88625-26090 |
ASA44..JPP..RUS;ALA49,AVA4#,ZSA4#..JPP |
1 | ||
| 88620-42010 |
ALA49,ASA44,AVA4#,WWA42,ZSA4# |
1 | ||
| 88620-42010 |
ALA49,ASA44,AVA4#,WWA42,ZSA4# |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-42410 |
ALA49..LHD..X..DCR COLD AREA SPEC,P/N LABEL=8865042410 |
1 | ||
| 88650-42410 |
ALA49..LHD..X..DCR COLD AREA SPEC,P/N LABEL=8865042410 |
1 | ||
| 88650-42420 |
ALA49..X..DCR P/N LABEL=8865042420 |
1 | ||
| 88650-42420 |
ALA49..X..DCR P/N LABEL=8865042420 |
1 | ||
| 88650-42530 |
ALA4#..LHD..X..(DCRE,DCRL) COLD AREA SPEC,P/N LABEL=8865042530 |
1 | ||
| 88650-42530 |
ALA4#..LHD..X..(DCRE,DCRL) COLD AREA SPEC,P/N LABEL=8865042530 |
1 | ||
| 88650-42410 |
ALA4#..LHD..X..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC,P/N LABEL=8865042410 |
1 | ||
| 88650-42410 |
ALA4#..LHD..X..(DCRE,DCRL) NON-WVTA&COLD AREA SPEC,P/N LABEL=8865042410 |
1 | ||
| 88650-42420 |
ALA4#..X..(DCRE,DCRL) NON-WVTA,P/N LABEL=8865042420 |
1 | ||
| 88650-42420 |
ALA4#..X..(DCRE,DCRL) NON-WVTA,P/N LABEL=8865042420 |
1 | ||
| 88650-42540 |
ALA40,49..LHD..X..(DCRE,DCRL) FRENCH SPEC&BASIC PACKAGE,P/N LABEL=8865042540 |
1 | ||
| 88650-42540 |
ALA40,49..LHD..X..(DCRE,DCRL) FRENCH SPEC&BASIC PACKAGE,P/N LABEL=8865042540 |
1 | ||
| 88650-42540 |
ALA4#..X..(DCRE,DCRL) P/N LABEL=8865042540 |
1 | ||
| 88650-42540 |
ALA4#..X..(DCRE,DCRL) P/N LABEL=8865042540 |
1 | ||
| 88650-42460 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA,P/N LABEL=8865042460 |
1 | ||
| 88650-42460 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) NON-WVTA,P/N LABEL=8865042460 |
1 | ||
| 88650-42550 |
ALA40..LHD..M;ALA49,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE,P/N LABEL=8865042550 |
1 | ||
| 88650-42550 |
ALA40..LHD..M;ALA49,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE,P/N LABEL=8865042550 |
1 | ||
| 88650-42550 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) P/N LABEL=8865042550 |
1 | ||
| 88650-42550 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) P/N LABEL=8865042550 |
1 | ||
| 88650-52720 |
ALA4#,ZSA44..LHD..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE,P/N LABEL=8865052720 |
1 | ||
| 88650-52720 |
ALA4#,ZSA44..LHD..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE,P/N LABEL=8865052720 |
1 | ||
| 88650-42580 |
ALA49,ASA44,ZSA4#..M..RUS COLD AREA SPEC & W/O(REAR SEAT HEATER) |
1 | ||
| 88650-42580 |
ALA49,ASA44,ZSA4#..M..RUS COLD AREA SPEC & W/O(REAR SEAT HEATER) |
1 | ||
| 88650-42580 |
ALA49,ASA44,ZSA4#..M..RUS MID+ PACKAGE&COLD AREA SPEC & WITH(REAR SEAT HEATER) |
1 | ||
| 88650-42580 |
ALA49,ASA44,ZSA4#..M..RUS MID+ PACKAGE&COLD AREA SPEC & WITH(REAR SEAT HEATER) |
1 | ||
| 88650-42630 |
ALA49,ASA44..X |
1 | ||
| 88650-42630 |
ALA49,ASA44..X |
1 | ||
| 88650-42740 |
ALA49,ASA44,WWA42,ZSA4#..JPP..(G,M) |
1 | ||
| 88650-42740 |
ALA49,ASA44,WWA42,ZSA4#..JPP..(G,M) |
1 | ||
| 88650-42600 |
ZSA4#..B..G;ASA44,WWA42..G,M;ALA49,ZSA4#..M..(DCRE,EFI);ALA49,ZSA44..(G,M)..(DCRL,HTWVM) |
1 | ||
| 88650-42600 |
ZSA4#..B..G;ASA44,WWA42..G,M;ALA49,ZSA4#..M..(DCRE,EFI);ALA49,ZSA44..(G,M)..(DCRL,HTWVM) |
1 | ||
| 88650-42770 |
ALA49,ASA44,ZSA4#..JPP..M..RUS MID+ PACKAGE&COLD AREA SPEC & WITH(REAR SEAT HEATER) |
1 | ||
| 88650-42770 |
ALA49,ASA44,ZSA4#..JPP..M..RUS MID+ PACKAGE&COLD AREA SPEC & WITH(REAR SEAT HEATER) |
1 | ||
| 88650-42700 |
ALA49,ASA44..JPP..X..RUS |
1 | ||
| 88650-42700 |
ALA49,ASA44..JPP..X..RUS |
1 | ||
| 88650-42850 |
ASA44,WWA42..(G,M)..EUR;ZSA44..JPP..(6F,A)..(G,M);ALA49,ASA44,ZSA4#..JPP..(6FC,B)..M |
1 | ||
| 88650-42850 |
ASA44,WWA42..(G,M)..EUR;ZSA44..JPP..(6F,A)..(G,M);ALA49,ASA44,ZSA4#..JPP..(6FC,B)..M |
1 | ||
| 88650-42770 |
ALA49,ASA44,ZSA4#..JPP..M..RUS COLD AREA SPEC & W/O(REAR SEAT HEATER) |
1 | ||
| 88650-42770 |
ALA49,ASA44,ZSA4#..JPP..M..RUS COLD AREA SPEC & W/O(REAR SEAT HEATER) |
1 | ||
| 88650-42850 |
ALA49,ZSA4#..JPP..X..RUS AIR CONDITIONER-AUTO DUAL CONTROL |
1 | ||
| 88650-42850 |
ALA49,ZSA4#..JPP..X..RUS AIR CONDITIONER-AUTO DUAL CONTROL |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
