ALA49L-ANTMXX (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFHV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )ALA4#..JPP ; (1212- )ASA44..JPP..RUS ; (1608- )ALA49,ASA44..RUP ;

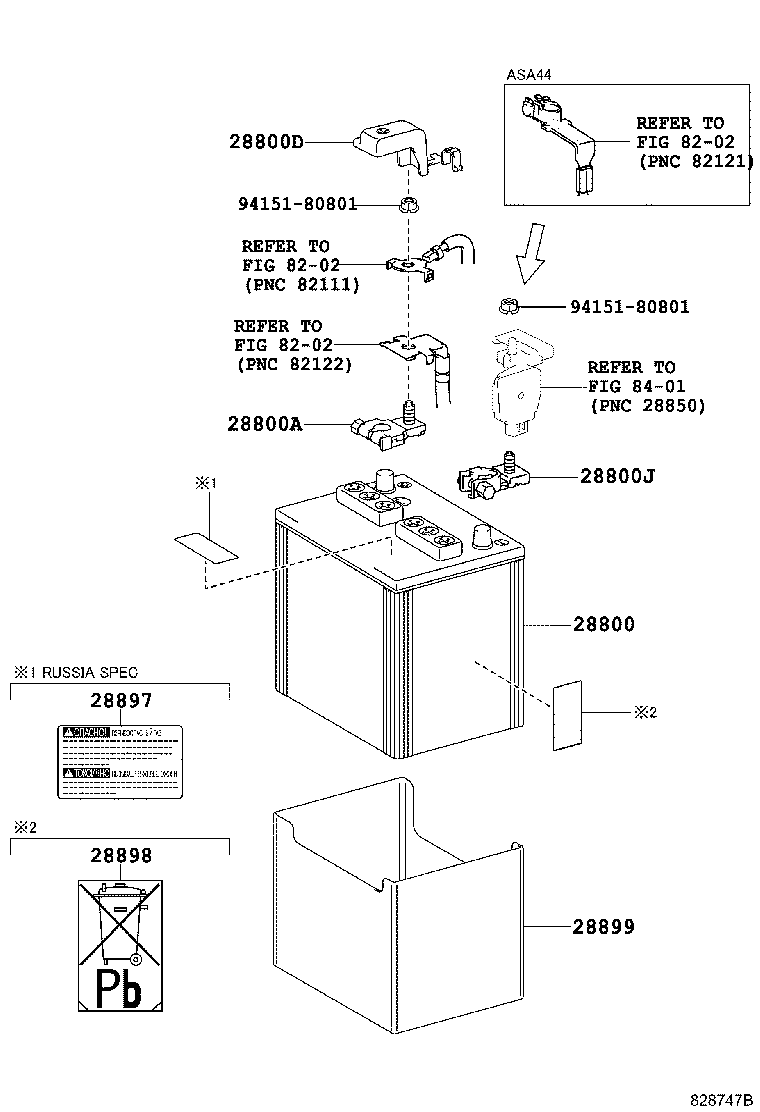

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800J 28897 28898 28899 8202 8202 8202 8401 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-26902

1ADFTV,2AD#..ALA41,49

115D31L

 1
28800-26902

2AD#..ALA49

115D31L

 1
28800-26141

2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X

115D31L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05061

1ADFTV,2AD#..ALA4#

 1
90982-05061

2ADFHV..ALA49..JPP;2ARFE..ASA44..X..EUR;2ADFTV..ALA49..JPP..X;2ARFE..ASA44..JPP..(G,M)

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-48020

1ADFTV,2AD#..ALA4#

 1
82821-48020

2ADFHV..ALA49;2ADFTV..ALA49..M,X

 1
82821-12490

2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06070

2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X

 1
90982-06070

2AD#..ALA49

 1
28897 - PLATE, BATTERY CAUTION
28897-31040

2AD#,2ARFE,3ZRFE..ALA49,ASA44,ZSA4#..JPP..RUS

RUSSIA SPEC

 1
28898 - PLATE, BATTERY
28898-46020

3ZRFE..ZSA4#..B..G;2ADFTV,3ZRFE..ALA49,ZSA4#..M,X;2ADFHV,2AR#..ALA49,ASA44,AVA4#..RUS

 1
28898-46020

1ADFTV,2AD#,3ZRFAE..ALA41,49,ZSA44..6F,6FC

 1
28899 - INSULATOR, BATTERY
28899-26060

1ADFTV,2AD#..ALA4#

 1
28899-26060

2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X

 1
Common parts
94151-80801
Linked diagrams
8202
8401
