ALA49L-ANTMXX (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFHV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )

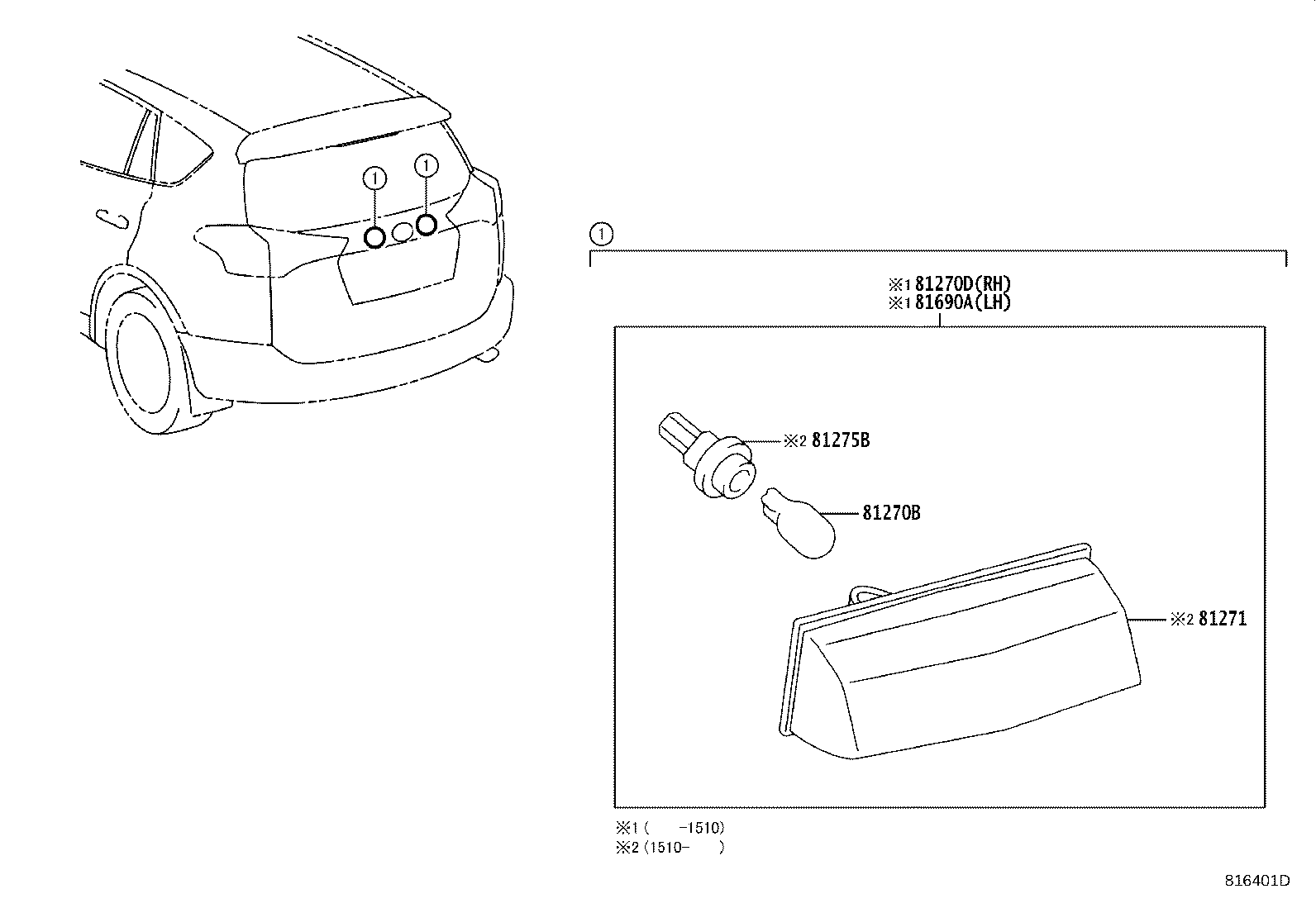

Click highlighted areas on diagram

diagram 81270B 81270D 81271 81275B 81690A
Part # Description Qty Price
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

ALA4#,ZSA44

12V 5W

 2
99132-12050

AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)

12V 5W

 2
99132-12050

WWA42;ZSA44..RHD..X;ZSA44..RUP..B;ALA49,ZSA42..RUP;ASA44..JPP..X..RUS;ZSA44..JPP..6F..(G,X)..RUS;ASA44,ZSA44..RUP..(6F,6FC)..(G,M);ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS

12V 5W

 2
81270D - LAMP ASSY, LICENSE PLATE, RH
81204-42010

ALA4#,ZSA44

 1
81271 - LENS, LICENSE PLATE LAMP
81271-53011

WWA42;ZSA44..RHD..X;ZSA44..RUP..B;ALA49,ZSA42..RUP;ASA44..JPP..X..RUS;ZSA44..JPP..6F..(G,X)..RUS;ASA44,ZSA44..RUP..(6F,6FC)..(G,M);ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS

 2
81271-53011

AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)

 2
81275B - SOCKET PLUG, LICENSE PLATE LAMP
90075-99011

WWA42;ZSA44..RHD..X;ZSA44..RUP..B;ALA49,ZSA42..RUP;ASA44..JPP..X..RUS;ZSA44..JPP..6F..(G,X)..RUS;ASA44,ZSA44..RUP..(6F,6FC)..(G,M);ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS

 2
90075-99011

AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)

 2
81690A - LAMP ASSY, LICENSE PLATE, LH
81204-42010

ALA4#,ZSA44

 1
