ALA49L-ANTMXX (2015)
Toyota Rav4
(1212- )

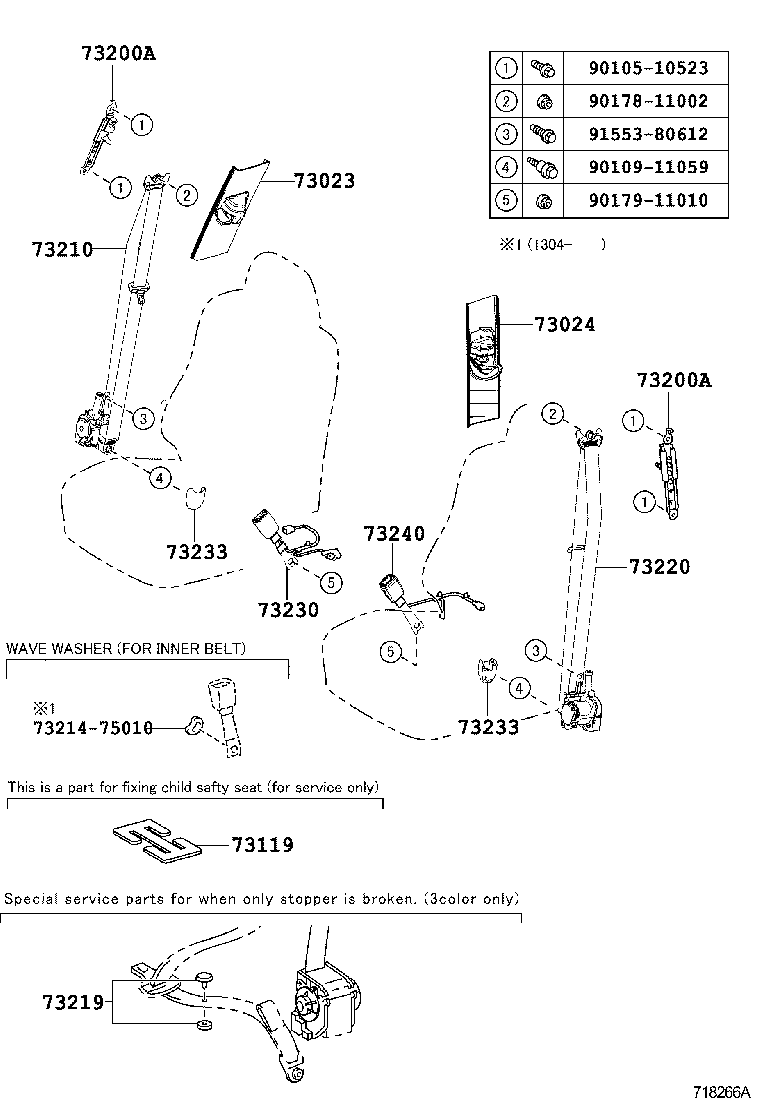

FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-33030B1 |
ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL) LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 73023-33030B1 |
ALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR LT.GRAY,TRIM2# |
1 | ||
| 73023-33030B1 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(6F,6FC,A)..M LT.GRAY,TRIM20,3# |
1 | ||
| 73023-33030C0 |
AVA42..M..RUS;ALA49,ASA44,ZSA4#..RUP..M;ALA49,WWA42,ZSA42..JPP..6F..M BLACK,TRIM20 |
1 | ||
| 73023-33030C0 |
AVA42..M..EUR;ZSA44..JPP..M;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..M BLACK,TRIM20 |
1 | ||
| 73023-33030B1 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR LT.GRAY,TRIM2# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-33030B1 |
ALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR LT.GRAY,TRIM2# |
1 | ||
| 73024-33030B1 |
ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL) LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 73024-33030B1 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR LT.GRAY,TRIM2# |
1 | ||
| 73024-33030B1 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(6F,6FC,A)..M LT.GRAY,TRIM20,3# |
1 | ||
| 73024-33030C0 |
AVA42..M..EUR;ZSA44..JPP..M;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..M BLACK,TRIM20 |
1 | ||
| 73024-33030C0 |
AVA42..M..RUS;ALA49,ASA44,ZSA4#..RUP..M;ALA49,WWA42,ZSA42..JPP..6F..M BLACK,TRIM20 |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ALA4#,ZSA44 |
1 | ||
| 73119-22010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 73119-22010 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-12070 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 73200-12070 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
2 | ||
| 73200-53010 |
ALA4#,ZSA44 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-12070 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 73200-12070 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
2 | ||
| 73200-53010 |
ALA4#,ZSA44 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-42350C0 |
ALA40,ZSA44..G,M;ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 73210-42350C0 |
ALA4#,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
1 | ||
| 73210-42352C1 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..M BLACK/BLACK,TRIM20 |
1 | ||
| 73210-42352C0 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..M BLACK/LT.GRAY,TRIM20 |
1 | ||
| 73210-42410C1 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..M BLACK/BLACK,TRIM20 |
1 | ||
| 73210-42410C0 |
ALA49,ASA44,WWA42,ZSA4#..JPP..X BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73210-42352C0 |
ALA49,ASA44,WWA42,ZSA4#..X BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73210-42410C2 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(M,X) BLACK,TRIM2# |
1 | ||
| 73210-42410C0 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..M BLACK/LT.GRAY,TRIM20 |
1 | ||
| 73210-47281C7 |
ALA49,ASA44,AVA4#,ZSA4#..JPP..(M,X) BLACK,TRIM2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) BLACK |
1 | ||
| 73219-33010 |
ALA4#,ZSA44 BLACK |
1 | ||
| 73219-33030 |
ALA4#,ZSA44 BEIGE |
1 | ||
| 73219-33010 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS BLACK |
1 | ||
| 73219-33030 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) BEIGE |
1 | ||
| 73219-33030 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS BEIGE |
1 | ||
| 73219-33020 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS GRAY |
1 | ||
| 73219-33020 |
ALA4#,ZSA44 GRAY |
1 | ||
| 73219-33020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-42310C0 |
ALA4#,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
1 | ||
| 73220-42312C0 |
ALA49,ASA44,WWA42,ZSA4#..X BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73220-42320C0 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..M BLACK/LT.GRAY,TRIM20 |
1 | ||
| 73220-42310C0 |
ALA40,ZSA44..G,M;ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 73220-42312C0 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..M BLACK/LT.GRAY,TRIM20 |
1 | ||
| 73220-42320C1 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..M BLACK/BLACK,TRIM20 |
1 | ||
| 73220-42320C0 |
ALA49,ASA44,WWA42,ZSA4#..JPP..X BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73220-42320C2 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(M,X) BLACK,TRIM2# |
1 | ||
| 73220-42312C1 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..M BLACK/BLACK,TRIM20 |
1 | ||
| 73220-47221C7 |
ALA49,ASA44,AVA4#,ZSA4#..JPP..(M,X) BLACK,TRIM2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-42220C0 |
ALA41..LHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
1 | ||
| 73230-42220C0 |
ALA41..LHD..(G,M);ALA49..LHD..G..DCR;ALA49..LHD..6F..X..DCR;ALA40,49,ZSA44..LHD..(DCRE,DCRL,HTWVM) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 73230-42220C0 |
ZSA4#..JPP..B..M;WWA42,ZSA44..JPP..LHD..X;ALA49,ASA44,ZSA42..JPP..X..RUS BLACK,TRIM2# |
1 | ||
| 73230-42220C0 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..LHD..(6F,6FC,A)..M BLACK,TRIM2#,3# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C0 |
ALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
2 | ||
| 73233-60020C0 |
ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL) BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 73233-60020C0 |
ZSA4#..B..M;ALA49,ASA44,WWA42,ZSA4#..X BLACK,TRIM2# |
2 | ||
| 73233-60020C0 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..(6F,6FC,A)..M BLACK,TRIM2#,3# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C0 |
ALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
2 | ||
| 73233-60020C0 |
ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL) BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 73233-60020C0 |
ZSA4#..B..M;ALA49,ASA44,WWA42,ZSA4#..X BLACK,TRIM2# |
2 | ||
| 73233-60020C0 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..(6F,6FC,A)..M BLACK,TRIM2#,3# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-42210C0 |
ZSA4#..JPP..B..M;WWA42,ZSA44..JPP..LHD..X;ALA49,ASA44,ZSA42..JPP..X..RUS BLACK,TRIM2# |
1 | ||
| 73230-42210C0 |
ALA41..LHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
1 | ||
| 73230-42210C0 |
ALA41..LHD..M;ALA49..LHD..6F..X..DCR;ALA40,49,ZSA44..LHD..(M,X)..(DCRE,DCRL,HTWVM) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 73230-42210C0 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..LHD..(6F,6FC,A)..M BLACK,TRIM2#,3# |
1 | ||
| 73230-42230C0 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..LHD..M SEAT COVER MATERIAL-SUEDE & NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
(1212- )ALA4#,ASA44,WWA42,ZSA4#

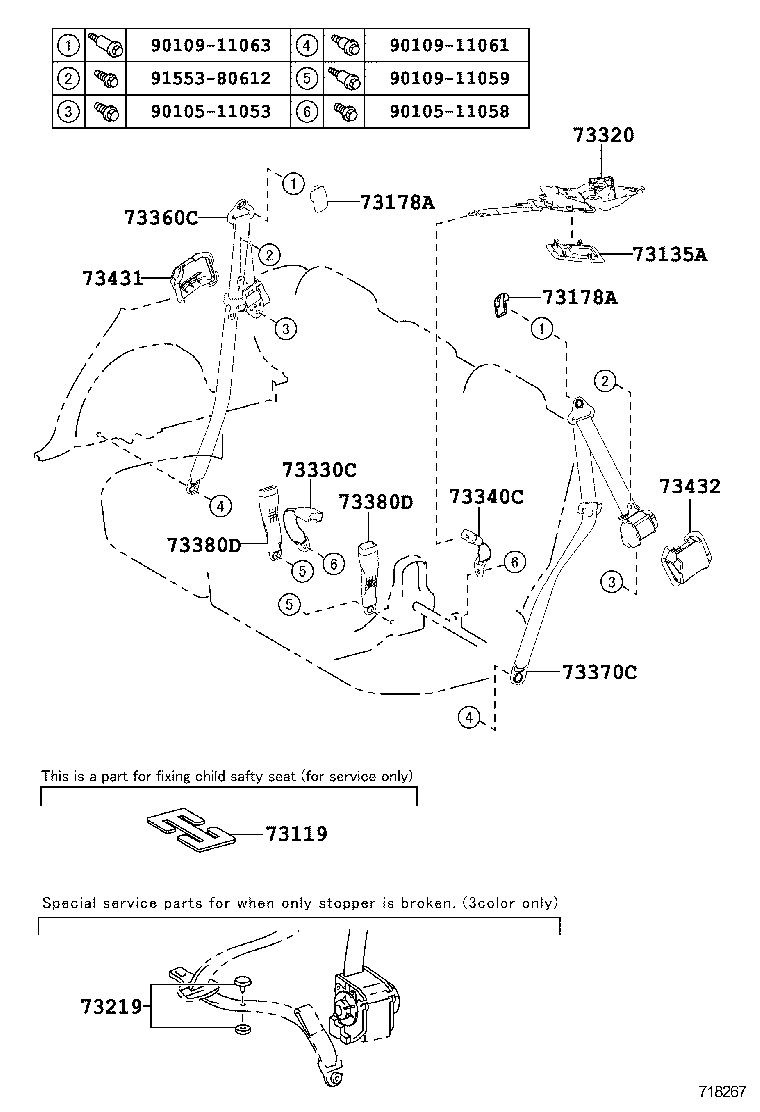

REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ALA4#,ZSA44 |
1 | ||
| 73119-22010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 73119-22010 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73137-42010B0 |
ALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR LT.GRAY,TRIM2# |
1 | ||
| 73137-42010B0 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(6F,6FC,A)..M LT.GRAY,TRIM20,3# |
1 | ||
| 73137-42010B0 |
ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL) LT.GRAY,TRIM1#,2#,3#,4# |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-42020B0 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(6F,6FC,A)..M LT.GRAY,TRIM20,3# |
2 | ||
| 73178-42020B0 |
ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL) LT.GRAY,TRIM1#,2#,3#,4# |
2 | ||
| 73178-42020B0 |
ALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR LT.GRAY,TRIM2# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-42020B0 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(6F,6FC,A)..M LT.GRAY,TRIM20,3# |
2 | ||
| 73178-42020B0 |
ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL) LT.GRAY,TRIM1#,2#,3#,4# |
2 | ||
| 73178-42020B0 |
ALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR LT.GRAY,TRIM2# |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) BLACK |
1 | ||
| 73219-33010 |
ALA4#,ZSA44 BLACK |
1 | ||
| 73219-33030 |
ALA4#,ZSA44 BEIGE |
1 | ||
| 73219-33010 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS BLACK |
1 | ||
| 73219-33030 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) BEIGE |
1 | ||
| 73219-33030 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS BEIGE |
1 | ||
| 73219-33020 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS GRAY |
1 | ||
| 73219-33020 |
ALA4#,ZSA44 GRAY |
1 | ||
| 73219-33020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) GRAY |
1 | ||
| 73320 - BELT ASSY, REAR SEAT 3 POINT TYPE, LH | ||||
| 73320-42080C0 |
ALA40,ZSA44..G,M;ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 73320-42080C0 |
ALA4#,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
1 | ||
| 73320-42101C2 |
AVA42..M..EUR;ZSA44..RHD..M;AVA44,WWA42..M,X;ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(M,X)..(DCRL,HTWVM) BLACK,TRIM2# |
1 | ||
| 73320-42102C2 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(M,X) BLACK,TRIM2# |
1 | ||
| 73320-42101C2 |
ZSA44..RHD..X;ASA44,ZSA44..JPP..(6F,6FC)..X..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..M..RUS BLACK,TRIM2# |
1 | ||
| 73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH | ||||
| 73330-42150C0 |
ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 73330-42150C0 |
ALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
1 | ||
| 73330-42170C0 |
ASA44..X..EUR;ZSA44..RHD..M;ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(M,X)..(DCRL,HTWVM) BLACK,TRIM2# |
1 | ||
| 73330-42170C0 |
WWA42..M,X;ASA44..X..RUS;ASA44..RUP..M;ZSA44..RHD..X;ZSA44..JPP..6F..X..RUS;ALA49,ZSA4#..RUP..(M,X);ALA49,ZSA42..JPP..6F..M BLACK,TRIM2# |
1 | ||
| 73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH | ||||
| 73340-42090C0 |
ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 73340-42090C0 |
ALA49,ASA44,WWA42,ZSA4#..JPP..(6F,6FC,A)..M BLACK,TRIM2#,3# |
1 | ||
| 73340-42090C0 |
ZSA42..JPP..B..M;ALA49,ZSA42..JPP..X;ZSA44..JPP..B..(M,X);ASA44,ZSA44..LHD..X..EUR BLACK,TRIM2# |
1 | ||
| 73340-42090C0 |
ALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-42300C0 |
ALA40,ZSA44..G,M;ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 73360-42251C0 |
ZSA44..JPP..B..X;ZSA44..LHD..X..EUR;ALA49,WWA42,ZSA42..JPP..X BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73360-42251C0 |
ALA49,AVA42,ZSA42..JPP..(6F,A)..M..RUS BLACK/LT.GRAY,TRIM20 |
1 | ||
| 73360-42300C0 |
ALA4#,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
1 | ||
| 73360-42251C0 |
AVA42..M..EUR;ALA49,ZSA42..JPP..(6FC,B)..M;ASA44,AVA44,WWA42,ZSA44..JPP..M BLACK/LT.GRAY,TRIM20 |
1 | ||
| 73360-42251C1 |
ALA49,AVA42,ZSA42..JPP..(6F,A)..M..RUS BLACK/BLACK,TRIM20 |
1 | ||
| 73360-42251C1 |
AVA42..M..EUR;ALA49,ZSA42..JPP..(6FC,B)..M;ASA44,AVA44,WWA42,ZSA44..JPP..M ROOF HEADLINING-WITH(FLAT KNIT), BLACK,BLACK/BLACK,TRIM20 |
1 | ||
| 73360-42252C0 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..M BLACK/LT.GRAY,TRIM20 |
1 | ||
| 73360-42252C1 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..M BLACK/BLACK,TRIM20 |
1 | ||
| 73360-42252C0 |
ALA49,ASA44,WWA42,ZSA4#..JPP..X BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-42190C0 |
ALA40,ZSA44..G,M;ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 73370-42190C0 |
ALA4#,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
1 | ||
| 73370-42211C0 |
ZSA44..JPP..B..X;ZSA44..LHD..X..EUR;ALA49,WWA42,ZSA42..JPP..X BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73370-42211C0 |
AVA42..M..EUR;ALA49,ZSA42..JPP..(6FC,B)..M;ASA44,AVA44,WWA42,ZSA44..JPP..M BLACK/LT.GRAY,TRIM20 |
1 | ||
| 73370-42211C0 |
ALA49,AVA42,ZSA42..JPP..(6F,A)..M..RUS BLACK/LT.GRAY,TRIM20 |
1 | ||
| 73370-42212C1 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..M BLACK/BLACK,TRIM20 |
1 | ||
| 73370-42211C1 |
ALA49,AVA42,ZSA42..JPP..(6F,A)..M..RUS BLACK/BLACK,TRIM20 |
1 | ||
| 73370-42212C0 |
ALA49,ASA44,WWA42,ZSA4#..JPP..X BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73370-42212C0 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..M BLACK/LT.GRAY,TRIM20 |
1 | ||
| 73370-42211C1 |
AVA42..M..EUR;ALA49,ZSA42..JPP..(6FC,B)..M;ASA44,AVA44,WWA42,ZSA44..JPP..M ROOF HEADLINING-WITH(FLAT KNIT), BLACK,BLACK/BLACK,TRIM20 |
1 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-42090C0 |
ALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
2 | ||
| 73380-42130C0 |
WWA42..M,X;ASA44..X..RUS;ASA44..RUP..M;ZSA44..RHD..X;ZSA44..JPP..6F..X..RUS;ALA49,ZSA4#..RUP..(M,X);ALA49,ZSA42..JPP..6F..M BLACK,TRIM2# |
2 | ||
| 73380-42090C0 |
ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL) BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 73380-42130C0 |
ASA44..X..EUR;ZSA44..RHD..M;ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(M,X)..(DCRL,HTWVM) BLACK,TRIM2# |
2 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-42090C0 |
ALA41..X;ALA40,49,ZSA44..RHD..X;ALA49..LHD..6FC..X..DCR BLACK,TRIM2# |
2 | ||
| 73380-42130C0 |
WWA42..M,X;ASA44..X..RUS;ASA44..RUP..M;ZSA44..RHD..X;ZSA44..JPP..6F..X..RUS;ALA49,ZSA4#..RUP..(M,X);ALA49,ZSA42..JPP..6F..M BLACK,TRIM2# |
2 | ||
| 73380-42090C0 |
ALA49..RHD..(G,M);ALA49..LHD..G..DCR;ALA40,41,ZSA44..G,M;ALA40,ZSA44..LHD..X;ALA49..LHD..6F..X..DCR;ALA49..LHD..(DCRE,DCRL) BLACK,TRIM1#,2#,3#,4# |
2 | ||
| 73380-42130C0 |
ASA44..X..EUR;ZSA44..RHD..M;ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(M,X)..(DCRL,HTWVM) BLACK,TRIM2# |
2 | ||
| 73431 - COVER, REAR SEAT BELT RETRACTOR, RH | ||||
| 73431-42010 |
ALA4#,ZSA44 |
1 | ||
| 73432 - COVER, REAR SEAT BELT RETRACTOR, LH | ||||
| 73432-42010 |
ALA4#,ZSA44 |
1 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 90105-11058 | ||||
| 90109-11059 | ||||
| 90109-11061 | ||||
| 90109-11063 | ||||
| 91553-80612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
