ALA49L-ANTMXX (2015)
Toyota Rav4

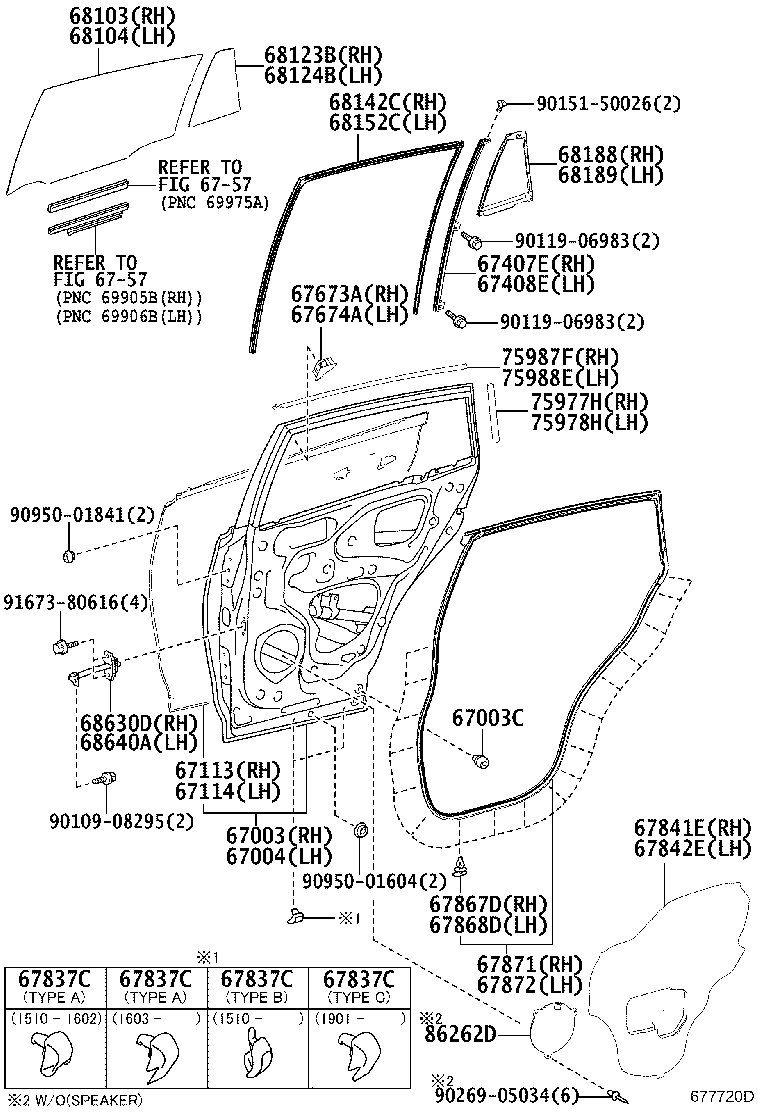

ILLUST NO. 1 OF 2(1212- )JPP
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-42180 |
ALA4#,ZSA44 |
1 | ||
| 67003-42180 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09137 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 90541-09137 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
2 | ||
| 90541-09137 |
ALA4#,ZSA44 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-42180 |
ALA4#,ZSA44 |
1 | ||
| 67004-42180 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-42110 |
ALA4#,ZSA44 |
1 | ||
| 67113-42110 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-42110 |
ALA4#,ZSA44 |
1 | ||
| 67114-42110 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-42040 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 67407-42040 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 67407-42040 |
ALA4#,ZSA44 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-42040 |
ALA4#,ZSA44 |
1 | ||
| 67408-42040 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 67408-42040 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-48010 |
ALA4#,ZSA44 |
1 | ||
| 67673-48010 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 67673-48010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-48010 |
ALA4#,ZSA44 |
1 | ||
| 67674-48010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 67674-48010 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-48050 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) TYPE A:REFER ILLUST. |
4 | ||
| 67837-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) TYPE B:REFER ILLUST. |
4 | ||
| 67837-48050 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS TYPE A:REFER ILLUST. |
4 | ||
| 67837-42010 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS TYPE B:REFER ILLUST. |
4 | ||
| 67837-12120 |
ALA49,ASA44,AVA4#,WWA42,ZSA4# TYPE A:REFER ILLUST. |
4 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-48050 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) TYPE A:REFER ILLUST. |
4 | ||
| 67837-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) TYPE B:REFER ILLUST. |
4 | ||
| 67837-48050 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS TYPE A:REFER ILLUST. |
4 | ||
| 67837-42010 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS TYPE B:REFER ILLUST. |
4 | ||
| 67837-12120 |
ALA49,ASA44,AVA4#,WWA42,ZSA4# TYPE A:REFER ILLUST. |
4 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-48050 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) TYPE A:REFER ILLUST. |
4 | ||
| 67837-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) TYPE B:REFER ILLUST. |
4 | ||
| 67837-48050 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS TYPE A:REFER ILLUST. |
4 | ||
| 67837-42010 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS TYPE B:REFER ILLUST. |
4 | ||
| 67837-12120 |
ALA49,ASA44,AVA4#,WWA42,ZSA4# TYPE A:REFER ILLUST. |
4 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-48050 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) TYPE A:REFER ILLUST. |
4 | ||
| 67837-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) TYPE B:REFER ILLUST. |
4 | ||
| 67837-48050 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS TYPE A:REFER ILLUST. |
4 | ||
| 67837-42010 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS TYPE B:REFER ILLUST. |
4 | ||
| 67837-12120 |
ALA49,ASA44,AVA4#,WWA42,ZSA4# TYPE A:REFER ILLUST. |
4 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-42060 |
ALA4#,ZSA44 |
1 | ||
| 67841-42061 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 67841-42061 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-42040 |
ALA4#,ZSA44 |
1 | ||
| 67842-42041 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 67842-42041 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
18 | ||
| 67867-12150 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
18 | ||
| 67867-12150 |
ALA4#,ZSA44 |
18 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
18 | ||
| 67867-12150 |
ALA4#,ZSA44 |
18 | ||
| 67867-12150 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
18 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-42070 |
ALA4#,ZSA44 |
1 | ||
| 67871-42070 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 67871-42070 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-42070 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 67872-42070 |
ALA4#,ZSA44 |
1 | ||
| 67872-42070 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-42150 |
AVA4#..M;WWA42,ZSA44..RHD..(M,X);AVA4#,ZSA44..JPP..G..RUS;WWA42,ZSA44..JPP..LHD..M;ALA49,ASA44,ZSA42..JPP..(G,M)..RUS REAR SIDE GLASS-REINFORCED(GRAY) |
1 | ||
| 68113-42140 |
ASA44,WWA42..(M,X)..EUR;AVA4#,ZSA44..JPP..(M,X);AVA4#,ZSA44..JPP..G..RUS;ALA49,ASA44,ZSA42..JPP..RUS |
1 | ||
| 68113-42140 |
ALA4#,ZSA44..M,X *UVCT,T=3.1,GREEN |
1 | ||
| 68113-42150 |
ALA49..M;ALA49..RHD..X;ALA40,41,ZSA44..LHD..M;ALA40,41,ZSA44..RHD..(M,X) *TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY) |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-42140 |
ASA44,WWA42..(M,X)..EUR;AVA4#,ZSA44..JPP..(M,X);AVA4#,ZSA44..JPP..G..RUS;ALA49,ASA44,ZSA42..JPP..RUS |
1 | ||
| 68114-42150 |
ALA49..M;ALA49..RHD..X;ALA40,41,ZSA44..LHD..M;ALA40,41,ZSA44..RHD..(M,X) *TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY) |
1 | ||
| 68114-42140 |
ALA4#,ZSA44..M,X *UVCT,T=3.1,GREEN |
1 | ||
| 68114-42150 |
AVA4#..M;WWA42,ZSA44..RHD..(M,X);AVA4#,ZSA44..JPP..G..RUS;WWA42,ZSA44..JPP..LHD..M;ALA49,ASA44,ZSA42..JPP..(G,M)..RUS REAR SIDE GLASS-REINFORCED(GRAY) |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-42140 |
ALA49..M;ALA49..RHD..X;ALA40,41,ZSA44..LHD..M;ALA40,41,ZSA44..RHD..(M,X) *TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY) |
1 | ||
| 68123-42130 |
ALA4#,ZSA44..M,X *UVCT,T=3.1,GREEN |
1 | ||
| 68123-42140 |
AVA4#..M;WWA42,ZSA44..RHD..(M,X);AVA4#,ZSA44..JPP..G..RUS;WWA42,ZSA44..JPP..LHD..M;ALA49,ASA44,ZSA42..JPP..(G,M)..RUS REAR SIDE GLASS-REINFORCED(GRAY) |
1 | ||
| 68123-42130 |
ASA44,WWA42..(M,X)..EUR;AVA4#,ZSA44..JPP..(M,X);AVA4#,ZSA44..JPP..G..RUS;ALA49,ASA44,ZSA42..JPP..RUS |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-42140 |
ALA4#,ZSA44..M,X *UVCT,T=3.1,GREEN |
1 | ||
| 68124-42150 |
AVA4#..M;WWA42,ZSA44..RHD..(M,X);AVA4#,ZSA44..JPP..G..RUS;WWA42,ZSA44..JPP..LHD..M;ALA49,ASA44,ZSA42..JPP..(G,M)..RUS REAR SIDE GLASS-REINFORCED(GRAY) |
1 | ||
| 68124-42150 |
ALA49..M;ALA49..RHD..X;ALA40,41,ZSA44..LHD..M;ALA40,41,ZSA44..RHD..(M,X) *TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY) |
1 | ||
| 68124-42140 |
ASA44,WWA42..(M,X)..EUR;AVA4#,ZSA44..JPP..(M,X);AVA4#,ZSA44..JPP..G..RUS;ALA49,ASA44,ZSA42..JPP..RUS |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-42050 |
ALA4#,ZSA44 |
1 | ||
| 68142-42050 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 68142-42050 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-42050 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 68152-42050 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 68152-42050 |
ALA4#,ZSA44 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-42060 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 68188-42060 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 68188-42050 |
ALA4#,ZSA44 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-42050 |
ALA4#,ZSA44 |
1 | ||
| 68189-42060 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 68189-42060 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-42041 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 68630-42040 |
ALA4#,ZSA44 |
1 | ||
| 68630-42041 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-42041 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 68630-42040 |
ALA4#,ZSA44 |
1 | ||
| 68630-42041 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH | ||||
| 75977-42040 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 75977-42040 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 75977-42040 |
ALA4#,ZSA44 |
1 | ||
| 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH | ||||
| 75978-42040 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 75978-42040 |
ALA4#,ZSA44 |
1 | ||
| 75978-42040 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 75987F - STRIPE, REAR DOOR, OUTSIDE, RH | ||||
| 75987-42050 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 75987-42050 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 75987-42050 |
ALA4#,ZSA44 |
1 | ||
| 75988E - STRIPE, REAR DOOR, OUTSIDE LH | ||||
| 75988-42050 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 75988-42050 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 75988-42050 |
ALA4#,ZSA44 |
1 | ||
| 86262D - COVER, REAR DOOR SPEAKER | ||||
| 86262-50010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM AUDIO-W/O(AUDIO&SPEAKER) |
2 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90269-05034 | ||||
| 90950-01604 | ||||
| 90950-01841 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6757 | ||||
ILLUST NO. 2 OF 2(1212- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-42550C5 |
ALA4#,ZSA44..G,M BLACK/GRAY/GRAY,TRIM1# |
1 | ||
| 67630-4255020 |
ALA4#,ZSA44..G,M BLACK/TERRACOTTA/TERRACOT,TRIM3# |
1 | ||
| 67630-42540C6 |
ALA49..LHD..6F..X..DCR;ALA4#,ZSA44..LHD..X..(DCRE,DCRL,HTWVM) BLACK/GRAY/GRAY,TRIM1# |
1 | ||
| 67630-42540C4 |
ALA49..LHD..6F..X..DCR;ALA4#,ZSA44..LHD..X..(DCRE,DCRL,HTWVM) BLACK/BEIGE/BEIGE,TRIM4# |
1 | ||
| 67630-42550C1 |
ALA4#,ZSA44..G,M BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67630-42540C5 |
ALA49..LHD..6F..X..DCR;ALA4#,ZSA44..LHD..X..(DCRE,DCRL,HTWVM) BLACK/TERRACOTTA/TERRACOT,TRIM3# |
1 | ||
| 67630-4254021 |
ALA4#,ZSA44..X BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67630-42620C1 |
AVA42..M..EUR;ZSA44..JPP..M;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..M MID+ PACKAGE&SEAT COVER MATERIAL-SUEDE & NATURAL LEATHER,BLACK/BLACK,TRIM2# |
1 | ||
| 67630-42550C3 |
ALA4#,ZSA44..G,M BLACK/BEIGE/BEIGE,TRIM4# |
1 | ||
| 67630-42610C2 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..G,M BLACK/BLACK,TRIM2# |
1 | ||
| 67630-42620C1 |
AVA42..M..RUS;ALA49,ASA44,ZSA4#..RUP..M;ALA49,WWA42,ZSA42..JPP..6F..M MID+ PACKAGE&SEAT COVER MATERIAL-SUEDE & NATURAL LEATHER,BLACK/BLACK,TRIM2# |
1 | ||
| 67630-42611C2 |
AVA42..EUR;ZSA44..JPP..(G,M);ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) BLACK/BLACK,TRIM2# |
1 | ||
| 67630-42570C0 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR BLACK/BLACK,TRIM2# |
1 | ||
| 67630-42611C2 |
WWA42..G,M;ALA49,ASA44,ZSA4#..RUP..(G,M);ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS BLACK/BLACK,TRIM2# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZSA44..B..G;ZSA44..M..RUS;ZSA42..JPP..B..G;ZSA42..RUP..(G,M);ASA44,AVA4#,WWA42..G,M;ALA49,ZSA42..JPP..M..(DCRE,EFI);ALA49,ZSA44..(G,M)..(DCRL,HTWVM) |
16 | ||
| 90467-09206 |
AVA42..EUR;ZSA44..JPP..(G,M);ASA44..JPP..(G,M)..RUS;ALA49,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
16 | ||
| 90467-09206 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..M MID+ PACKAGE&SEAT COVER MATERIAL-SUEDE & NATURAL LEATHER |
16 | ||
| 90467-09206 |
WWA42..G,M;ALA49,ASA44,ZSA4#..RUP..(G,M);ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
16 | ||
| 90467-09206 |
ASA44..EUR;ZSA44..JPP..B..X;ZSA44..LHD..X..EUR;ALA49,ZSA42..JPP..X |
16 | ||
| 90467-09206 |
ALA4#,ZSA44 |
16 | ||
| 90467-09206 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..G,M |
32 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-42540C5 |
ALA49..LHD..6F..X..DCR;ALA4#,ZSA44..LHD..X..(DCRE,DCRL,HTWVM) BLACK/TERRACOTTA/TERRACOT,TRIM3# |
1 | ||
| 67640-42550C3 |
ALA4#,ZSA44..G,M BLACK/BEIGE/BEIGE,TRIM4# |
1 | ||
| 67640-42540C6 |
ALA49..LHD..6F..X..DCR;ALA4#,ZSA44..LHD..X..(DCRE,DCRL,HTWVM) BLACK/GRAY/GRAY,TRIM1# |
1 | ||
| 67640-42540C4 |
ALA49..LHD..6F..X..DCR;ALA4#,ZSA44..LHD..X..(DCRE,DCRL,HTWVM) BLACK/BEIGE/BEIGE,TRIM4# |
1 | ||
| 67640-4255020 |
ALA4#,ZSA44..G,M BLACK/TERRACOTTA/TERRACOT,TRIM3# |
1 | ||
| 67640-42610C2 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..G,M BLACK/BLACK,TRIM2# |
1 | ||
| 67640-42550C5 |
ALA4#,ZSA44..G,M BLACK/GRAY/GRAY,TRIM1# |
1 | ||
| 67640-42550C1 |
ALA4#,ZSA44..G,M BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67640-4254021 |
ALA4#,ZSA44..X BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-42050 |
ALA4#,ZSA44 |
1 | ||
| 68173-42050 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 68173-42050 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-42040 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
1 | ||
| 68174-42040 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 68174-42040 |
ALA4#,ZSA44 |
1 | ||
| 74645C - COVER, DOOR ASSIST GRIP, RH | ||||
| 74645-42040 |
ALA4#,ZSA44 |
1 | ||
| 74645-42060B1 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR SILVER,TRIM2# |
1 | ||
| 74645-42060B1 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..M SILVER,TRIM20 |
1 | ||
| 74645-42060B2 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..M SMOKE SILVER METALLIC,TRIM20 |
1 | ||
| 74646A - COVER, DOOR ASSIST GRIP, LH | ||||
| 74646-42060B2 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..M SMOKE SILVER METALLIC,TRIM20 |
1 | ||
| 74646-42040 |
ALA4#,ZSA44 |
1 | ||
| 74646-42060B1 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR SILVER,TRIM2# |
1 | ||
| 74646-42060B1 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..M SILVER,TRIM20 |
1 | ||
| Common parts | ||||
| 90164-60021 | ||||
| 90189-06024 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
