ALA49L-ANTMXX (2015)
Toyota Rav4
(1212- )ALA4#..LHD

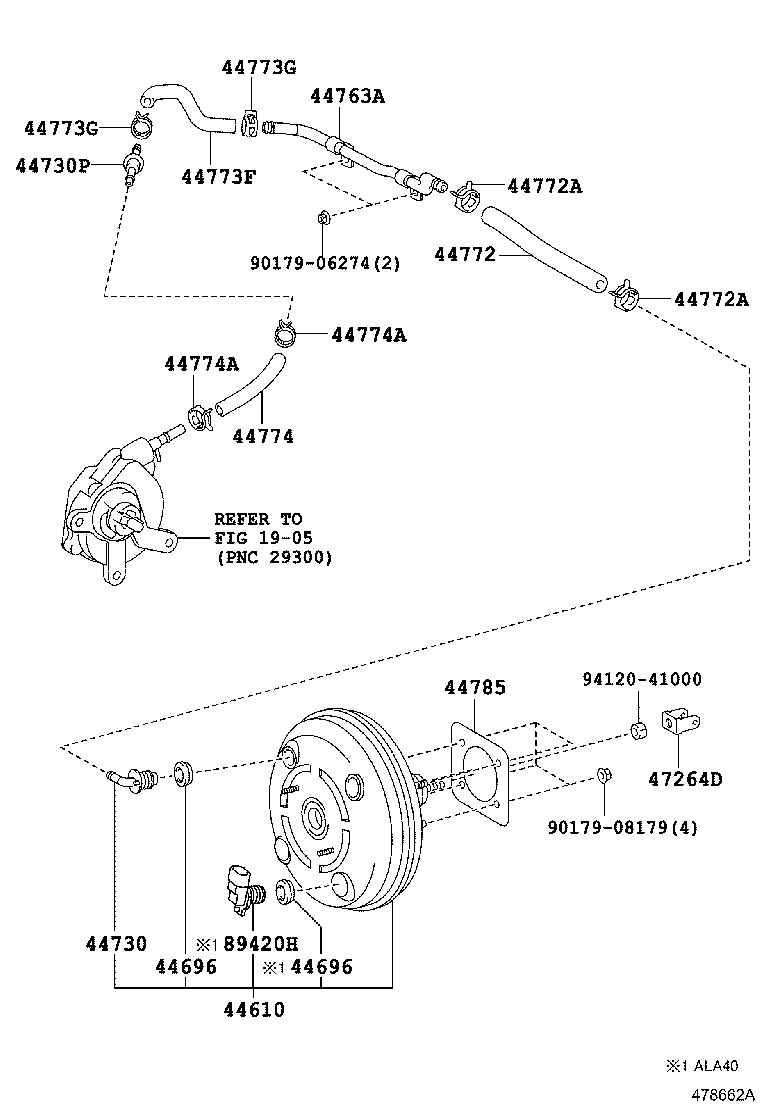

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-42400 |
ALA41,49,ZSA44..LHD |
1 | ||
| 44610-42400 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
ASA44..X..EUR;ALA49..JPP..DCRL;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 90480-24439 |
ALA41,49,ZSA44 |
1 | ||
| 90480-24439 |
ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M) |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
ASA44..X..EUR;ALA49..JPP..DCRL;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 90480-24439 |
ALA41,49,ZSA44 |
1 | ||
| 90480-24439 |
ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M) |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20170 |
ALA4#,ZSA44 |
1 | ||
| 44730-20170 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 44730-20170 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M) |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-35010 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 44730-35010 |
ALA4#..LHD |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-42060 |
ASA44..X..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 44763-42060 |
ALA4#,ZSA44..LHD |
1 | ||
| 44763-42060 |
ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M) |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-42070 |
ALA4#,ZSA44..LHD |
1 | ||
| 44772-42070 |
ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M) |
1 | ||
| 44772-42070 |
ASA44..X..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 96133-41500 |
ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M) |
2 | ||
| 96133-41500 |
ALA4#,ZSA44..LHD |
2 | ||
| 96133-41500 |
ASA44..X..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
2 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 96133-41500 |
ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M) |
2 | ||
| 96133-41500 |
ALA4#,ZSA44..LHD |
2 | ||
| 96133-41500 |
ASA44..X..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
2 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-42170 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 44773-42170 |
ALA4#..LHD |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
2 | ||
| 96133-41500 |
ALA4#..LHD |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
2 | ||
| 96133-41500 |
ALA4#..LHD |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-42061 |
ALA4#..LHD |
1 | ||
| 44774-42061 |
ALA49..JPP..DCRL;ALA49..JPP..X..DCRE |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ZSA44;ALA4#..LHD |
2 | ||
| 96133-41500 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ALA49..JPP..X..DCRE;ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ZSA44;ALA4#..LHD |
2 | ||
| 96133-41500 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ALA49..JPP..X..DCRE;ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-12040 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M) |
1 | ||
| 44785-12040 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 44785-12040 |
ALA4#,ZSA44 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-63010 |
ALA4#,ZSA44 |
1 | ||
| 47264-63010 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 47264-63010 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M) |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90179-08179 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 1905 | ||||
