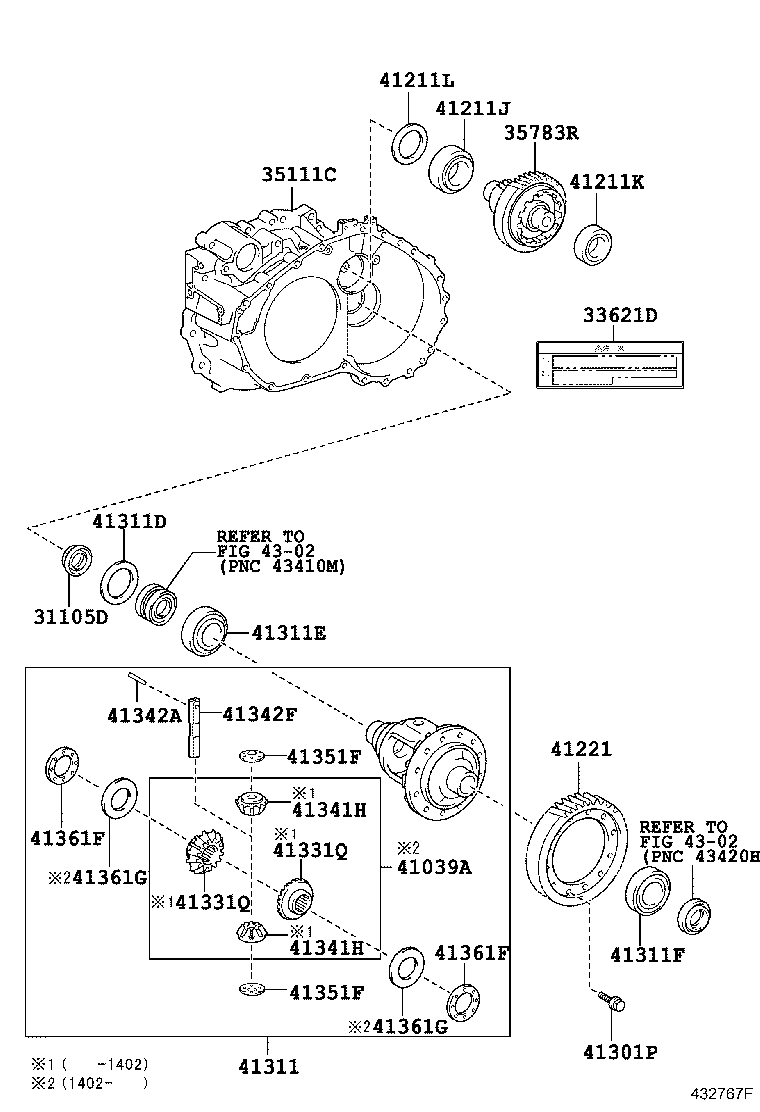

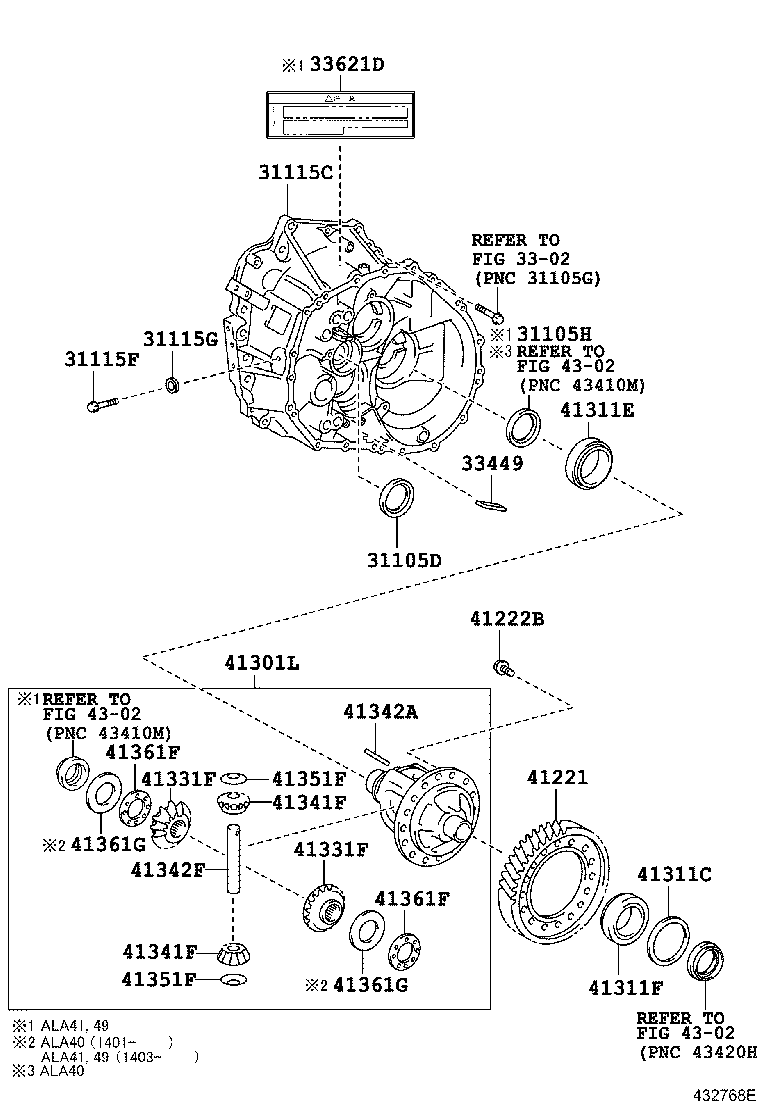

ALA49L-ANTMXX (2015)
Toyota Rav4
(1212- )ALA49..6FC
U660F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-55005 |
ALA49..6FC |
1 | ||
| 90311-30017 |
ALA4#..6F |
1 | ||
| 90311-55005 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
1 | ||
| 33621D - LABEL, TRANSAXLE OIL INFORMATION | ||||
| 33621-28021 |
ALA49..6FC |
1 | ||
| 33621-28021 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
1 | ||
| 33621-12150 |
ALA41,49,ZSA44..6F |
1 | ||
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-42040 |
ALA49..JPP..DCRL |
1 | ||
| 35105-42040 |
ALA49..6FC |
1 | ||
| 35783R - GEAR, COUNTER DRIVEN | ||||
| 35705-28010 |
ALA49..6FC |
1 | ||
| 35705-28010 |
ALA49..JPP..DCRL |
1 | ||
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-48040 |
ALA49..JPP..DCRL |
1 | ||
| 41211J - BEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION | ||||
| 90366-42006 |
ALA49..6FC |
1 | ||
| 90366-42012 |
ALA49..JPP..DCRL |
1 | ||
| 41211K - BEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION | ||||
| 90366-35176 |
ALA49..JPP..DCRL |
1 | ||
| 90366-35160 |
ALA49..6FC |
1 | ||
| 41211L - SHIM (FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-71014 |
ALA49..6FC T=2.000 |
1 | ||
| 90564-71021 |
ALA49..6FC T=2.175 |
1 | ||
| 90564-71015 |
ALA49..6FC T=2.025 |
1 | ||
| 90564-71023 |
ALA49..6FC T=2.225 |
1 | ||
| 90564-71019 |
ALA49..6FC T=2.125 |
1 | ||
| 90564-71020 |
ALA49..6FC T=2.150 |
1 | ||
| 90564-71025 |
ALA49..6FC T=2.275 |
1 | ||
| 90564-71022 |
ALA49..6FC T=2.200 |
1 | ||
| 90564-71016 |
ALA49..6FC T=2.050 |
1 | ||
| 90564-71027 |
ALA49..6FC T=2.325 |
1 | ||
| 90564-71017 |
ALA49..6FC T=2.075 |
1 | ||
| 90564-71018 |
ALA49..6FC T=2.100 |
1 | ||
| 90564-71026 |
ALA49..6FC T=2.300 |
1 | ||
| 90564-71034 |
ALA49..6FC T=2.500 |
1 | ||
| 90564-71028 |
ALA49..6FC T=2.350 |
1 | ||
| 90564-71031 |
ALA49..6FC T=2.425 |
1 | ||
| 90564-71030 |
ALA49..6FC T=2.400 |
1 | ||
| 90564-71029 |
ALA49..6FC T=2.375 |
1 | ||
| 90564-71036 |
ALA49..6FC T=2.550 |
1 | ||
| 90564-71043 |
ALA49..6FC T=2.725 |
1 | ||
| 90564-71032 |
ALA49..6FC T=2.450 |
1 | ||
| 90564-71040 |
ALA49..6FC T=2.650 |
1 | ||
| 90564-71024 |
ALA49..6FC T=2.250 |
1 | ||
| 90564-71037 |
ALA49..6FC T=2.575 |
1 | ||
| 90564-71041 |
ALA49..6FC T=2.675 |
1 | ||
| 90564-71047 |
ALA49..6FC T=2.825 |
1 | ||
| 90564-71042 |
ALA49..6FC T=2.700 |
1 | ||
| 90564-71035 |
ALA49..6FC T=2.525 |
1 | ||
| 90564-71038 |
ALA49..6FC T=2.600 |
1 | ||
| 90564-71048 |
ALA49..6FC T=2.850 |
1 | ||
| 90564-71050 |
ALA49..6FC T=2.900 |
1 | ||
| 90564-71039 |
ALA49..6FC T=2.625 |
1 | ||
| 90564-71045 |
ALA49..6FC T=2.775 |
1 | ||
| 90564-71049 |
ALA49..6FC T=2.875 |
1 | ||
| 90564-71051 |
ALA49..6FC T=2.925 |
1 | ||
| 90564-71033 |
ALA49..6FC T=2.475 |
1 | ||
| 90564-71054 |
ALA49..6FC T=3.000 |
1 | ||
| 90564-71044 |
ALA49..6FC T=2.750 |
1 | ||
| 90564-71052 |
ALA49..6FC T=2.950 |
1 | ||
| 90564-71053 |
ALA49..6FC T=2.975 |
1 | ||
| 90564-71046 |
ALA49..6FC T=2.800 |
1 | ||
| 90564-71018 |
ALA49..JPP..DCRL T=2.100 |
1 | ||
| 90564-71015 |
ALA49..JPP..DCRL T=2.025 |
1 | ||
| 90564-71021 |
ALA49..JPP..DCRL T=2.175 |
1 | ||
| 90564-71023 |
ALA49..JPP..DCRL T=2.225 |
1 | ||
| 90564-71014 |
ALA49..JPP..DCRL T=2.000 |
1 | ||
| 90564-71026 |
ALA49..JPP..DCRL T=2.300 |
1 | ||
| 90564-71020 |
ALA49..JPP..DCRL T=2.150 |
1 | ||
| 90564-71024 |
ALA49..JPP..DCRL T=2.250 |
1 | ||
| 90564-71025 |
ALA49..JPP..DCRL T=2.275 |
1 | ||
| 90564-71022 |
ALA49..JPP..DCRL T=2.200 |
1 | ||
| 90564-71029 |
ALA49..JPP..DCRL T=2.375 |
1 | ||
| 90564-71017 |
ALA49..JPP..DCRL T=2.075 |
1 | ||
| 90564-71031 |
ALA49..JPP..DCRL T=2.425 |
1 | ||
| 90564-71027 |
ALA49..JPP..DCRL T=2.325 |
1 | ||
| 90564-71028 |
ALA49..JPP..DCRL T=2.350 |
1 | ||
| 90564-71016 |
ALA49..JPP..DCRL T=2.050 |
1 | ||
| 90564-71019 |
ALA49..JPP..DCRL T=2.125 |
1 | ||
| 90564-71033 |
ALA49..JPP..DCRL T=2.475 |
1 | ||
| 90564-71035 |
ALA49..JPP..DCRL T=2.525 |
1 | ||
| 90564-71032 |
ALA49..JPP..DCRL T=2.450 |
1 | ||
| 90564-71037 |
ALA49..JPP..DCRL T=2.575 |
1 | ||
| 90564-71034 |
ALA49..JPP..DCRL T=2.500 |
1 | ||
| 90564-71036 |
ALA49..JPP..DCRL T=2.550 |
1 | ||
| 90564-71030 |
ALA49..JPP..DCRL T=2.400 |
1 | ||
| 90564-71041 |
ALA49..JPP..DCRL T=2.675 |
1 | ||
| 90564-71039 |
ALA49..JPP..DCRL T=2.625 |
1 | ||
| 90564-71046 |
ALA49..JPP..DCRL T=2.800 |
1 | ||
| 90564-71044 |
ALA49..JPP..DCRL T=2.750 |
1 | ||
| 90564-71042 |
ALA49..JPP..DCRL T=2.700 |
1 | ||
| 90564-71043 |
ALA49..JPP..DCRL T=2.725 |
1 | ||
| 90564-71045 |
ALA49..JPP..DCRL T=2.775 |
1 | ||
| 90564-71038 |
ALA49..JPP..DCRL T=2.600 |
1 | ||
| 90564-71054 |
ALA49..JPP..DCRL T=3.000 |
1 | ||
| 90564-71047 |
ALA49..JPP..DCRL T=2.825 |
1 | ||
| 90564-71051 |
ALA49..JPP..DCRL T=2.925 |
1 | ||
| 90564-71048 |
ALA49..JPP..DCRL T=2.850 |
1 | ||
| 90564-71050 |
ALA49..JPP..DCRL T=2.900 |
1 | ||
| 90564-71040 |
ALA49..JPP..DCRL T=2.650 |
1 | ||
| 90564-71052 |
ALA49..JPP..DCRL T=2.950 |
1 | ||
| 90564-71053 |
ALA49..JPP..DCRL T=2.975 |
1 | ||
| 90564-71049 |
ALA49..JPP..DCRL T=2.875 |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-28150 |
ALA49..6FC |
1 | ||
| 41221-42110 |
ALA49..6F |
1 | ||
| 41221-28150 |
ALA49..DCRL |
1 | ||
| 41221-28160 |
ALA49..JPP..DCRL |
1 | ||
| 41301P - SCREW(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90105-12303 |
ALA49..6FC |
12 | ||
| 90105-12303 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
12 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-42160 |
ALA49..6FC |
1 | ||
| 41301-42161 |
ALA49..JPP..DCRL |
1 | ||
| 41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90564-82015 |
ALA49..6FC T=2.150 |
1 | ||
| 90564-82013 |
ALA49..6FC T=2.100 |
1 | ||
| 90564-82012 |
ALA49..6FC T=2.075 |
1 | ||
| 90564-82018 |
ALA49..6FC T=2.225 |
1 | ||
| 90564-82011 |
ALA49..6FC T=2.050 |
1 | ||
| 90564-82017 |
ALA49..6FC T=2.200 |
1 | ||
| 90564-82010 |
ALA49..6FC T=2.025 |
1 | ||
| 90564-82026 |
ALA49..6FC T=2.425 |
1 | ||
| 90564-82016 |
ALA49..6FC T=2.175 |
1 | ||
| 90564-82014 |
ALA49..6FC T=2.125 |
1 | ||
| 90564-82020 |
ALA49..6FC T=2.275 |
1 | ||
| 90564-82021 |
ALA49..6FC T=2.300 |
1 | ||
| 90564-82025 |
ALA49..6FC T=2.400 |
1 | ||
| 90564-82009 |
ALA49..6FC T=2.000 |
1 | ||
| 90564-82028 |
ALA49..6FC T=2.475 |
1 | ||
| 90564-82029 |
ALA49..6FC T=2.500 |
1 | ||
| 90564-82027 |
ALA49..6FC T=2.450 |
1 | ||
| 90564-82023 |
ALA49..6FC T=2.350 |
1 | ||
| 90564-82035 |
ALA49..6FC T=2.650 |
1 | ||
| 90564-82024 |
ALA49..6FC T=2.375 |
1 | ||
| 90564-82032 |
ALA49..6FC T=2.575 |
1 | ||
| 90564-82022 |
ALA49..6FC T=2.325 |
1 | ||
| 90564-82019 |
ALA49..6FC T=2.250 |
1 | ||
| 90564-82033 |
ALA49..6FC T=2.600 |
1 | ||
| 90564-82041 |
ALA49..6FC T=2.800 |
1 | ||
| 90564-82031 |
ALA49..6FC T=2.550 |
1 | ||
| 90564-82037 |
ALA49..6FC T=2.700 |
1 | ||
| 90564-82039 |
ALA49..6FC T=2.750 |
1 | ||
| 90564-82030 |
ALA49..6FC T=2.525 |
1 | ||
| 90564-82044 |
ALA49..6FC T=2.875 |
1 | ||
| 90564-82034 |
ALA49..6FC T=2.625 |
1 | ||
| 90564-82040 |
ALA49..6FC T=2.775 |
1 | ||
| 90564-82042 |
ALA49..6FC T=2.825 |
1 | ||
| 90564-82019 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.250 |
1 | ||
| 90564-82016 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.175 |
1 | ||
| 90564-82043 |
ALA49..6FC T=2.850 |
1 | ||
| 90564-82009 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.000 |
1 | ||
| 90564-82014 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.125 |
1 | ||
| 90564-82036 |
ALA49..6FC T=2.675 |
1 | ||
| 90564-82010 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.025 |
1 | ||
| 90564-82012 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.075 |
1 | ||
| 90564-82013 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.100 |
1 | ||
| 90564-82038 |
ALA49..6FC T=2.725 |
1 | ||
| 90564-82022 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.325 |
1 | ||
| 90564-82021 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.300 |
1 | ||
| 90564-82020 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.275 |
1 | ||
| 90564-82017 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.200 |
1 | ||
| 90564-82024 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.375 |
1 | ||
| 90564-82011 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.050 |
1 | ||
| 90564-82023 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.350 |
1 | ||
| 90564-82018 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.225 |
1 | ||
| 90564-82015 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.150 |
1 | ||
| 90564-82025 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.400 |
1 | ||
| 90564-82028 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.475 |
1 | ||
| 90564-82027 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.450 |
1 | ||
| 90564-82030 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.525 |
1 | ||
| 90564-82036 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.675 |
1 | ||
| 90564-82033 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.600 |
1 | ||
| 90564-82034 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.625 |
1 | ||
| 90564-82026 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.425 |
1 | ||
| 90564-82031 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.550 |
1 | ||
| 90564-82041 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.800 |
1 | ||
| 90564-82029 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.500 |
1 | ||
| 90564-82037 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.700 |
1 | ||
| 90564-82043 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.850 |
1 | ||
| 90564-82042 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.825 |
1 | ||
| 90564-82035 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.650 |
1 | ||
| 90564-82038 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.725 |
1 | ||
| 90564-82040 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.775 |
1 | ||
| 90564-82032 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.575 |
1 | ||
| 90564-82044 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.875 |
1 | ||
| 90564-82039 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=2.750 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-58010 |
ALA41,49..6F |
1 | ||
| 90366-62004 |
ALA49..6FC |
1 | ||
| 90366-62004 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-55074 |
ALA49..6FC |
1 | ||
| 90366-55063 |
ALA41,49..6F |
1 | ||
| 90366-55077 |
ALA49..JPP..DCRL |
1 | ||
| 41331Q - GEAR, DIFFERENTIAL SIDE | ||||
| 41331-33040 |
ALA49..6FC |
2 | ||
| 41331Q - GEAR, DIFFERENTIAL SIDE | ||||
| 41331-33040 |
ALA49..6FC |
2 | ||
| 41341H - PINION, DIFFERENTIAL | ||||
| 41341-35050 |
ALA49..6FC |
2 | ||
| 41341H - PINION, DIFFERENTIAL | ||||
| 41341-35050 |
ALA49..6FC |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..JPP..6F..M..RUS;ALA49,ZSA42..JPP..6F..X;ALA49,ZSA44..JPP..(6F,6FC)..(DCRL,HTWVM) |
1 | ||
| 90250-06058 |
ALA4#,ZSA44..6F,6FC |
1 | ||
| 90250-06058 |
WWA42;ZSA44..RUP..6F..M;ASA44..JPP..X..RUS;ZSA44..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M);ALA49,ASA44,ZSA42..RUP..(6F,6FC) |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-33050 |
ALA49..6FC |
1 | ||
| 41342-20070 |
ALA4#..6F |
1 | ||
| 41342-33051 |
ALA49..JPP..DCRL |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-20050 |
ALA4#..6F |
2 | ||
| 41351-33030 |
ALA49..6FC |
2 | ||
| 41351-33030 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-20050 |
ALA4#..6F |
2 | ||
| 41351-33030 |
ALA49..6FC |
2 | ||
| 41351-33030 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-20310 |
ALA4#..6F T=1.30 |
2 | ||
| 41361-20320 |
ALA4#..6F T=1.35 |
2 | ||
| 41361-20340 |
ALA4#..6F T=1.45 |
2 | ||
| 41361-20360 |
ALA4#..6F T=1.55 |
2 | ||
| 41361-20400 |
ALA4#..6F T=1.75 |
2 | ||
| 41361-20350 |
ALA4#..6F T=1.50 |
2 | ||
| 41361-20370 |
ALA4#..6F T=1.60 |
2 | ||
| 41361-20410 |
ALA4#..6F T=1.80 |
2 | ||
| 41361-20330 |
ALA4#..6F T=1.40 |
2 | ||
| 41361-20420 |
ALA4#..6F T=1.85 |
2 | ||
| 41361-20240 |
ALA4#..6F T=1.25 |
2 | ||
| 41361-20380 |
ALA4#..6F T=1.65 |
2 | ||
| 41361-33040 |
ALA49..6FC T=1.60 |
2 | ||
| 41361-33050 |
ALA49..6FC T=1.65 |
2 | ||
| 41361-33090 |
ALA49..6FC T=1.85 |
2 | ||
| 41361-20430 |
ALA4#..6F T=1.90 |
2 | ||
| 41361-20440 |
ALA4#..6F T=1.95 |
2 | ||
| 41361-33100 |
ALA49..6FC T=1.90 |
2 | ||
| 41361-33020 |
ALA49..6FC T=1.50 |
2 | ||
| 41361-20390 |
ALA4#..6F T=1.70 |
2 | ||
| 41361-33030 |
ALA49..6FC T=1.55 |
2 | ||
| 41361-33060 |
ALA49..6FC T=1.70 |
2 | ||
| 41361-33070 |
ALA49..6FC T=1.75 |
2 | ||
| 41361-33020 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.50 |
2 | ||
| 41361-33030 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.55 |
2 | ||
| 41361-33080 |
ALA49..6FC T=1.80 |
2 | ||
| 41361-33090 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.85 |
2 | ||
| 41361-33040 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.60 |
2 | ||
| 41361-33100 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.90 |
2 | ||
| 41361-33080 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.80 |
2 | ||
| 41361-33050 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.65 |
2 | ||
| 41361-33070 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.75 |
2 | ||
| 41361-33060 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.70 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-20310 |
ALA4#..6F T=1.30 |
2 | ||
| 41361-20320 |
ALA4#..6F T=1.35 |
2 | ||
| 41361-20340 |
ALA4#..6F T=1.45 |
2 | ||
| 41361-20360 |
ALA4#..6F T=1.55 |
2 | ||
| 41361-20400 |
ALA4#..6F T=1.75 |
2 | ||
| 41361-20350 |
ALA4#..6F T=1.50 |
2 | ||
| 41361-20370 |
ALA4#..6F T=1.60 |
2 | ||
| 41361-20410 |
ALA4#..6F T=1.80 |
2 | ||
| 41361-20330 |
ALA4#..6F T=1.40 |
2 | ||
| 41361-20420 |
ALA4#..6F T=1.85 |
2 | ||
| 41361-20240 |
ALA4#..6F T=1.25 |
2 | ||
| 41361-20380 |
ALA4#..6F T=1.65 |
2 | ||
| 41361-33040 |
ALA49..6FC T=1.60 |
2 | ||
| 41361-33050 |
ALA49..6FC T=1.65 |
2 | ||
| 41361-33090 |
ALA49..6FC T=1.85 |
2 | ||
| 41361-20430 |
ALA4#..6F T=1.90 |
2 | ||
| 41361-20440 |
ALA4#..6F T=1.95 |
2 | ||
| 41361-33100 |
ALA49..6FC T=1.90 |
2 | ||
| 41361-33020 |
ALA49..6FC T=1.50 |
2 | ||
| 41361-20390 |
ALA4#..6F T=1.70 |
2 | ||
| 41361-33030 |
ALA49..6FC T=1.55 |
2 | ||
| 41361-33060 |
ALA49..6FC T=1.70 |
2 | ||
| 41361-33070 |
ALA49..6FC T=1.75 |
2 | ||
| 41361-33020 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.50 |
2 | ||
| 41361-33030 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.55 |
2 | ||
| 41361-33080 |
ALA49..6FC T=1.80 |
2 | ||
| 41361-33090 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.85 |
2 | ||
| 41361-33040 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.60 |
2 | ||
| 41361-33100 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.90 |
2 | ||
| 41361-33080 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.80 |
2 | ||
| 41361-33050 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.65 |
2 | ||
| 41361-33070 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.75 |
2 | ||
| 41361-33060 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.70 |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-45001 |
ALA49..JPP..DCRL |
1 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-45001 |
ALA49..JPP..DCRL |
1 | ||
| Linked diagrams | ||||
| 4302 | ||||
(1212- )ALA4#,WWA42..6F
EA64,EA64F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-55005 |
ALA49..6FC |
1 | ||
| 90311-30017 |
ALA4#..6F |
1 | ||
| 90311-55005 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
1 | ||
| 31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE) | ||||
| 90311-55004 |
ALA41,49..6F RH |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-42050 |
ALA41,49..6F |
1 | ||
| 31115F - BOLT(FOR FRONT TRANSAXLE CASE) | ||||
| 90105-12354 |
ALA4#..6F |
1 | ||
| 31115G - GASKET(FOR FRONT TRANSAXLE CASE) | ||||
| 90430-13004 |
ALA4#..6F |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-60010 |
ALA4#..6F |
1 | ||
| 33621D - LABEL, TRANSAXLE OIL INFORMATION | ||||
| 33621-28021 |
ALA49..6FC |
1 | ||
| 33621-28021 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
1 | ||
| 33621-12150 |
ALA41,49,ZSA44..6F |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-28150 |
ALA49..6FC |
1 | ||
| 41221-42110 |
ALA49..6F |
1 | ||
| 41221-28150 |
ALA49..DCRL |
1 | ||
| 41221-28160 |
ALA49..JPP..DCRL |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12319 |
ALA4#..6F |
16 | ||
| 41301L - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1 | ||||
| 41301-42130 |
ALA41,49..6F |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-56110 |
ALA4#..6F T=2.05,MARK 1 |
1 | ||
| 90564-56111 |
ALA4#..6F T=2.10,MARK 2 |
1 | ||
| 90564-56109 |
ALA4#..6F T=2.00,MARK 0 |
1 | ||
| 90564-56114 |
ALA4#..6F T=2.25,MARK 5 |
1 | ||
| 90564-56120 |
ALA4#..6F T=2.55,MARK B |
1 | ||
| 90564-56115 |
ALA4#..6F T=2.30,MARK 6 |
1 | ||
| 90564-56112 |
ALA4#..6F T=2.15,MARK 3 |
1 | ||
| 90564-56122 |
ALA4#..6F T=2.65,MARK D |
1 | ||
| 90564-56113 |
ALA4#..6F T=2.20,MARK 4 |
1 | ||
| 90564-56124 |
ALA4#..6F T=2.75,MARK F |
1 | ||
| 90564-56126 |
ALA4#..6F T=2.85,MARK H |
1 | ||
| 90564-56117 |
ALA4#..6F T=2.40,MARK 8 |
1 | ||
| 90564-56119 |
ALA4#..6F T=2.50,MARK A |
1 | ||
| 90564-56118 |
ALA4#..6F T=2.45,MARK 9 |
1 | ||
| 90564-56121 |
ALA4#..6F T=2.60,MARK C |
1 | ||
| 90564-56116 |
ALA4#..6F T=2.35,MARK 7 |
1 | ||
| 90564-56123 |
ALA4#..6F T=2.70,MARK E |
1 | ||
| 90564-56125 |
ALA4#..6F T=2.80,MARK G |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-58010 |
ALA41,49..6F |
1 | ||
| 90366-62004 |
ALA49..6FC |
1 | ||
| 90366-62004 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-55074 |
ALA49..6FC |
1 | ||
| 90366-55063 |
ALA41,49..6F |
1 | ||
| 90366-55077 |
ALA49..JPP..DCRL |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-42040 |
ALA41,49..6F |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-42040 |
ALA41,49..6F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-35050 |
ALA4#..6F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-35050 |
ALA4#..6F |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..JPP..6F..M..RUS;ALA49,ZSA42..JPP..6F..X;ALA49,ZSA44..JPP..(6F,6FC)..(DCRL,HTWVM) |
1 | ||
| 90250-06058 |
ALA4#,ZSA44..6F,6FC |
1 | ||
| 90250-06058 |
WWA42;ZSA44..RUP..6F..M;ASA44..JPP..X..RUS;ZSA44..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M);ALA49,ASA44,ZSA42..RUP..(6F,6FC) |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-33050 |
ALA49..6FC |
1 | ||
| 41342-20070 |
ALA4#..6F |
1 | ||
| 41342-33051 |
ALA49..JPP..DCRL |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-20050 |
ALA4#..6F |
2 | ||
| 41351-33030 |
ALA49..6FC |
2 | ||
| 41351-33030 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-20050 |
ALA4#..6F |
2 | ||
| 41351-33030 |
ALA49..6FC |
2 | ||
| 41351-33030 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-20310 |
ALA4#..6F T=1.30 |
2 | ||
| 41361-20320 |
ALA4#..6F T=1.35 |
2 | ||
| 41361-20340 |
ALA4#..6F T=1.45 |
2 | ||
| 41361-20360 |
ALA4#..6F T=1.55 |
2 | ||
| 41361-20400 |
ALA4#..6F T=1.75 |
2 | ||
| 41361-20350 |
ALA4#..6F T=1.50 |
2 | ||
| 41361-20370 |
ALA4#..6F T=1.60 |
2 | ||
| 41361-20410 |
ALA4#..6F T=1.80 |
2 | ||
| 41361-20330 |
ALA4#..6F T=1.40 |
2 | ||
| 41361-20420 |
ALA4#..6F T=1.85 |
2 | ||
| 41361-20240 |
ALA4#..6F T=1.25 |
2 | ||
| 41361-20380 |
ALA4#..6F T=1.65 |
2 | ||
| 41361-33040 |
ALA49..6FC T=1.60 |
2 | ||
| 41361-33050 |
ALA49..6FC T=1.65 |
2 | ||
| 41361-33090 |
ALA49..6FC T=1.85 |
2 | ||
| 41361-20430 |
ALA4#..6F T=1.90 |
2 | ||
| 41361-20440 |
ALA4#..6F T=1.95 |
2 | ||
| 41361-33100 |
ALA49..6FC T=1.90 |
2 | ||
| 41361-33020 |
ALA49..6FC T=1.50 |
2 | ||
| 41361-20390 |
ALA4#..6F T=1.70 |
2 | ||
| 41361-33030 |
ALA49..6FC T=1.55 |
2 | ||
| 41361-33060 |
ALA49..6FC T=1.70 |
2 | ||
| 41361-33070 |
ALA49..6FC T=1.75 |
2 | ||
| 41361-33020 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.50 |
2 | ||
| 41361-33030 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.55 |
2 | ||
| 41361-33080 |
ALA49..6FC T=1.80 |
2 | ||
| 41361-33090 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.85 |
2 | ||
| 41361-33040 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.60 |
2 | ||
| 41361-33100 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.90 |
2 | ||
| 41361-33080 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.80 |
2 | ||
| 41361-33050 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.65 |
2 | ||
| 41361-33070 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.75 |
2 | ||
| 41361-33060 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.70 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-20310 |
ALA4#..6F T=1.30 |
2 | ||
| 41361-20320 |
ALA4#..6F T=1.35 |
2 | ||
| 41361-20340 |
ALA4#..6F T=1.45 |
2 | ||
| 41361-20360 |
ALA4#..6F T=1.55 |
2 | ||
| 41361-20400 |
ALA4#..6F T=1.75 |
2 | ||
| 41361-20350 |
ALA4#..6F T=1.50 |
2 | ||
| 41361-20370 |
ALA4#..6F T=1.60 |
2 | ||
| 41361-20410 |
ALA4#..6F T=1.80 |
2 | ||
| 41361-20330 |
ALA4#..6F T=1.40 |
2 | ||
| 41361-20420 |
ALA4#..6F T=1.85 |
2 | ||
| 41361-20240 |
ALA4#..6F T=1.25 |
2 | ||
| 41361-20380 |
ALA4#..6F T=1.65 |
2 | ||
| 41361-33040 |
ALA49..6FC T=1.60 |
2 | ||
| 41361-33050 |
ALA49..6FC T=1.65 |
2 | ||
| 41361-33090 |
ALA49..6FC T=1.85 |
2 | ||
| 41361-20430 |
ALA4#..6F T=1.90 |
2 | ||
| 41361-20440 |
ALA4#..6F T=1.95 |
2 | ||
| 41361-33100 |
ALA49..6FC T=1.90 |
2 | ||
| 41361-33020 |
ALA49..6FC T=1.50 |
2 | ||
| 41361-20390 |
ALA4#..6F T=1.70 |
2 | ||
| 41361-33030 |
ALA49..6FC T=1.55 |
2 | ||
| 41361-33060 |
ALA49..6FC T=1.70 |
2 | ||
| 41361-33070 |
ALA49..6FC T=1.75 |
2 | ||
| 41361-33020 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.50 |
2 | ||
| 41361-33030 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.55 |
2 | ||
| 41361-33080 |
ALA49..6FC T=1.80 |
2 | ||
| 41361-33090 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.85 |
2 | ||
| 41361-33040 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.60 |
2 | ||
| 41361-33100 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.90 |
2 | ||
| 41361-33080 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.80 |
2 | ||
| 41361-33050 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.65 |
2 | ||
| 41361-33070 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.75 |
2 | ||
| 41361-33060 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=1.70 |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-45001 |
ALA49..JPP..DCRL |
1 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-45001 |
ALA49..JPP..DCRL |
1 | ||
| Linked diagrams | ||||
| 3302 | ||||
| 4302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
