ALA49L-ANTMXX (2015)
Toyota Rav4

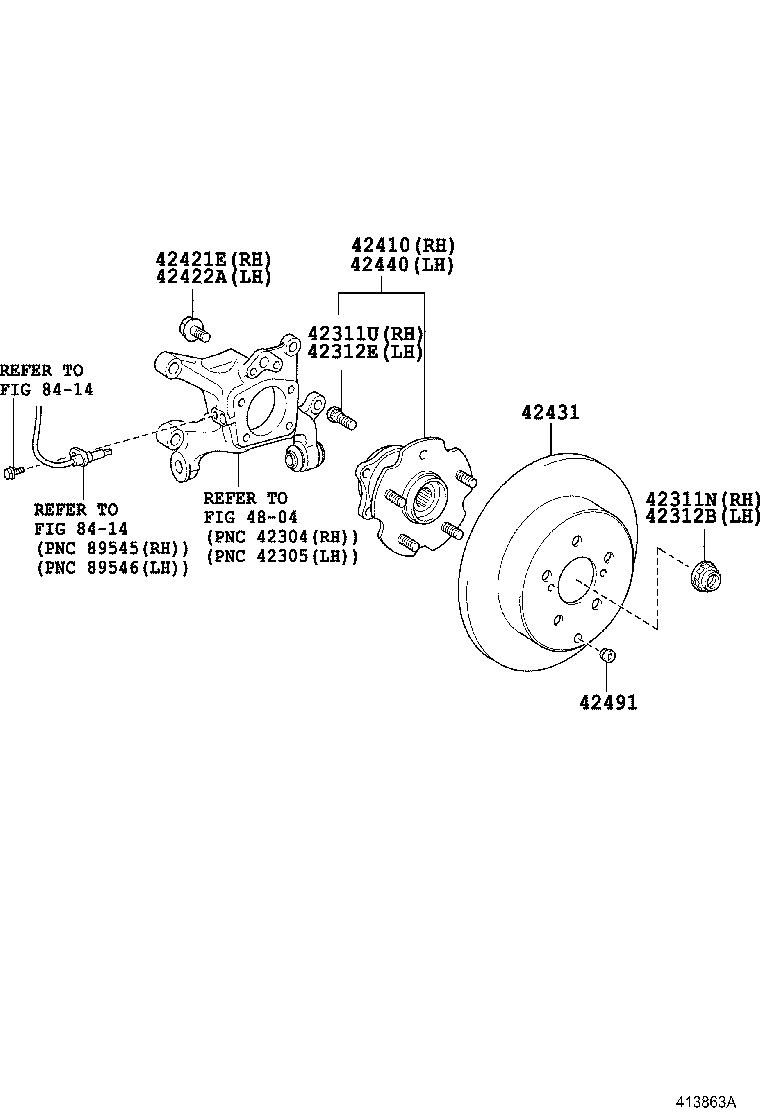

ILLUST NO. 1 OF 2(1212- )ALA41,49,ASA44,AVA44,ZSA44
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90177-22001 |
ASA44..X..EUR;ZSA44..LHD..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC) |
1 | ||
| 90177-22001 |
ALA41,49,ZSA44 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
5 | ||
| 90942-02049 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
5 | ||
| 90942-02049 |
ALA4#,ZSA44 |
5 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90177-22001 |
ALA41,49,ZSA44 |
1 | ||
| 90177-22001 |
ASA44..X..EUR;ZSA44..LHD..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC) |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
ALA4#,ZSA44 |
5 | ||
| 90942-02049 |
WWA42;ZSA44..RHD..X;ZSA44..RUP..B;ZSA44..RUP..6F..M;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA42..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
5 | ||
| 90942-02049 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
5 | ||
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-42040 |
ALA41,49,ZSA44 |
1 | ||
| 42410-42040 |
ASA44..X..EUR;ZSA44..LHD..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC) |
1 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-12350 |
ALA4#,ZSA44 |
4 | ||
| 90105-12350 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
4 | ||
| 90105-12350 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
4 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-12350 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
4 | ||
| 90105-12350 |
ALA4#,ZSA44 |
4 | ||
| 90105-12350 |
WWA42;ZSA44..RHD..X;ZSA44..RUP..B;ZSA44..RUP..6F..M;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA42..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
4 | ||
| 42431 - DISC, REAR | ||||
| 42431-42060 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 42431-42060 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
2 | ||
| 42431-42060 |
ALA4#,ZSA44 |
2 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-42040 |
ALA41,49,ZSA44 |
1 | ||
| 42410-42040 |
ASA44..X..EUR;ZSA44..LHD..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC) |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 47491-22020 |
ALA4#,ZSA44 |
2 | ||
| 47491-22020 |
WWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS |
2 | ||
| Linked diagrams | ||||
| 4804 | ||||
| 8414 | ||||
ILLUST NO. 2 OF 2(1212- )ALA41,49,ASA44,ZSA44
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04439-12020 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 04439-12020 |
ALA41,49,ZSA44 |
1 | ||
| 04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04439-12020 |
ALA41,49,ZSA44 |
1 | ||
| 04439-12020 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 04438N - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH | ||||
| 04429-12031 |
ALA49,ASA44,ZSA44..JPP |
1 | ||
| 04429-12030 |
ALA41,49,ZSA44 |
1 | ||
| 04429-12030 |
ALA49,ASA44,ZSA44 |
1 | ||
| 04438Q - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH | ||||
| 04429-12030 |
ALA41,49,ZSA44 |
1 | ||
| 04429-12030 |
ALA49,ASA44,ZSA44 |
1 | ||
| 04429-12031 |
ALA49,ASA44,ZSA44..JPP |
1 | ||
| 41336J - COVER, REAR DRIVE SHAFT DUST, RH | ||||
| 41336-28050 |
ALA41,49,ZSA44 |
1 | ||
| 41336-28050 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 41336K - COVER, REAR DRIVE SHAFT DUST, LH | ||||
| 41336-28050 |
ALA41,49,ZSA44 |
1 | ||
| 41336-28050 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42330-42060 |
ALA41,49,ZSA44 |
1 | ||
| 42330-42060 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 42330G - OIL SEAL, REAR DRIVE SHAFT, RH | ||||
| 90311-37004 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 90311-37004 |
ALA41,49,ZSA44 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42330-42060 |
ALA41,49,ZSA44 |
1 | ||
| 42330-42060 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 42340D - OIL SEAL, REAR DRIVE SHAFT, LH | ||||
| 90311-37004 |
ALA41,49,ZSA44 |
1 | ||
| 90311-37004 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) | ||||
| 43425-12150 |
ALA41,49,ZSA44 |
1 | ||
| 43425-12150 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) | ||||
| 43425-12150 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 43425-12150 |
ALA41,49,ZSA44 |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 42345-52270 |
ASA44..X..EUR;ZSA44..LHD..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC) ID=24.3 |
1 | ||
| 42345-52270 |
ALA41,49,ZSA44 ID=24.3 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 42345-52270 |
ALA41,49,ZSA44 ID=24.3 |
1 | ||
| 42345-52270 |
ASA44..X..EUR;ZSA44..LHD..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC) ID=24.3 |
1 | ||
| 42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R | ||||
| 42345-12280 |
ALA41,49,ZSA44 |
1 | ||
| 42345-12280 |
ASA44..X..EUR;ZSA44..LHD..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC) |
1 | ||
| 42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L | ||||
| 42345-12280 |
ASA44..X..EUR;ZSA44..LHD..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC) |
1 | ||
| 42345-12280 |
ALA41,49,ZSA44 |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-42070 |
ALA41,49,ZSA44 ID=69.3 |
1 | ||
| 42345-42070 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) ID=69.3 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-42070 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) ID=69.3 |
1 | ||
| 42345-42070 |
ALA41,49,ZSA44 ID=69.3 |
1 | ||
| 42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH | ||||
| 42345-12290 |
ALA41,49,ZSA44 |
1 | ||
| 42345-12290 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH | ||||
| 42345-12290 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 42345-12290 |
ALA41,49,ZSA44 |
1 | ||
| 42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH | ||||
| 42360-12010 |
ALA41,49,ZSA44 |
1 | ||
| 42360-12010 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH | ||||
| 42360-12010 |
ALA41,49,ZSA44 |
1 | ||
| 42360-12010 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH | ||||
| 90520-19018 |
ALA41,49,ZSA44 |
1 | ||
| 90520-19018 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH | ||||
| 90520-19018 |
ALA41,49,ZSA44 |
1 | ||
| 90520-19018 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH | ||||
| 42370-49295 |
ALA41,49,ZSA44 |
1 | ||
| 42370-49295 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH | ||||
| 42370-49295 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 42370-49295 |
ALA41,49,ZSA44 |
1 | ||
