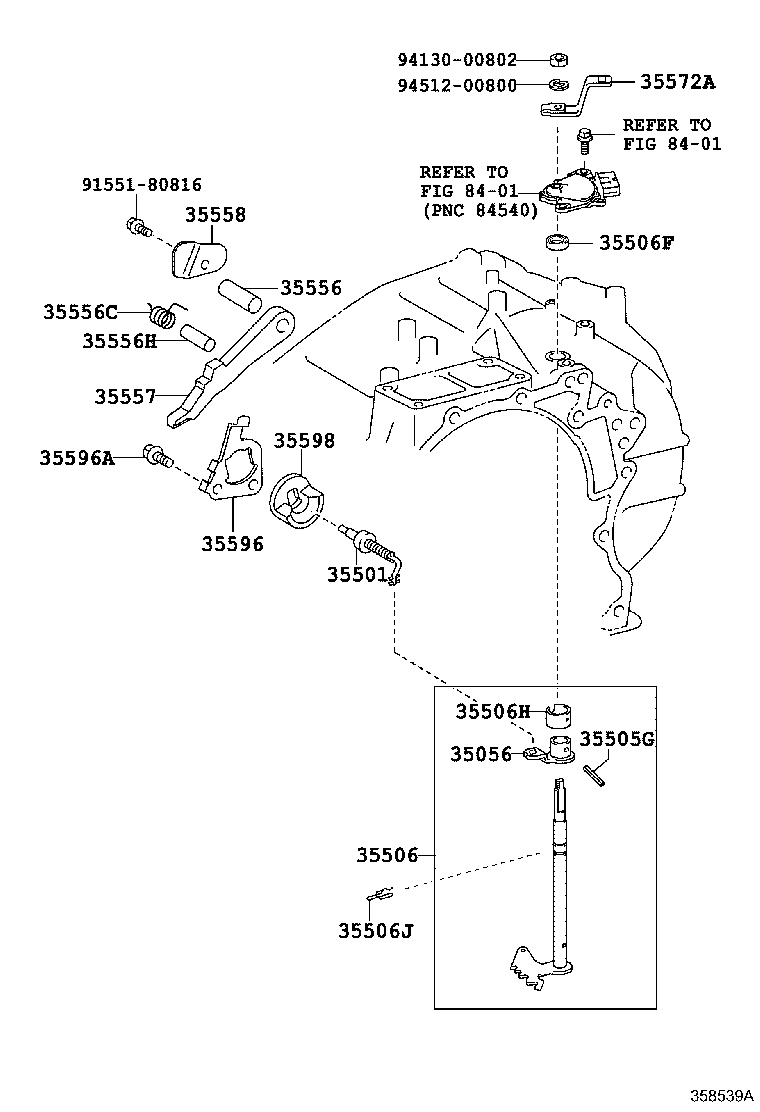

Toyota Rav4 ALA49 THROTTLE LINK & VALVE LEVER (ATM)

Part #	Description	Period	Qty
35056 - LEVER SUB-ASSY, PARKING LOCK W/ROLLER
35057-33010	ALA49..JPP..DCRL	10/2015 - 10/2018	1
35057-33010	ALA49..6FC	12/2012 - 10/2015	1
35501 - ROD SUB-ASSY, PARKING LOCK
35501-33020	ALA49..6FC	12/2012 - 10/2015	1
35501-33020	ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M)	10/2015 - 10/2018	1
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04011	ALA49..JPP..DCRL	10/2015 - 10/2018	1
90254-04011	ALA49..6FC	12/2012 - 10/2015	1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506-33020	ALA49..JPP..DCRL	10/2015 - 10/2018	1
35506-33020	ALA49..6FC	12/2012 - 10/2015	1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002	ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M)	10/2015 - 10/2018	1
90311-12002	ALA49..6FC	12/2012 - 10/2015	1
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20006	ALA49..6FC	12/2012 - 10/2015	1
90560-20006	ALA49..JPP..DCRL	10/2015 - 10/2018	1
35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
90524-09002	ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M)	10/2015 - 10/2018	1
90524-09002	ALA49..6FC	12/2012 - 10/2015	1
35556 - SHAFT, PARKING LOCK PAWL
35556-33010	ALA49..JPP..DCRL	10/2015 - 10/2018	1
35556-33010	ALA49..6FC	12/2012 - 10/2015	1
35556C - SPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)
90508-21007	ALA49..JPP..DCRL	10/2015 - 10/2018	1
90508-21007	ALA49..6FC	12/2012 - 10/2015	1
35556H - SHAFT, PARKING LOCK PAWL
35556-63010	ALA49..JPP..DCRL	10/2015 - 10/2018	1
35556-63010	ALA49..6FC	12/2012 - 10/2015	1
35557 - PAWL, PARKING LOCK
35557-33021	ALA49..JPP..DCRL	10/2015 - 10/2018	1
35557-33021	ALA49..6FC	12/2012 - 10/2015	1
35558 - CLAMP, PAWL SHAFT
35558-33010	ALA49..6FC	12/2012 - 10/2015	1
35558-33010	ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) *284	10/2015 - 10/2018	1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-33020	ALA49..6FC	12/2012 - 10/2015	1
35572-33020	ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M)	10/2015 - 10/2018	1
35596 - PLATE, PAWL STOPPER
35596-33010	ALA49..JPP..DCRL	10/2015 - 10/2018	1
35596-33010	ALA49..6FC	12/2012 - 10/2015	1
35596A - BOLT (FOR PAWL STOPPER PLATE)
91551-80816	ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) *8-1.25PX16-13.5	10/2015 - 10/2018	2
91551-80816	ALA49..6FC *8-1.25PX16-13.5	12/2012 - 10/2015	2
35598 - SLEEVE, PARKING LOCK
35598-33010	ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M)	10/2015 - 10/2018	1
35598-33010	ALA49..6FC	12/2012 - 10/2015	1
Common parts
91551-80816
94130-00802
94512-00800
Linked diagrams
8401

ALA49L-ANTMXX (2015)

(1212- )ALA49..6FC
