ALA49L-ANTMXX (2015)
Toyota Rav4
(1212- )ALA49..6FC
U660F

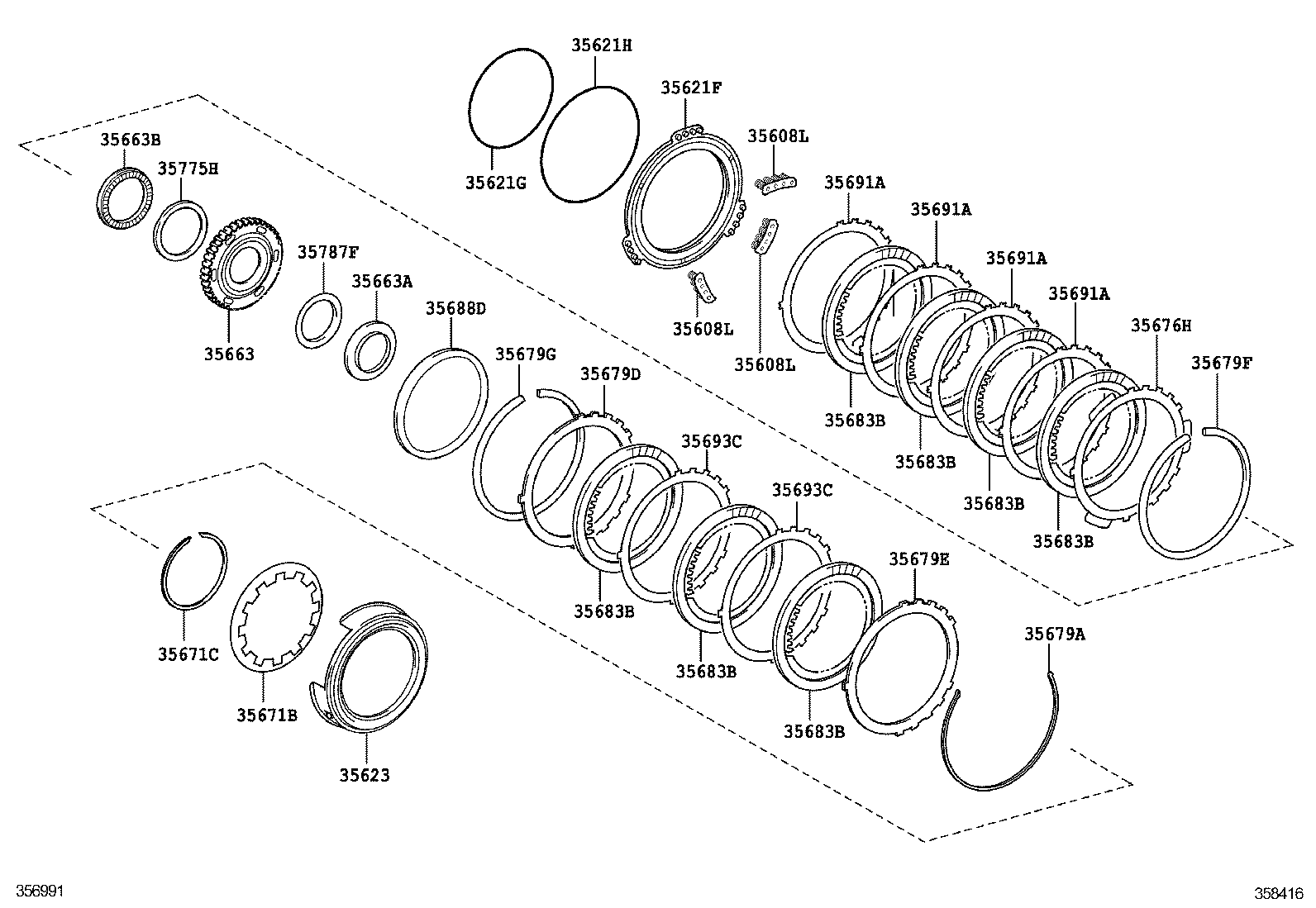

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608L - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-33030 |
ALA49..6FC |
3 | ||
| 35608-33030 |
ALA49..JPP..DCRL |
3 | ||
| 35608L - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-33030 |
ALA49..6FC |
3 | ||
| 35608-33030 |
ALA49..JPP..DCRL |
3 | ||
| 35608L - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-33030 |
ALA49..6FC |
3 | ||
| 35608-33030 |
ALA49..JPP..DCRL |
3 | ||
| 35621F - PISTON, BRAKE, NO.1 | ||||
| 35621-48010 |
ALA49..JPP..DCRL |
1 | ||
| 35621-33010 |
ALA49..6FC |
1 | ||
| 35621G - RING, O (FOR BRAKE PISTON INNER) | ||||
| 90301-99190 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
1 | ||
| 90301-99190 |
ALA49..6FC |
1 | ||
| 35621H - RING, O (FOR BRAKE PISTON OUTER) | ||||
| 90301-99189 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
1 | ||
| 90301-99189 |
ALA49..6FC |
1 | ||
| 35623 - PISTON, BRAKE, NO.3 | ||||
| 35623-33060 |
ALA49..6FC |
1 | ||
| 35623-48030 |
ALA49..JPP..DCRL |
1 | ||
| 35663 - HUB, BRAKE NO.3 | ||||
| 35663-33020 |
ALA49..JPP..DCRL |
1 | ||
| 35663-33020 |
ALA49..6FC |
1 | ||
| 35663A - BEARING, THRUST NEEDLE ROLLER, NO.1 | ||||
| 90374-62006 |
ALA49..6FC |
1 | ||
| 90374-62009 |
ALA49..JPP..DCRL |
1 | ||
| 35663B - BEARING, THRUST NEEDLE ROLLER, NO.2 | ||||
| 90374-62008 |
ALA49..JPP..DCRL |
1 | ||
| 90374-64002 |
ALA49..6FC |
1 | ||
| 35671B - SPRING, BRAKE PISTON RETURN | ||||
| 35671-08010 |
ALA49..DCRL |
1 | ||
| 35671-33010 |
ALA49..6FC |
1 | ||
| 35671-33010 |
ALA49..JPP..DCRL |
1 | ||
| 35671C - RING, SNAP (FOR BRAKE PISTON RETURN SPRING) | ||||
| 90520-99103 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
1 | ||
| 90520-99103 |
ALA49..6FC |
1 | ||
| 35676H - FLANGE, BRAKE, NO.1 | ||||
| 35676-33030 |
ALA49..6FC T=3.1,MARK 31 |
1 | ||
| 35676-33040 |
ALA49..6FC T=3.2,MARK 32 |
1 | ||
| 35676-33050 |
ALA49..6FC T=3.3,MARK 33 |
1 | ||
| 35676-33070 |
ALA49..JPP..DCRL T=3.5,MARK 35 |
1 | ||
| 35676-33030 |
ALA49..JPP..DCRL T=3.1,MARK 31 |
1 | ||
| 35676-33020 |
ALA49..6FC T=3.0,MARK 30 |
1 | ||
| 35676-33060 |
ALA49..6FC T=3.4,MARK 34 |
1 | ||
| 35676-33070 |
ALA49..6FC T=3.5,MARK 35 |
1 | ||
| 35676-33050 |
ALA49..JPP..DCRL T=3.3,MARK 33 |
1 | ||
| 35676-33040 |
ALA49..JPP..DCRL T=3.2,MARK 32 |
1 | ||
| 35676-33060 |
ALA49..JPP..DCRL T=3.4,MARK 34 |
1 | ||
| 35676-33080 |
ALA49..JPP..DCRL T=3.6,MARK 36 |
1 | ||
| 35676-33020 |
ALA49..JPP..DCRL T=3.0,MARK 30 |
1 | ||
| 35679A - RING, HOLE SNAP(FOR BRAKE FLANGE) | ||||
| 90521-99136 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
1 | ||
| 90521-99136 |
ALA49..6FC |
1 | ||
| 35679D - FRANGE, BRAKE, NO.2 | ||||
| 35679-73010 |
ALA49..6FC |
1 | ||
| 35679-73010 |
ALA49..JPP..DCRL |
1 | ||
| 35679E - FRANGE, BRAKE, NO.3 | ||||
| 35679-73020 |
ALA49..6FC T=3.8,MARK 38 |
1 | ||
| 35679-73030 |
ALA49..6FC T=3.9,MARK 39 |
1 | ||
| 35679-73060 |
ALA49..6FC T=4.2,MARK 42 |
1 | ||
| 35679-73040 |
ALA49..6FC T=4.0,MARK 40 |
1 | ||
| 35679-73070 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=4.3,MARK 43 |
1 | ||
| 35679-73050 |
ALA49..6FC T=4.1,MARK 41 |
1 | ||
| 35679-73090 |
ALA49..JPP..DCRL T=4.5,MARK 45 |
1 | ||
| 35679-73070 |
ALA49..6FC T=4.3,MARK 43 |
1 | ||
| 35679-73100 |
ALA49..JPP..DCRL T=3.7,MARK 37 |
1 | ||
| 35679-73060 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=4.2,MARK 42 |
1 | ||
| 35679-73030 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=3.9,MARK 39 |
1 | ||
| 35679-73050 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=4.1,MARK 41 |
1 | ||
| 35679-73040 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=4.0,MARK 40 |
1 | ||
| 35679-73020 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) T=3.8,MARK 38 |
1 | ||
| 35679-73080 |
ALA49..JPP..DCRL T=4.4,MARK 44 |
1 | ||
| 35679F - RING, SNAP(FOR BRAKE FLANGE) | ||||
| 90520-99116 |
ALA49..6FC |
1 | ||
| 90520-99116 |
ALA49..JPP..DCRL |
1 | ||
| 35679G - RING, SNAP (FOR RAKE FLANGE NO.3) | ||||
| 90520-99112 |
ALA49..6FC |
1 | ||
| 90520-99112 |
ALA49..JPP..DCRL |
1 | ||
| 35683B - DISC, BRAKE, NO.3 | ||||
| 35683-33030 |
ALA49..6FC |
7 | ||
| 35683-33030 |
ALA49..JPP..DCRL |
7 | ||
| 35683B - DISC, BRAKE, NO.3 | ||||
| 35683-33030 |
ALA49..6FC |
7 | ||
| 35683-33030 |
ALA49..JPP..DCRL |
7 | ||
| 35683B - DISC, BRAKE, NO.3 | ||||
| 35683-33030 |
ALA49..6FC |
7 | ||
| 35683-33030 |
ALA49..JPP..DCRL |
7 | ||
| 35683B - DISC, BRAKE, NO.3 | ||||
| 35683-33030 |
ALA49..6FC |
7 | ||
| 35683-33030 |
ALA49..JPP..DCRL |
7 | ||
| 35683B - DISC, BRAKE, NO.3 | ||||
| 35683-33030 |
ALA49..6FC |
7 | ||
| 35683-33030 |
ALA49..JPP..DCRL |
7 | ||
| 35683B - DISC, BRAKE, NO.3 | ||||
| 35683-33030 |
ALA49..6FC |
7 | ||
| 35683-33030 |
ALA49..JPP..DCRL |
7 | ||
| 35683B - DISC, BRAKE, NO.3 | ||||
| 35683-33030 |
ALA49..6FC |
7 | ||
| 35683-33030 |
ALA49..JPP..DCRL |
7 | ||
| 35688D - STOPPER, BRAKE SNAP RING | ||||
| 35688-33010 |
ALA49..DCRL |
1 | ||
| 35688-45010 |
ALA49..JPP..DCRL |
1 | ||
| 35688-33010 |
ALA49..6FC |
1 | ||
| 35691A - PLATE, BRAKE, NO.1 | ||||
| 35691-33010 |
ALA49..JPP..DCRL |
4 | ||
| 35691-33010 |
ALA49..6FC |
4 | ||
| 35691A - PLATE, BRAKE, NO.1 | ||||
| 35691-33010 |
ALA49..JPP..DCRL |
4 | ||
| 35691-33010 |
ALA49..6FC |
4 | ||
| 35691A - PLATE, BRAKE, NO.1 | ||||
| 35691-33010 |
ALA49..JPP..DCRL |
4 | ||
| 35691-33010 |
ALA49..6FC |
4 | ||
| 35691A - PLATE, BRAKE, NO.1 | ||||
| 35691-33010 |
ALA49..JPP..DCRL |
4 | ||
| 35691-33010 |
ALA49..6FC |
4 | ||
| 35693C - PLATE, BRAKE, NO.3 | ||||
| 35693-33010 |
ALA49..JPP..DCRL |
2 | ||
| 35693-33010 |
ALA49..6FC |
2 | ||
| 35693C - PLATE, BRAKE, NO.3 | ||||
| 35693-33010 |
ALA49..JPP..DCRL |
2 | ||
| 35693-33010 |
ALA49..6FC |
2 | ||
| 35775H - RACE, THRUST BEARING, NO.5 | ||||
| 35775-33010 |
ALA49..6FC |
1 | ||
| 35775-48020 |
ALA49..JPP..DCRL |
1 | ||
| 35787F - RACE, THRUST BEARING, NO.2 | ||||
| 35787-33010 |
ALA49..6FC |
1 | ||
| 35787-48021 |
ALA49..JPP..DCRL |
1 | ||
