ALA49L-ANTMXX (2015)
Toyota Rav4
(1212- )ALA4#..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12320C0 |
ALA40,49,ZSA44..LHD..6F..X BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 33504-12330C0 |
ALA4#,ZSA44..6F..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 33504-42120C0 |
ALA49,ASA44,AVA4#,ZSA4#..(ATM,CVT)..M BLACK & SILVER,TRIM2# |
1 | ||
| 33504-42070C0 |
ALA49..LHD..6FC..X..DCR RUSSIA SPEC,BLACK,TRIM2# |
1 | ||
| 33504-42070C0 |
ALA49..LHD..6FC..X..DCR UKURAINE SPEC,BLACK,TRIM2# |
1 | ||
| 33504-12320C2 |
ALA49,WWA42,ZSA4#..6F..X BLACK,TRIM2# |
1 | ||
| 33504-12330C0 |
ALA49..LHD..6F..X..DCR UKURAINE SPEC,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 33504-42080C0 |
ALA49,ZSA44..(6FC,A)..X BLACK,TRIM2# |
1 | ||
| 33504-42070C0 |
ALA49,ZSA44..(6FC,A)..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 33504-42080C0 |
ALA49,ASA44,ZSA4#..(ATM,CVT)..X BLACK,TRIM2# |
1 | ||
| 33504-42070C0 |
ALA49,ZSA44..LHD..(6FC,A)..X..(DCRL,HTWVM) STEERING WHEEL-LEATHER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 33504-12330C0 |
ALA49..LHD..6F..X..DCR RUSSIA SPEC,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 33504-12330C3 |
ALA49,WWA42,ZSA4#..JPP..6F..M BLACK,TRIM2#,3# |
1 | ||
| 33524B - BRACKET, CONTROL CABLE | ||||
| 335A0-42010 |
ALA4#..6F |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-42090 |
ALA4#,ZSA44..6F |
1 | ||
| 33530-42090 |
WWA42;ZSA44..RUP..6F..M;ALA49,ZSA42..RUP..6F;ZSA44..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M) |
1 | ||
| 33530-42090 |
ZSA44..6F..EUR;ZSA44..JPP..6F..M..RUS;ALA49,ZSA42..JPP..6F..X |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-33010 |
ALA4#..6F NO.1 |
1 | ||
| 33557-20010 |
ALA4#..6F NO.2 |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-33010 |
ALA4#..6F NO.1 |
1 | ||
| 33557-20010 |
ALA4#..6F NO.2 |
1 | ||
| 33590F - CRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT) | ||||
| 33590-20040 |
ALA4#..6F |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-42340 |
ALA4#..6F |
1 | ||
| 33820-42380 |
ALA49..JPP..DCRL |
1 | ||
| 33820-42380 |
ALA49..6FC |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 90119-08C60 |
ALA4#,ZSA44..6F |
3 | ||
| 90119-08C60 |
ZSA44..6F..EUR;ZSA44..JPP..6F..M..RUS;ALA49,ZSA42..JPP..6F..X |
3 | ||
| 90119-08C60 |
ZSA44..RUP..6F..M;ALA49,ZSA42..RUP..6F;ZSA44..6F..(G,X)..RUS;ALA49,ZSA42..JPP..6F..(G,M) |
3 | ||
| Common parts | ||||
| 90119-08C56 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91551-80614 | ||||
| 91612-B1020 | ||||
| Linked diagrams | ||||
| 3307 | ||||

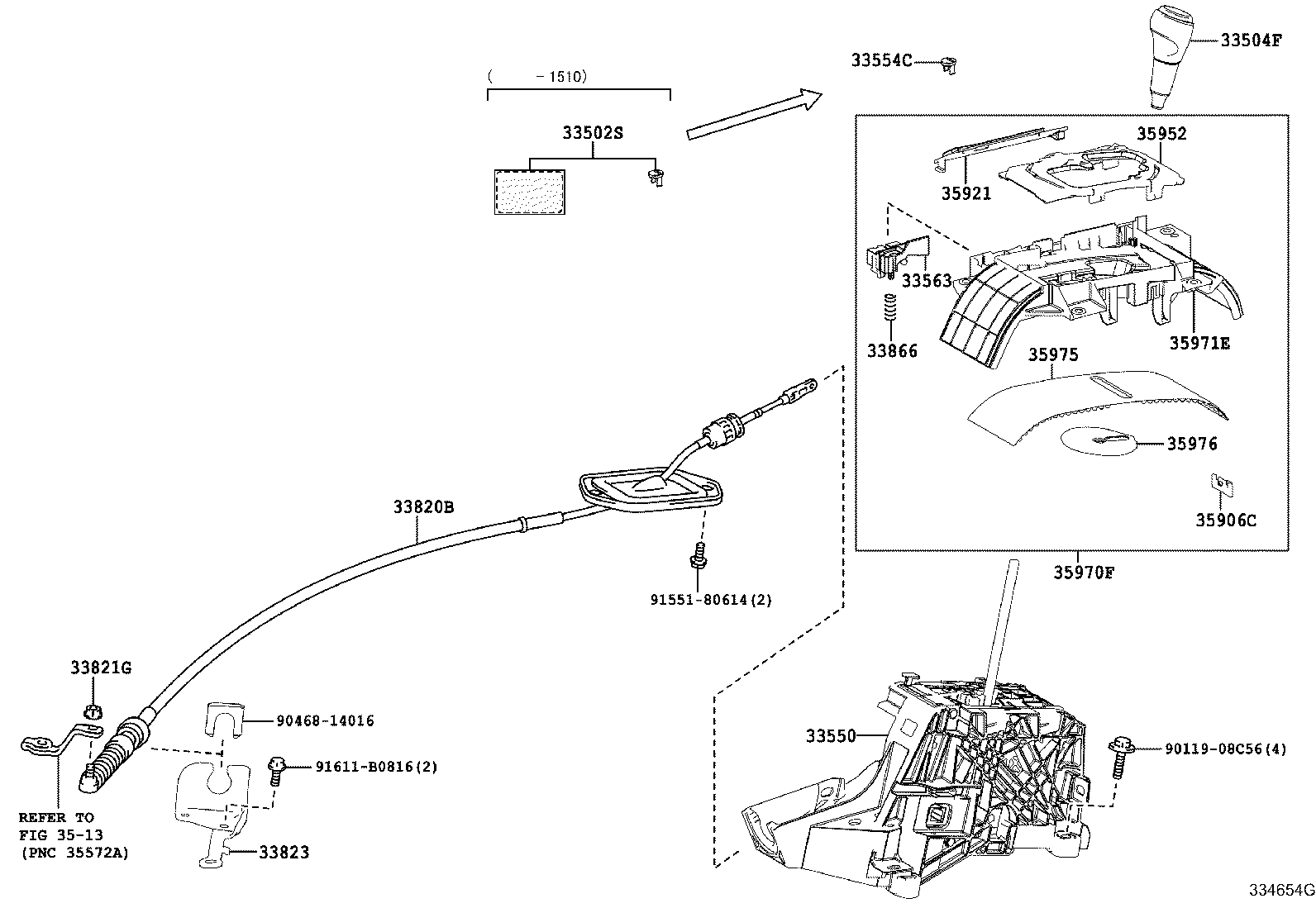

(1212- )ALA49..6FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502S - COVER SET, SHIFT LOCK W/LABEL | ||||
| 33502-42060 |
ALA49,ZSA44..6FC,A |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12320C0 |
ALA40,49,ZSA44..LHD..6F..X BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 33504-12330C0 |
ALA4#,ZSA44..6F..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 33504-42120C0 |
ALA49,ASA44,AVA4#,ZSA4#..(ATM,CVT)..M BLACK & SILVER,TRIM2# |
1 | ||
| 33504-42070C0 |
ALA49..LHD..6FC..X..DCR RUSSIA SPEC,BLACK,TRIM2# |
1 | ||
| 33504-42070C0 |
ALA49..LHD..6FC..X..DCR UKURAINE SPEC,BLACK,TRIM2# |
1 | ||
| 33504-12320C2 |
ALA49,WWA42,ZSA4#..6F..X BLACK,TRIM2# |
1 | ||
| 33504-12330C0 |
ALA49..LHD..6F..X..DCR UKURAINE SPEC,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 33504-42080C0 |
ALA49,ZSA44..(6FC,A)..X BLACK,TRIM2# |
1 | ||
| 33504-42070C0 |
ALA49,ZSA44..(6FC,A)..(G,M) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 33504-42080C0 |
ALA49,ASA44,ZSA4#..(ATM,CVT)..X BLACK,TRIM2# |
1 | ||
| 33504-42070C0 |
ALA49,ZSA44..LHD..(6FC,A)..X..(DCRL,HTWVM) STEERING WHEEL-LEATHER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 33504-12330C0 |
ALA49..LHD..6F..X..DCR RUSSIA SPEC,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 33504-12330C3 |
ALA49,WWA42,ZSA4#..JPP..6F..M BLACK,TRIM2#,3# |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-42230 |
ASA44..X..EUR;AVA42..LHD..EUR;ASA44..JPP..(G,M);ALA49,AVA44,ZSA4#..JPP..LHD..(ATM,CVT) |
1 | ||
| 33550-42230 |
ALA49,ZSA44..LHD..(6FC,A) |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-42050 |
AVA42..EUR;ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..LHD..CVT;ALA49,AVA44,ZSA42..JPP..(ATM,CVT) |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-42100 |
ALA49,ZSA44..LHD..(6FC,A) |
1 | ||
| 33563-42100 |
ASA44..X..EUR;AVA42..LHD..EUR;ASA44..JPP..(G,M);ALA49,AVA44,ZSA4#..JPP..LHD..(ATM,CVT) |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-42340 |
ALA4#..6F |
1 | ||
| 33820-42380 |
ALA49..JPP..DCRL |
1 | ||
| 33820-42380 |
ALA49..6FC |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08061 |
ALA49..6FC |
1 | ||
| 90179-08061 |
ASA44..X..EUR;ASA44..JPP..(G,M);ALA49,ZSA4#..JPP..(6FC,B) |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-42040 |
ALA49..6FC |
1 | ||
| 33823-42040 |
ASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M) |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-33010 |
AVA42..EUR;ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..LHD..CVT;ALA49,AVA44,ZSA42..JPP..(ATM,CVT) |
1 | ||
| 33866-33010 |
ALA49,ZSA44..6FC,A |
1 | ||
| 35906C - CHIP, INDICATOR LAMP | ||||
| 35906-49005 |
ALA49,ZSA44..6FC,A |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-42050 |
ALA49,ZSA44..LHD..(6FC,A) |
1 | ||
| 35921-42050 |
ALA49,ZSA4#..JPP..LHD..(ATM,CVT) |
1 | ||
| 35952 - LENS, POSITION INDICATOR | ||||
| 35952-42020 |
ALA49,ZSA44..LHD..(6FC,A) |
1 | ||
| 35952-42020 |
ASA44..X..EUR;AVA42..LHD..EUR;ASA44..JPP..(G,M);ALA49,AVA44,ZSA4#..JPP..LHD..(ATM,CVT) |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 35970-42120 |
ALA49,ZSA4#..JPP..LHD..(ATM,CVT) |
1 | ||
| 35970-42120 |
ALA49,ZSA44..LHD..(6FC,A) |
1 | ||
| 35971E - HOUSING, POSITION INDICATOR | ||||
| 35971-42050 |
ALA49,ZSA44..LHD..(6FC,A) |
1 | ||
| 35971-42050 |
ASA44..X..EUR;AVA42..LHD..EUR;ASA44..JPP..(G,M);ALA49,AVA44,ZSA4#..JPP..LHD..(ATM,CVT) |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-42040 |
AVA42..EUR;ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..LHD..CVT;ALA49,AVA44,ZSA42..JPP..(ATM,CVT) |
1 | ||
| 35975-42040 |
ALA49,ZSA44..6FC,A |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-42020 |
AVA42..EUR;ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..LHD..CVT;ALA49,AVA44,ZSA42..JPP..(ATM,CVT) |
1 | ||
| 35976-42020 |
ALA49,ZSA44..6FC,A |
1 | ||
| Common parts | ||||
| 90119-08C56 | ||||
| 90468-14016 | ||||
| 91551-80614 | ||||
| 91611-B0816 | ||||
| Linked diagrams | ||||
| 3513 | ||||
