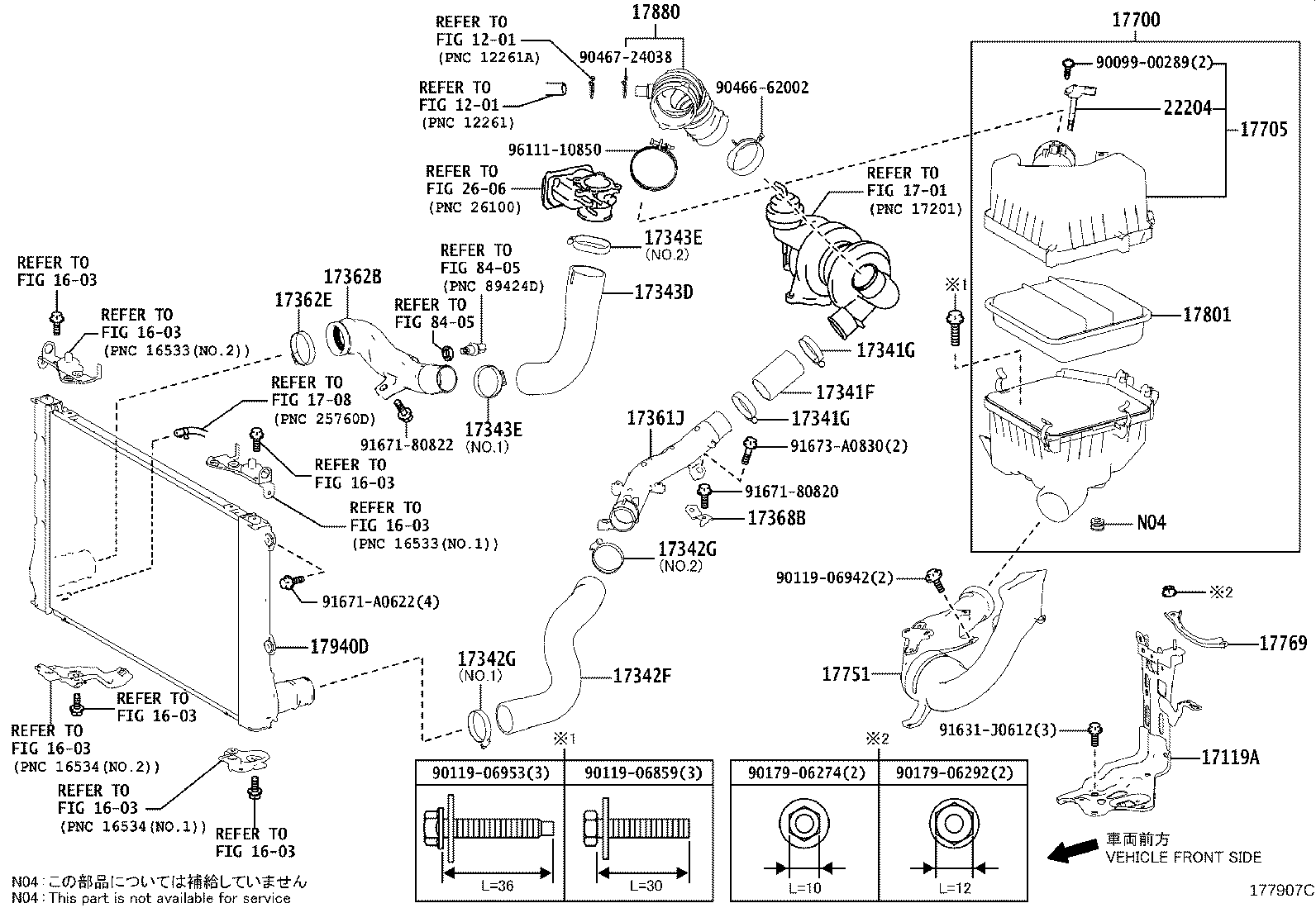

ALA49L-ANTMXX (2015)
Toyota Rav4
(1212- )2AD#..6FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-26030 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 17119-26030 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-26101 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 17341-26101 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65012 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 90460-65012 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65012 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 90460-65012 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-26180 |
2ADFHV..ALA49..JPP |
1 | ||
| 17342-26180 |
2AD#..ALA49..6FC |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-73011 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.1:REFER ILLUST. |
1 | ||
| 90460-67008 |
1ADFTV,2AD#..ALA4# NO.2:REFER ILLUST. |
1 | ||
| 90460-73011 |
1ADFTV,2AD#..ALA4# NO.1:REFER ILLUST. |
1 | ||
| 90460-67008 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.2:REFER ILLUST. |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-73011 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.1:REFER ILLUST. |
1 | ||
| 90460-67008 |
1ADFTV,2AD#..ALA4# NO.2:REFER ILLUST. |
1 | ||
| 90460-73011 |
1ADFTV,2AD#..ALA4# NO.1:REFER ILLUST. |
1 | ||
| 90460-67008 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.2:REFER ILLUST. |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-26110 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 17343-26110 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-73011 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.1:REFER ILLUST. |
1 | ||
| 90460-73011 |
1ADFTV,2AD#..ALA4# NO.1:REFER ILLUST. |
1 | ||
| 90460-77002 |
1ADFTV,2AD#..ALA4# NO.2:REFER ILLUST. |
1 | ||
| 90460-77002 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.2:REFER ILLUST. |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-73011 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.1:REFER ILLUST. |
1 | ||
| 90460-73011 |
1ADFTV,2AD#..ALA4# NO.1:REFER ILLUST. |
1 | ||
| 90460-77002 |
1ADFTV,2AD#..ALA4# NO.2:REFER ILLUST. |
1 | ||
| 90460-77002 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.2:REFER ILLUST. |
1 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-26080 |
2AD#..ALA49..6FC |
1 | ||
| 17361-26080 |
2ADFHV..ALA49..JPP |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-26040 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 17362-26040 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 17362E - CLAMP, NO.2(FOR AIR TUBE, NO.2) | ||||
| 90460-73011 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 90460-73011 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 17368B - SUPPORT, AIR TUBE | ||||
| 17368-26050 |
2AD#..ALA49..6FC |
1 | ||
| 17368-26050 |
2ADFHV..ALA49..JPP |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-26360 |
1ADFTV,2AD#..ALA4#..DCRE,DCRL |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-26140 |
1ADFTV,2AD#..ALA4#..DCRE,DCRL |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-26060 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 17751-26070 |
2AD#..ALA49 |
1 | ||
| 17751-26070 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 17769 - SUPPORT, AIR CLEANER | ||||
| 17769-26010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 17769-26010 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-26010 |
1ADFTV,2AD#..ALA4#..DCRE,DCRL |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-26040 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 17880-26040 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-26022 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 17940-26022 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-26010 |
1ADFTV,2AD#..ALA4# |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90119-06942 | ||||
| 90119-06953 | ||||
| 90179-06274 | ||||
| 90179-06292 | ||||
| 90466-62002 | ||||
| 90467-24038 | ||||
| 91631-J0612 | ||||
| 91671-80820 | ||||
| 91671-80822 | ||||
| 91671-A0622 | ||||
| 91673-A0830 | ||||
| 96111-10850 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 1701 | ||||
| 1708 | ||||
| 2606 | ||||
| 8405 | ||||
