ALA49L-ANTMXX (2015)
Toyota Rav4
ILLUST NO. 2 OF 4(1212- )1ADFTV,2AD#
RADIATOR SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16057 - HOSE SUB-ASSY, RADIATOR | ||||
| 16057-26040 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 16057-26041 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-26050 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 16261-26050 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-19022 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 90467-19022 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-19022 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 90467-19022 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-26070 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 16264-26070 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-21010 |
2AD#..ALA49..JPP |
2 | ||
| 90467-21010 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-21010 |
2AD#..ALA49..JPP |
2 | ||
| 90467-21010 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-26040 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 16282-26041 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.1:REFER ILLUST. |
1 | ||
| 96136-41901 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.2:REFER ILLUST. |
1 | ||
| 90467-15022 |
1ADFTV,2AD#..ALA4# NO.1 & NO.2 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.1:REFER ILLUST. |
1 | ||
| 96136-41901 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.2:REFER ILLUST. |
1 | ||
| 90467-15022 |
1ADFTV,2AD#..ALA4# NO.1 & NO.2 |
2 | ||
| 16361 - FAN | ||||
| 16361-28220 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 16361-28220 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-26070 |
2AD#..ALA49..6FC |
1 | ||
| 16361-26070 |
2ADFHV..ALA49..JPP |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-28170 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16363-28170 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-26020 |
2ADFHV..ALA49..JPP |
1 | ||
| 16363-26020 |
2AD#..ALA49..6FC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-26411 |
2AD#..ALA49..6FC |
1 | ||
| 16400-26412 |
2ADFHV..ALA49..JPP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 16417-30170 |
2ADFHV..ALA49..JPP;2ARFE..ASA44..X..EUR;2ADFTV..ALA49..JPP..X;2ARFE..ASA44..JPP..(G,M) |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
2ADFHV..ALA49..JPP;2ARFE..ASA44..X..EUR;2ADFTV..ALA49..JPP..X;2ARFE..ASA44..JPP..(G,M) |
1 | ||
| 16418-15520 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 16466 - SEAL, RADIATOR | ||||
| 16466-26410 |
2AD#..ALA49..6FC |
1 | ||
| 16466-26410 |
2ADFHV..ALA49..JPP |
1 | ||
| 16467 - SIDE SEAL | ||||
| 16467-26410 |
2AD#..ALA49..6FC |
2 | ||
| 16467-26410 |
2ADFHV..ALA49..JPP |
2 | ||
| 16467 - SIDE SEAL | ||||
| 16467-26410 |
2AD#..ALA49..6FC |
2 | ||
| 16467-26410 |
2ADFHV..ALA49..JPP |
2 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-26121 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 16470-26122 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-37010 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 16475-37011 |
2ADFHV..ALA49;2ADFTV..ALA49..M,X |
1 | ||
| 16475-28140 |
2ARFXE..AVA42..EUR;2ARFE..ASA44..X..EUR;2ADFTV..ALA49..JPP..X;2ARFE..ASA44..JPP..(G,M);2ADFHV,2ARFXE..ALA49,AVA44..JPP |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-44801 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 96136-44801 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-44801 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 96136-44801 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-26110 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 16572-26110 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-44801 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 96136-44801 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-44801 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 96136-44801 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44801 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 96136-44801 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44801 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 96136-44801 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-26020 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 16577-26020 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-26070 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 16581-26070 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-28030 |
2AD#,2AR#..ALA49,ASA44,AVA4#..JPP |
1 | ||
| 16611-28030 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 16611-36010 |
2ARFXE..AVA42..EUR;2ADFTV..ALA49..JPP..X;2ARFE..ASA44..JPP..(G,M)..RUS;2ADFHV,2ARFXE..ALA49,AVA44..JPP |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-26111 |
2AD#..ALA49..6FC |
1 | ||
| 16711-26111 |
2ADFHV..ALA49..JPP |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06959 | ||||
| 91671-A0618 | ||||
| 91673-A0616 | ||||
| Linked diagrams | ||||
| 1104 | ||||

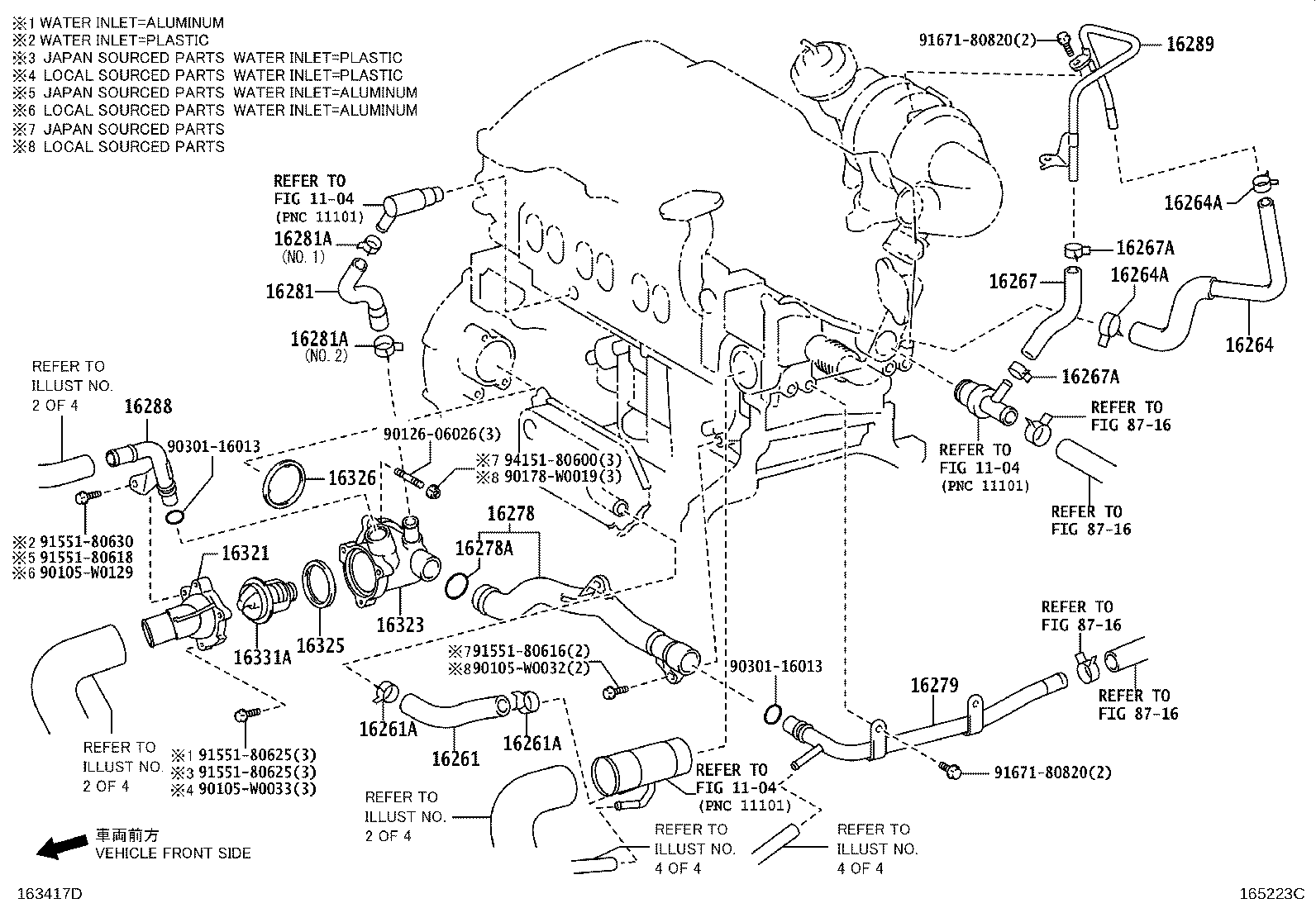

ILLUST NO. 3 OF 4(1212- )2AD#
ENGINE SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0R081 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 16261-0R081 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-21006 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 90467-21006 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-21006 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 90467-21006 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-26080 |
2AD#..ALA49 *119 |
1 | ||
| 16264-26080 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 90467-15022 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 90467-15022 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-26021 |
2AD#..ALA49 *119 |
1 | ||
| 16267-26021 |
2ADFHV..ALA49 2AD-FHV,*119 |
1 | ||
| 16267-26021 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 90467-15022 |
2ADFHV..ALA49 2AD-FHV,*119 |
2 | ||
| 90467-15022 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 90467-15022 |
2ADFHV..ALA49 2AD-FHV,*119 |
2 | ||
| 90467-15022 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-0R010 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 16278-0R010 |
2ADFHV..ALA49 2AD-FHV,*119 |
1 | ||
| 16278-0R010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16258-0R010 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 16258-0R010 |
2ADFHV..ALA49 2AD-FHV,*119 |
1 | ||
| 16258-0R010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-0R030 |
1ADFTV,2AD#..ALA4# (L),*119 |
1 | ||
| 16279-0R030 |
2ADFHV..ALA49 2AD-FHV,(L),*119 |
1 | ||
| 16279-26050 |
1ADFTV,2AD#..ALA4# (J),*119 |
1 | ||
| 16279-0R030 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X (L) |
1 | ||
| 16279-26050 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X (J) |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0R010 |
1ADFTV,2AD#..ALA4# *119,PNC 16321=ALUMI |
1 | ||
| 16281-0R030 |
1ADFTV,2AD#..ALA4# *119PNC16321=PLASTIC |
1 | ||
| 16281-0R010 |
2ADFHV..ALA49 2AD-FHV,*119,PNC 16321=ALUMI |
1 | ||
| 16281-0R010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X PNC 16321=ALUMINUM |
1 | ||
| 16281-0R030 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X PNC 16321=PLASTIC |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-21010 |
2ADFHV..ALA49 2AD-FHV,NO.2PNC16321=PLASTIC |
1 | ||
| 96136-42201 |
1ADFTV,2AD#..ALA4# *119,NO.1 |
1 | ||
| 90467-21010 |
1ADFTV,2AD#..ALA4# NO.2PNC16321=PLASTIC |
1 | ||
| 96134-52100 |
1ADFTV,2AD#..ALA4# NO.2,PNC 16321=ALUMI |
1 | ||
| 96136-42201 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.1:REFER ILLUST. |
1 | ||
| 96134-52100 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.2,PNC 16321=ALUMI |
1 | ||
| 90467-21010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.2PNC16321=PLASTIC |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-21010 |
2ADFHV..ALA49 2AD-FHV,NO.2PNC16321=PLASTIC |
1 | ||
| 96136-42201 |
1ADFTV,2AD#..ALA4# *119,NO.1 |
1 | ||
| 90467-21010 |
1ADFTV,2AD#..ALA4# NO.2PNC16321=PLASTIC |
1 | ||
| 96134-52100 |
1ADFTV,2AD#..ALA4# NO.2,PNC 16321=ALUMI |
1 | ||
| 96136-42201 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.1:REFER ILLUST. |
1 | ||
| 96134-52100 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.2,PNC 16321=ALUMI |
1 | ||
| 90467-21010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.2PNC16321=PLASTIC |
1 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-0R020 |
2ADFHV..ALA49 2AD-FHV |
1 | ||
| 16288-0R020 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 16288-0R020 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16289 - PIPE, WATER BY-PASS, NO.5 | ||||
| 16289-26011 |
2ADFHV..ALA49 2AD-FHV,*119 |
1 | ||
| 16289-26011 |
2AD#..ALA49 *119 |
1 | ||
| 16289-26011 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-26030 |
1ADFTV,2AD#..ALA4# *119,ALUMINUM |
1 | ||
| 16321-26030 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X ALUMINUM |
1 | ||
| 16321-0R020 |
1ADFTV,2AD#..ALA4# *119,PLASTIC |
1 | ||
| 16321-0R020 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X PLASTIC |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-26010 |
1ADFTV,2AD#..ALA4# *119,ALUMINUM |
1 | ||
| 16323-0R011 |
1ADFTV,2AD#..ALA4# *119,PLASTIC |
1 | ||
| 16323-0R011 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X PLASTIC |
1 | ||
| 16323-26010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X ALUMINUM |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1ADFTV,2AD#..ALA4# *119,ALUMINUM |
1 | ||
| 16325-26011 |
1ADFTV,2AD#..ALA4# *119,PLASTIC |
1 | ||
| 16325-26011 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X PLASTIC |
1 | ||
| 16325-62010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X ALUMINUM |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-26020 |
1ADFTV,2AD#..ALA4# *119,PNC 16321=ALUMI |
1 | ||
| 16326-26011 |
1ADFTV,2AD#..ALA4# *119PNC16321=PLASTIC |
1 | ||
| 16326-26020 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X PNC 16321=ALUMINUM |
1 | ||
| 16326-26011 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X PNC 16321=PLASTIC |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03125 |
1ADFTV,2AD#..ALA4# *WAX 82-95,*119 |
1 | ||
| 90916-03125 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-W0032 | ||||
| 90105-W0033 | ||||
| 90105-W0129 | ||||
| 90126-06026 | ||||
| 90178-W0019 | ||||
| 90301-16013 | ||||
| 91551-80616 | ||||
| 91551-80618 | ||||
| 91551-80625 | ||||
| 91551-80630 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8716 | ||||
ILLUST NO. 4 OF 4(1212- )1ADFTV,2AD#
ENGINE SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-26060 |
1ADFTV,2AD#..ALA4# (J),*119 |
1 | ||
| 16283-0R010 |
1ADFTV,2AD#..ALA4# (L),*119 |
1 | ||
| 16283-0R010 |
2ADFHV..ALA49 2AD-FHV,(L),*119 |
1 | ||
| 16283-0R010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-41501 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 96136-41501 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 96136-41501 |
2ADFHV..ALA49 2AD-FHV,*119 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-41501 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 96136-41501 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 96136-41501 |
2ADFHV..ALA49 2AD-FHV,*119 |
2 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-0R010 |
2ADFHV..ALA49 2AD-FHV,(L),*119 |
1 | ||
| 16295-0R010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16295-26060 |
1ADFTV,2AD#..ALA4# (J),*119 |
1 | ||
| 16295-0R010 |
1ADFTV,2AD#..ALA4# (L),*119 |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-41501 |
2ADFHV..ALA49 2AD-FHV,*119 |
2 | ||
| 96136-41501 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 96136-41501 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-41501 |
2ADFHV..ALA49 2AD-FHV,*119 |
2 | ||
| 96136-41501 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 96136-41501 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-26020 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 16296-26020 |
2ADFHV..ALA49 2AD-FHV,*119 |
1 | ||
| 16296-26020 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-41501 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 96136-41501 |
2ADFHV..ALA49 2AD-FHV,*119 |
2 | ||
| 96136-41501 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-41501 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 96136-41501 |
2ADFHV..ALA49 2AD-FHV,*119 |
2 | ||
| 96136-41501 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| Linked diagrams | ||||
| 1104 | ||||
ILLUST NO. 1 OF 4(1212- )1ADFTV,2AD#
RADIATOR SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-28030 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 16523-28030 |
2ARFXE..AVA42..EUR;2ARFE..ASA44..X..EUR;2ADFTV..ALA49..JPP..X;2ARFE..ASA44..JPP..(G,M);2ADFHV,2ARFXE..ALA49,AVA44..JPP |
2 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-28030 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 16523-28030 |
2ARFXE..AVA42..EUR;2ARFE..ASA44..X..EUR;2ADFTV..ALA49..JPP..X;2ARFE..ASA44..JPP..(G,M);2ADFHV,2ARFXE..ALA49,AVA44..JPP |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16534-26060 |
1ADFTV,2AD#..ALA4# NO.2:REFER ILLUST. |
1 | ||
| 16534-26050 |
1ADFTV,2AD#..ALA4# NO.1:REFER ILLUST. |
1 | ||
| 16534-26050 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.1:REFER ILLUST. |
1 | ||
| 16534-26060 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.2:REFER ILLUST. |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16534-26060 |
1ADFTV,2AD#..ALA4# NO.2:REFER ILLUST. |
1 | ||
| 16534-26050 |
1ADFTV,2AD#..ALA4# NO.1:REFER ILLUST. |
1 | ||
| 16534-26050 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.1:REFER ILLUST. |
1 | ||
| 16534-26060 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.2:REFER ILLUST. |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-26070 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 16533-26070 |
2ADFHV..ALA49..JPP;2ARFE..ASA44..X..EUR;2ADFTV..ALA49..JPP..X;2ARFE..ASA44..JPP..(G,M) |
2 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-26070 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 16533-26070 |
2ADFHV..ALA49..JPP;2ARFE..ASA44..X..EUR;2ADFTV..ALA49..JPP..X;2ARFE..ASA44..JPP..(G,M) |
2 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-26070 |
1ADFTV,2AD#..ALA4# NO.1:REFER ILLUST. |
1 | ||
| 16534-26080 |
1ADFTV,2AD#..ALA4# NO.2:REFER ILLUST. |
1 | ||
| 16534-26070 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.1:REFER ILLUST. |
1 | ||
| 16534-26080 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.2:REFER ILLUST. |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-26070 |
1ADFTV,2AD#..ALA4# NO.1:REFER ILLUST. |
1 | ||
| 16534-26080 |
1ADFTV,2AD#..ALA4# NO.2:REFER ILLUST. |
1 | ||
| 16534-26070 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.1:REFER ILLUST. |
1 | ||
| 16534-26080 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X NO.2:REFER ILLUST. |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74230 |
1ADFTV,2AD#..ALA4# |
2 | ||
| 16535-74230 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| Common parts | ||||
| 91671-A0622 | ||||
| 91671-J0820 | ||||
| Linked diagrams | ||||
| 1703 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
