ALA49L-ANTMXX (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFHV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )2AD#

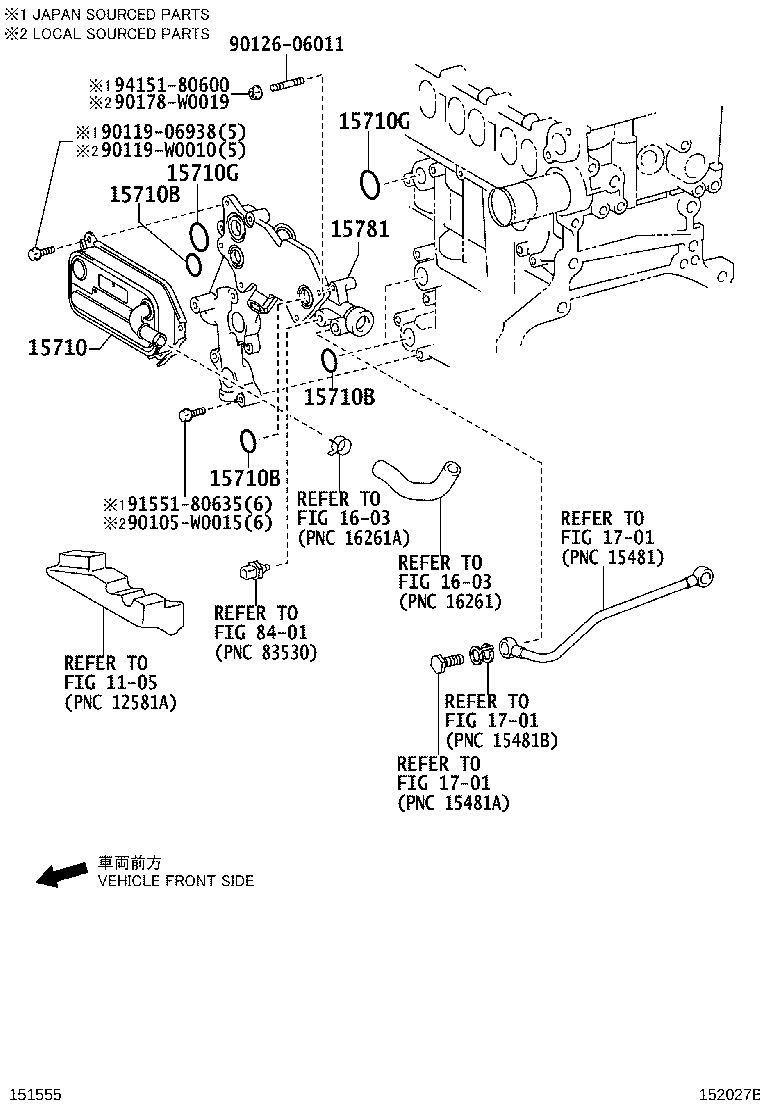

Click highlighted areas on diagram

diagram 1105 15710 15710B 15710B 15710B 15710G 15710G 15781 1603 1603 1701 1701 1701 8401 90105W0015 9011906938 90119W0010 9012606011 90178W0019 9155180635 9415180600
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-0R011

1ADFTV,2AD#..ALA4#

*119

 1
15710-0R011

2ADFHV..ALA49

2AD-FHV,*119

 1
15710-0R011

2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X

 1
15710B - RING, O(FOR OIL COOLER)
90301-24018

2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X

 4
90301-24018

2ADFHV..ALA49

2AD-FHV,*119

 4
90301-24018

2AD#..ALA49

*119

 4
15710B - RING, O(FOR OIL COOLER)
90301-24018

2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X

 4
90301-24018

2ADFHV..ALA49

2AD-FHV,*119

 4
90301-24018

2AD#..ALA49

*119

 4
15710B - RING, O(FOR OIL COOLER)
90301-24018

2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X

 4
90301-24018

2ADFHV..ALA49

2AD-FHV,*119

 4
90301-24018

2AD#..ALA49

*119

 4
15710G - RING, O, NO.2
90301-29013

2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X

 2
90301-29013

2ADFHV..ALA49

2AD-FHV,*119

 2
90301-29013

2AD#..ALA49

*119

 2
15710G - RING, O, NO.2
90301-29013

2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X

 2
90301-29013

2ADFHV..ALA49

2AD-FHV,*119

 2
90301-29013

2AD#..ALA49

*119

 2
15781 - BRACKET, OIL COOLER, NO.1
15781-26031

2ADFHV..ALA49

2AD-FHV,*119

 1
15781-26031

2AD#..ALA49

*119

 1
15781-26031

2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X

 1
Common parts
90105-W0015
90119-06938
90119-W0010
90126-06011
90178-W0019
91551-80635
94151-80600
Linked diagrams
1105
1603
1701
8401
