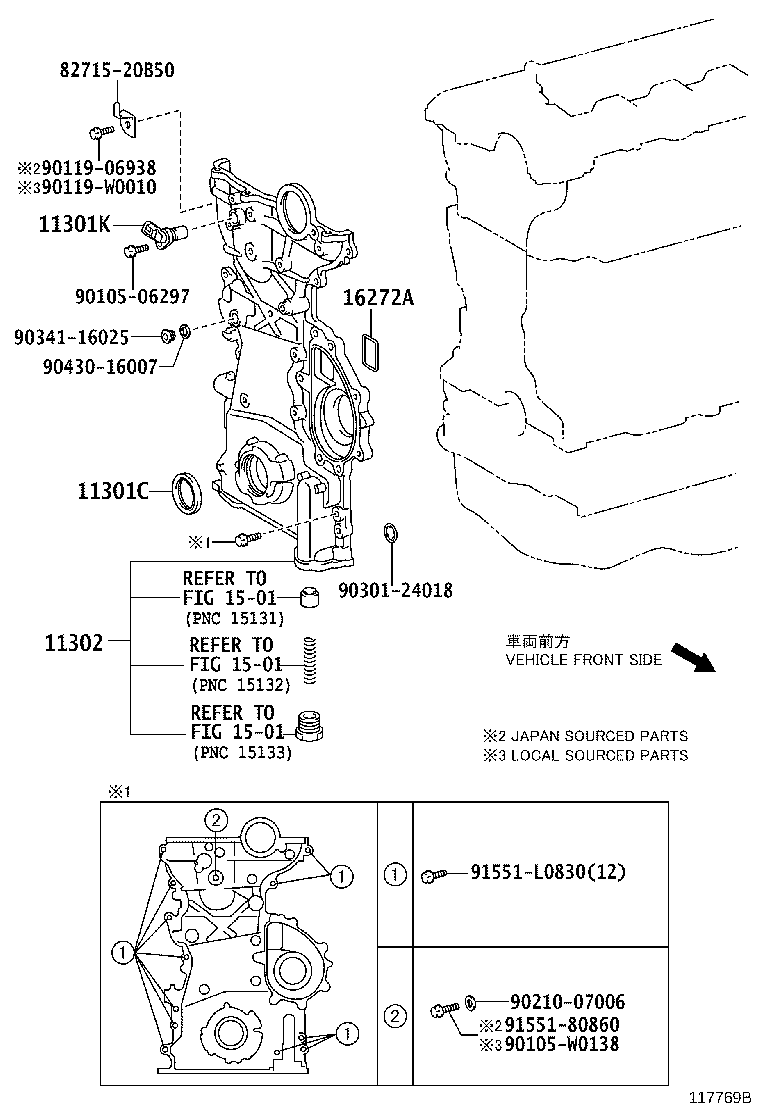

Toyota Rav4 ALA49 TIMING GEAR COVER & REAR END PLATE

Part #	Description	Period	Qty
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-48030	2ADFHV..ALA49 2AD-FHV,(J),*119	12/2012 - 10/2015	1
90311-W0009	1ADFTV,2AD#..ALA4# (L),*119	12/2012 - 10/2015	1
90311-48030	1ADFTV,2AD#..ALA4# (J),*119	12/2012 - 10/2015	1
90311-W0009	2AD#..ALA49	10/2015 - 11/2015	1
90311-W0019	2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X	12/2015 - 10/2018	1
11301K - SENSOR, CRANK POSITION
90919-05029	2AD#..ALA49 *119	12/2012 - 10/2015	1
90919-05029	2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X	10/2015 - 10/2018	1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-0R020	2ADFHV..ALA49 2AD-FHV,(L),*119	12/2012 - 10/2015	1
11302-26030	2AD#..ALA49 (J),*119	12/2012 - 10/2015	1
11302-0R020	2AD#..ALA49 (L),*119	12/2012 - 10/2015	1
11302-0R020	2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X	10/2015 - 10/2018	1
16272A - GASKET, WATER PUMP NO.2
16272-26010	1ADFTV,2AD#..ALA4# *119	12/2012 - 10/2015	1
16272-26010	2ADFHV..ALA49 2AD-FHV,*119	12/2012 - 10/2015	1
16272-26010	2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X	10/2015 - 10/2018	1
Common parts
82715-20B50
90105-06297
90105-W0138
90119-06938
90119-W0010
90210-07006
90301-24018
90341-16025
90430-16007
91551-80860
91551-L0830
Linked diagrams
1501

ALA49L-ANTMXX (2015)
