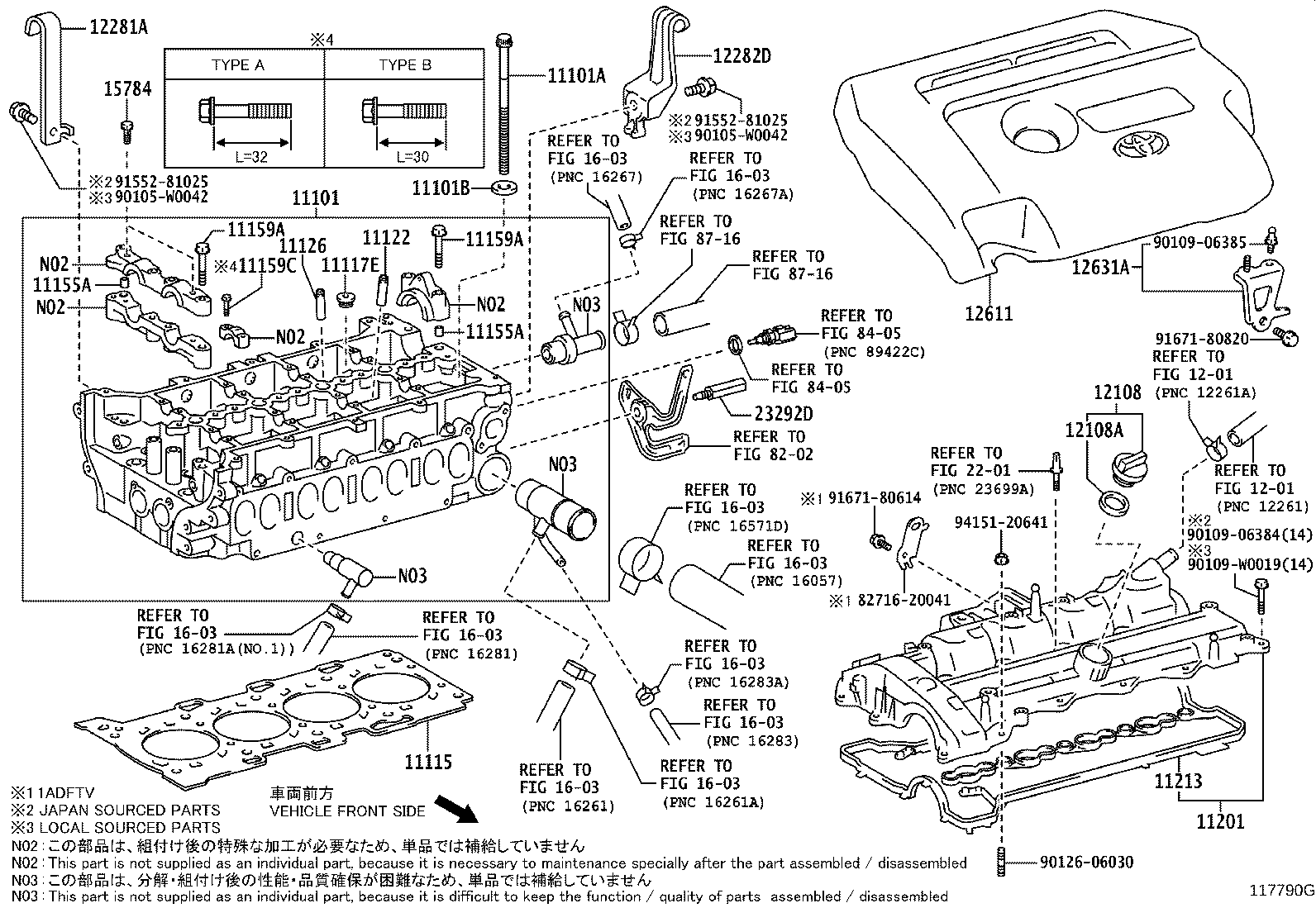

ALA49L-ANTMXX (2015)
Toyota Rav4
(1212- )1ADFTV,2AD#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-29615 |
1ADFTV,2AD#..ALA4#..DCRE,DCRL *119 |
1 | ||
| 11101-09415 |
2AD#..ALA49 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02158 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
10 | ||
| 90910-02158 |
1ADFTV,2AD#..ALA4# *119 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90560-13023 |
1ADFTV,2AD#..ALA4# *119 |
10 | ||
| 90560-13023 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-26052C0 |
1ADFTV,2AD#..ALA4# MARKC,*119:REFER R/M |
1 | ||
| 11115-26052B0 |
1ADFTV,2AD#..ALA4# MARKB,*119:REFER R/M |
1 | ||
| 11115-26052A0 |
1ADFTV,2AD#..ALA4# MARKA,*119:REFER R/M |
1 | ||
| 11115-26052D0 |
1ADFTV,2AD#..ALA4# MARKD,*119:REFER R/M |
1 | ||
| 11115-26052E0 |
1ADFTV,2AD#..ALA4# MARKE,*119:REFER R/M |
1 | ||
| 11115-26052B0 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X MARKB,REFER REPAIR MANUAL |
1 | ||
| 11115-26052A0 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X MARKA,REFER REPAIR MANUAL |
1 | ||
| 11115-26052D0 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X MARKD,REFER REPAIR MANUAL |
1 | ||
| 11115-26052C0 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X MARKC,REFER REPAIR MANUAL |
1 | ||
| 11115-26052E0 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X MARKE,REFER REPAIR MANUAL |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-14015 |
1ADFTV,2AD#..ALA4# *119 |
4 | ||
| 90341-14015 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
4 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-0R010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X STD |
8 | ||
| 11122-0R010 |
1ADFTV,2AD#..ALA4#..DCRE,DCRL STD,*119 |
8 | ||
| 11123-0R010 |
1ADFTV,2AD#..ALA4#..DCRE,DCRL O/S 0.05,*119 |
8 | ||
| 11123-0R010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-0R010 |
1ADFTV,2AD#..ALA4#..DCRE,DCRL STD,*119 |
8 | ||
| 11123-0R010 |
1ADFTV,2AD#..ALA4#..DCRE,DCRL O/S 0.05,*119 |
8 | ||
| 11122-0R010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X STD |
8 | ||
| 11123-0R010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X O/S 0.05 |
8 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
1ADFTV,2AD#..ALA4# *119 |
6 | ||
| 90253-11021 |
2ADFHV..ALA49 2AD-FHV,*119 |
6 | ||
| 90253-11021 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
6 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
1ADFTV,2AD#..ALA4# *119 |
6 | ||
| 90253-11021 |
2ADFHV..ALA49 2AD-FHV,*119 |
6 | ||
| 90253-11021 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
6 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 91551-80860 |
1ADFTV,2AD#..ALA4# (J),*119 |
6 | ||
| 91551-80860 |
2ADFHV..ALA49 2AD-FHV,(J),*119 |
6 | ||
| 90105-W0138 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X (L) |
6 | ||
| 91551-80860 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X (J) |
6 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 91551-80860 |
1ADFTV,2AD#..ALA4# (J),*119 |
6 | ||
| 91551-80860 |
2ADFHV..ALA49 2AD-FHV,(J),*119 |
6 | ||
| 90105-W0138 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X (L) |
6 | ||
| 91551-80860 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X (J) |
6 | ||
| 11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 91551-80630 |
2ADFHV..ALA49 2AD-FHV,(J),*119 |
16 | ||
| 91551-80630 |
1ADFTV,2AD#..ALA4# (J),*119 |
16 | ||
| 90105-W0139 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X TYPE A:REFER ILLUST. |
16 | ||
| 91551-80630 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X TYPE B:REFER ILLUST. |
16 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0R042 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 11201-0R042 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-0R040 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 11213-0R040 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-38010 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 12180-38010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 90430-35001 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-26040 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 12281-26040 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-26010 |
1ADFTV,2AD#..ALA4# *119 |
1 | ||
| 12282-26010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-26050 |
2ADFHV..ALA49 |
1 | ||
| 12611-26050 |
2ADFHV..ALA49..JPP |
1 | ||
| 12631A - BRACKET, ENGINE COVER | ||||
| 12631-0R010 |
1ADFTV,2AD#..ALA4# (L),*119 |
1 | ||
| 12631-0R010 |
2ADFHV..ALA49 2AD-FHV,(L),*119 |
1 | ||
| 12631-26030 |
1ADFTV,2AD#..ALA4# (J),*119 |
1 | ||
| 12631-0R010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| 15784 - SEAT, OIL PIPE | ||||
| 15784-0R010 |
2ADFHV..ALA49 2AD-FHV,*119 |
2 | ||
| 15784-0R010 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
2 | ||
| 15784-0R010 |
1ADFTV,2AD#..ALA4# *119 |
2 | ||
| 23292D - PROTECTOR, FUEL HOSE | ||||
| 23292-26040 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 23292-26040 |
2ADFHV..ALA49..JPP;2ADFTV..ALA49..JPP..X |
1 | ||
| Common parts | ||||
| 82716-20041 | ||||
| 90105-W0042 | ||||
| 90109-06384 | ||||
| 90109-06385 | ||||
| 90109-W0019 | ||||
| 90126-06030 | ||||
| 91552-81025 | ||||
| 91671-80614 | ||||
| 91671-80820 | ||||
| 94151-20641 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 2201 | ||||
| 8202 | ||||
| 8405 | ||||
| 8716 | ||||
