ALA49L-ANTGYW (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 2ADFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212-1510)

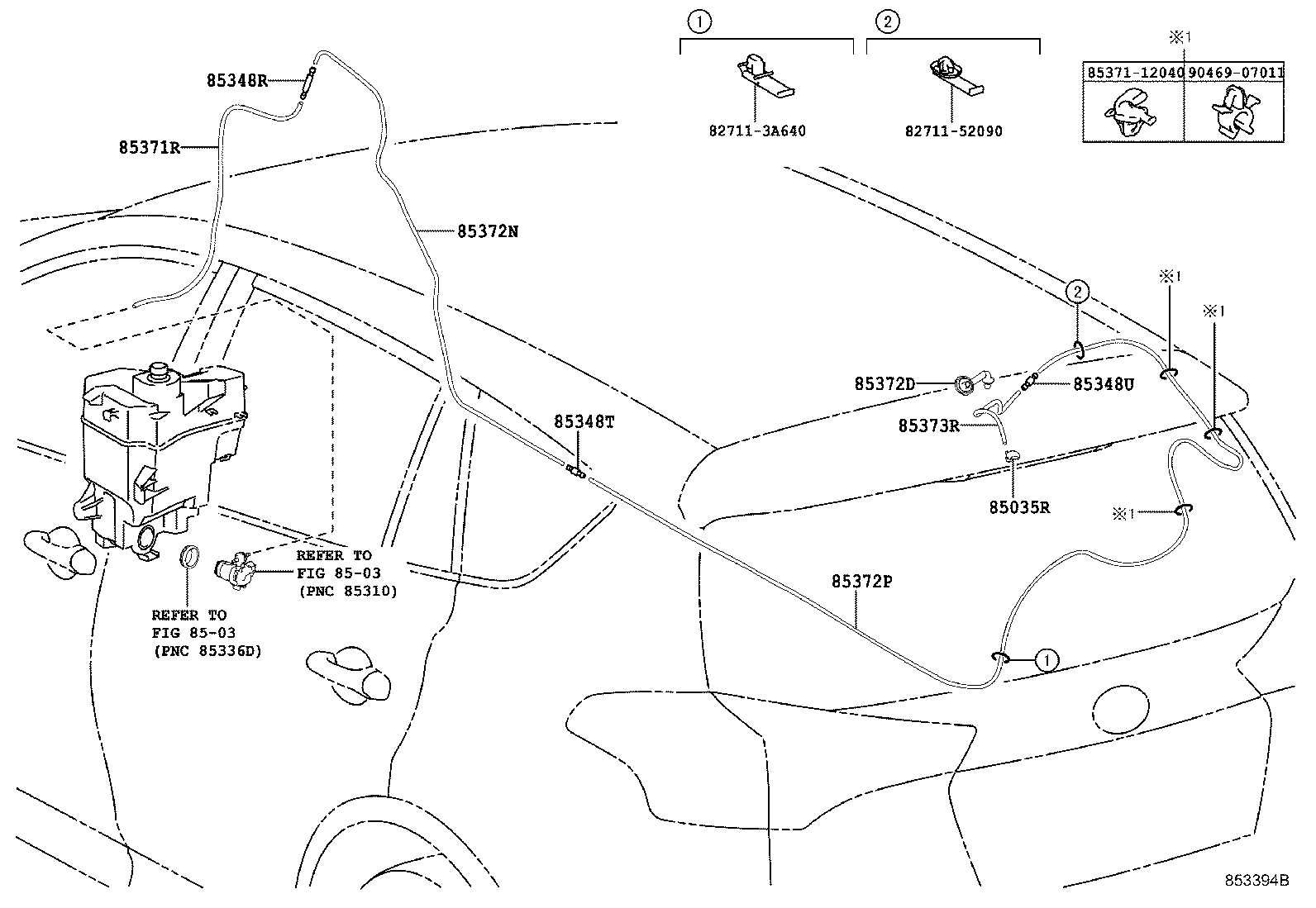

Click highlighted areas on diagram

diagram 827113A640 8271152090 8503 8503 85035R 85348R 85348T 85348U 8537112040 85371R 85372D 85372N 85372P 85373R 9046907011
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-42020

ALA4#,ZSA44

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-32150

ALA4#,ZSA44

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ALA4#,ZSA44

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

ALA4#,ZSA44

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

ALA4#..LHD

*H,L=840,COLD AREA SPEC,*562

 1
90099-33080

ALA4#,ZSA44

*H,L=840,*562

 1
90099-33080

ALA49..LHD..G..DCR;ALA40,41..LHD..(G,M);ALA49..(G,M)..(DCRE,DCRL)

*H,L=840,HEADLAMP-DISCHARGE,*562

 1
90099-33080

ALA49..LHD..(G,M)

*H,L=840,COLD AREA SPEC&HEADLAMP-DISCHARGE,*562

 1
90099-33080

ALA49..LHD..(G,M)

*H,L=840,COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB),*562

 1
90099-33080

ALA4#..LHD..(G,M)

*H,L=840,HEADLAMP-DISCHARGE & W(*AHB),*562

 1
85372D - GROMMET, REAR WASHER HOSE
85373-44010

ALA4#,ZSA44

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33382

ALA4#,ZSA44

*H,L=1200,*562

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-62098

ALA4#,ZSA44

L=3374

 1
90099-62098

ALA4#,ZSA44

L=3374

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-62065

ALA4#,ZSA44

L=350

 1
Common parts
82711-3A640
82711-52090
85371-12040
90469-07011
Linked diagrams
8503
