ALA49L-ANFXRW (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212-1510)ALA4#

Click highlighted areas on diagram

diagram 1104 1603 8712442030 8712442030 8714 8714 87245A 87245Z 87245Z 87245Z 87245Z 87246A
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87209-42161

ALA4#

 1
87209-42160

ALA4#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-42481

ALA4#

 1
87245-42590

ALA4#..LHD

COLD AREA SPEC

 1
87245-42480

ALA4#

 1
Common parts
87124-42030
Linked diagrams
1104
1603
8714

(1212-1510)ALA4#..LHD

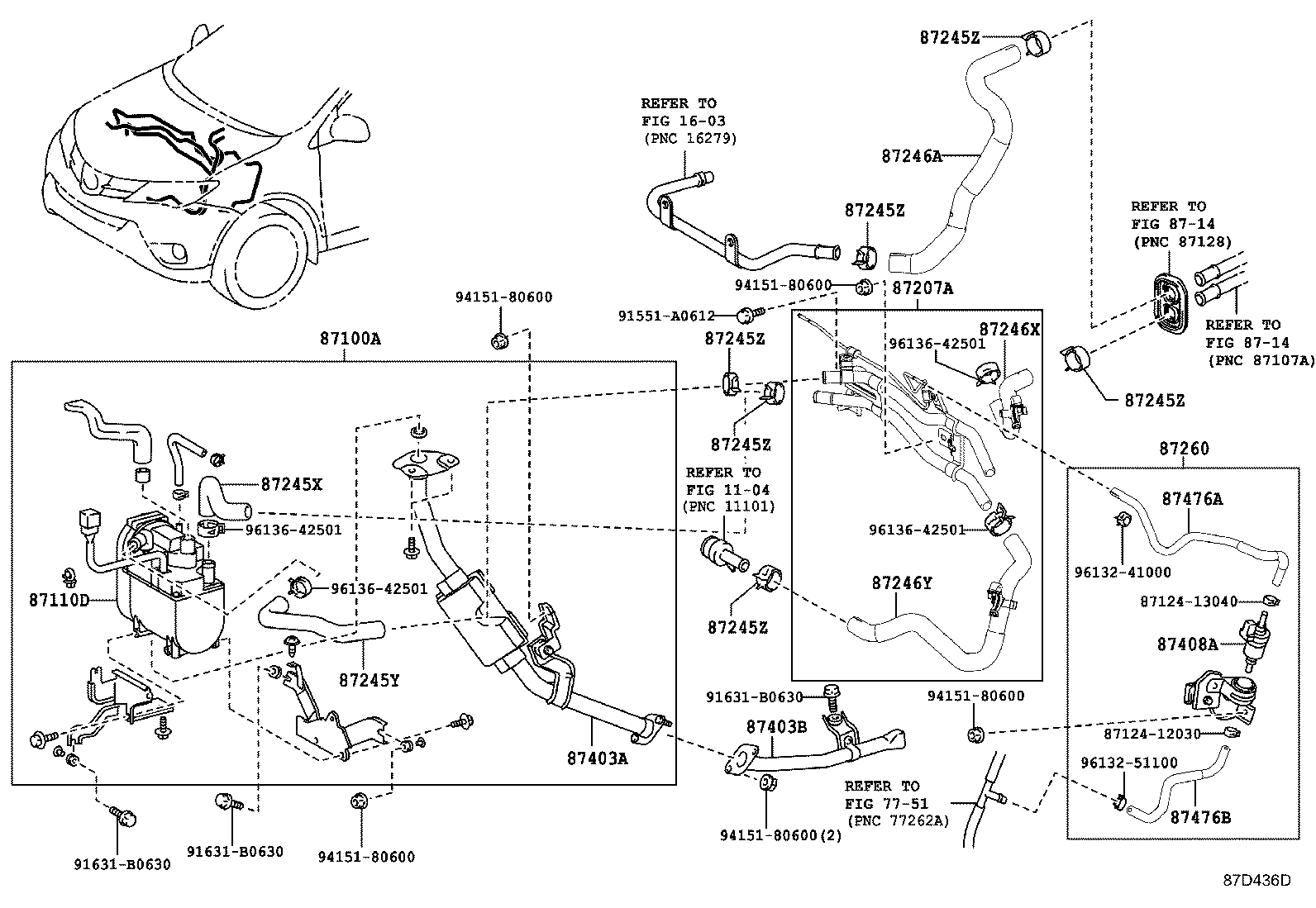

Click highlighted areas on diagram

COLD AREA SPEC

diagram 1104 1603 7751 87100A 87110D 8712412030 8712413040 8714 8714 87207A 87245X 87245Y 87245Z 87245Z 87245Z 87245Z 87245Z 87245Z 87246A 87246X 87246Y 87260 87403A 87403B 87408A 87476A 87476B 91551A0612 91631B0630 91631B0630 91631B0630 9415180600 9415180600 9415180600 9415180600 9415180600 9613241000 9613251100 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87100A - HEATER & ACCESSORY ASSY
87100-42030

ALA4#..LHD

COLD AREA SPEC

 1
87110D - HEATER ASSY
87110-42010

ALA4#..LHD

COLD AREA SPEC

 1
87207A - PIPE & HOSE SUB-ASSY, WATER A
87207-42020

ALA4#..LHD

COLD AREA SPEC

 1
87245X - HOSE, HEATER WATER
87245-42550

ALA4#..LHD

COLD AREA SPEC

 1
87245Y - HOSE, HEATER WATER
87245-42560

ALA4#..LHD

COLD AREA SPEC

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-42481

ALA4#

 1
87245-42590

ALA4#..LHD

COLD AREA SPEC

 1
87245-42480

ALA4#

 1
87246X - HOSE, HEATER WATER
87245-42570

ALA4#..LHD

COLD AREA SPEC

 1
87246Y - HOSE, HEATER WATER
87245-42580

ALA4#..LHD

COLD AREA SPEC

 1
87260 - PUMP ASSY, HEATER
87260-42030

ALA4#..LHD

COLD AREA SPEC

 1
87403A - PIPE SUB-ASSY, EXHAUST
87403-42030

ALA4#..LHD

COLD AREA SPEC

 1
87403B - PIPE SUB-ASSY, EXHAUST
87403-42020

ALA4#..LHD

COLD AREA SPEC

 1
87408A - PUMP SUB-ASSY, FUEL
87408-0D011

ALA4#..LHD

COLD AREA SPEC

 1
87476A - HOSE, HEATER FUEL, NO.1
87476-42030

ALA4#..LHD

COLD AREA SPEC

 1
87476B - HOSE, HEATER FUEL, NO.2
87476-42010

ALA4#..LHD

COLD AREA SPEC

 1
Common parts
87124-12030
87124-13040
91551-A0612
91631-B0630
94151-80600
96132-41000
96132-51100
96136-42501
Linked diagrams
1104
1603
7751
8714
