ALA49L-ANFGYW (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212-1510)

Click highlighted areas on diagram

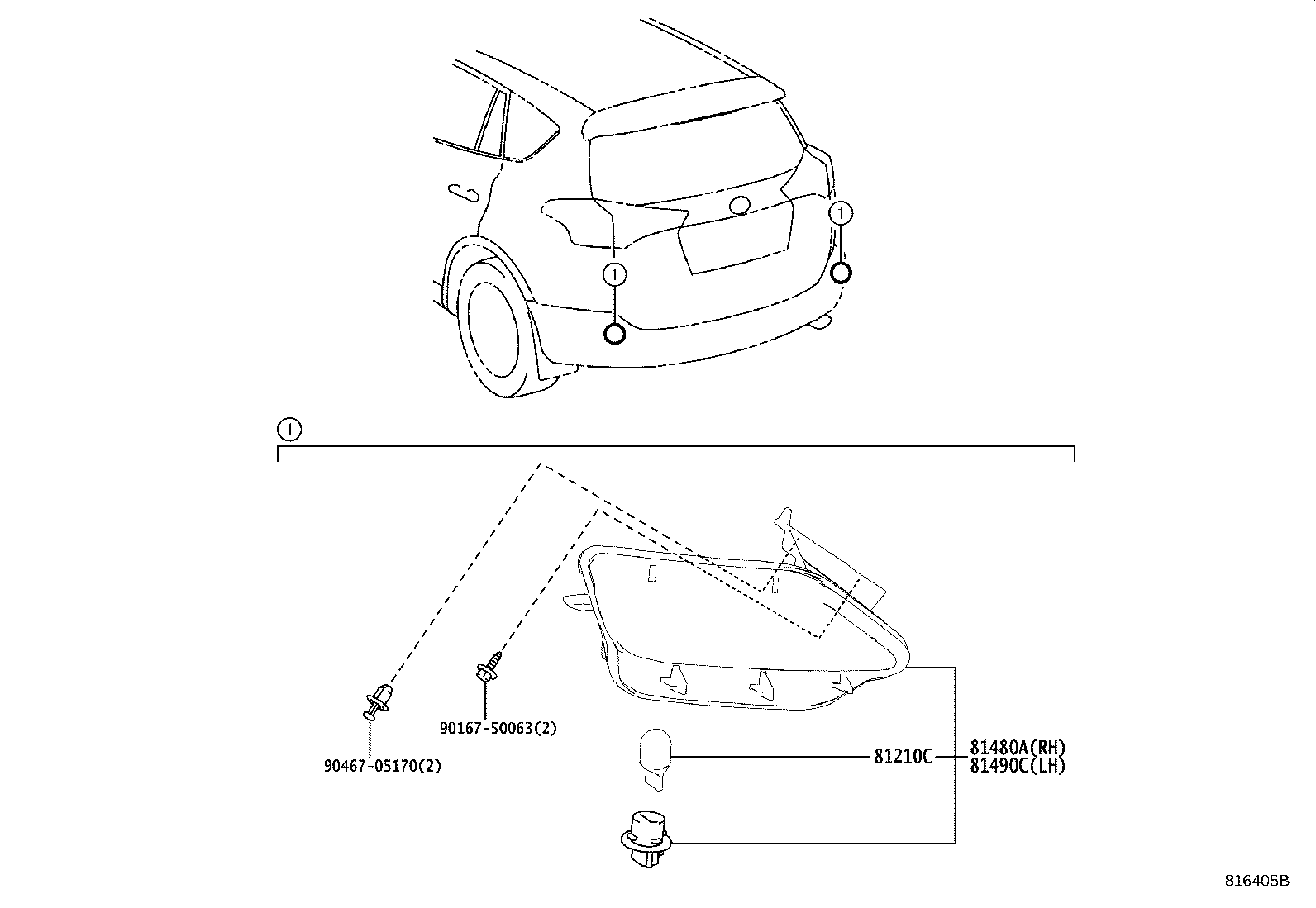

diagram 81210C 81480A 81490C 9016750063 9046705170
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
90981-13043

ALA4#,ZSA44

12V 21W

 2
81480A - LAMP ASSY, REAR FOG, RH
81480-42050

ALA4#,ZSA44

 1
81490C - LAMP ASSY, REAR FOG, LH
81490-42050

ALA4#,ZSA44

 1
Common parts
90167-50063
90467-05170
