ALA49L-ANFGYW (2012)
Toyota Rav4
Production
Dec 2012
-
Oct 2015
Engine
2ADFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(1212-1510)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-42011 |
ALA4#,ZSA44 |
1 | ||
| 57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-42011 |
ALA4#,ZSA44 |
1 | ||
| 57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-42150 |
ALA4#,ZSA44 |
1 | ||
| 57402A - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-42150 |
ALA4#,ZSA44 |
1 | ||
| 57406 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57406-42011 |
ALA4#,ZSA44 |
1 | ||
| 57406-42010 |
ALA4#,ZSA44 |
1 | ||
| 57409 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57409-42010 |
ALA4#,ZSA44 |
1 | ||
| 57455E - PLATE, FRONT FLOOR CROSS MEMBER, NO.3 RH | ||||
| 57455-42030 |
ALA4#,ZSA44 |
1 | ||
| 57456D - PLATE, FRONT FLOOR CROSS MEMBER, NO.3 LH | ||||
| 57456-42010 |
ALA4#,ZSA44 |
1 | ||
| 57505B - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH | ||||
| 57505-42110 |
ALA4#,ZSA44 |
1 | ||
| 57506C - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH | ||||
| 57506-42050 |
ALA4#,ZSA44 |
1 | ||
| 57508A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH | ||||
| 57508-42010 |
ALA4#,ZSA44 |
1 | ||
| 57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH | ||||
| 57509-42010 |
ALA4#,ZSA44 |
1 | ||
| 57837A - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3 | ||||
| 57837-42030 |
ALA4#,ZSA44 |
1 | ||
| 57838A - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4 | ||||
| 57838-42020 |
ALA4#,ZSA44 |
1 | ||
| 58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB | ||||
| 58105-42012 |
ALA4#,ZSA44 |
1 | ||
| 58105-42013 |
ALA4#,ZSA44 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-42201 |
ALA4#,ZSA44 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-42011 |
ALA4#,ZSA44 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-42011 |
ALA4#,ZSA44 |
1 | ||
| 58113-42010 |
ALA4#,ZSA44 |
1 | ||
| 58113-42012 |
ALA4#,ZSA44 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-42041 |
ALA4#,ZSA44 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-42020 |
ALA4#,ZSA44 |
6 | ||
| 58139A - PLATE, FRONT FLOOR SIDE, REAR RH | ||||
| 58139-42010 |
ALA4#,ZSA44 |
1 | ||
| 58149A - PLATE, FRONT FLOOR SIDE, REAR LH | ||||
| 58149-42011 |
ALA4#,ZSA44 |
1 | ||
| 58177A - EXTENSION, FRONT FLOOR PANEL, RH | ||||
| 58177-42010 |
ALA4#,ZSA44 |
1 | ||
| 58178A - EXTENSION, FRONT FLOOR PANEL, LH | ||||
| 58178-42010 |
ALA4#,ZSA44 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-42011 |
ALA4#,ZSA44 |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58202-78020 |
ALA4#,ZSA44 |
1 | ||
| 58202-42020 |
ALA4#,ZSA44 |
1 | ||
| 58213D - REINFORCEMENT, CENTER FLOOR PANEL | ||||
| 58213-42010 |
ALA4#,ZSA44 |
1 | ||
| 58214C - REINFORCEMENT, CENTER FLOOR PANEL, LH | ||||
| 58214-42010 |
ALA4#,ZSA44 |
1 | ||
| 58227B - PLATE, FRONT FLOOR PANEL SIDE, RH | ||||
| 58227-42010 |
ALA4#,ZSA44 |
2 | ||
| 58277B - REINFORCEMENT, DRIVE SHAFT CENTER SUPPORT | ||||
| 58209-48010 |
ALA4#,ZSA44 |
1 | ||
| 58209-42030 |
ALA4#,ZSA44 |
1 | ||
| 58398H - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-42010 |
ALA4#,ZSA44 |
2 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90115-06166 | ||||
| 90119-10444 | ||||
| 91631-B0630 | ||||
| 91631-J0612 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 1 OF 2(1212-1401)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

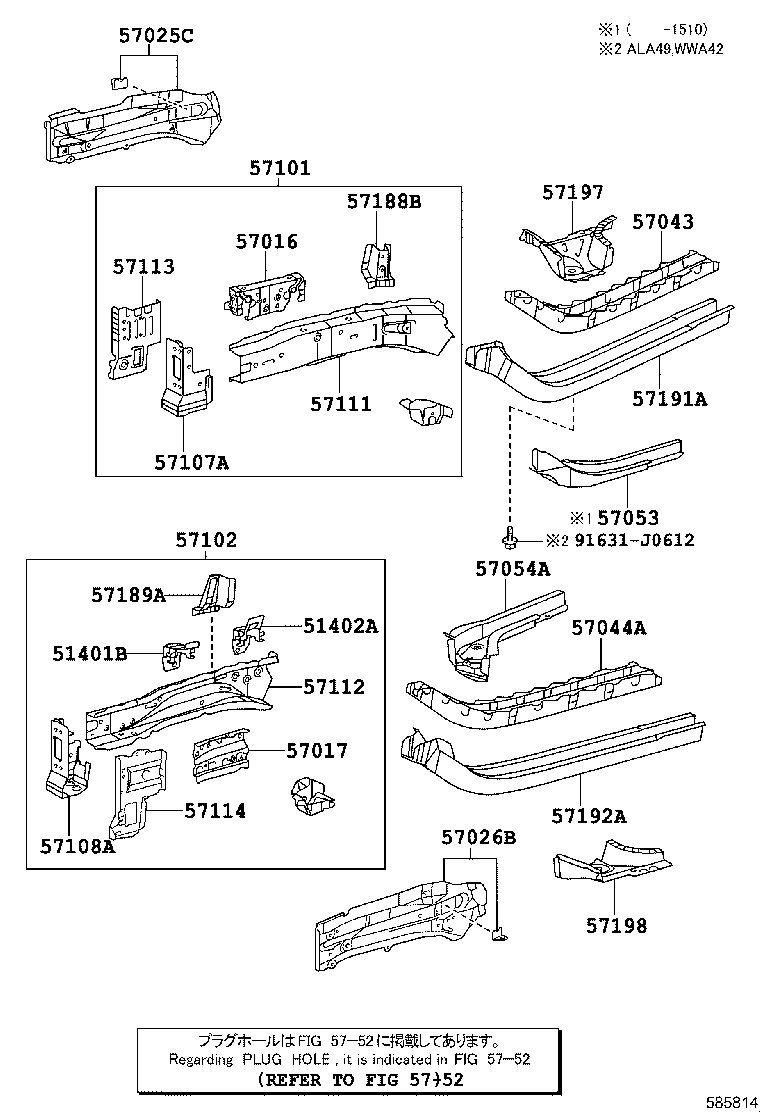

| 51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51401-42010 |
ALA4#,ZSA44 |
1 | ||
| 51401-42020 |
ALA4#,ZSA44 |
1 | ||
| 51402A - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-42010 |
ALA4#,ZSA44 |
1 | ||
| 51681C - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH | ||||
| 51681-12080 |
ALA4#,ZSA44 |
1 | ||
| 51682E - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH | ||||
| 51682-12080 |
ALA4#,ZSA44 |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-12110 |
ALA4#,ZSA44 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-12070 |
ALA4#,ZSA44 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-42110 |
ALA4#,ZSA44 |
1 | ||
| 57111-42900 |
ALA4#,ZSA44 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-42090 |
ALA4#,ZSA44 |
1 | ||
| 57112-42900 |
ALA4#,ZSA44 |
1 | ||
| 57112-12904 |
ALA4#,ZSA44 |
1 | ||
| 57112-12906 |
ALA4#,ZSA44 |
1 | ||
| 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57107-42030 |
ALA4#,ZSA44 |
1 | ||
| 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57108-42030 |
ALA4#,ZSA44 |
1 | ||
| 57108-42031 |
ALA4#,ZSA44 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-12230 |
ALA4#,ZSA44 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-12190 |
ALA4#,ZSA44 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-42050 |
ALA4#,ZSA44 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-42051 |
ALA4#,ZSA44 |
1 | ||
| 57114-78010 |
ALA4#,ZSA44 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-12090 |
ALA4#,ZSA44 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-12090 |
ALA4#,ZSA44 |
1 | ||
| 57116-12091 |
ALA4#,ZSA44 |
1 | ||
| 57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH | ||||
| 57188-42030 |
ALA4#,ZSA44 |
1 | ||
| 57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH | ||||
| 57189-42020 |
ALA4#,ZSA44 |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-42060 |
ALA4#,ZSA44 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-42060 |
ALA4#,ZSA44 |
1 | ||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 1 OF 2(1401-1405)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51401-42010 |
ALA4#,ZSA44 |
1 | ||
| 51401-42020 |
ALA4#,ZSA44 |
1 | ||
| 51402A - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-42010 |
ALA4#,ZSA44 |
1 | ||
| 51681C - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH | ||||
| 51681-12080 |
ALA4#,ZSA44 |
1 | ||
| 51682E - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH | ||||
| 51682-12080 |
ALA4#,ZSA44 |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-12110 |
ALA4#,ZSA44 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-12070 |
ALA4#,ZSA44 |
1 | ||
| 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-42010 |
ALA4#,ZSA44 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-42010 |
ALA4#,ZSA44 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-42011 |
ALA4#,ZSA44 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-42010 |
ALA4#,ZSA44 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-42110 |
ALA4#,ZSA44 |
1 | ||
| 57111-42900 |
ALA4#,ZSA44 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-42090 |
ALA4#,ZSA44 |
1 | ||
| 57112-42900 |
ALA4#,ZSA44 |
1 | ||
| 57112-12904 |
ALA4#,ZSA44 |
1 | ||
| 57112-12906 |
ALA4#,ZSA44 |
1 | ||
| 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57107-42030 |
ALA4#,ZSA44 |
1 | ||
| 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57108-42030 |
ALA4#,ZSA44 |
1 | ||
| 57108-42031 |
ALA4#,ZSA44 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-12230 |
ALA4#,ZSA44 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-12190 |
ALA4#,ZSA44 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-42050 |
ALA4#,ZSA44 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-42051 |
ALA4#,ZSA44 |
1 | ||
| 57114-78010 |
ALA4#,ZSA44 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-12090 |
ALA4#,ZSA44 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-12090 |
ALA4#,ZSA44 |
1 | ||
| 57116-12091 |
ALA4#,ZSA44 |
1 | ||
| 57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH | ||||
| 57188-42030 |
ALA4#,ZSA44 |
1 | ||
| 57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH | ||||
| 57189-42020 |
ALA4#,ZSA44 |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-42060 |
ALA4#,ZSA44 |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-42060 |
ALA4#,ZSA44 |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-42060 |
ALA4#,ZSA44 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-42060 |
ALA4#,ZSA44 |
1 | ||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 1 OF 2(1405- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51401-42010 |
ALA4#,ZSA44 |
1 | ||
| 51401-42020 |
ALA4#,ZSA44 |
1 | ||
| 51402A - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-42010 |
ALA4#,ZSA44 |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-12110 |
ALA4#,ZSA44 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-12070 |
ALA4#,ZSA44 |
1 | ||
| 57025C - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH | ||||
| 57025-12010 |
ALA4#,ZSA44 |
1 | ||
| 57026B - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH | ||||
| 57026-12020 |
ALA4#,ZSA44 |
1 | ||
| 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-42010 |
ALA4#,ZSA44 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-42010 |
ALA4#,ZSA44 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-42011 |
ALA4#,ZSA44 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-42010 |
ALA4#,ZSA44 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-42110 |
ALA4#,ZSA44 |
1 | ||
| 57111-42900 |
ALA4#,ZSA44 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-42090 |
ALA4#,ZSA44 |
1 | ||
| 57112-42900 |
ALA4#,ZSA44 |
1 | ||
| 57112-12904 |
ALA4#,ZSA44 |
1 | ||
| 57112-12906 |
ALA4#,ZSA44 |
1 | ||
| 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57107-42030 |
ALA4#,ZSA44 |
1 | ||
| 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57108-42030 |
ALA4#,ZSA44 |
1 | ||
| 57108-42031 |
ALA4#,ZSA44 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-12230 |
ALA4#,ZSA44 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-12190 |
ALA4#,ZSA44 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-42050 |
ALA4#,ZSA44 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-42051 |
ALA4#,ZSA44 |
1 | ||
| 57114-78010 |
ALA4#,ZSA44 |
1 | ||
| 57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH | ||||
| 57188-42030 |
ALA4#,ZSA44 |
1 | ||
| 57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH | ||||
| 57189-42020 |
ALA4#,ZSA44 |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-42060 |
ALA4#,ZSA44 |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-42060 |
ALA4#,ZSA44 |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-42060 |
ALA4#,ZSA44 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-42060 |
ALA4#,ZSA44 |
1 | ||
| Common parts | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 5752 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
