ALA40R-ANFXRW (2012)
Toyota Rav4

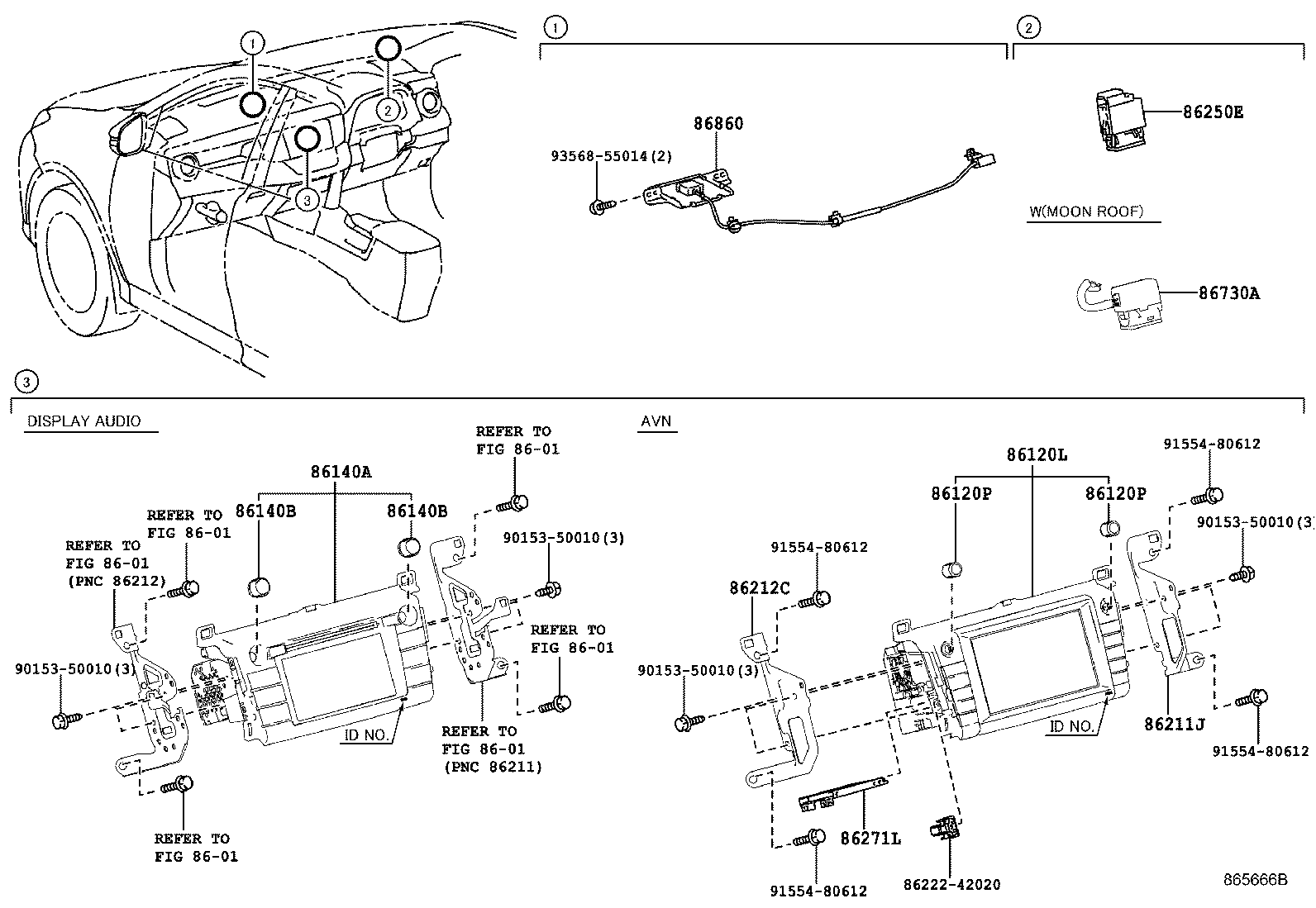

(1212-1311)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-42090 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) PANASONIC,ID=53890 |
1 | ||
| 86140-42100 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) PANASONIC,ID=53889,AUDIO-*DX*DA&DAB&USB&*BT&6SPEAKER |
1 | ||
| 86140-42240 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) PANASONIC,ID=510014,AUDIO-13MM *DA(*DLX) W(CD & USB & *BT & DAB) |
1 | ||
| 86140-42230 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) PANASONIC,ID=510013 |
1 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90010-24165 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) |
2 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90010-24165 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) |
2 | ||
| 86250E - MICROPHONE ASSY, AMPLIFIER | ||||
| 86250-52040 |
ALA4#,ZSA44..RHD |
1 | ||
| 86250-52040 |
ALA4#,ZSA44..RHD..(G,M) MOON ROOF-WITH&AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86250-52040 |
ALA49,ZSA44..RHD;ALA40,41..RHD..(G,M) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86250-52040 |
ALA4#,ZSA44..RHD..X AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-42030 |
ALA40,41,ZSA44..RHD..(G,M) ENGLAND SPEC&ANTI-THEFT SYSTEM-WITH(*IM,DOUBLE ROCK & ALARM)&MOON ROOF-WITH&AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86730-42030 |
ALA40,41..RHD..X;ZSA44..RHD..A..X ENGLAND SPEC&ANTI-THEFT SYSTEM-WITH(*IM,DOUBLE ROCK & ALARM)&AUDIO-4SPEAKER(AUDIOLESS) |
1 | ||
| 86730-42030 |
ZSA44..RHD..6F;ALA40,41..RHD..(G,M);ZSA44..RHD..A..(G,M) ENGLAND SPEC&ANTI-THEFT SYSTEM-WITH(*IM,DOUBLE ROCK & ALARM)&AUDIO-6SPEAKER(AUDIOLESS) |
1 | ||
| 86730-42030 |
ALA4#,ZSA44..RHD..(G,M) MOON ROOF-WITH |
1 | ||
| 86730-42030 |
ALA40,41,ZSA44..RHD ENGLAND SPEC&ANTI-THEFT SYSTEM-WITH(*IM,DOUBLE ROCK & ALARM) |
1 | ||
| 86730-42030 |
ALA40,41,ZSA44..RHD..(G,M) ENGLAND SPEC&ANTI-THEFT SYSTEM-WITH(*IM,DOUBLE ROCK & ALARM)&MOON ROOF-WITH |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-42051 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| 86860-42051 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86860-42051 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 86860-42052 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 86860-42052 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| 86860-42052 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| Common parts | ||||
| 86222-42020 | ||||
| 90153-50010 | ||||
| 91554-80612 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8601 | ||||

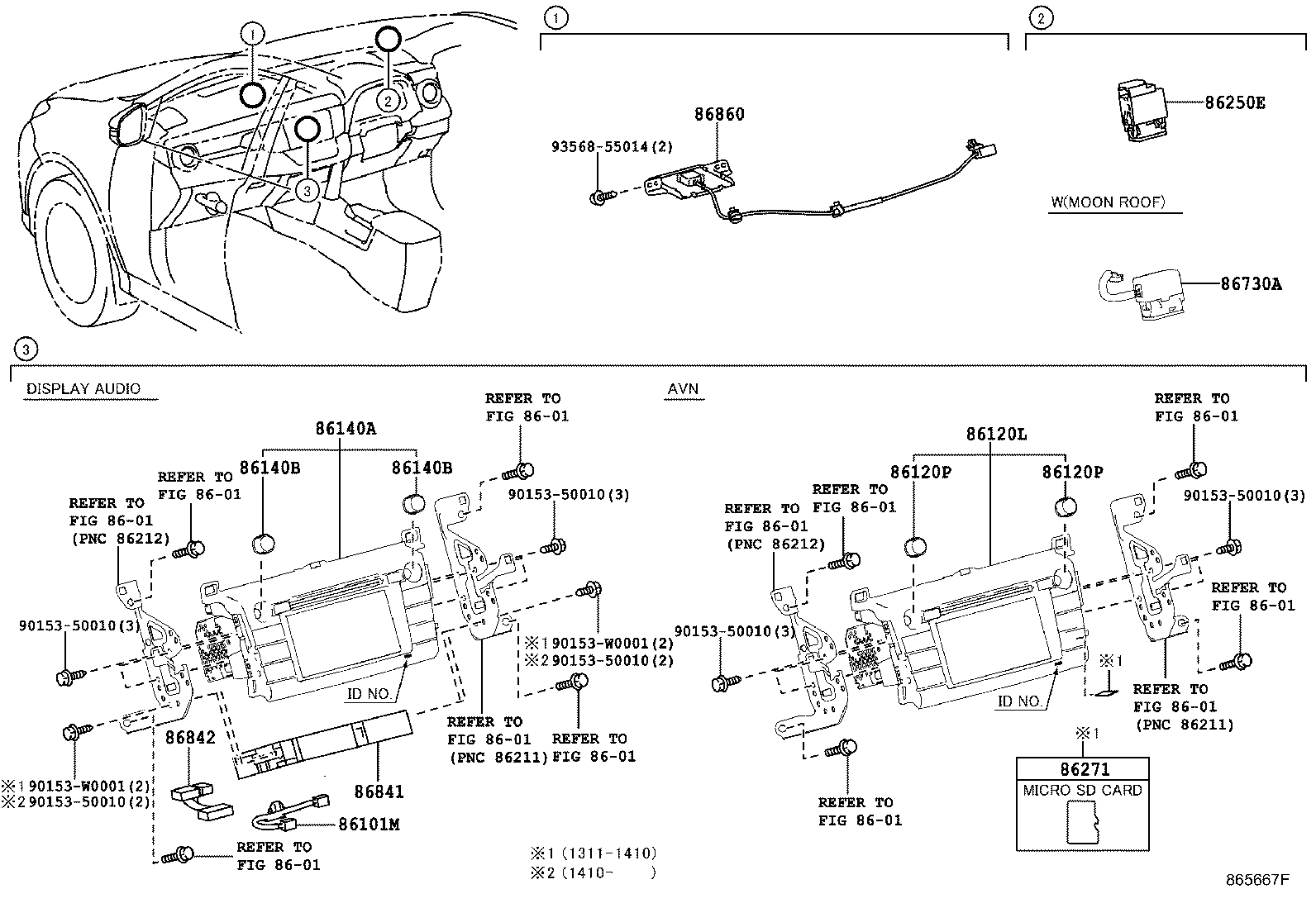

(1311-1510)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101M - CORD SUB-ASSY, ANTENNA | ||||
| 86705-52070 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 86705-52070 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) EMV & NAVIGATION SYSTEM-WITH(HIGH MODULE *EXB, EAST EUROPE SPEC) |
1 | ||
| 86705-52070 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) EMV & NAVIGATION SYSTEM-WITH(LOW MODULE *EXB, EAST EUROPE SPEC) |
1 | ||
| 86705-02070 |
ALA4#,ZSA44..M EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 86705-52070 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) EMV & NAVIGATION SYSTEM-WITH(HIGH MODULE *EXB) |
1 | ||
| 86705-52070 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) EMV & NAVIGATION SYSTEM-WITH(LOW MODULE *EXB, WEST EUROPE SPEC) |
1 | ||
| 86705-52070 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) EMV & NAVIGATION SYSTEM-WITH(HIGH MODULE *EXB, WEST EUROPE SPEC) |
1 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-42090 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) PANASONIC,ID=53890 |
1 | ||
| 86140-42100 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) PANASONIC,ID=53889,AUDIO-*DX*DA&DAB&USB&*BT&6SPEAKER |
1 | ||
| 86140-42240 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) PANASONIC,ID=510014,AUDIO-13MM *DA(*DLX) W(CD & USB & *BT & DAB) |
1 | ||
| 86140-42230 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) PANASONIC,ID=510013 |
1 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90010-24165 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) |
2 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90010-24165 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) |
2 | ||
| 86250E - MICROPHONE ASSY, AMPLIFIER | ||||
| 86250-52040 |
ALA4#,ZSA44..RHD |
1 | ||
| 86250-52040 |
ALA4#,ZSA44..RHD..(G,M) MOON ROOF-WITH&AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86250-52040 |
ALA49,ZSA44..RHD;ALA40,41..RHD..(G,M) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86250-52040 |
ALA4#,ZSA44..RHD..X AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-42030 |
ALA40,41,ZSA44..RHD..(G,M) ENGLAND SPEC&ANTI-THEFT SYSTEM-WITH(*IM,DOUBLE ROCK & ALARM)&MOON ROOF-WITH&AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86730-42030 |
ALA40,41..RHD..X;ZSA44..RHD..A..X ENGLAND SPEC&ANTI-THEFT SYSTEM-WITH(*IM,DOUBLE ROCK & ALARM)&AUDIO-4SPEAKER(AUDIOLESS) |
1 | ||
| 86730-42030 |
ZSA44..RHD..6F;ALA40,41..RHD..(G,M);ZSA44..RHD..A..(G,M) ENGLAND SPEC&ANTI-THEFT SYSTEM-WITH(*IM,DOUBLE ROCK & ALARM)&AUDIO-6SPEAKER(AUDIOLESS) |
1 | ||
| 86730-42030 |
ALA4#,ZSA44..RHD..(G,M) MOON ROOF-WITH |
1 | ||
| 86730-42030 |
ALA40,41,ZSA44..RHD ENGLAND SPEC&ANTI-THEFT SYSTEM-WITH(*IM,DOUBLE ROCK & ALARM) |
1 | ||
| 86730-42030 |
ALA40,41,ZSA44..RHD..(G,M) ENGLAND SPEC&ANTI-THEFT SYSTEM-WITH(*IM,DOUBLE ROCK & ALARM)&MOON ROOF-WITH |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86840-0W012 |
ALA4#,ZSA44..M EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 86840-05010 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) EMV & NAVIGATION SYSTEM-WITH(HIGH MODULE *EXB) |
1 | ||
| 86840-05021 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) EMV & NAVIGATION SYSTEM-WITH(HIGH MODULE *EXB, EAST EUROPE SPEC) |
1 | ||
| 86840-05011 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) EMV & NAVIGATION SYSTEM-WITH(HIGH MODULE *EXB, WEST EUROPE SPEC) |
1 | ||
| 86840-02014 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) EMV & NAVIGATION SYSTEM-WITH(LOW MODULE *EXB, EAST EUROPE SPEC) |
1 | ||
| 86840-0W013 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) EMV & NAVIGATION SYSTEM-WITH(LOW MODULE *EXB, WEST EUROPE SPEC) |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-12010 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) EMV & NAVIGATION SYSTEM-WITH(LOW MODULE *EXB, WEST EUROPE SPEC) |
1 | ||
| 86842-12010 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) EMV & NAVIGATION SYSTEM-WITH(HIGH MODULE *EXB, WEST EUROPE SPEC) |
1 | ||
| 86842-12010 |
ALA4#,ZSA44..M EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 86842-12010 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) EMV & NAVIGATION SYSTEM-WITH(LOW MODULE *EXB, EAST EUROPE SPEC) |
1 | ||
| 86842-12010 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) EMV & NAVIGATION SYSTEM-WITH(HIGH MODULE *EXB, EAST EUROPE SPEC) |
1 | ||
| 86842-12010 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) EMV & NAVIGATION SYSTEM-WITH(HIGH MODULE *EXB) |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-42051 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| 86860-42051 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86860-42051 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 86860-42052 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 86860-42052 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| 86860-42052 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90153-W0001 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8601 | ||||
