ALA40L-ANFXRW (2012)
Toyota Rav4
(1212-1510)

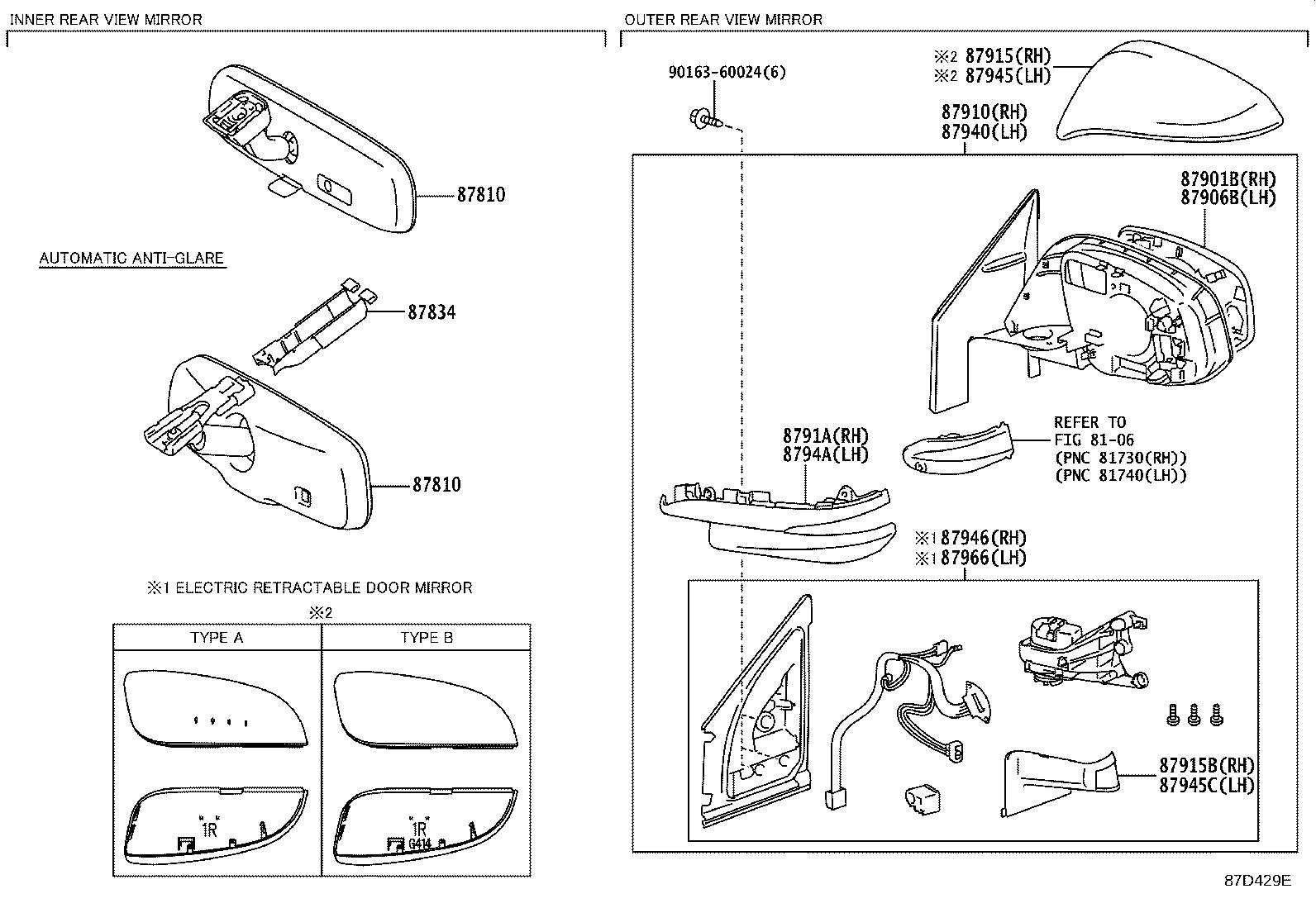

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WK20 |
ALA4#,ZSA44..G,M |
1 | ||
| 87810-52041 |
ALA4#,ZSA44..X |
1 | ||
| 87810-52041 |
ZSA44..M;ZSA44..A..G;ZSA44..LHD..6F..G;ALA4#..(G,M)..(DCRE,DCRL) BASIC PACKAGE |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WK20 |
ALA4#,ZSA44..G,M |
1 | ||
| 87810-52041 |
ALA4#,ZSA44..X |
1 | ||
| 87810-52041 |
ZSA44..M;ZSA44..A..G;ZSA44..LHD..6F..G;ALA4#..(G,M)..(DCRE,DCRL) BASIC PACKAGE |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-47010 |
ALA4#,ZSA44..G,M |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-42C20 |
ALA4#,ZSA44..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 87931-42C10 |
ALA4#,ZSA44..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER) |
1 | ||
| 87931-42C00 |
ALA4#,ZSA44..M,X |
1 | ||
| 87931-42C20 |
ALA4#,ZSA44..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-42B90 |
ALA4#,ZSA44..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 87961-42B70 |
ALA4#,ZSA44..M,X |
1 | ||
| 87961-42B80 |
ALA4#,ZSA44..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER) |
1 | ||
| 87961-42B90 |
ALA4#,ZSA44..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-42C20 |
ALA4#,ZSA44..LHD..M NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 87910-42C10 |
ALA4#,ZSA44..LHD..M NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER) |
1 | ||
| 87910-42C00 |
ALA4#,ZSA44..LHD..(M,X) NO PAINT REQ. |
1 | ||
| 87910-42C20 |
ALA4#,ZSA44..LHD..M NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-42160G0 |
ALA4#,ZSA44 DK.GREEN MC.,6V4,TYPE A |
1 | ||
| 87915-42160D0 |
ALA4#,ZSA44 RED M.M.,3R3,TYPE A |
1 | ||
| 87915-42160J0 |
ALA4#,ZSA44 GRAYISH BLUE M.M.,8V5,TYPE A |
1 | ||
| 87915-42160E1 |
ALA4#,ZSA44 DK.BROWN ME.,4U5,TYPE A |
1 | ||
| 87915-42160A1 |
ALA4#,ZSA44 WHITE PEARL CS.,070,TYPE A |
1 | ||
| 87915-42160B0 |
ALA4#,ZSA44 SILVER ME.,1F7,TYPE A |
1 | ||
| 87915-42160B1 |
ALA4#,ZSA44 GRAY ME.,1G3,TYPE A |
1 | ||
| 87915-42160E0 |
ALA4#,ZSA44 BRONZE M.M.,4T3,TYPE A |
1 | ||
| 87915-42160C1 |
ALA4#,ZSA44 BLACK MC.,209,TYPE A |
1 | ||
| 87915-48040A0 |
ALA4#,ZSA44 WHITE PEARL CS.,070,TYPE B |
1 | ||
| 87915-42160A0 |
ALA4#,ZSA44 SUPER WHITE 2,040,TYPE A |
1 | ||
| 87915-48040B2 |
ALA4#,ZSA44 GRAY ME.,1G3,TYPE B |
1 | ||
| 87915-48040A1 |
ALA4#,ZSA44 SUPER WHITE 2,040,TYPE B |
1 | ||
| 87915-48040B1 |
ALA4#,ZSA44 DK. STEEL MC.,1H2,TYPE B |
1 | ||
| 87915-48040B0 |
ALA4#,ZSA44 SILVER ME.,1F7,TYPE B |
1 | ||
| 87915-48040E2 |
ALA4#,ZSA44 ORANGE ME.,4R8,TYPE B |
1 | ||
| 87915-48040D2 |
ALA4#,ZSA44 RED M.M.,3R3,TYPE B |
1 | ||
| 87915-48040E3 |
ALA4#,ZSA44 BRONZE M.M.,4T3,TYPE B |
1 | ||
| 87915-48040C3 |
ALA4#,ZSA44 BLACK MC.,209,TYPE B |
1 | ||
| 87915-48040E0 |
ALA4#,ZSA44 DK.BROWN ME.,4U5,TYPE B |
1 | ||
| 87915B - COVER, OUTER MIRROR, LOWER RH | ||||
| 87915-42140 |
ALA4#,ZSA44..LHD..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER) |
1 | ||
| 87915-42140 |
ALA4#,ZSA44..LHD..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 87915-42140 |
ALA4#,ZSA44..LHD..(M,X) |
1 | ||
| 87915-42140 |
ALA4#,ZSA44..LHD..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 8791A - COVER, OUTER MIRROR, RH NO.2 | ||||
| 8791B-42C10 |
ALA4#,ZSA44 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-42B70 |
ALA4#,ZSA44..LHD..(M,X) NO PAINT REQ. |
1 | ||
| 87940-42B80 |
ALA4#,ZSA44..LHD..M NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER) |
1 | ||
| 87940-42B90 |
ALA4#,ZSA44..LHD..M NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 87940-42B90 |
ALA4#,ZSA44..LHD..M NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-42160A0 |
ALA4#,ZSA44 SUPER WHITE 2,040,TYPE A |
1 | ||
| 87945-42160J0 |
ALA4#,ZSA44 GRAYISH BLUE M.M.,8V5,TYPE A |
1 | ||
| 87945-42160A1 |
ALA4#,ZSA44 WHITE PEARL CS.,070,TYPE A |
1 | ||
| 87945-42160C1 |
ALA4#,ZSA44 BLACK MC.,209,TYPE A |
1 | ||
| 87945-42160B1 |
ALA4#,ZSA44 GRAY ME.,1G3,TYPE A |
1 | ||
| 87945-42160B0 |
ALA4#,ZSA44 SILVER ME.,1F7,TYPE A |
1 | ||
| 87945-42160G0 |
ALA4#,ZSA44 DK.GREEN MC.,6V4,TYPE A |
1 | ||
| 87945-42160D0 |
ALA4#,ZSA44 RED M.M.,3R3,TYPE A |
1 | ||
| 87945-42160E0 |
ALA4#,ZSA44 BRONZE M.M.,4T3,TYPE A |
1 | ||
| 87945-48040B2 |
ALA4#,ZSA44 GRAY ME.,1G3,TYPE B |
1 | ||
| 87945-42160E1 |
ALA4#,ZSA44 DK.BROWN ME.,4U5,TYPE A |
1 | ||
| 87945-48040A1 |
ALA4#,ZSA44 SUPER WHITE 2,040,TYPE B |
1 | ||
| 87945-48040E2 |
ALA4#,ZSA44 ORANGE ME.,4R8,TYPE B |
1 | ||
| 87945-48040B1 |
ALA4#,ZSA44 DK. STEEL MC.,1H2,TYPE B |
1 | ||
| 87945-48040B0 |
ALA4#,ZSA44 SILVER ME.,1F7,TYPE B |
1 | ||
| 87945-48040D2 |
ALA4#,ZSA44 RED M.M.,3R3,TYPE B |
1 | ||
| 87945-48040E0 |
ALA4#,ZSA44 DK.BROWN ME.,4U5,TYPE B |
1 | ||
| 87945-48040A0 |
ALA4#,ZSA44 WHITE PEARL CS.,070,TYPE B |
1 | ||
| 87945-48040E3 |
ALA4#,ZSA44 BRONZE M.M.,4T3,TYPE B |
1 | ||
| 87945-48040C3 |
ALA4#,ZSA44 BLACK MC.,209,TYPE B |
1 | ||
| 87945C - COVER, OUTER MIRROR, LOWER LH | ||||
| 87945-42140 |
ALA4#,ZSA44..LHD..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER) |
1 | ||
| 87945-42140 |
ALA4#,ZSA44..LHD..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 87945-42140 |
ALA4#,ZSA44..LHD..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 87945-42140 |
ALA4#,ZSA44..LHD..(M,X) |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-42C20 |
ALA4#,ZSA44..LHD..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 87946-42C10 |
ALA4#,ZSA44..LHD..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER) |
1 | ||
| 87946-42C20 |
ALA4#,ZSA44..LHD..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794B-42B80 |
ALA4#,ZSA44 |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-42B90 |
ALA4#,ZSA44..LHD..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 87966-42B80 |
ALA4#,ZSA44..LHD..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER) |
1 | ||
| 87966-42B90 |
ALA4#,ZSA44..LHD..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| Common parts | ||||
| 90163-60024 | ||||
| Linked diagrams | ||||
| 8106 | ||||
