ALA40L-ANFXRW (2012)
Toyota Rav4

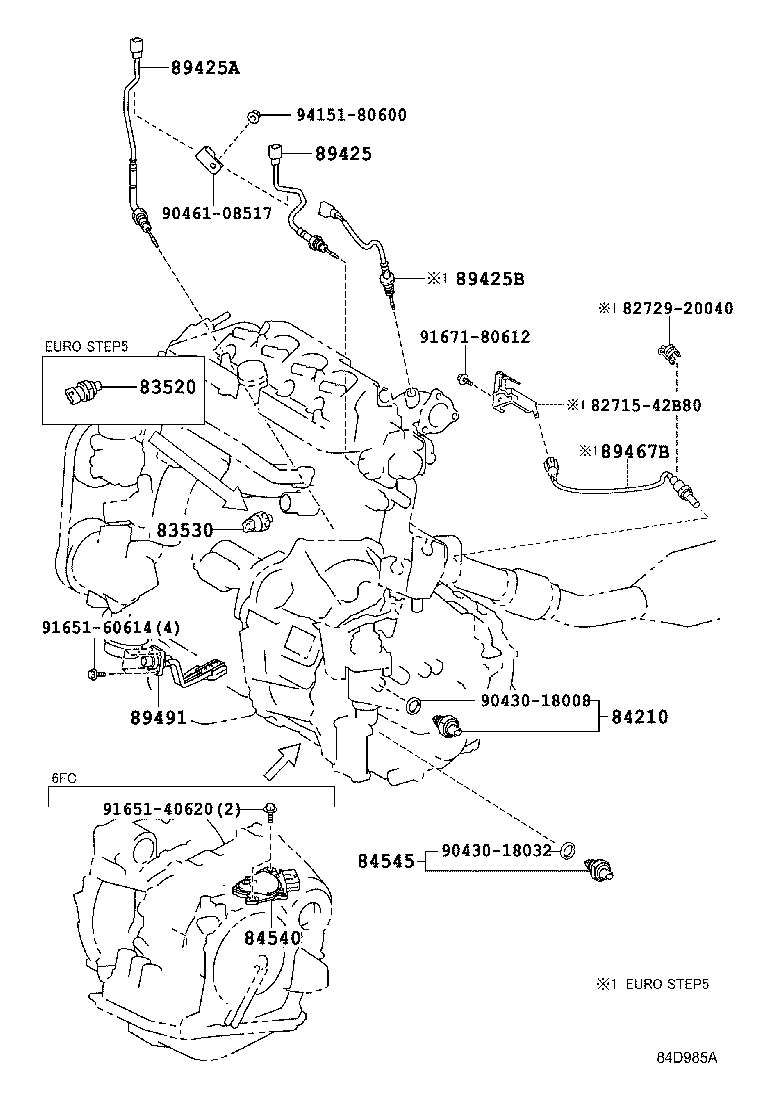

ILLUST NO. 1 OF 8(1212-1510)ALA40,41
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
ALA40,41 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
ALA4#,ZSA44..6F |
1 | ||
| 84545 - SWITCH, NEUTRAL POSITION | ||||
| 84545-52010 |
ALA40 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-20380 |
ALA4#..DCRE,DCRL |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-20390 |
ALA4#..DCRE,DCRL |
1 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-20400 |
ALA40,41 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-42140 |
ALA4#..DCRE |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-20140 |
ALA40,41 |
1 | ||
| Common parts | ||||
| 82715-42B80 | ||||
| 82729-20040 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 90461-08517 | ||||
| 91651-40620 | ||||
| 91651-60614 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
ILLUST NO. 2 OF 8(1212-1504)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28551 - CONTROLLER, GLOW PLUG | ||||
| 28551-30010 |
1ADFTV..ALA40,41 |
1 | ||
| 28559 - BRACKET, GLOW PLUG CONTROLLER, NO.1 | ||||
| 28559-26020 |
1ADFTV..ALA40,41 |
1 | ||
| 28559A - BRACKET, GLOW PLUG CONTROLLER, NO.2 | ||||
| 28559-26030 |
1ADFTV..ALA40,41 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-67010 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-26012 |
1ADFTV..ALA40,41 |
1 | ||
| 28850-26011 |
1ADFTV..ALA40 |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-26012 |
1ADFTV..ALA40,41 |
1 | ||
| 28850-26011 |
1ADFTV..ALA40 |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-26012 |
1ADFTV..ALA40,41 |
1 | ||
| 28850-26011 |
1ADFTV..ALA40 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-02060 |
ALA4#,ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85942-02060 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85942-02060 |
ALA4#,ZSA44..LHD COLD AREA SPEC |
1 | ||
| 85942-02060 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE |
1 | ||
| 85942-02060 |
ALA49..G,M;ALA40,41,ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-42020 |
ALA4#..DCRE,DCRL |
1 | ||
| Common parts | ||||
| 90159-50386 | ||||
| 90179-06274 | ||||
| 91631-B0616 | ||||
| 91671-A0616 | ||||
| 91673-80616 | ||||
| 94151-80801 | ||||

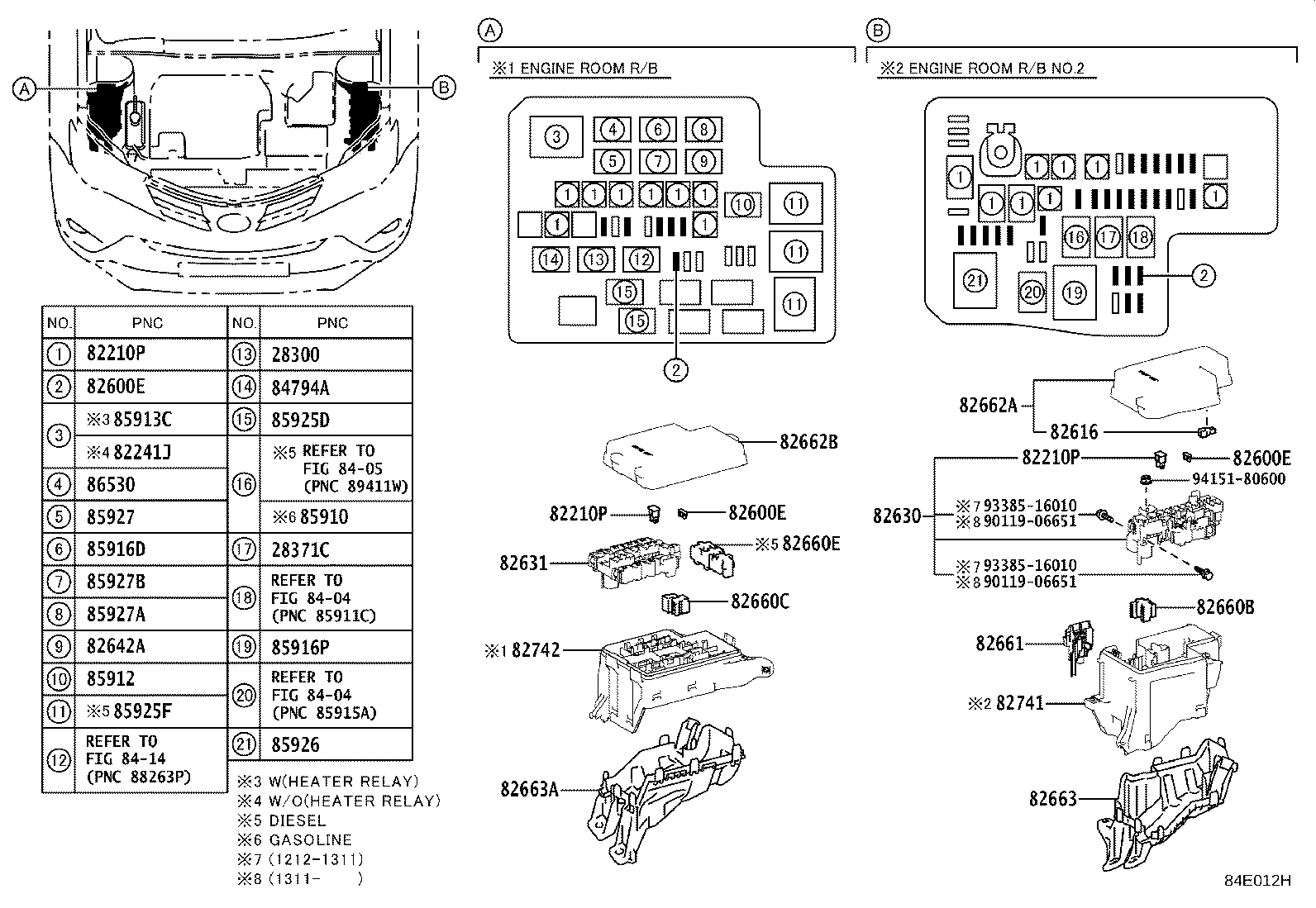

ILLUST NO. 3 OF 8(1212-1510)
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1ADFTV,2AD#,3ZRFAE..ALA4#,ZSA44 |
1 | ||
| 28300-21020 |
1ADFTV,2AD#,3ZRFAE..ALA4#,ZSA44..6F,6FC |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
1ADFTV,2AD#,3ZRFAE..ALA4#,ZSA44 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08286 |
ALA4# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08305 |
ALA4#,ZSA44 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08294 |
ALA40,41 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
ALA4#,ZSA44 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
ALA4#,ZSA44 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08286 |
ALA4# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08305 |
ALA4#,ZSA44 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08294 |
ALA40,41 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
ALA4#,ZSA44 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
ALA4#,ZSA44 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08286 |
ALA4# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08305 |
ALA4#,ZSA44 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08294 |
ALA40,41 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
ALA4#,ZSA44 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
ALA4#,ZSA44 30A,TERM.:FEMALE,PNK |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-42010 |
ALA4#,ZSA44..G,M |
1 | ||
| 82241-42010 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09024 |
ALA4#,ZSA44 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ALA4#,ZSA44 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ALA4#,ZSA44 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ALA4#,ZSA44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ALA4#,ZSA44 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ALA4#,ZSA44..6F,6FC 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
ALA4#,ZSA44 30A,MINI FUSE,GRN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09024 |
ALA4#,ZSA44 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ALA4#,ZSA44 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ALA4#,ZSA44 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ALA4#,ZSA44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ALA4#,ZSA44 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ALA4#,ZSA44..6F,6FC 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
ALA4#,ZSA44 30A,MINI FUSE,GRN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09024 |
ALA4#,ZSA44 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ALA4#,ZSA44 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ALA4#,ZSA44 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ALA4#,ZSA44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ALA4#,ZSA44 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ALA4#,ZSA44..6F,6FC 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
ALA4#,ZSA44 30A,MINI FUSE,GRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ALA4#,ZSA44 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-42020 |
ALA4# |
1 | ||
| 82631 - HOLDER, FUSE | ||||
| 82631-42060 |
ALA4#,ZSA44 |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90987-02027 |
ALA4#,ZSA44 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
ALA4#,ZSA44 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 82660-52010 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 82660-52010 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-26290 |
ALA4# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-42040 |
ALA4#,ZSA44 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-42400 |
ALA4#..LHD..(G,M) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 82662-42330 |
ALA4# |
1 | ||
| 82662-42401 |
ALA49..RHD..G;ALA4#..LHD..(G,M) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 82662-42401 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 82662-42331 |
ALA4# |
1 | ||
| 82662-42401 |
ALA49..G,M;ALA40,41..LHD..(G,M) HEADLAMP-DISCHARGE |
1 | ||
| 82662-42400 |
ALA49..G,M;ALA40..LHD..(G,M) HEADLAMP-DISCHARGE |
1 | ||
| 82662-42401 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-42361 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 82662-42361 |
ALA4#..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE |
1 | ||
| 82662-42360 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 82662-42360 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 82662-42350 |
ALA4# |
1 | ||
| 82662-42360 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE |
1 | ||
| 82662-42361 |
ALA4#..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-42100 |
ALA4#,ZSA44 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-42110 |
ALA4#,ZSA44 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-42020 |
ALA4#,ZSA44 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-42030 |
ALA4#,ZSA44 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
ALA4#,ZSA44..LHD COLD AREA SPEC |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
ALA4#,ZSA44..X |
1 | ||
| 90987-02027 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-04010 |
ALA4#,ZSA44..X |
1 | ||
| 90987-04010 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ALA49..G,M;ALA49..RHD..X;ALA40,41,ZSA44..RHD;ALA40,41,ZSA44..LHD..(G,M) |
1 | ||
| 90987-02027 |
ZSA44..A..(G,M);ALA40,41,ZSA44..RHD..6F;ALA49..(G,M)..(DCRE,DCRL);ALA49..RHD..X..(DCRE,DCRL);ALA40,41,ZSA44..LHD..6F..(G,M) BASIC PACKAGE |
1 | ||
| 90987-02027 |
ALA4#,ZSA44..LHD..X FRONT FOG LAMP-WITH |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ALA4#,ZSA44 |
1 | ||
| 85925D - RELAY, PTC HEATER | ||||
| 90987-02027 |
ALA4#..LHD COLD AREA SPEC |
2 | ||
| 85925F - RELAY, PTC HEATER NO.2 | ||||
| 90987-02025 |
ALA4# |
3 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
ALA4#,ZSA44 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ALA4#,ZSA44 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ALA4#,ZSA44 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ALA4#,ZSA44 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ALA4#,ZSA44 |
1 | ||
| Common parts | ||||
| 90119-06651 | ||||
| 93385-16010 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
| 8414 | ||||
ILLUST NO. 8 OF 8(1212-1510)
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-49215 |
ALA4# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
ALA4#,ZSA44 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ALA4#,ZSA44 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ALA4#,ZSA44 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ALA4#,ZSA44 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ALA4#,ZSA44 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
ALA4#,ZSA44 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
ALA4#,ZSA44 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
ALA4#,ZSA44 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
ALA4#,ZSA44 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-42210 |
ALA4#,ZSA44..LHD |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-42210 |
ALA4#,ZSA44..LHD |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
ALA4#,ZSA44..M,X |
1 | ||
| 84840-28040 |
ALA4#,ZSA44..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-42040 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-0W190 |
ALA4#,ZSA44..G,M LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88162-0W070 |
ALA4#,ZSA44..G,M LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),MARK=RA |
1 | ||
| 88163 - COVER, BLIND SPOT MONITOR, RH | ||||
| 88163-42010 |
ALA4#,ZSA44..G,M LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88163-42010 |
ZSA44..A..M;ZSA44..LHD..A..G;ALA4#,ZSA44..(6F,6FC)..(G,M) LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-0W070 |
ALA4#,ZSA44..G,M LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),MARK=RA |
1 | ||
| 88162-0W190 |
ALA4#,ZSA44..G,M LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88173 - COVER, BLIND SPOT MONITOR, LH | ||||
| 88173-42010 |
ZSA44..A..M;ZSA44..LHD..A..G;ALA4#,ZSA44..(6F,6FC)..(G,M) LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 88173-42010 |
ALA4#,ZSA44..G,M LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-42050 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR),P/N LABEL=8922242050 |
1 | ||
| 89222-42030 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR,P/N LABEL=8922242030 |
1 | ||
| 89222-42030 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-WITH(3 BUTTON),P/N LABEL=8922242030 |
1 | ||
| 89222-42060 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR,P/N LABEL=8922242060 |
1 | ||
| 89222-42060 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-WITH(3 BUTTON),P/N LABEL=8922242060 |
1 | ||
| 89222-42033 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR,P/N LABEL=8922242033 |
1 | ||
| 89222-42033 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-WITH(3 BUTTON),P/N LABEL=8922242033 |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-30040 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 89747-30040 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-WITH(3 BUTTON) |
1 | ||
| 89747-30040 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
ALA4#,ZSA44..G,M LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 90178-06012 | ||||
| 90179-06178 | ||||
| 91553-80612 | ||||
| 93319-A4010 | ||||
ILLUST NO. 6 OF 8(1212- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
ALA4#,ZSA44..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 84052-71010 |
ALA4#,ZSA44..M,X |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12770 |
ALA4#,ZSA44..LHD..X |
1 | ||
| 84140-12800 |
ALA4#,ZSA44..LHD..X FRONT FOG LAMP-WITH |
1 | ||
| 84140-33250 |
ALA4#,ZSA44..G,M |
1 | ||
| 84140-12770 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12770 |
ALA4#,ZSA44..LHD..X |
1 | ||
| 84140-12800 |
ALA4#,ZSA44..LHD..X FRONT FOG LAMP-WITH |
1 | ||
| 84140-33250 |
ALA4#,ZSA44..G,M |
1 | ||
| 84140-12770 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-42110C0 |
ALA49..LHD..6F..G..DCR;ALA4#,ZSA44..6F..(G,M)..(DCRE,HTWVM) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84250-42130C0 |
ALA40..G,M;ALA40,ZSA44..LHD..X;ZSA44..LHD..6F..(G,M);ALA49..LHD..(DCRE,DCRL);ALA49,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE&AUDIO-W/O(AUDIO&SPEAKER),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84250-42090C0 |
ALA49..RHD..G..DCR;ALA49..LHD..6F..X..DCR;ALA4#,ZSA44..LHD..X..(DCRE,DCRL,HTWVM) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84250-42250 |
ALA4#,ZSA44..M..EUR AUDIO-6SPEAKER(AUDIO LESS)&SPECIAL EDITION |
1 | ||
| 84250-42130C0 |
ALA4#,ZSA44..G,M AUDIO-6SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84250-42270 |
ALA4#,ZSA44..6F..M..EUR SPECIAL EDITION |
1 | ||
| 84250-42150C0 |
ALA4#,ZSA44..X..(DCRE,DCRL,HTWVM) AUDIO-W/O(AUDIO&SPEAKER),BLACK,TRIM2# |
1 | ||
| 84250-42250 |
ALA4#..M..EUR;ZSA44..RHD..M;ZSA44..LHD..6F..M..EUR AUDIO-W/O(AUDIO&SPEAKER)&SPECIAL EDITION |
1 | ||
| 84250-42150C0 |
ALA4#,ZSA44..X AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM2# |
1 | ||
| 84250-42180C0 |
ALA49..LHD..6F..G..DCR;ALA4#,ZSA44..6F..(G,M)..(DCRE,HTWVM) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84250-42160C0 |
ALA4#,ZSA44..X BLACK,TRIM2# |
1 | ||
| 84250-42150C0 |
ZSA44..RHD..M;ZSA44..RHD..A..G;ZSA44..LHD..6F..(G,M);ALA4#..(G,M)..(DCRE,DCRL) AUDIO-W/O(AUDIO&SPEAKER),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84250-42130C0 |
ALA49..LHD..6F..X..DCR;ALA4#,ZSA44..LHD..X..(DCRE,DCRL,HTWVM) AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84250-42150C0 |
ZSA44..M;ALA4#..G,M;ZSA44..A..G;ZSA44..LHD..6F..G AUDIO-6SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-12010 |
ALA4#,ZSA44 |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-12100 |
ALA4#,ZSA44 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12320 |
ALA4#,ZSA44..M,X |
1 | ||
| 84450-12320 |
ALA4#,ZSA44..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42150 |
ALA4#,ZSA44..X |
1 | ||
| 84652-42150 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 84652-12A90 |
ALA4#,ZSA44..G,M |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42150 |
ALA4#,ZSA44..X |
1 | ||
| 84652-42150 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 84652-12A90 |
ALA4#,ZSA44..G,M |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-42120 |
ALA4#,ZSA44..LHD |
1 | ||
| 89650-42121 |
ALA4#,ZSA44..LHD |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-42120 |
ALA4#,ZSA44..LHD |
1 | ||
| 89650-42121 |
ALA4#,ZSA44..LHD |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 5 OF 8(1212-1510)LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-42050 |
ALA4#,ZSA44..LHD..M HEADLAMP-DISCHARGE & W(*AHB)&CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 83950-42050 |
ALA4#,ZSA44..LHD..M HEADLAMP-4,PROJECTER & W(*AHB)&CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 83950-42060 |
ALA4#,ZSA44..LHD..(M,X) CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 83950-42070 |
ALA4#,ZSA44..LHD..M HEADLAMP-4,PROJECTER & W(*AHB) |
1 | ||
| 83950-42070 |
ALA4#,ZSA44..LHD..M HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 83950-42080 |
ALA4#,ZSA44..LHD..(M,X) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-42050 |
ALA49..RHD..G;ALA4#,ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 84152-42050 |
ALA49..G,M;ALA40,41,ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE |
1 | ||
| 84152-42051 |
ALA4#,ZSA44 |
1 | ||
| 84152-42050 |
ALA4#,ZSA44 |
1 | ||
| 84152-42051 |
ALA49..RHD..G;ALA4#,ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 84152-42051 |
ALA49..G,M;ALA40,41,ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE |
1 | ||
| 84470 - SWITCH ASSY, WARNING CANCELING | ||||
| 84470-42010 |
ALA4#,ZSA44..LHD..(G,M) LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 84470-42010 |
ALA4#,ZSA44..LHD..(G,M) LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 84470-42011 |
ALA4#,ZSA44..LHD..(G,M) LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 84746 - SWITCH, TIRE PRESSURE WARNING | ||||
| 84746-50010 |
ALA4#,ZSA44 |
1 | ||
| 84746-50010 |
ALA4#,ZSA44 TIRE INFLATION PRESS WRNG-WITHOUT |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-42070 |
ALA4#,ZSA44..LHD..(M,X) COLD AREA SPEC |
1 | ||
| 84751-42071 |
ALA4#,ZSA44..LHD..(M,X) COLD AREA SPEC |
1 | ||
| 84751-42072 |
ALA4#,ZSA44..LHD..(M,X) COLD AREA SPEC |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-42080 |
ALA4#,ZSA44..LHD..(M,X) COLD AREA SPEC |
1 | ||
| 84751-42082 |
ALA4#,ZSA44..LHD..(M,X) COLD AREA SPEC |
1 | ||
| 84751-42081 |
ALA4#,ZSA44..LHD..(M,X) COLD AREA SPEC |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-42031 |
ALA4#,ZSA44..LHD COLD AREA SPEC |
1 | ||
| 84794-48021 |
ALA4#,ZSA44..LHD COLD AREA SPEC |
1 | ||
| 84794-42030 |
ALA4#,ZSA44..LHD COLD AREA SPEC |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-74010 |
ALA4#,ZSA44..M,X |
1 | ||
| 84870-52050 |
ALA4#,ZSA44..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER) |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-42051 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 84930-42050 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 84965 - SWITCH, POWER BACK DOOR MAIN | ||||
| 84962-42020 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 84962-42021 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-42030 |
ALA40 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-42030 |
ALA40 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-42030 |
ALA40 |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-42080 |
ALA4#,ZSA44 |
1 | ||
| 84988-42081 |
ALA4#,ZSA44 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ALA4#,ZSA44 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
ALA4#,ZSA44 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-42060 |
ALA4#,ZSA44 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-42060 |
ALA4#,ZSA44 |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-42030 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 87290-71010 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42010 |
ALA4#,ZSA44..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 89611-42011 |
ALA4#,ZSA44..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 4 OF 8(1212-1510)LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-12460 |
ALA4#,ZSA44 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ALA4#,ZSA44 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ALA4#,ZSA44 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
ALA4#,ZSA44 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ALA4#,ZSA44 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ALA4#,ZSA44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ALA4#,ZSA44 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ALA4#,ZSA44 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ALA4#,ZSA44 5A,MINI FUSE,TAN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
ALA4#,ZSA44 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ALA4#,ZSA44 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ALA4#,ZSA44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ALA4#,ZSA44 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ALA4#,ZSA44 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ALA4#,ZSA44 5A,MINI FUSE,TAN |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-42070 |
ALA4#,ZSA44 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-42150 |
ALA4#,ZSA44 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-42750 |
ALA4#,ZSA44..LHD |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-42010 |
ALA40..LHD;ALA41,49,ZSA44..LHD..(G,M) |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-02027 |
ALA4#,ZSA44 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19025 |
ALA4#,ZSA44 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ALA4#,ZSA44 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
ALA4#,ZSA44..6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ALA4#,ZSA44..LHD |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ALA4#,ZSA44 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-42030 |
ALA4#,ZSA44..G,M |
1 | ||
| 85940-42030 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-42010 |
ALA4#,ZSA44..6F |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-50020 |
ALA4#,ZSA44..G,M |
1 | ||
| 89121-50020 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-42090 |
ALA4#,ZSA44..LHD..(M,X)..(DCRE,DCRL,HTWVM) |
1 | ||
| 89220-42110 |
ALA4#,ZSA44..LHD..M POWER DOOR LOCK-WITH(POWER BACK DOOR),P/N LABEL=8922042110 |
1 | ||
| 89220-42410 |
ALA4#,ZSA44..LHD..(M,X)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 89220-42430 |
ALA4#,ZSA44..LHD..M NON-WVTA&POWER DOOR LOCK-WITH(POWER BACK DOOR),P/N LABEL=8922042430 |
1 | ||
| 89220-42550 |
ALA4#,ZSA44..LHD..M POWER DOOR LOCK-WITH(POWER BACK DOOR),P/N LABEL=8922042550 |
1 | ||
| 89220-42550 |
ALA4#,ZSA44..LHD..M BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)),P/N LABEL=8922042550 |
1 | ||
| 89220-42550 |
ALA4#,ZSA44..LHD..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)),P/N LABEL=8922042550 |
1 | ||
| 89220-42670 |
ALA4#,ZSA44..LHD..M NON-WVTA&POWER DOOR LOCK-WITH(POWER BACK DOOR),P/N LABEL=8922042670 |
1 | ||
| 89220-42670 |
ALA4#,ZSA44..LHD..M NON-WVTA&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)),P/N LABEL=8922042670 |
1 | ||
| 89220-42551 |
ALA4#,ZSA44..LHD..M POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 89220-42551 |
ALA4#,ZSA44..LHD..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)) |
1 | ||
| 89220-42551 |
ALA4#,ZSA44..LHD..M BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)) |
1 | ||
| 89220-42670 |
ALA4#,ZSA44..LHD..M NON-WVTA&POWER DOOR LOCK-WITH(POWER BACK DOOR)&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)),P/N LABEL=8922042670 |
1 | ||
| 89220-42671 |
ALA4#,ZSA44..LHD..M NON-WVTA&POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 89220-42671 |
ALA4#,ZSA44..LHD..M NON-WVTA&POWER DOOR LOCK-WITH(POWER BACK DOOR)&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)) |
1 | ||
| 89220-42671 |
ALA4#,ZSA44..LHD..M NON-WVTA&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)) |
1 | ||
| 89220-42411 |
ALA4#,ZSA44..LHD..(M,X)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 89220-42091 |
ALA4#,ZSA44..LHD..(M,X)..(DCRE,DCRL,HTWVM) |
1 | ||
| 89220-42552 |
ALA4#,ZSA44..LHD..M BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)) |
1 | ||
| 89220-42552 |
ALA4#,ZSA44..LHD..M POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 89220-42552 |
ALA4#,ZSA44..LHD..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)) |
1 | ||
| 89220-42672 |
ALA4#,ZSA44..LHD..M NON-WVTA&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)) |
1 | ||
| 89220-42672 |
ALA4#,ZSA44..LHD..M NON-WVTA&POWER DOOR LOCK-WITH(POWER BACK DOOR)&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)) |
1 | ||
| 89220-42672 |
ALA4#,ZSA44..LHD..M NON-WVTA&POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-42110 |
ALA4#,ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 89960-42110 |
ALA49..G,M;ALA40,41,ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-60610 | ||||
| 90159-70004 | ||||
| 90170-10017 | ||||
| 90179-06110 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
| 93315-14012 | ||||
ILLUST NO. 2 OF 8(1504-1510)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28551 - CONTROLLER, GLOW PLUG | ||||
| 28551-30010 |
1ADFTV..ALA40,41 |
1 | ||
| 28559 - BRACKET, GLOW PLUG CONTROLLER, NO.1 | ||||
| 28559-26020 |
1ADFTV..ALA40,41 |
1 | ||
| 28559A - BRACKET, GLOW PLUG CONTROLLER, NO.2 | ||||
| 28559-26030 |
1ADFTV..ALA40,41 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-67010 |
1ADFTV,2AD#..ALA4# |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-26012 |
1ADFTV..ALA40,41 |
1 | ||
| 28850-26011 |
1ADFTV..ALA40 |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-26012 |
1ADFTV..ALA40,41 |
1 | ||
| 28850-26011 |
1ADFTV..ALA40 |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-26012 |
1ADFTV..ALA40,41 |
1 | ||
| 28850-26011 |
1ADFTV..ALA40 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-02060 |
ALA4#,ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85942-02060 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85942-02060 |
ALA4#,ZSA44..LHD COLD AREA SPEC |
1 | ||
| 85942-02060 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE |
1 | ||
| 85942-02060 |
ALA49..G,M;ALA40,41,ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-42020 |
ALA4#..DCRE,DCRL |
1 | ||
| Common parts | ||||
| 90159-50386 | ||||
| 90179-06274 | ||||
| 91631-B0616 | ||||
| 91671-A0616 | ||||
| 91673-80616 | ||||
| 94151-80801 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
