ALA40L-ANFGRW (2012)
Toyota Rav4
(1212-1510)LHD ; (1212-1510)RHD..A..G,M ; (1212-1510)ALA49..RHD..G,M

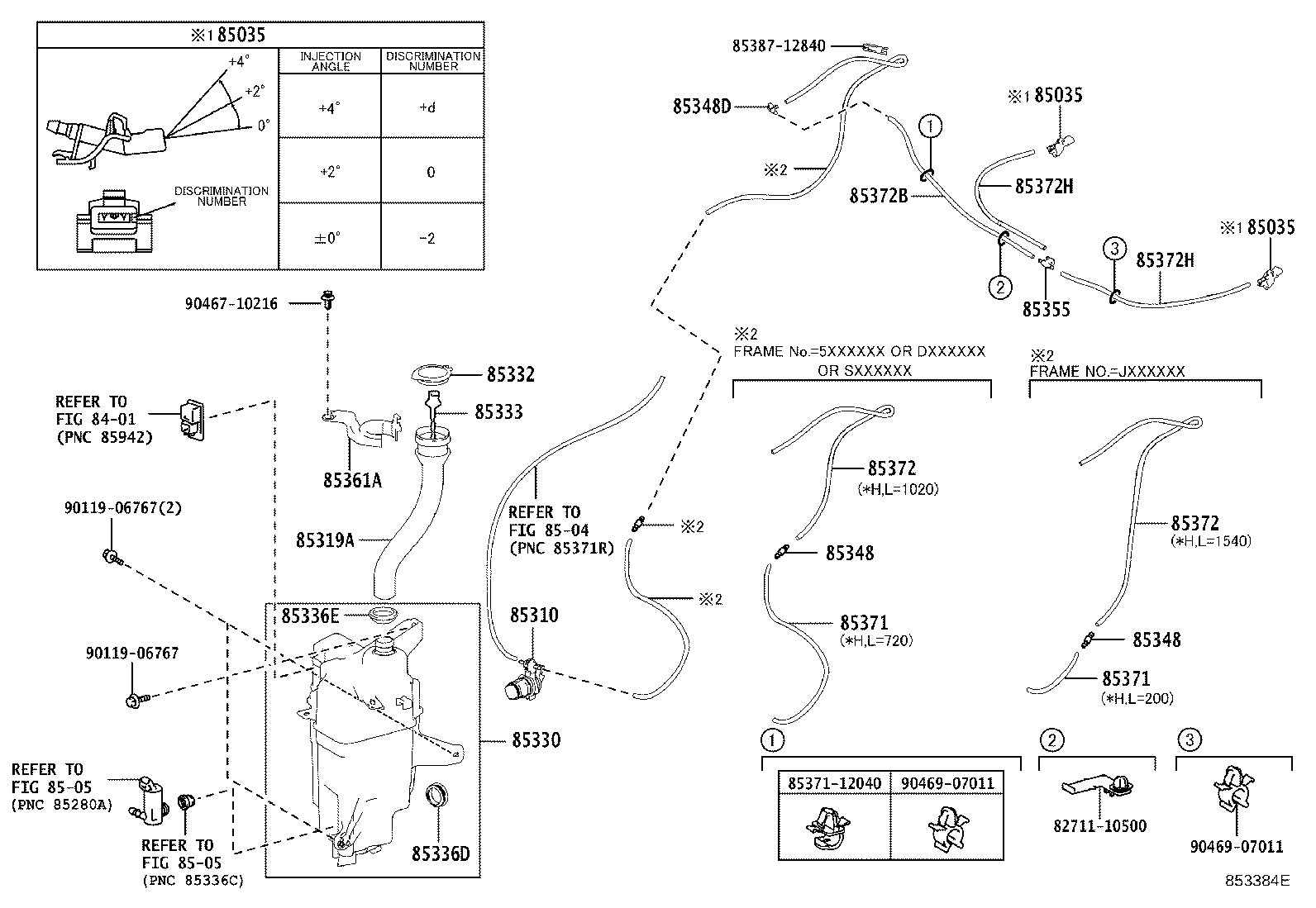

W(HEADLAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
ALA4#,ZSA44 ANGLE 0 |
2 | ||
| 85381-12420 |
ALA4#,ZSA44 ANGLE +2 |
2 | ||
| 85381-12430 |
ALA4#,ZSA44 ANGLE +4 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
ALA4#,ZSA44 ANGLE 0 |
2 | ||
| 85381-12420 |
ALA4#,ZSA44 ANGLE +2 |
2 | ||
| 85381-12430 |
ALA4#,ZSA44 ANGLE +4 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
ALA4#,ZSA44 ANGLE 0 |
2 | ||
| 85381-12420 |
ALA4#,ZSA44 ANGLE +2 |
2 | ||
| 85381-12430 |
ALA4#,ZSA44 ANGLE +4 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-42010 |
ALA4#,ZSA44 |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-42230 |
ALA4#,ZSA44 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-42360 |
ALA4#,ZSA44 |
1 | ||
| 85355-42100 |
ALA4#..LHD COLD AREA SPEC,*562 |
1 | ||
| 85355-42100 |
ALA49..LHD..G..DCR;ALA40,41..LHD..(G,M);ALA49..(G,M)..(DCRE,DCRL) HEADLAMP-DISCHARGE,*562 |
1 | ||
| 85355-42100 |
ALA4#..LHD..(G,M) HEADLAMP-DISCHARGE & W(*AHB),*562 |
1 | ||
| 85355-42100 |
ALA4#..LHD COLD AREA SPEC,*561 |
1 | ||
| 85355-42100 |
ALA49..LHD..G..DCR;ALA40,41..LHD..(G,M);ALA49..(G,M)..(DCRE,DCRL) HEADLAMP-DISCHARGE,*561 |
1 | ||
| 85355-42100 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE,*561,*562 |
1 | ||
| 85355-42100 |
ALA4#..LHD..(G,M);ALA49..RHD..G..(DCRE,DCRL) HEADLAMP-DISCHARGE & W(*AHB),*561 |
1 | ||
| 85355-42100 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB),*561,*562 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-42360 |
ALA4#,ZSA44 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-47020 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 85312-47020 |
ALA4#..LHD..(G,M) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85312-47020 |
ALA49..LHD..G..DCR;ALA40,41..LHD..(G,M);ALA49..(G,M)..(DCRE,DCRL) HEADLAMP-DISCHARGE |
1 | ||
| 85312-47020 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85312-47020 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
ALA4#,ZSA44 |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-42320 |
ALA4#,ZSA44 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ALA4#,ZSA44 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ALA4#,ZSA44 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85375-60290 |
ALA4#,ZSA44 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
ALA4#,ZSA44 |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85337-42350 |
ALA4#,ZSA44 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ALA4#,ZSA44 *H,L=720,*562 |
1 | ||
| 90099-33080 |
ALA4#..LHD..(G,M) *H,L=720,HEADLAMP-DISCHARGE & W(*AHB),*562 |
1 | ||
| 90099-33080 |
ALA4#..LHD *H,L=720,COLD AREA SPEC,*562 |
1 | ||
| 90099-33080 |
ALA49..LHD..G..DCR;ALA40,41..LHD..(G,M);ALA49..(G,M)..(DCRE,DCRL) *H,L=720,HEADLAMP-DISCHARGE,*562 |
1 | ||
| 90099-33080 |
ALA40,41..LHD..(G,M) *H,L=720,COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB),*562 |
1 | ||
| 90099-33080 |
ALA40,41..LHD..(G,M) *H,L=720,COLD AREA SPEC&HEADLAMP-DISCHARGE,*562 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ALA4#,ZSA44 *H,L=720,*562 |
1 | ||
| 90099-33080 |
ALA4#..LHD..(G,M) *H,L=720,HEADLAMP-DISCHARGE & W(*AHB),*562 |
1 | ||
| 90099-33080 |
ALA4#..LHD *H,L=720,COLD AREA SPEC,*562 |
1 | ||
| 90099-33080 |
ALA49..LHD..G..DCR;ALA40,41..LHD..(G,M);ALA49..(G,M)..(DCRE,DCRL) *H,L=720,HEADLAMP-DISCHARGE,*562 |
1 | ||
| 90099-33080 |
ALA40,41..LHD..(G,M) *H,L=720,COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB),*562 |
1 | ||
| 90099-33080 |
ALA40,41..LHD..(G,M) *H,L=720,COLD AREA SPEC&HEADLAMP-DISCHARGE,*562 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
ALA4#,ZSA44 *H,L=1020,*562 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
ALA4#,ZSA44 *H,L=1020,*562 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
ALA4#,ZSA44 *H,L=680 |
2 | ||
| 90099-33080 |
ALA4#,ZSA44 *H,L=680 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
ALA4#,ZSA44 *H,L=440 |
2 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
ALA4#,ZSA44 *H,L=440 |
2 | ||
| Common parts | ||||
| 82711-10500 | ||||
| 85371-12040 | ||||
| 85387-12840 | ||||
| 90119-06767 | ||||
| 90467-10216 | ||||
| 90469-07011 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8504 | ||||
| 8505 | ||||
(1212- )AVA4#..RHD ; (1212- )ALA4#,ASA44,WWA42,ZSA44..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
ALA4#,ZSA44 ANGLE 0 |
2 | ||
| 85381-12420 |
ALA4#,ZSA44 ANGLE +2 |
2 | ||
| 85381-12430 |
ALA4#,ZSA44 ANGLE +4 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
ALA4#,ZSA44 ANGLE 0 |
2 | ||
| 85381-12420 |
ALA4#,ZSA44 ANGLE +2 |
2 | ||
| 85381-12430 |
ALA4#,ZSA44 ANGLE +4 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
ALA4#,ZSA44 ANGLE 0 |
2 | ||
| 85381-12420 |
ALA4#,ZSA44 ANGLE +2 |
2 | ||
| 85381-12430 |
ALA4#,ZSA44 ANGLE +4 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-42010 |
ALA4#,ZSA44 |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-42230 |
ALA4#,ZSA44 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-42360 |
ALA4#,ZSA44 |
1 | ||
| 85355-42100 |
ALA4#..LHD COLD AREA SPEC,*562 |
1 | ||
| 85355-42100 |
ALA49..LHD..G..DCR;ALA40,41..LHD..(G,M);ALA49..(G,M)..(DCRE,DCRL) HEADLAMP-DISCHARGE,*562 |
1 | ||
| 85355-42100 |
ALA4#..LHD..(G,M) HEADLAMP-DISCHARGE & W(*AHB),*562 |
1 | ||
| 85355-42100 |
ALA4#..LHD COLD AREA SPEC,*561 |
1 | ||
| 85355-42100 |
ALA49..LHD..G..DCR;ALA40,41..LHD..(G,M);ALA49..(G,M)..(DCRE,DCRL) HEADLAMP-DISCHARGE,*561 |
1 | ||
| 85355-42100 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE,*561,*562 |
1 | ||
| 85355-42100 |
ALA4#..LHD..(G,M);ALA49..RHD..G..(DCRE,DCRL) HEADLAMP-DISCHARGE & W(*AHB),*561 |
1 | ||
| 85355-42100 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB),*561,*562 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-42360 |
ALA4#,ZSA44 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-47020 |
ALA4#..LHD COLD AREA SPEC |
1 | ||
| 85312-47020 |
ALA4#..LHD..(G,M) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85312-47020 |
ALA49..LHD..G..DCR;ALA40,41..LHD..(G,M);ALA49..(G,M)..(DCRE,DCRL) HEADLAMP-DISCHARGE |
1 | ||
| 85312-47020 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85312-47020 |
ALA40,41..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
ALA4#,ZSA44 |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-42320 |
ALA4#,ZSA44 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ALA4#,ZSA44 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ALA4#,ZSA44 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85375-60290 |
ALA4#,ZSA44 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
ALA4#,ZSA44 |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85337-42350 |
ALA4#,ZSA44 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ALA4#,ZSA44 *H,L=720,*562 |
1 | ||
| 90099-33080 |
ALA4#..LHD..(G,M) *H,L=720,HEADLAMP-DISCHARGE & W(*AHB),*562 |
1 | ||
| 90099-33080 |
ALA4#..LHD *H,L=720,COLD AREA SPEC,*562 |
1 | ||
| 90099-33080 |
ALA49..LHD..G..DCR;ALA40,41..LHD..(G,M);ALA49..(G,M)..(DCRE,DCRL) *H,L=720,HEADLAMP-DISCHARGE,*562 |
1 | ||
| 90099-33080 |
ALA40,41..LHD..(G,M) *H,L=720,COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB),*562 |
1 | ||
| 90099-33080 |
ALA40,41..LHD..(G,M) *H,L=720,COLD AREA SPEC&HEADLAMP-DISCHARGE,*562 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ALA4#,ZSA44 *H,L=720,*562 |
1 | ||
| 90099-33080 |
ALA4#..LHD..(G,M) *H,L=720,HEADLAMP-DISCHARGE & W(*AHB),*562 |
1 | ||
| 90099-33080 |
ALA4#..LHD *H,L=720,COLD AREA SPEC,*562 |
1 | ||
| 90099-33080 |
ALA49..LHD..G..DCR;ALA40,41..LHD..(G,M);ALA49..(G,M)..(DCRE,DCRL) *H,L=720,HEADLAMP-DISCHARGE,*562 |
1 | ||
| 90099-33080 |
ALA40,41..LHD..(G,M) *H,L=720,COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB),*562 |
1 | ||
| 90099-33080 |
ALA40,41..LHD..(G,M) *H,L=720,COLD AREA SPEC&HEADLAMP-DISCHARGE,*562 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
ALA4#,ZSA44 *H,L=1020,*562 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
ALA4#,ZSA44 *H,L=1020,*562 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
ALA4#,ZSA44 *H,L=680 |
2 | ||
| 90099-33080 |
ALA4#,ZSA44 *H,L=680 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
ALA4#,ZSA44 *H,L=440 |
2 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
ALA4#,ZSA44 *H,L=440 |
2 | ||
| Common parts | ||||
| 82711-10500 | ||||
| 85371-12040 | ||||
| 85387-12840 | ||||
| 90119-06767 | ||||
| 90467-10216 | ||||
| 90469-07011 | ||||
| Linked diagrams | ||||
| 8504 | ||||
