ALA35R-BWFGRW (2010)

Toyota Rav4

Production Feb 2010 - Dec 2012
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )G..DCRE,DCRL,HTWVM

Click highlighted areas on diagram

W/O(NAVIGATION)

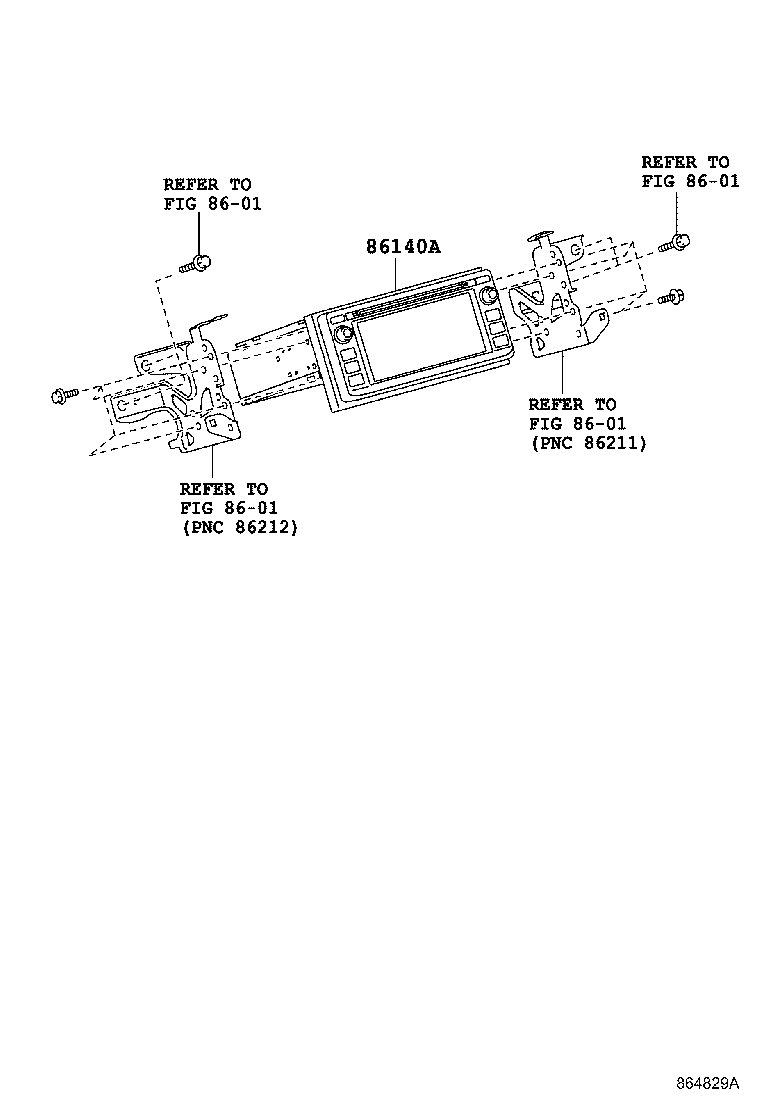

diagram 8601 8601 8601 8601 86140A
Part # Description Qty Price
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-0W010

ALA3#,ZSA3#..G..(DCRE,DCRL,HTWVM)

PANASONIC,ID=59029,EURO-AUDIO LESS PACKAGE

 1
Linked diagrams
8601
