ALA35R-BWFGRW (2010)

Toyota Rav4

Production Feb 2010 - Dec 2012
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1002- )BTYPE

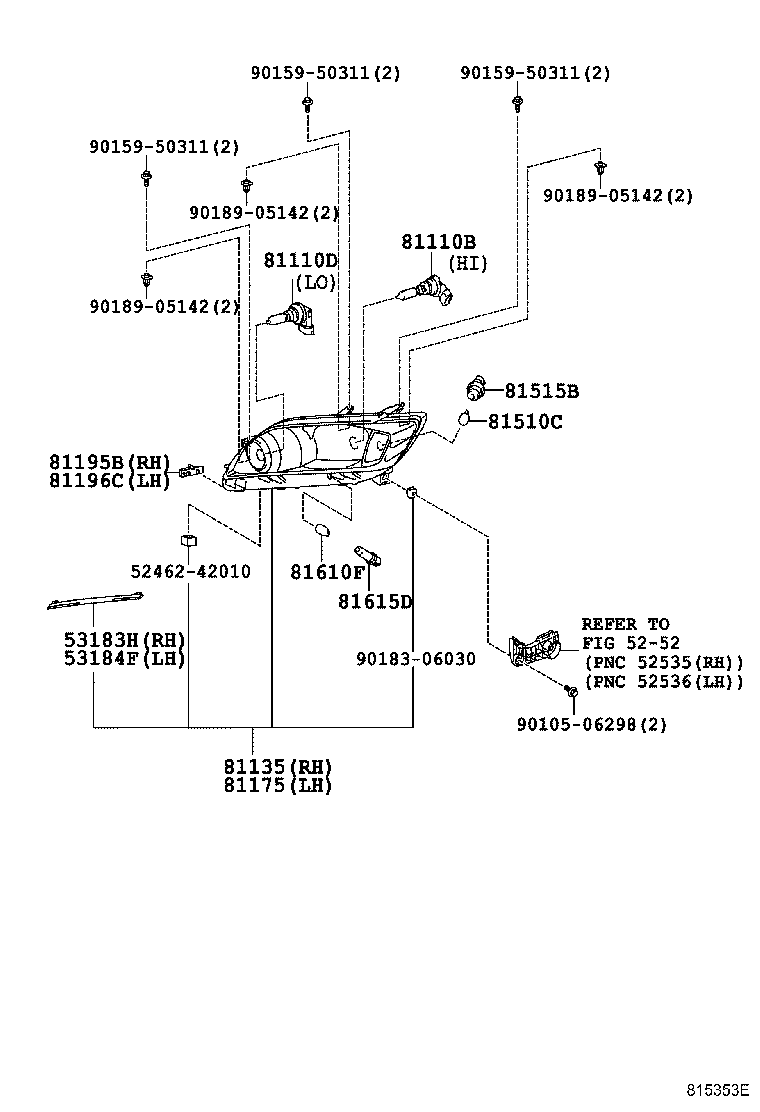

Click highlighted areas on diagram

diagram 5246242010 5252 53183H 53184F 81110B 81110D 81135 81175 81195B 81196C 81510C 81515B 81610F 81615D 9010506298 9015950311 9015950311 9015950311 9018306030 9018905142 9018905142 9018905142
Part # Description Qty Price
53183H - SEAL, HEADLAMP COVER, RH
53183-42050

ALA3#,ZSA3#..BTYPE

 1
53184F - SEAL, HEADLAMP COVER, LH
53184-42050

ALA3#,ZSA3#..BTYPE

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-42490

ALA3#,ZSA3#..RHD..BTYPE

 1
81130-42491

ALA3#,ZSA3#..RHD..BTYPE

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-42490

ALA3#,ZSA3#..RHD..BTYPE

 1
81170-42491

ALA3#,ZSA3#..RHD..BTYPE

 1
81615D - SOCKET, CLEARANCE LAMP
90075-60077

ALA3#,ZSA3#..BTYPE

 2
Common parts
52462-42010
90105-06298
90159-50311
90183-06030
90189-05142
Linked diagrams
5252
