ALA35R-BWFGRW (2010)

Toyota Rav4

Production Feb 2010 - Dec 2012
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1002- )RHD..BTYPE

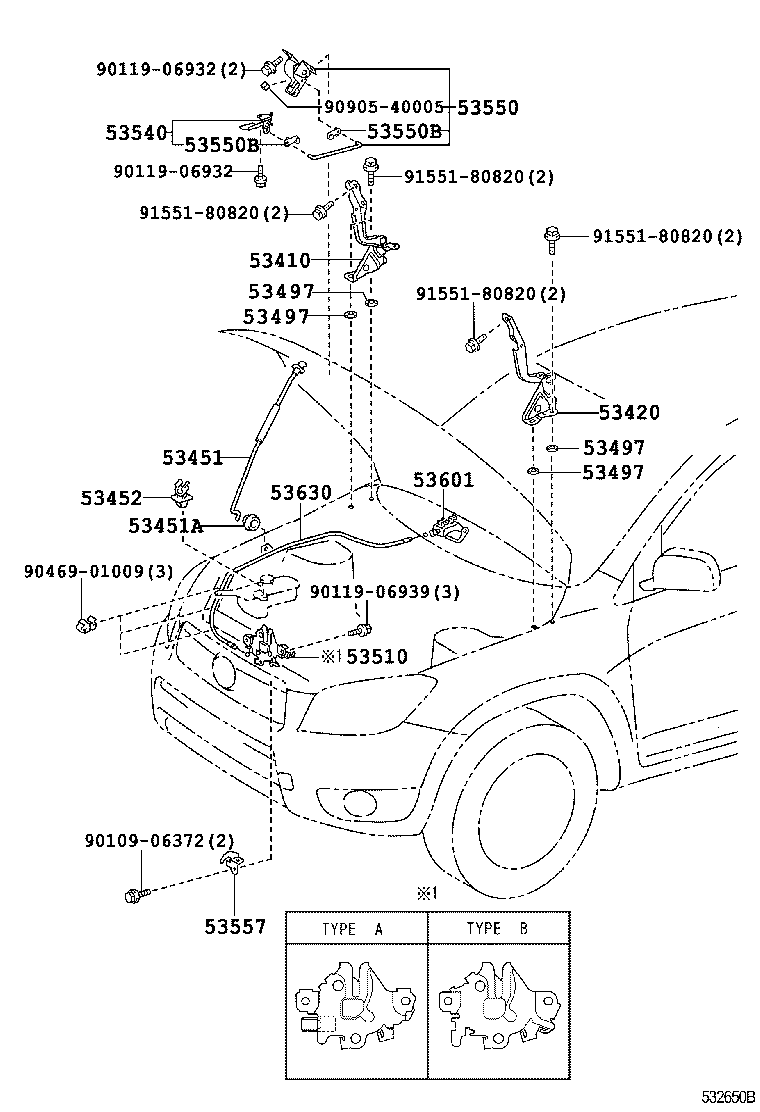

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53452 53497 53497 53497 53497 53510 53540 53550 53550B 53550B 53557 53601 53630 9010906372 9011906932 9011906932 9011906939 9046901009 9090540005 9155180820 9155180820 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-42090

ALA3#,ZSA3#..BTYPE

 1
53420 - HINGE ASSY, HOOD, LH
53420-42090

ALA3#,ZSA3#..BTYPE

 1
53451 - ROD, HOOD SUPPORT
53440-42050

ALA3#,ZSA3#..BTYPE

 1
53540 - LEVER ASSY, AUXILIARY CATCH RELEASE
53540-42020

ALA3#,ZSA3#..BTYPE

 1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-42030

ALA3#,ZSA3#..BTYPE

 1
53550-42031

ALA3#,ZSA3#..BTYPE

 1
53550B - SNAP, HOOD AUXILIARY CATCH HOOK CONTROL LINK
69759-24050

ALA3#,ZSA3#..BTYPE

 2
53550B - SNAP, HOOD AUXILIARY CATCH HOOK CONTROL LINK
69759-24050

ALA3#,ZSA3#..BTYPE

 2
53557 - CATCH, HOOD AUXILIARY HOOK
53557-42010

ALA3#,ZSA3#..BTYPE

 1
Common parts
90109-06372
90119-06932
90119-06939
90469-01009
90905-40005
91551-80820
