ALA35R-BWFGRW (2010)
Toyota Rav4
Production
Feb 2010
-
Dec 2012
Engine
2ADFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1002- )BTYPE

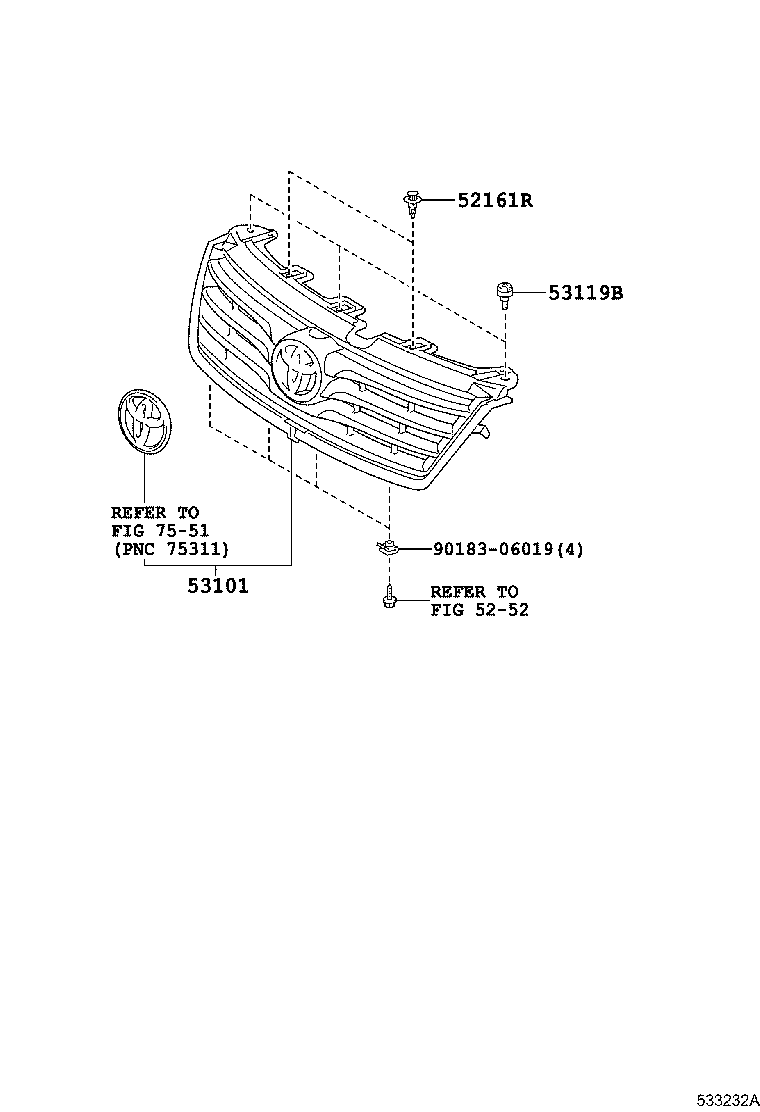

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-42361 |
ALA3#,ZSA3#..BTYPE NO PAINT REQ. |
1 | ||
| 53101-42360 |
ALA3#,ZSA3#..BTYPE NO PAINT REQ. |
1 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-42020 |
ALA3#,ZSA3#..BTYPE |
3 | ||
| Common parts | ||||
| 90183-06019 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 7551 | ||||
