ALA35R-BWFGRW (2010)
Toyota Rav4
Production
Feb 2010
-
Dec 2012
Engine
2ADFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0511- )ALA3#..6F

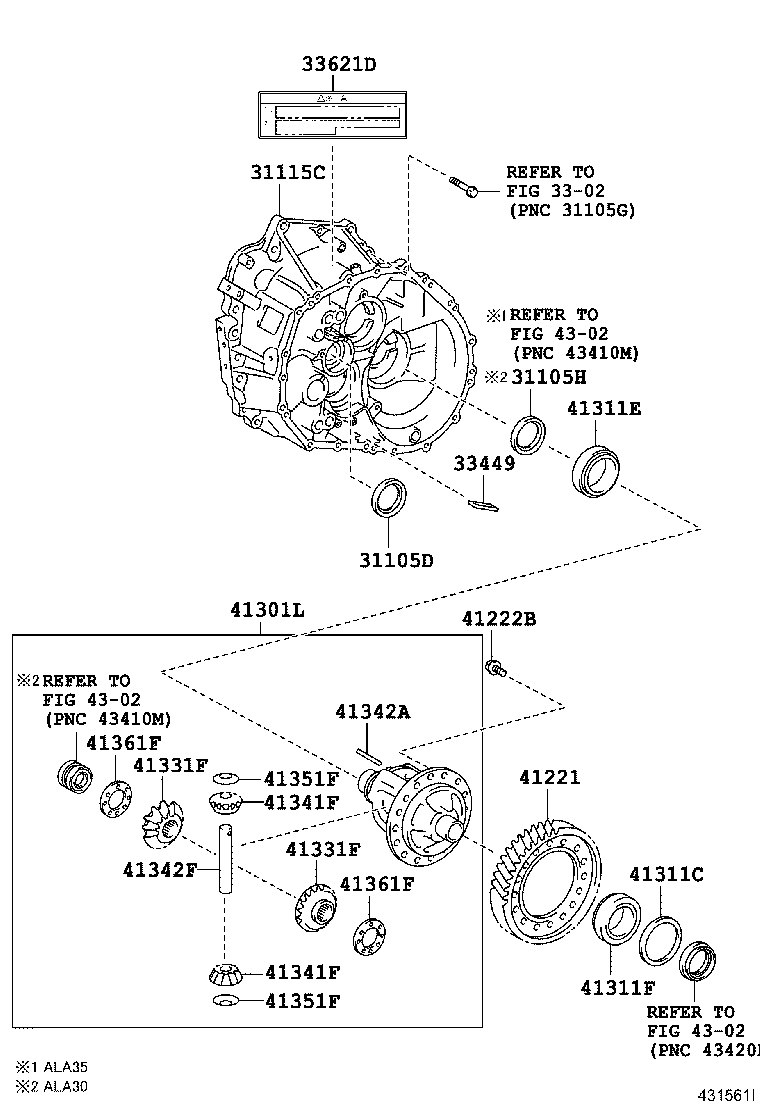

Click highlighted areas on diagram
EA64,EA64F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-20081 |
ALA35 |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-56110 |
ALA3#..6F T=2.05,MARK 1 |
1 | ||
| 90564-56113 |
ALA3#..6F T=2.20,MARK 4 |
1 | ||
| 90564-56114 |
ALA3#..6F T=2.25,MARK 5 |
1 | ||
| 90564-56116 |
ALA3#..6F T=2.35,MARK 7 |
1 | ||
| 90564-56109 |
ALA3#..6F T=2.00,MARK 0 |
1 | ||
| 90564-56111 |
ALA3#..6F T=2.10,MARK 2 |
1 | ||
| 90564-56119 |
ALA3#..6F T=2.50,MARK A |
1 | ||
| 90564-56115 |
ALA3#..6F T=2.30,MARK 6 |
1 | ||
| 90564-56112 |
ALA3#..6F T=2.15,MARK 3 |
1 | ||
| 90564-56118 |
ALA3#..6F T=2.45,MARK 9 |
1 | ||
| 90564-56126 |
ALA3#..6F T=2.85,MARK H |
1 | ||
| 90564-56125 |
ALA3#..6F T=2.80,MARK G |
1 | ||
| 90564-56117 |
ALA3#..6F T=2.40,MARK 8 |
1 | ||
| 90564-56121 |
ALA3#..6F T=2.60,MARK C |
1 | ||
| 90564-56124 |
ALA3#..6F T=2.75,MARK F |
1 | ||
| 90564-56120 |
ALA3#..6F T=2.55,MARK B |
1 | ||
| 90564-56123 |
ALA3#..6F T=2.70,MARK E |
1 | ||
| 90564-56122 |
ALA3#..6F T=2.65,MARK D |
1 | ||
| Linked diagrams | ||||
| 3302 | ||||
| 4302 | ||||
