ALA35R-BWFGRW (2010)
Toyota Rav4
Production
Feb 2010
-
Dec 2012
Engine
2ADFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0511- )ALA3#..6F

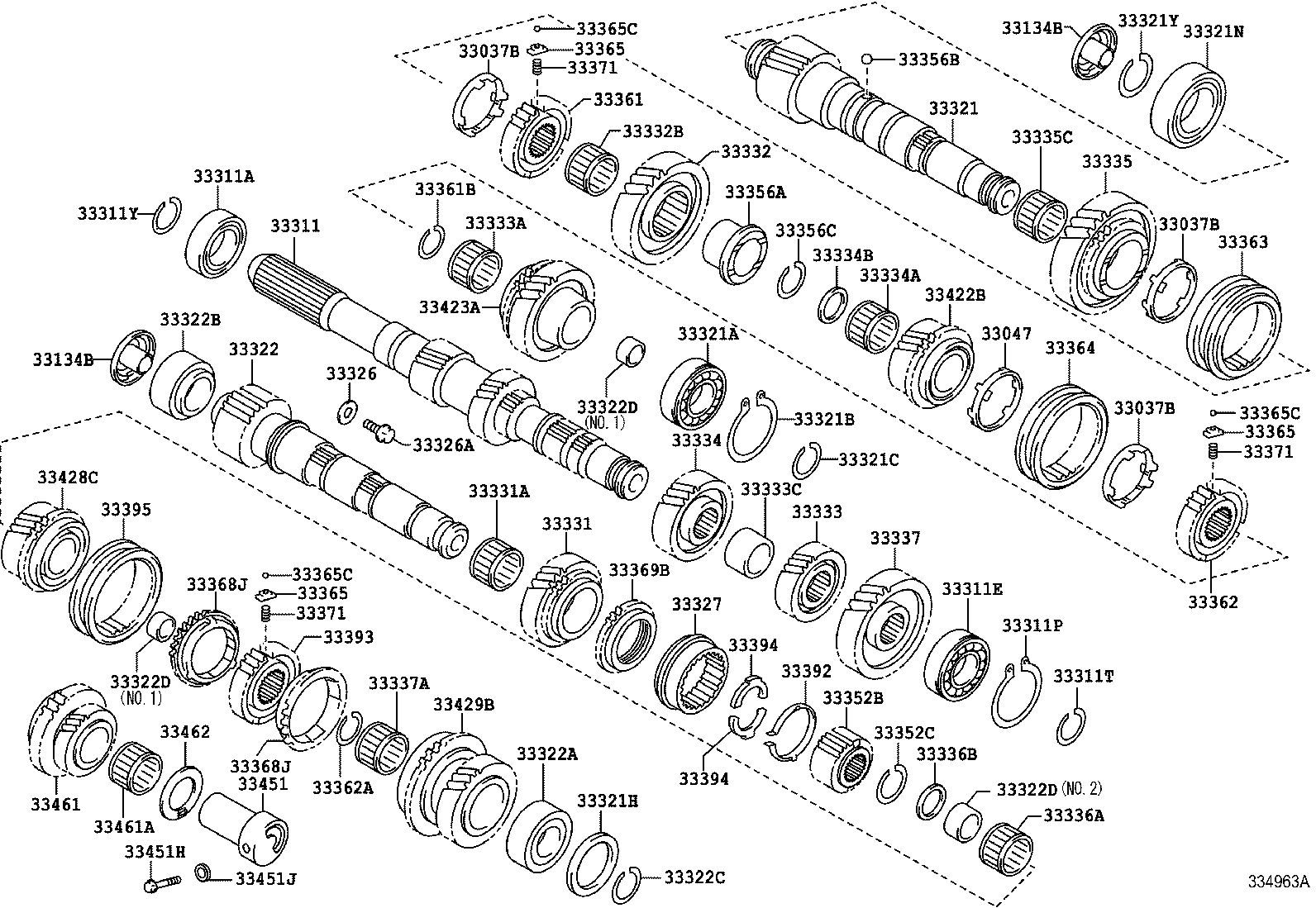

Click highlighted areas on diagram
EA64,EA64F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33311-42041 |
ALA3#..6F |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-32053 |
ALA3#..6F |
1 | ||
| 33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90564-45198 |
ALA3#..6F T=1.90,MARK C |
1 | ||
| 90564-45197 |
ALA3#..6F T=1.85,MARK B |
1 | ||
| 90564-45196 |
ALA3#..6F T=1.80,MARK A |
1 | ||
| 90564-45203 |
ALA3#..6F T=2.15,MARK H |
1 | ||
| 90564-45207 |
ALA3#..6F T=2.35 MARK M |
1 | ||
| 90564-45205 |
ALA3#..6F T=2.25,MARK K |
1 | ||
| 90564-45210 |
ALA3#..6F T=2.50,MARK Q |
1 | ||
| 90564-45204 |
ALA3#..6F T=2.20,MARK J |
1 | ||
| 90564-45199 |
ALA3#..6F T=1.95,MARK D |
1 | ||
| 90564-45206 |
ALA3#..6F T=2.30,MARK L |
1 | ||
| 90564-45200 |
ALA3#..6F T=2.00,MARK E |
1 | ||
| 90564-45201 |
ALA3#..6F T=2.05,MARK F |
1 | ||
| 90564-45211 |
ALA3#..6F T=2.55,MARK R |
1 | ||
| 90564-45212 |
ALA3#..6F T=2.60,MARK S |
1 | ||
| 90564-45208 |
ALA3#..6F T=2.40,MARK N |
1 | ||
| 90564-45213 |
ALA3#..6F T=2.65,MARK T |
1 | ||
| 90564-45202 |
ALA3#..6F T=2.10,MARK G |
1 | ||
| 90564-45209 |
ALA3#..6F T=2.45,MARK P |
1 | ||
| 33337 - GEAR SUB-ASSY, 6TH | ||||
| 33337-42011 |
ALA3#..6F |
1 | ||
