ALA35R-BWFGRW (2010)

Toyota Rav4

Production Feb 2010 - Dec 2012
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )2AD#

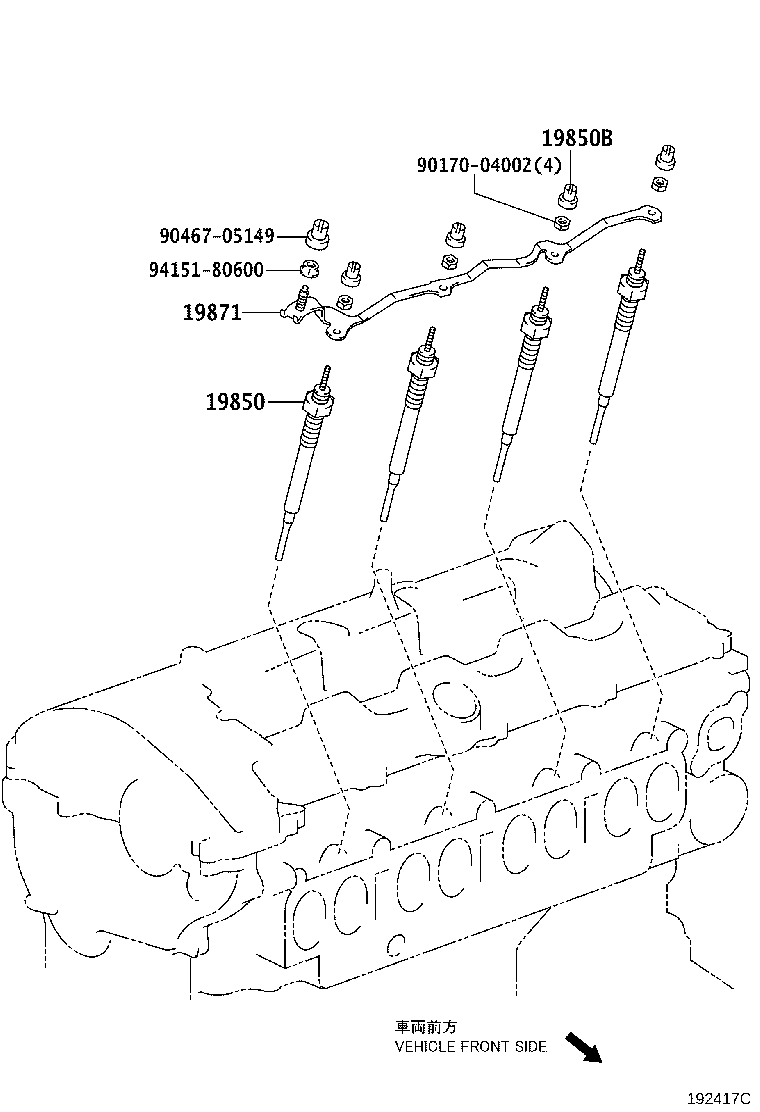

Click highlighted areas on diagram

diagram 19850 19850B 19871 9017004002 9046705149 9415180600
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-26022

2AD#..ALA3#

*BV-GV=12V-11V

 4
Common parts
90170-04002
90467-05149
94151-80600
