ALA35R-BWFGRW (2010)

Toyota Rav4

Production Feb 2010 - Dec 2012
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1208- )2AD#..DCRE,DCRL

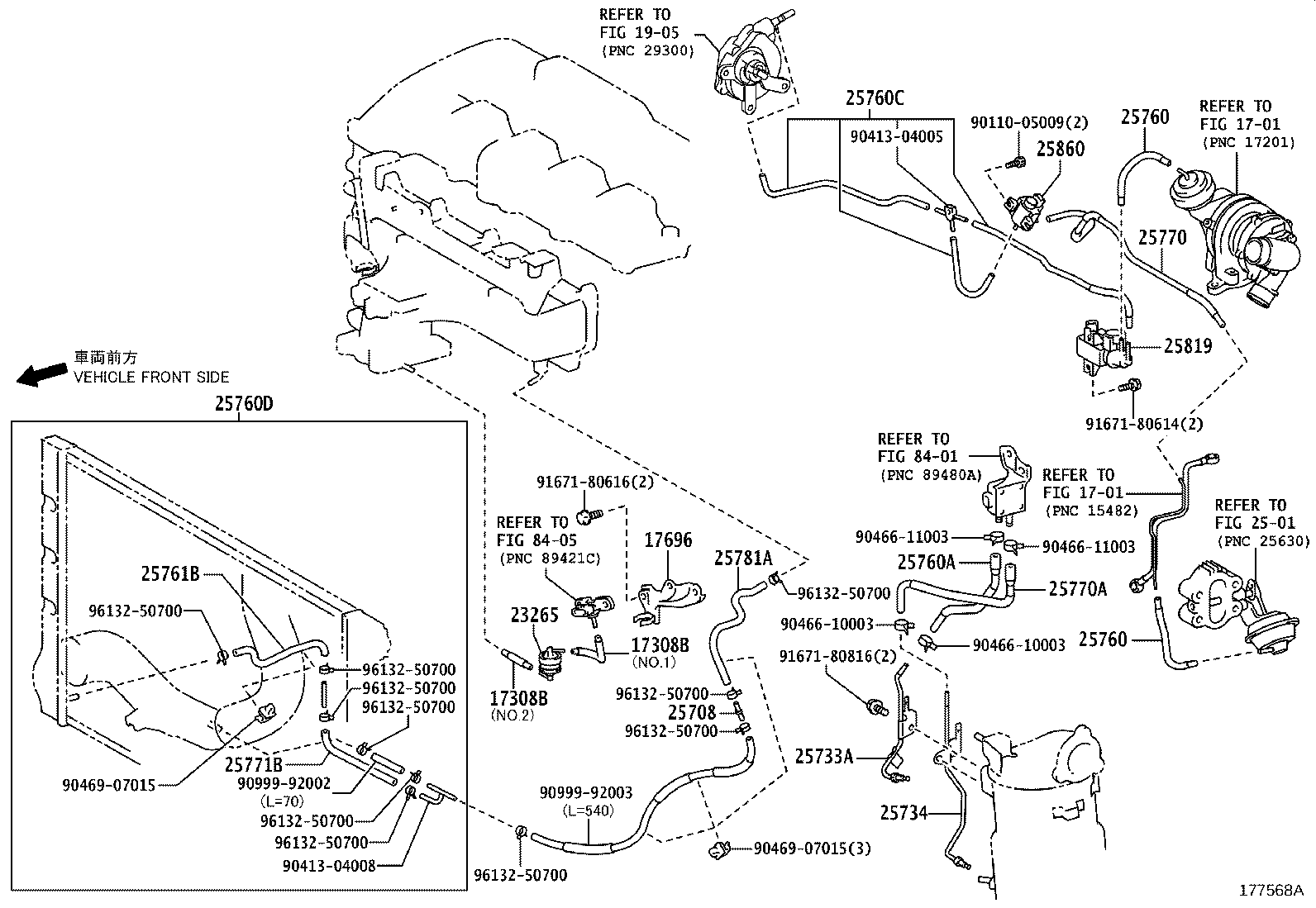

Click highlighted areas on diagram

diagram 1701 1701 17308B 17308B 17696 1905 23265 2501 25708 25733A 25734 25760 25760 25760A 25760C 25760D 25761B 25770 25770A 25771B 25781A 25819 25860 8401 8405 9011005009 9041304005 9041304008 9046610003 9046610003 9046611003 9046611003 9046907015 9046907015 9099992002 9099992003 9167180614 9167180616 9167180816 9613250700 9613250700 9613250700 9613250700 9613250700 9613250700 9613250700 9613250700 9613250700 9613250700
Part # Description Qty Price
25760A - HOSE ASSY, VACUUM TRANSMITTING
25760-26181

2AD#..ALA3#..DCRE,DCRL

 1
25760C - HOSE ASSY, VACUUM TRANSMITTING, NO.3
25760-26200

2AD#..ALA3#

 1
25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-26172

2AD#..ALA3#

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-0R012

2AD#..ALA3#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-0R011

2AD#..ALA3#

 1
Common parts
90110-05009
90413-04005
90413-04008
90466-10003
90466-11003
90469-07015
90999-92002
90999-92003
91671-80614
91671-80616
91671-80816
96132-50700
