ALA35R-BWFGRW (2010)

Toyota Rav4

Production Feb 2010 - Dec 2012
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )2AD#

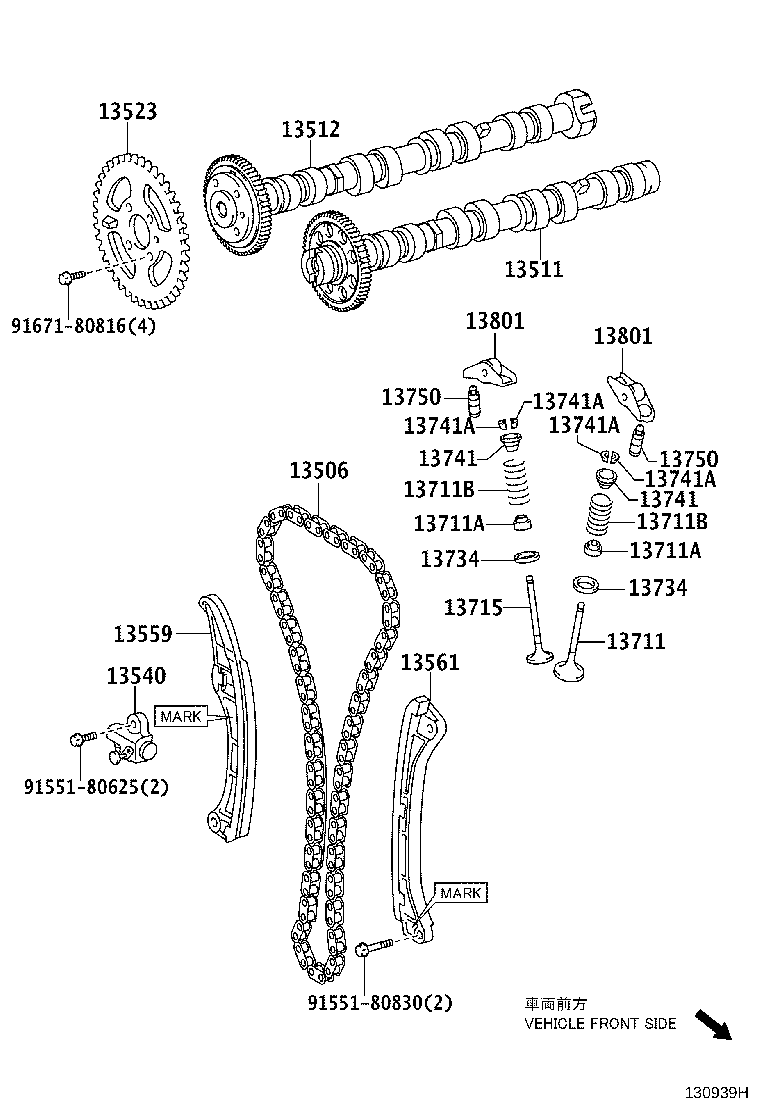

Click highlighted areas on diagram

diagram 13506 13511 13512 13523 13540 13559 13561 13711 13711A 13711A 13711B 13711B 13715 13734 13734 13741 13741 13741A 13741A 13741A 13741A 13750 13750 13801 13801 9155180625 9155180830 9167180816
Part # Description Qty Price
13512 - CAMSHAFT, NO.2
13502-26011

2AD#..ALA3#

 1
13559 - SLIPPER, CHAIN TENSIONER
13559-0R020

2AD#..ALA3#

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-0R020

2AD#..ALA3#

 1
Common parts
91551-80625
91551-80830
91671-80816
