ALA35R-BWFGRW (2010)

Toyota Rav4

Production Feb 2010 - Dec 2012
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )2AD#

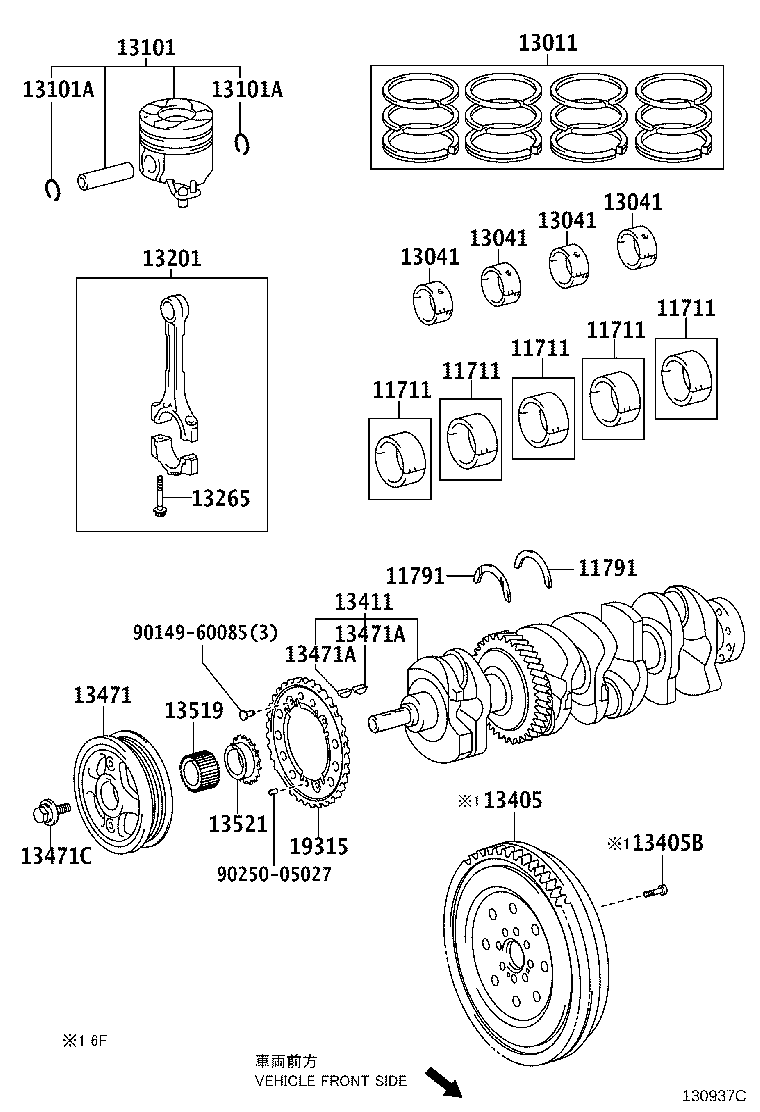

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11711 11791 11791 13011 13041 13041 13041 13041 13101 13101A 13101A 13201 13265 13405 13405B 13411 13471 13471A 13471A 13471C 13519 13521 19315 9014960085 9025005027
Part # Description Qty Price
13011 - RING SET, PISTON
13011-0R040

2AD#..ALA3#

STD,(L)

 1
13011-26110

2AD#..ALA3#

STD,(J)

 1
Common parts
90149-60085
90250-05027
