ALA35R-BWFGRW (2010)

Toyota Rav4

Production Feb 2010 - Dec 2012
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1208- )2AD#

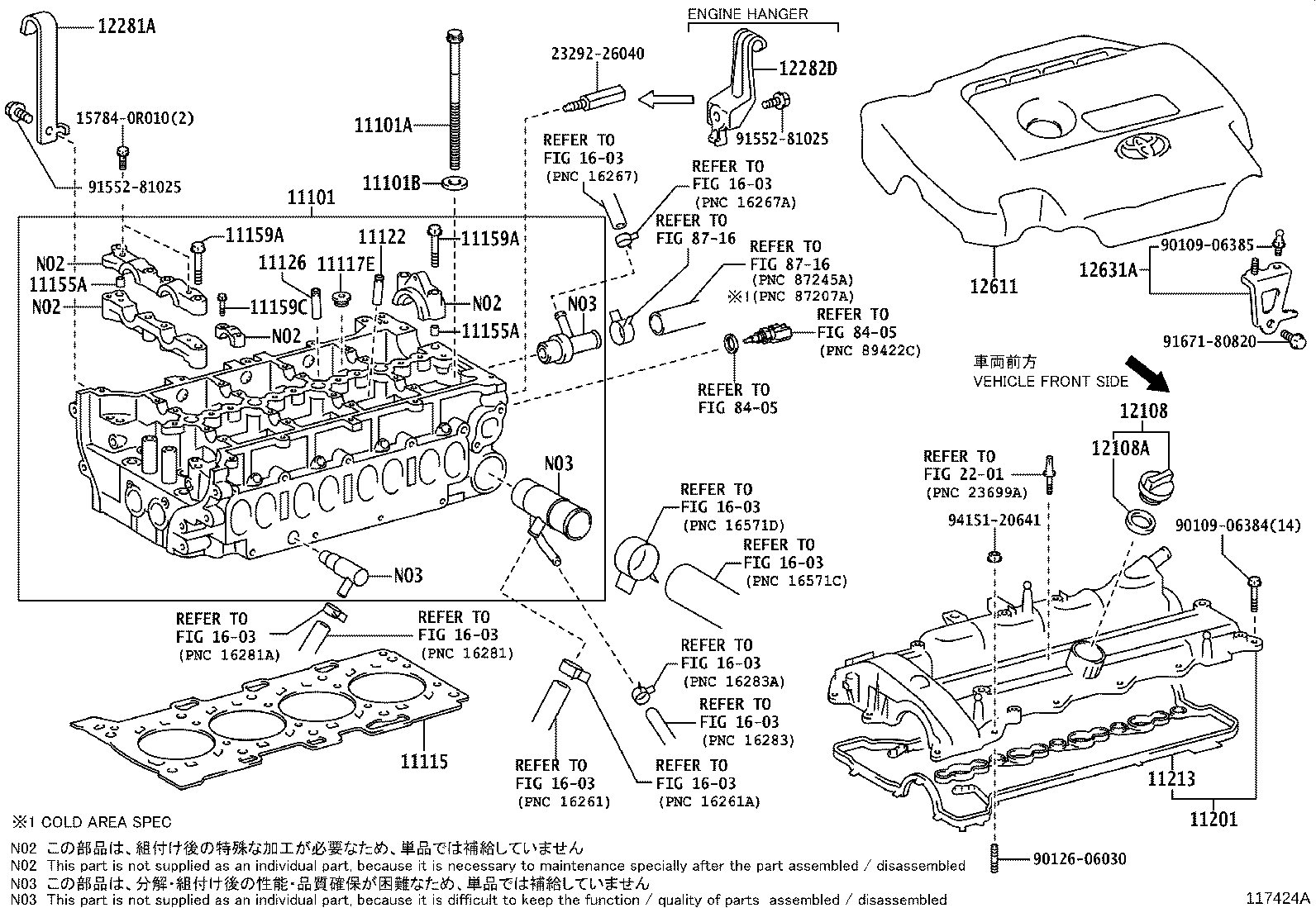

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11117E 11122 11126 11155A 11155A 11159A 11159A 11159C 11201 11213 12108 12108A 12281A 12282D 12611 12631A 157840R010 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 2201 2329226040 8405 8405 8716 8716 9010906384 9010906385 9012606030 9155281025 9155281025 9167180820 9415120641
Part # Description Qty Price
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-0R042

2AD#..ALA3#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-0R040

2AD#..ALA3#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-38010

2AD#..ALA3#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-35001

2AD#..ALA3#

 1
Common parts
15784-0R010
23292-26040
90109-06384
90109-06385
90126-06030
91552-81025
91671-80820
94151-20641
Linked diagrams
1603
2201
8405
8716
