ACA30R-AWPGKW (2008)

Toyota Rav4

Production Dec 2008 - Dec 2012
Engine 1AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )

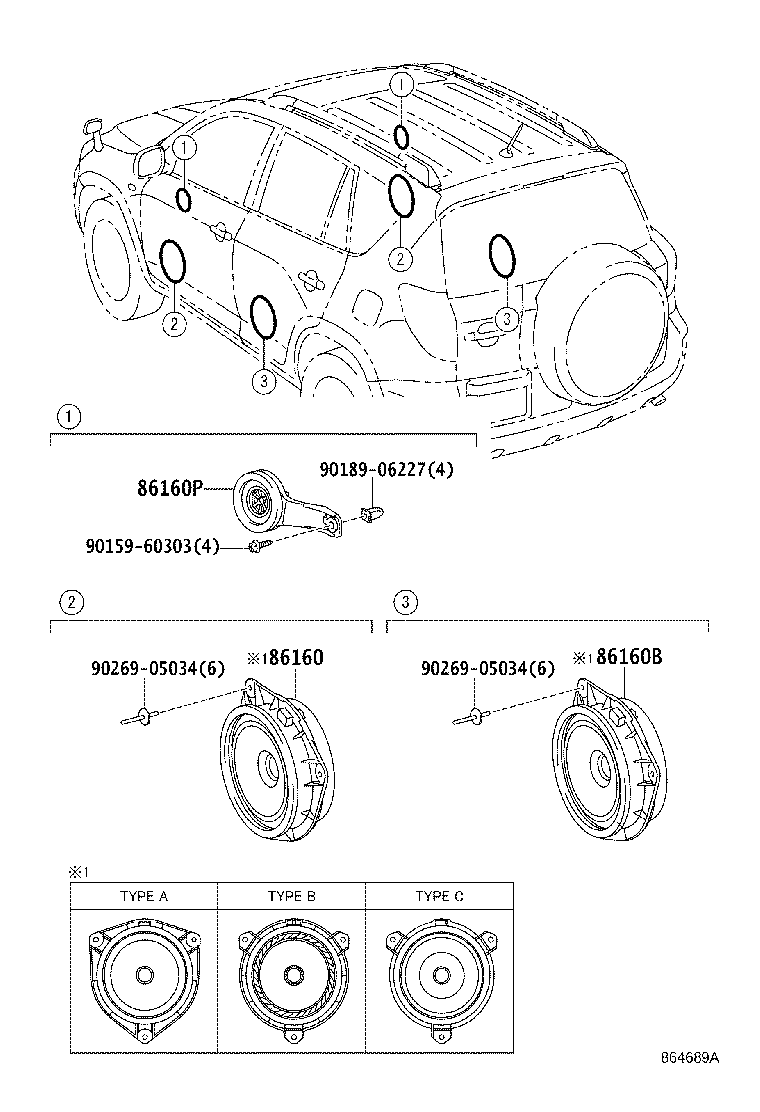

Click highlighted areas on diagram

diagram 86160 86160B 86160P 9015960303 9018906227 9026905034 9026905034
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-22A10

ACA3#,ALA30,GSA33

TYPE A:REFER ILLUST.

 2
86160-52330

ACA3#,ALA3#,GSA33,ZSA3#

TYPE C:REFER ILLUST.

 2
86160-2B580

ACA3#,ALA30,GSA33

TYPE B:REFER ILLUST.

 2
86160B - SPEAKER ASSY, REAR
86160-2B580

ACA3#,ALA30,GSA33

TYPE B:REFER ILLUST.

 2
86160-52330

ACA3#,ALA3#,GSA33,ZSA3#

TYPE C:REFER ILLUST.

 2
86160-22A10

ACA3#,ALA30,GSA33

TYPE A:REFER ILLUST.

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-42120

ACA33..G..GCC;ACA30,31,ALA30

RH

 1
86160-42130

ACA33..G..GCC;ACA30,31,ALA30

LH

 1
Common parts
90159-60303
90189-06227
90269-05034
