ACA30R-AWPGKW (2008)
Toyota Rav4

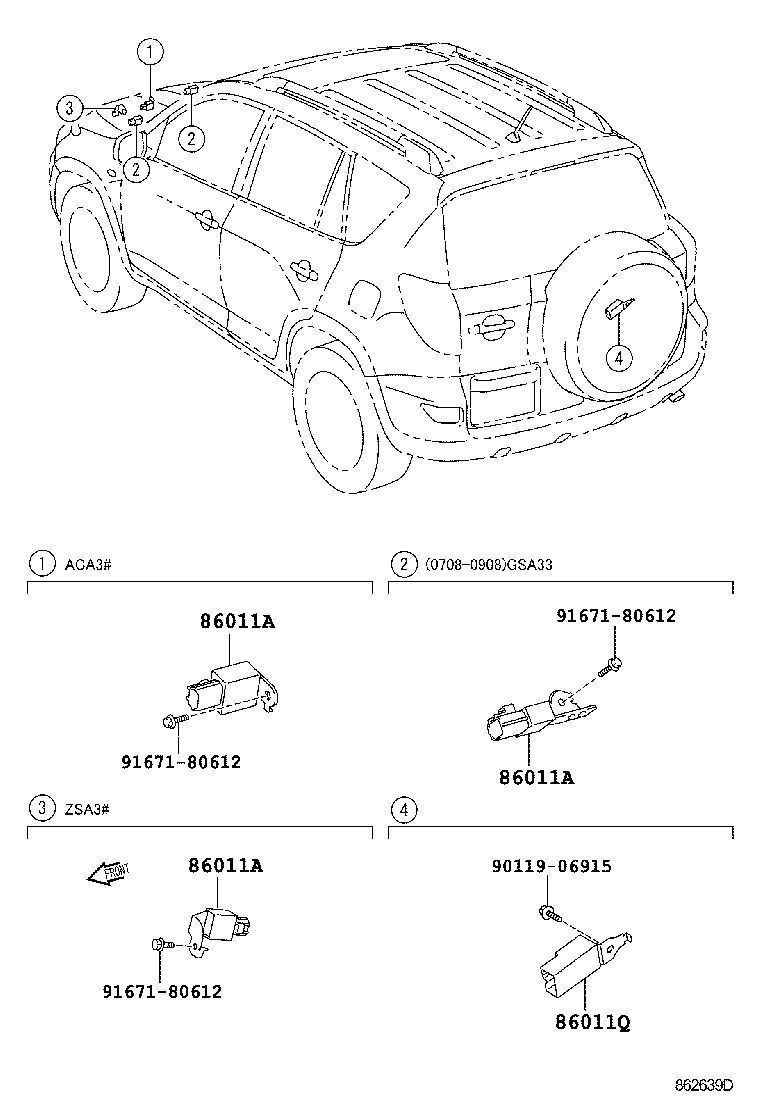

ILLUST NO. 3 OF 3(0511- )
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04195 |
ACA30,31;ACA33..G..GCC |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04195 |
ACA30,31;ACA33..G..GCC |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04195 |
ACA30,31;ACA33..G..GCC |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04197 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80612 | ||||
ILLUST NO. 1 OF 3(0511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-42220 |
ACA30,31,ALA30..G MATSUSHITA, ID=58827 |
1 | ||
| 86120-42220 |
ACA30,ALA30..G MATSUSHITA, ID=58827,AUDIO-RADIO LESS |
1 | ||
| 86120-42280 |
ACA30,ALA3#,ZSA3#..G MATSUSHITA, ID=53831,AUDIO-RADIO LESS |
1 | ||
| 86120-42280 |
ACA30,33,ALA3#,ZSA3#..G..EUR MATSUSHITA, ID=53831 |
1 | ||
| 86120-42220 |
ACA30,ALA30..G MATSUSHITA, ID=58827,TYPE C:REFER ILLUST. |
1 | ||
| 86120-42220 |
ACA30,31,ALA30..G MATSUSHITA, ID=58827,TYPE C:REFER ILLUST. |
1 | ||
| 86120-42280 |
ACA30,ALA3#,ZSA3#..G MATSUSHITA, ID=53831,TYPE E:REFER ILLUST. |
1 | ||
| 86120-42280 |
ACA30,33,ALA3#,ZSA3#..G..EUR MATSUSHITA, ID=53831,TYPE E:REFER ILLUST. |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-42220 |
ACA30,31,ALA30..G MATSUSHITA, ID=58827 |
1 | ||
| 86120-42220 |
ACA30,ALA30..G MATSUSHITA, ID=58827,AUDIO-RADIO LESS |
1 | ||
| 86120-42280 |
ACA30,ALA3#,ZSA3#..G MATSUSHITA, ID=53831,AUDIO-RADIO LESS |
1 | ||
| 86120-42280 |
ACA30,33,ALA3#,ZSA3#..G..EUR MATSUSHITA, ID=53831 |
1 | ||
| 86120-42220 |
ACA30,ALA30..G MATSUSHITA, ID=58827,TYPE C:REFER ILLUST. |
1 | ||
| 86120-42220 |
ACA30,31,ALA30..G MATSUSHITA, ID=58827,TYPE C:REFER ILLUST. |
1 | ||
| 86120-42280 |
ACA30,ALA3#,ZSA3#..G MATSUSHITA, ID=53831,TYPE E:REFER ILLUST. |
1 | ||
| 86120-42280 |
ACA30,33,ALA3#,ZSA3#..G..EUR MATSUSHITA, ID=53831,TYPE E:REFER ILLUST. |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-24125 |
ACA30,31,ALA30 |
2 | ||
| 90010-24135 |
ACA30,ALA3#,ZSA3# AUDIO-RADIO LESS |
2 | ||
| 90010-24125 |
ACA30,ALA30 AUDIO-RADIO LESS |
2 | ||
| 90010-24135 |
ACA30,33,ALA3#,ZSA3#..EUR |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-24125 |
ACA30,31,ALA30 |
2 | ||
| 90010-24135 |
ACA30,ALA3#,ZSA3# AUDIO-RADIO LESS |
2 | ||
| 90010-24125 |
ACA30,ALA30 AUDIO-RADIO LESS |
2 | ||
| 90010-24135 |
ACA30,33,ALA3#,ZSA3#..EUR |
2 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-42010 |
ACA30,ALA3#,ZSA3# AUDIO-RADIO LESS |
1 | ||
| 86190-42010 |
ACA30,33,ALA3#,ZSA3#..EUR |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-42050 |
ACA30,ALA3#,ZSA3# AUDIO-RADIO LESS |
1 | ||
| 86211-42060 |
ACA30,31,ALA30 |
1 | ||
| 86211-42060 |
ACA30,33,ALA3#,ZSA3#..EUR |
1 | ||
| 86211-42050 |
ACA30,ALA30 AUDIO-RADIO LESS |
1 | ||
| 86211-42090 |
ACA30,ALA3#,ZSA3# AUDIO-RADIO LESS |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-42050 |
ACA30,ALA3#,ZSA3# AUDIO-RADIO LESS |
1 | ||
| 86211-42060 |
ACA30,31,ALA30 |
1 | ||
| 86211-42060 |
ACA30,33,ALA3#,ZSA3#..EUR |
1 | ||
| 86211-42050 |
ACA30,ALA30 AUDIO-RADIO LESS |
1 | ||
| 86211-42090 |
ACA30,ALA3#,ZSA3# AUDIO-RADIO LESS |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-42060 |
ACA30,31,ALA30 |
1 | ||
| 86212-42050 |
ACA30,ALA3#,ZSA3# AUDIO-RADIO LESS |
1 | ||
| 86212-42060 |
ACA30,33,ALA3#,ZSA3#..EUR |
1 | ||
| 86212-42090 |
ACA30,ALA3#,ZSA3# AUDIO-RADIO LESS |
1 | ||
| 86212-42050 |
ACA30,ALA30 AUDIO-RADIO LESS |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-42060 |
ACA30,31,ALA30 |
1 | ||
| 86212-42050 |
ACA30,ALA3#,ZSA3# AUDIO-RADIO LESS |
1 | ||
| 86212-42060 |
ACA30,33,ALA3#,ZSA3#..EUR |
1 | ||
| 86212-42090 |
ACA30,ALA3#,ZSA3# AUDIO-RADIO LESS |
1 | ||
| 86212-42050 |
ACA30,ALA30 AUDIO-RADIO LESS |
1 | ||
| 86221D - PANEL, RADIO RECEIVER | ||||
| 86221-52060 |
ACA30,ALA30;ACA33..G..GCC AUDIO-RADIO LESS,RH |
1 | ||
| 86221-52050 |
ACA30,ALA30;ACA33..G..GCC AUDIO-RADIO LESS,LH |
1 | ||
| 86221D - PANEL, RADIO RECEIVER | ||||
| 86221-52060 |
ACA30,ALA30;ACA33..G..GCC AUDIO-RADIO LESS,RH |
1 | ||
| 86221-52050 |
ACA30,ALA30;ACA33..G..GCC AUDIO-RADIO LESS,LH |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 91554-80612 | ||||
ILLUST NO. 2 OF 3(0511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-42220 |
ACA30,31,ALA30..G MATSUSHITA, ID=58827 |
1 | ||
| 86120-42220 |
ACA30,ALA30..G MATSUSHITA, ID=58827,AUDIO-RADIO LESS |
1 | ||
| 86120-42280 |
ACA30,ALA3#,ZSA3#..G MATSUSHITA, ID=53831,AUDIO-RADIO LESS |
1 | ||
| 86120-42280 |
ACA30,33,ALA3#,ZSA3#..G..EUR MATSUSHITA, ID=53831 |
1 | ||
| 86120-42220 |
ACA30,ALA30..G MATSUSHITA, ID=58827,TYPE C:REFER ILLUST. |
1 | ||
| 86120-42220 |
ACA30,31,ALA30..G MATSUSHITA, ID=58827,TYPE C:REFER ILLUST. |
1 | ||
| 86120-42280 |
ACA30,ALA3#,ZSA3#..G MATSUSHITA, ID=53831,TYPE E:REFER ILLUST. |
1 | ||
| 86120-42280 |
ACA30,33,ALA3#,ZSA3#..G..EUR MATSUSHITA, ID=53831,TYPE E:REFER ILLUST. |
1 | ||
